Raspberry Pi Compute Module 4 CM4101016 1GB/16GB WiFi/BT
Raspberry Pi Compute Module 4 CM4101016 1GB/16GB WiFi/BT - Image 2
Raspberry Pi Compute Module 4 CM4101016 1GB/16GB WiFi/BT - Image 3
Raspberry Pi Compute Module 4 CM4101016 1GB/16GB WiFi/BT - Image 4
SKU: SBCD-0889
📋 GST Invoice Available

Raspberry Pi Compute Module 4 CM4101016 1GB/16GB WiFi/BT

₹8,649.00 (Inclusive of all taxes)
Out of Stock

The Raspberry Pi Compute Module 4 CM4101016 is a compact system-on-module featuring a quad-core ARM Cortex-A72 processor, 1GB LPDDR4 RAM, and 16GB eMMC storage with integrated WiFi and Bluetooth 5.0, designed for embedded applications.

Features

  • Quad-core Broadcom BCM2711 Cortex-A72 @ 1.5GHz
  • 1GB LPDDR4 RAM for robust embedded performance
  • Integrated 16GB eMMC for fast, reliable storage
  • Dual-band 802.11ac Wi-Fi & Bluetooth 5.0 with BLE
  • Compact form factor for custom carrier board integration

Out of stock

Description

The Raspberry Pi Compute Module 4 (CM4101016) offers a powerful and compact solution for embedded and industrial applications. Built around a quad-core ARM Cortex-A72 processor running at 1.5GHz and complemented by 1GB of LPDDR4 RAM, this module delivers reliable performance for a wide array of projects, from industrial automation to advanced IoT gateways.

Featuring 16GB of onboard eMMC storage, the CM4101016 ensures fast data access and robust system stability, ideal for operating systems and application data. Its integrated dual-band Wi-Fi (802.11ac) and Bluetooth 5.0 connectivity provide seamless wireless networking and peripheral communication. Designed specifically for integration with custom carrier boards, this module is an optimal choice for systems requiring flexibility, efficiency, and high-performance processing in a minimal footprint.

Key Features

  • Compact System-on-Module Design: Small form factor ideal for embedded systems and custom hardware integration where space is limited.
  • Powerful Quad-Core Processor: Equipped with a Broadcom BCM2711 Cortex-A72 CPU running at 1.5GHz for smooth multitasking and efficient performance.
  • 1GB LPDDR4 RAM: Provides reliable memory performance for running applications, lightweight computing, and embedded tasks.
  • 16GB eMMC Storage: Built-in high-speed storage ensures faster boot times and dependable data handling compared to traditional SD cards.
  • Dual-Band WiFi Connectivity: Supports both 2.4GHz and 5GHz bands, offering stable and flexible wireless networking options.
  • Bluetooth 5.0 with BLE: Enables efficient short-range communication with low power consumption, suitable for IoT and wireless devices.
  • Dual Display Support: Capable of handling two video outputs, making it useful for digital signage and multimedia applications.
  • Wide Temperature Support: Operates reliably across a broad temperature range (-20°C to +85°C), suitable for industrial environments.

Applications

  • IoT Gateways
  • Industrial Automation
  • Robotics Control
  • Edge Computing Systems
  • Digital Signage
  • Multimedia Devices

Technical Specifications

CPUBroadcom BCM2711, Quad-core Cortex-A72 @ 1.5GHz
RAM1GB LPDDR4-3200 SDRAM
Storage16GB eMMC Flash
WirelessWiFi 802.11 b/g/n/ac, Bluetooth 5.0
Operating Temperature-20°C to +85°C
OS SupportLinux
IntegrationCompatible with custom carrier boards

Frequently Asked Questions

What processor powers the CM4101016?

The CM4101016 is powered by a Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC, clocked at 1.5GHz. This provides robust processing capabilities for embedded systems, industrial automation, and lightweight server applications, leveraging its advanced ARM architecture for efficient task execution and performance.

What are the memory and storage configurations?

This CM4 variant features 1GB of LPDDR4 RAM and 16GB of onboard eMMC flash storage. The LPDDR4 ensures fast memory access for demanding applications, while the eMMC provides reliable, high-speed storage for the operating system and user data, outperforming typical SD card solutions.

Does this module support wireless connectivity?

Yes, the CM4101016 includes integrated dual-band 802.11ac Wi-Fi (2.4GHz and 5GHz) and Bluetooth 5.0 with Bluetooth Low Energy (BLE). These wireless capabilities enable flexible networking for IoT devices and seamless communication with peripherals in various embedded environments.

What operating systems are supported on the CM4101016?

The Raspberry Pi Compute Module 4 primarily supports Linux-based operating systems, including various distributions of Raspberry Pi OS (formerly Raspbian) tailored for embedded applications. Users can also deploy other ARM-compatible Linux distributions or custom embedded OS builds, providing flexibility for diverse project requirements.

How is the CM4101016 typically integrated into projects?

The CM4101016 is designed as a system-on-module (SOM) meant for integration with custom carrier boards. These carrier boards provide the necessary power management, I/O connectors (like PCIe, CSI, DSI, USB, HDMI), and physical interfaces required to deploy the CM4 in specific embedded or industrial solutions, enabling high customization.

Package Includes

  • 1 x Raspberry Pi Compute Module 4 (CM4101016) – 1GB RAM, 16GB eMMC, WiFi & Bluetooth 5.0

Additional Information

Weight 6 kg

Related Products

Out of Stock

EDATEC CM4 IO Computer 2GB RAM 8GB eMMC w/ WiFi & Case

15,389.00
Learn More
Out of Stock

EDATEC ED-CM4NANO Raspberry Pi CM4 ARM Cortex-A72 SBC

11,189.00
Learn More
Out of Stock

Waveshare CM4 to Pi 4B Adapter Board for CM4 Lite/eMMC

2,139.00
Learn More
Out of Stock

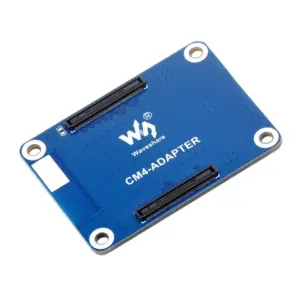

Waveshare CM4 Interface Protection Adapter Board

819.00
Learn More
Out of Stock

Quectel EC200 4G LTE eSIM Raspberry Pi HAT

7,210.98
Learn More
Out of Stock

Digilent Arty Z7-20 Zynq-7000 SoC Dev Board

42,839.00
Learn More
Out of Stock

Raspberry Pi Compute Module 4 - 8GB RAM, 32GB eMMC, Wi-Fi/BT

22,999.00
Learn More
Out of Stock

Aluminum Heatsink for Raspberry Pi Compute Module 4 (CM4)

459.00
Learn More
Out of Stock

Blicube C792 HDMI to CSI-2 Video Loopback Module

2,729.00
Learn More
Out of Stock

EDATEC ED-IPC2410-1208 Industrial PC, CM4102008, 2GB/8GB, WiFi/BT

15,879.00
Learn More
Out of Stock

BeagleBoard PocketBeagle 2 Industrial SBC, 64GB eMMC

7,349.00
Learn More
Out of Stock

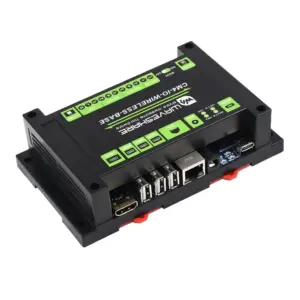

Waveshare Industrial IoT Wireless Expansion for CM4
