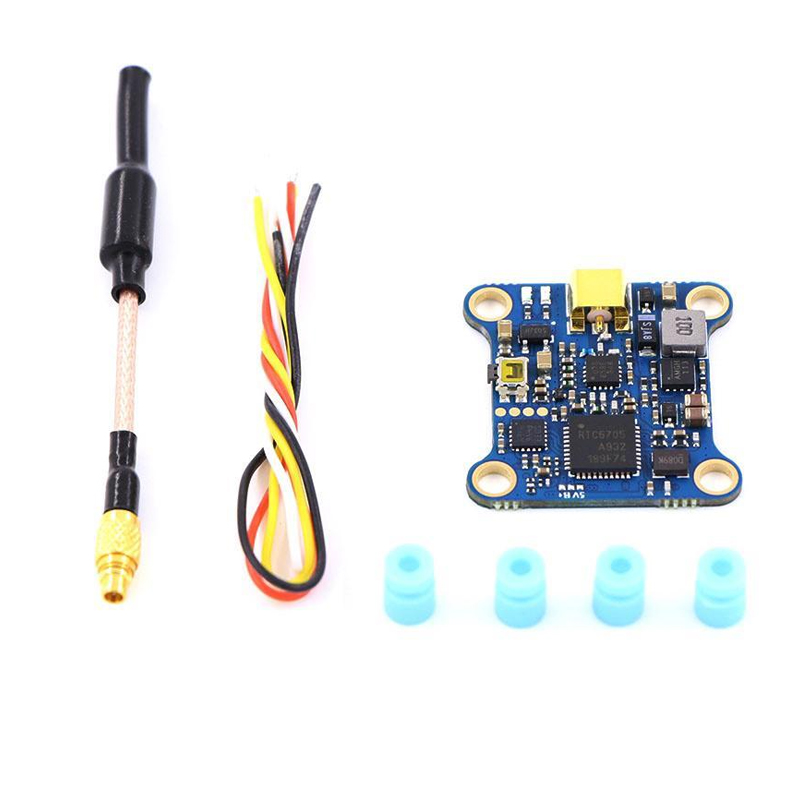

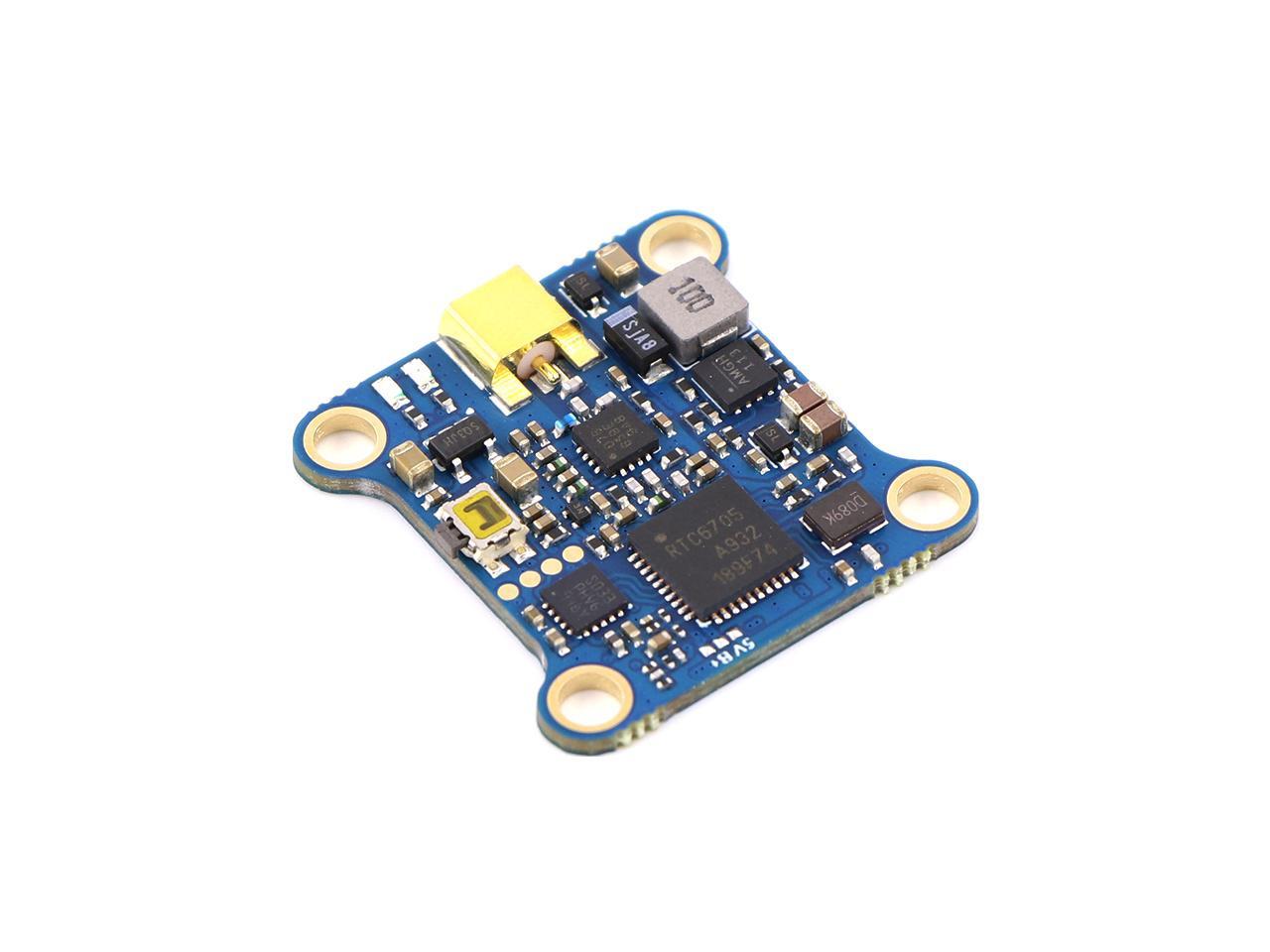

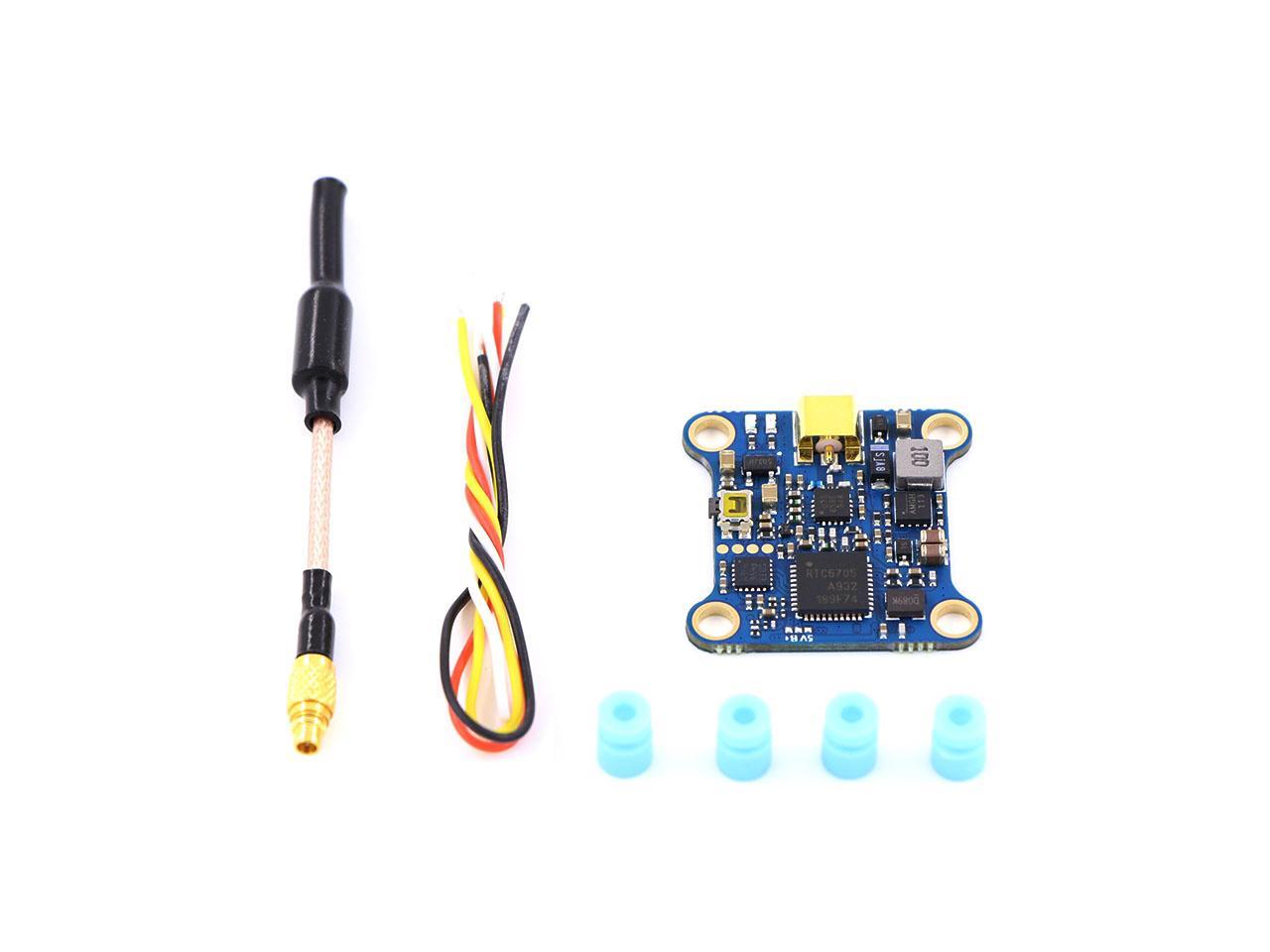

XF5806_V2 5.8GHz 40CH 25/100/200/400mW Switchable FPV VTX Transmitter
The XF5806_V2 is a versatile 5.8GHz FPV video transmitter supporting 40 channels with switchable output power (25/100/200/400mW). It features a wide 7-26V input range, an onboard 5V BEC, and TBS SmartAudio V2 for convenient OSD control, making it compatible with Betaflight and similar flight controller firmware.
Features
- Switchable RF output power: 25mW, 100mW, 200mW, and 400mW for flexible range and compliance.
- Wide input voltage range from 7V to 26V, compatible with 2S to 6S LiPo battery systems.
- Integrated 5V BEC provides clean power for onboard cameras or peripherals.
- Supports TBS SmartAudio V2 protocol for channel and power control via Betaflight OSD.

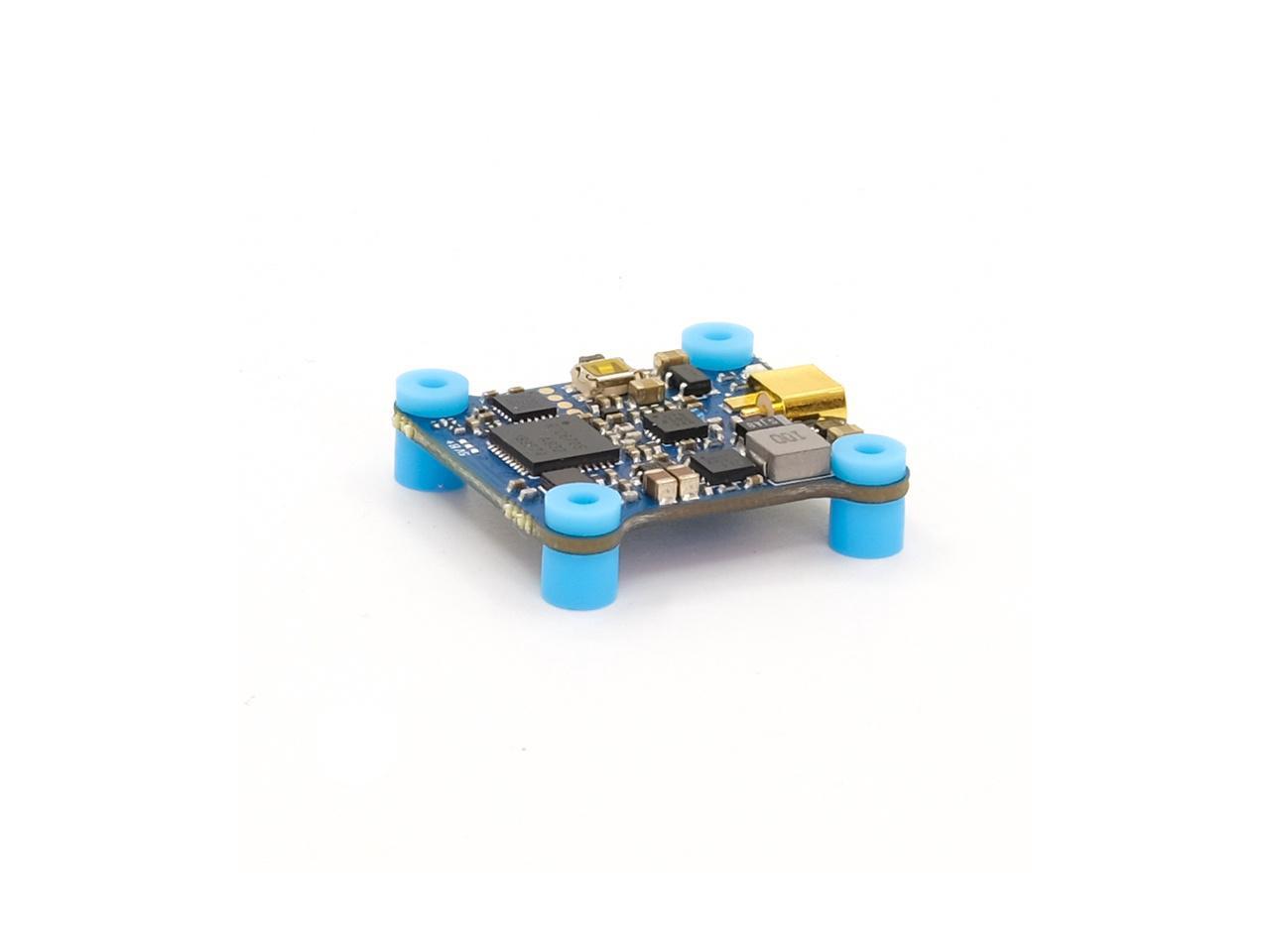

- Compact 20x20mm mounting pattern and pad-based wiring for streamlined integration.
Out of stock
The XF5806_V2 video transmitter is engineered for reliable FPV video feed transmission across a broad spectrum of multirotor and fixed-wing applications. Its robust 7-26V DC input ensures stable operation directly from flight pack voltages, eliminating the need for external voltage regulation in most builds. The integrated 5V BEC offers a dedicated, clean power rail for connecting your FPV camera.

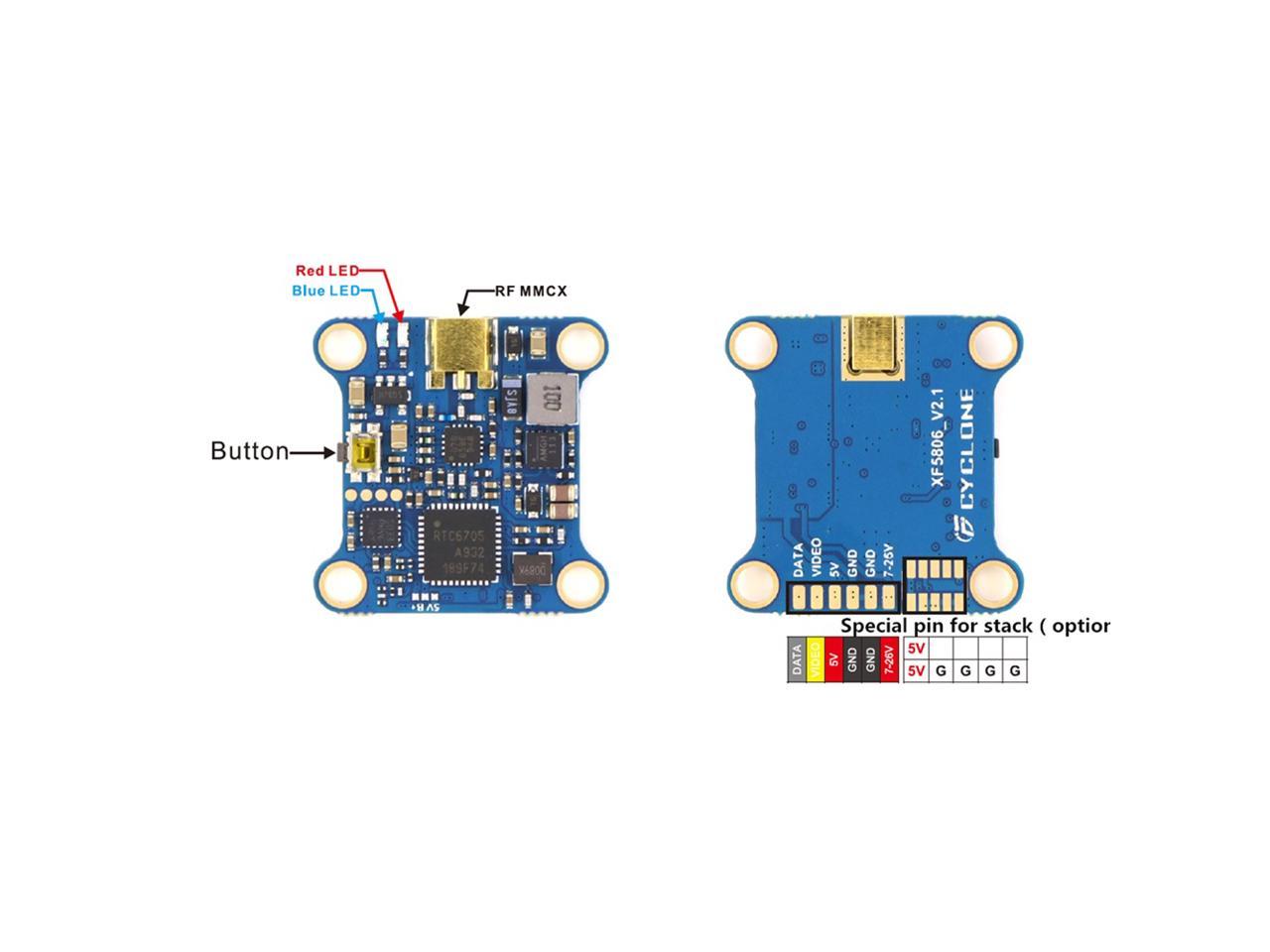

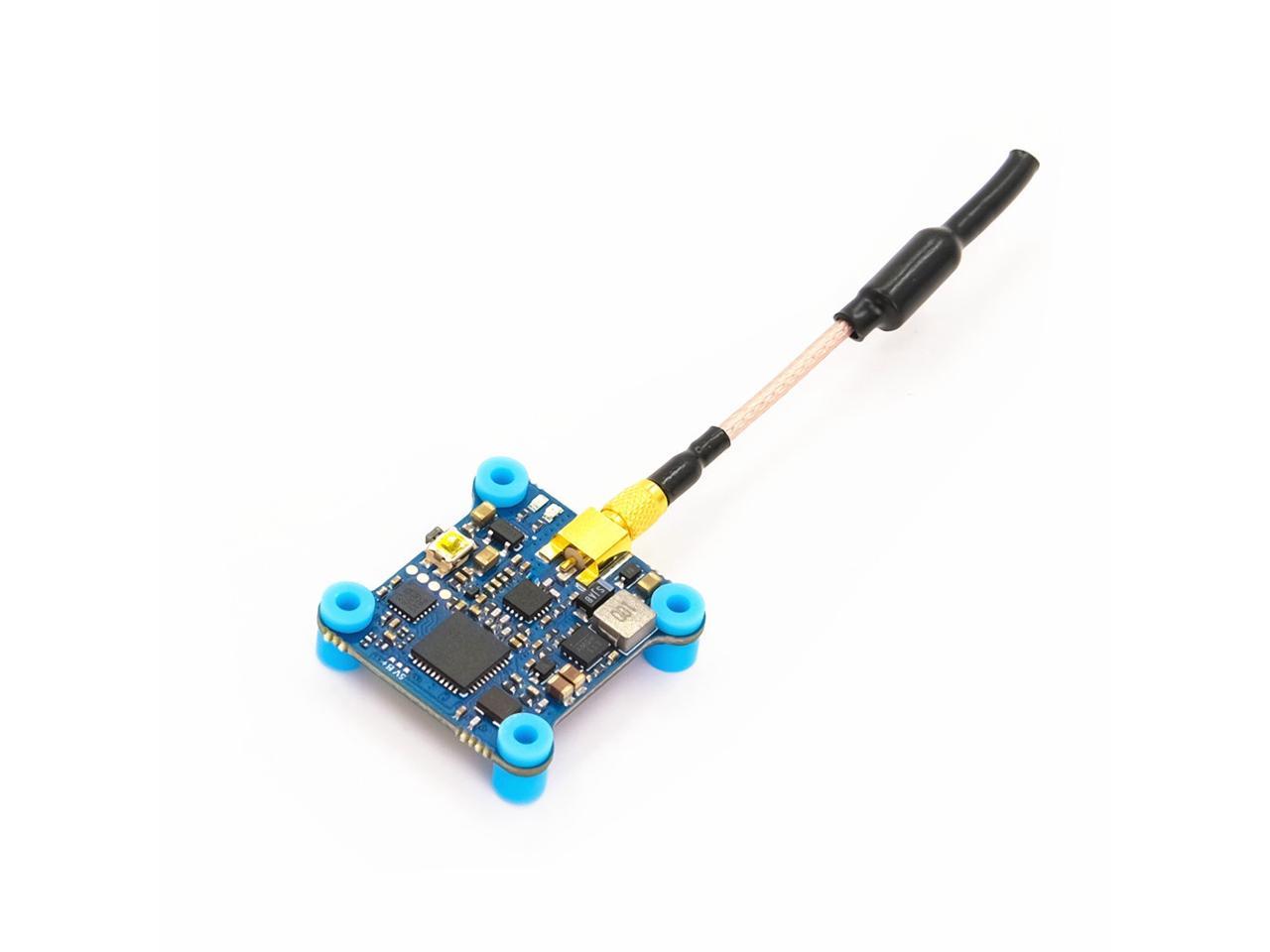

Control and configuration are streamlined through the TBS SmartAudio V2 interface, allowing pilots to change channels, bands, and output power directly from their goggles’ OSD menu without physical interaction with the VTX. The MMCX antenna connector provides a secure, low-loss connection for a variety of compatible antennas, while the pad-based wiring and standard 20x20mm mounting hole pattern facilitate a clean and secure installation in tight builds.
Additional Information
| Weight | 0.012 kg |
|---|---|
| Dimensions | 5 × 5.5 × 3 cm |
