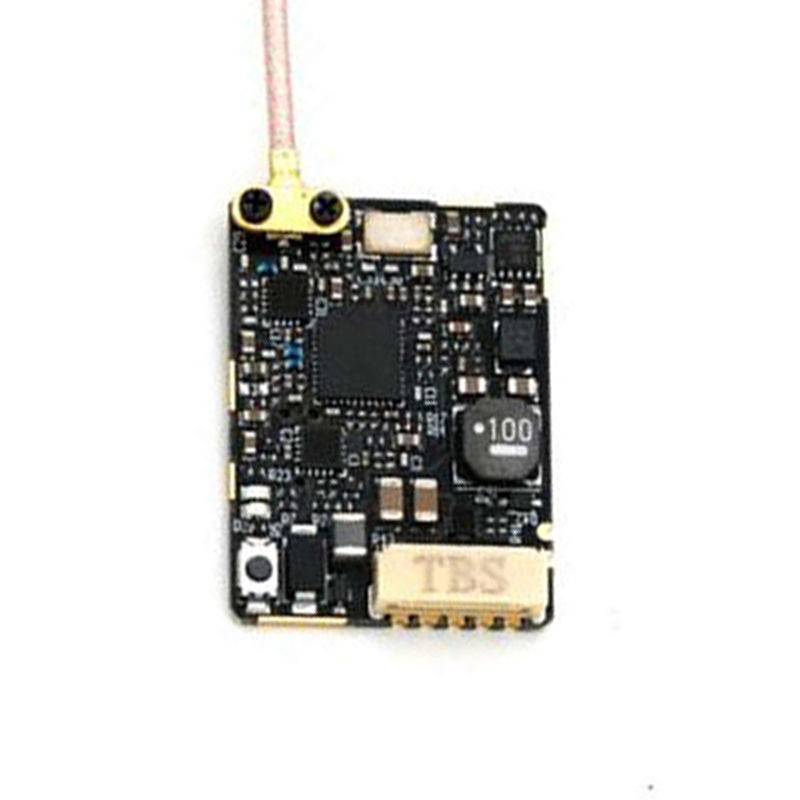

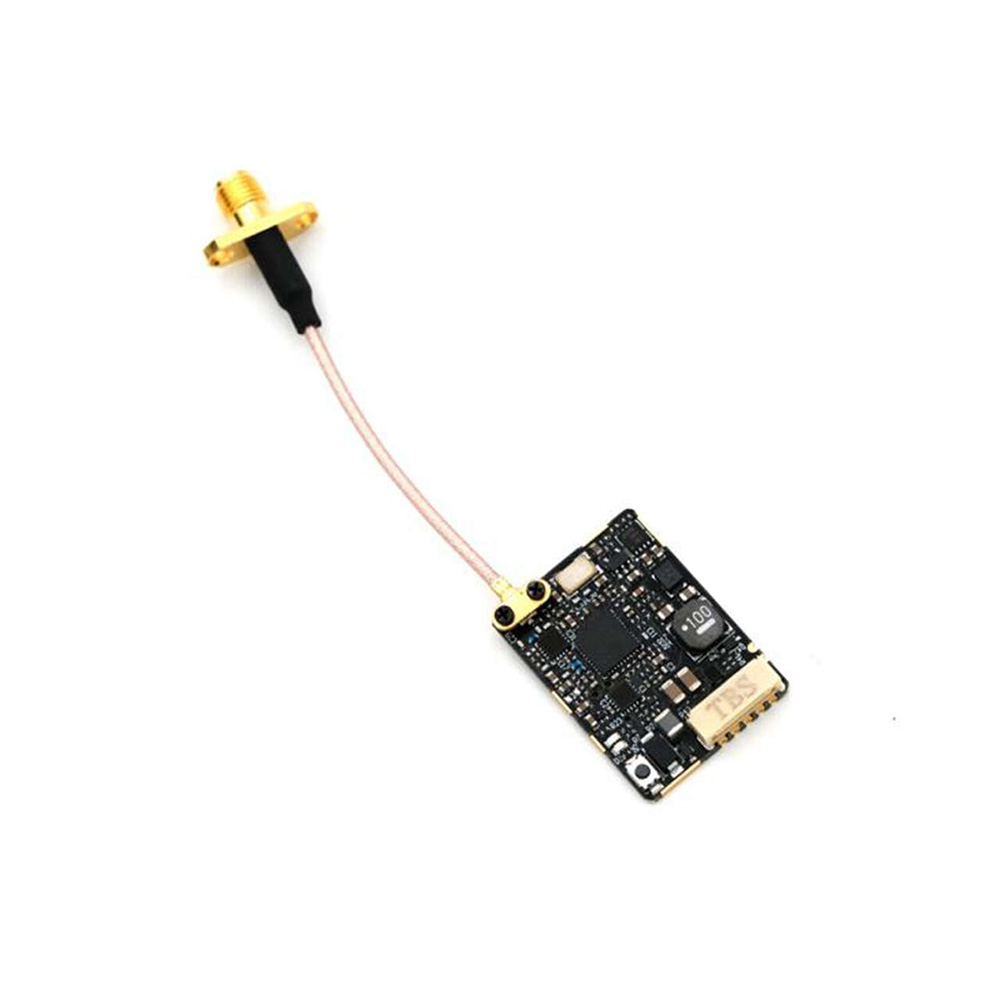

TBS TBS UNIFY PRO 5G8 HV Video Transmitter (SMA)
The TBS UNIFY PRO 5G8 HV is a high-voltage video transmitter designed for 2S to 6S LiPo operation, featuring adjustable output power from 25mW to 800mW, SmartAudio control via UART/I2C, and a built-in 5V camera power supply for streamlined FPV builds.
Features
- High-voltage input range supports direct connection to 2S-6S LiPo batteries.
- Four adjustable output power levels: 25mW, 200mW, 500mW, and 800mW.
- Integrated SmartAudio for remote control of power, band, and channel via Betaflight OSD.
- Pit Mode feature eliminates RF interference when powered on the bench.
- Lightweight 7g design with SMA female antenna connector and screw mounting holes.
Out of stock
The TBS UNIFY PRO 5G8 HV is engineered for high-performance FPV racing and freestyle drones requiring a robust and interference-free video link. Its direct 2S-6S input eliminates the need for a separate voltage regulator, while the integrated 5V/1A BEC provides clean power for your FPV camera. The advanced RF design and CleanSwitch technology ensure channel changes and power cycles do not cause video signal disruption.
Built with a compact 31x22x6mm footprint, the VTX is designed for tight builds. The inclusion of Pit Mode allows pilots to power their quad on the starting line without broadcasting, preventing channel congestion. Full configurability via SmartAudio integrates seamlessly with Betaflight, allowing for in-goggle menu control of all transmitter settings.
Additional Information
| Weight | 0.014 kg |
|---|---|
| Dimensions | 3.1 × 2.2 × 0.6 cm |
