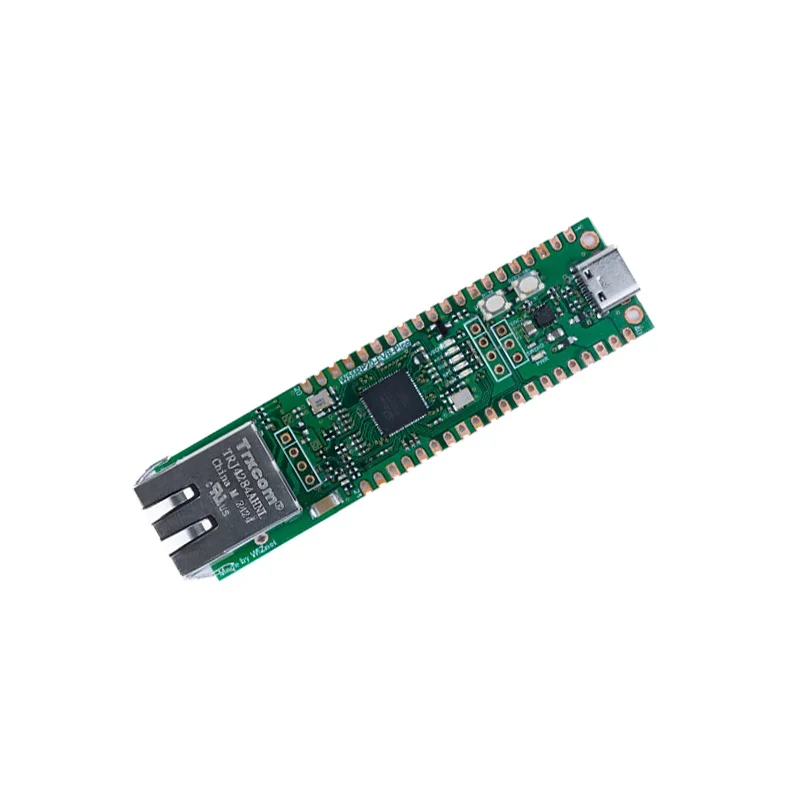

WIZnet W55RP20-EVB-PICO Evaluation Board
The WIZnet W55RP20-EVB-PICO is an evaluation board integrating the RP2040 microcontroller with a hardware TCP/IP stack for simplified Ethernet connectivity, ideal for IoT prototyping and industrial gateway applications.
Features
- Dual-core ARM Cortex-M0+ processor clocked at 133 MHz for efficient multitasking and data processing.
- Integrated W5500 Ethernet controller with a hardwired TCP/IP stack, offloading network processing from the main CPU.
- On-chip 2MB Flash and 264KB SRAM provide ample memory for complex IoT applications and firmware.
- Versatile I/O includes 23 GPIOs, ADC, UART, SPI, I2C, and PWM for connecting sensors and peripherals.
- Low-power design with on-chip LDO and support for power management modes suitable for embedded systems.
Out of stock
The WIZnet W55RP20-EVB-PICO Evaluation Board is a System-in-Package (SiP) solution that merges the Raspberry Pi RP2040 microcontroller with the WIZnet W5500 Ethernet controller. This integration provides a robust platform for developing networked IoT devices, smart home appliances, and industrial telemetry systems without requiring an external memory chip for the TCP/IP stack.
The RP2040’s dual-core ARM Cortex-M0+ architecture handles application logic and data processing, while the W5500 manages all network communication through its dedicated hardware. This separation ensures reliable, high-performance Ethernet connectivity with minimal CPU overhead, making it suitable for real-time applications. The board supports development in C/C++ via the Arduino IDE or PlatformIO and MicroPython, offering flexibility for embedded developers.
Additional Information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 10 × 9 × 2 cm |
