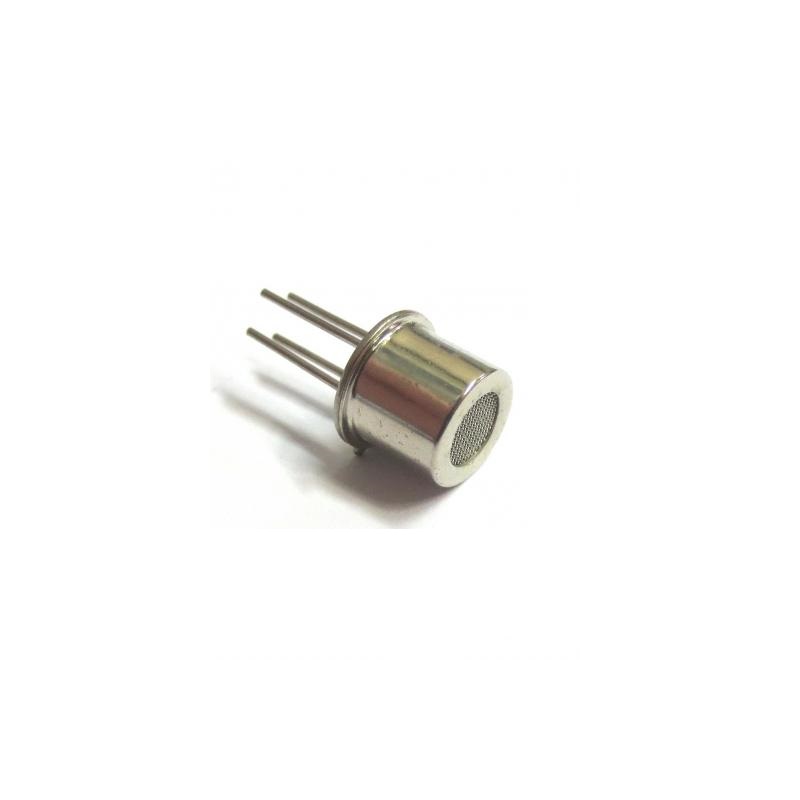

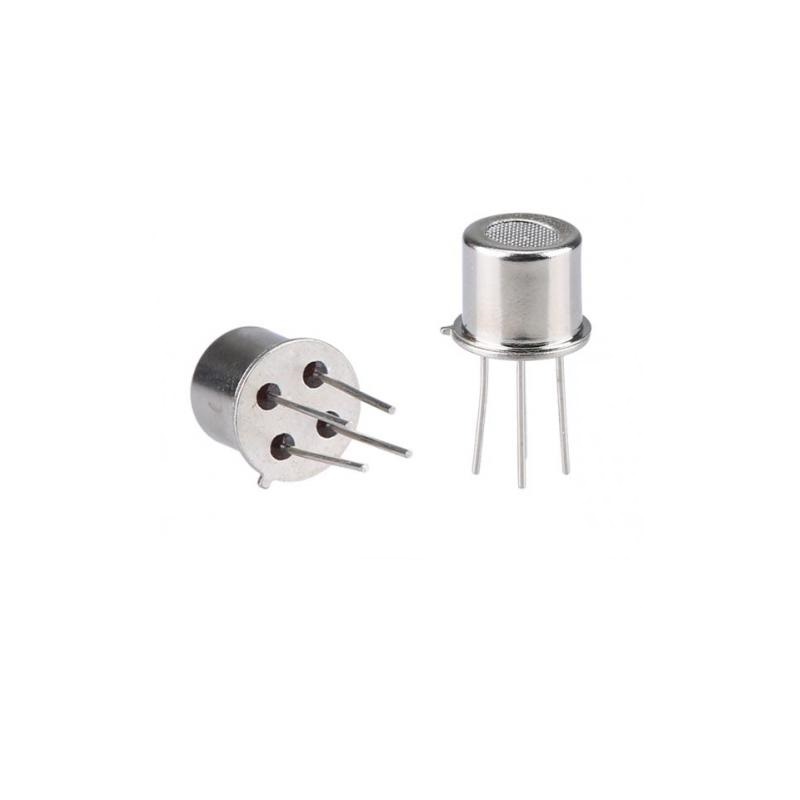

Winsen WSP2110-acetone VOC Gas Sensor - Semiconductor Metal Cap
The Winsen WSP2110 is a semiconductor-based VOC gas sensor designed for detecting toluene, benzene, formaldehyde, acetone, and other organic gases. It operates on a 5V heater voltage and is suitable for integration into air quality monitoring systems, air cleaners, and automatic exhaust devices.
Features
- Detects a wide range of VOCs including toluene, benzene, formaldehyde, and acetone.
- Operates with a 5.0V±0.1V heater supply for low power consumption.
- Features a robust metal cap encapsulation for durability.
- Offers high sensitivity (Rs(air)/Rs(10ppm toluene) ≥3) and fast response/recovery.
- Compact component size for easy integration into various devices.
Out of stock
The WSP2110 VOC gas sensor utilizes multilayer thick-film manufacturing technology. A metal oxide semiconductor layer on a miniature Al2O3 ceramic substrate changes conductivity in the presence of target gases. This change in conductivity, which increases with gas concentration, can be converted into a corresponding output signal via a simple external circuit.
Designed for long-term stability, the sensor requires an initial preheat time of over 120 hours for optimal performance. Its construction, featuring a metal socket and cap, ensures reliable operation in environments like homes and offices for continuous air quality monitoring.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 6 × 4 × 2 cm |
