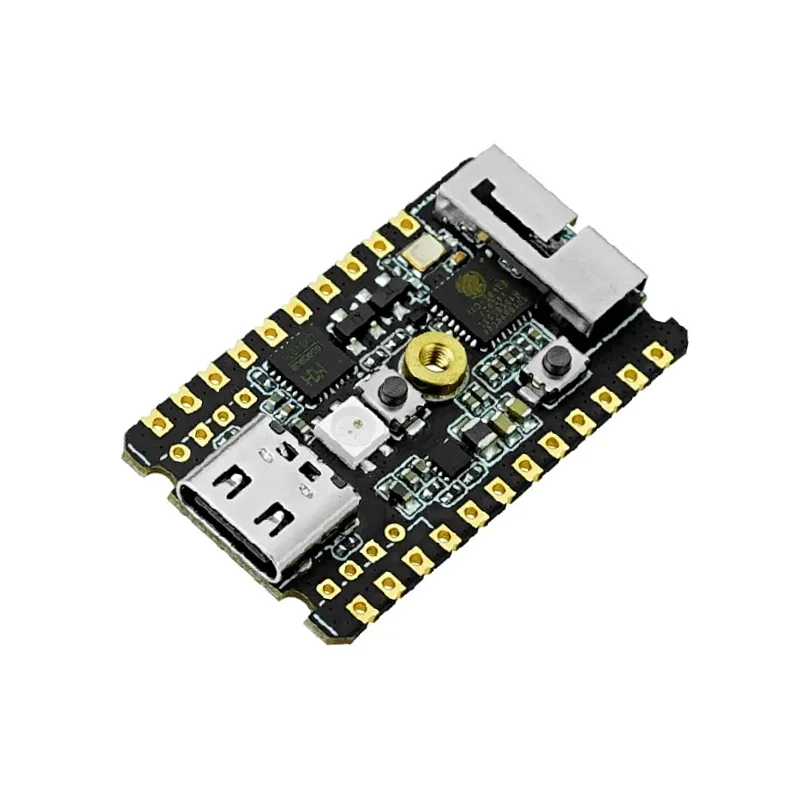

M5Stack C3 Mate Stamp Module w/ Pin Headers & ESP32-C3 RISC-V
The M5Stack C3 Mate is a compact Stamp module featuring the ESP32-C3 RISC-V microcontroller with 2.4 GHz Wi-Fi, pre-soldered pin headers, and a high-temperature resistant enclosure, ideal for Arduino IDE, ESP-IDF, and MicroPython development.
Features
- ESP32-C3 RISC-V core delivers 160 MHz clock speed with 400KB SRAM and 4MB flash for robust IoT applications.
- Integrated 2.4 GHz Wi-Fi supports IEEE 802.11 b/g/n protocols with a 3D antenna for stable wireless connectivity.

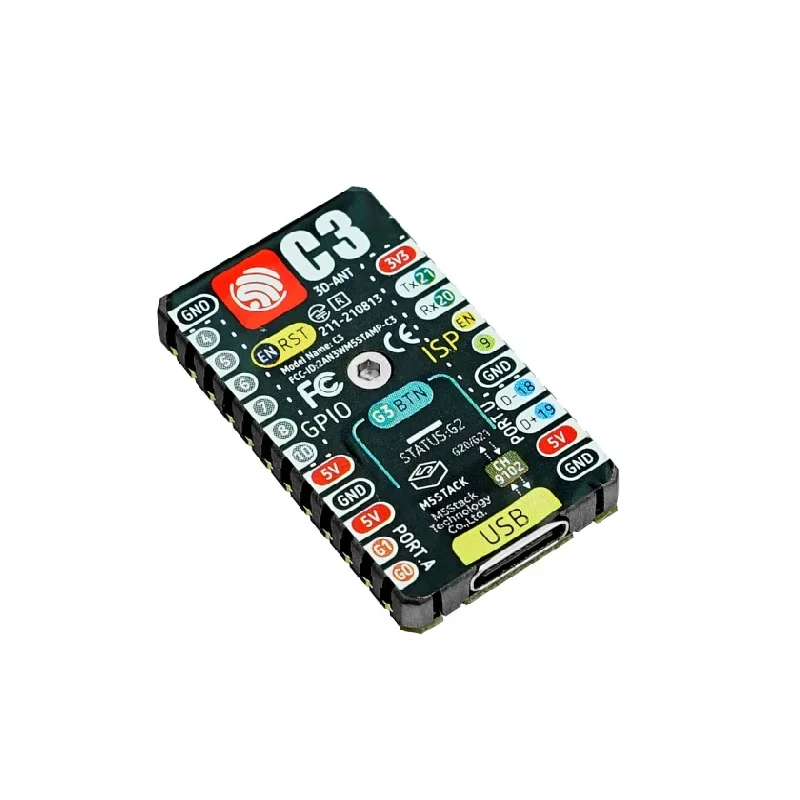

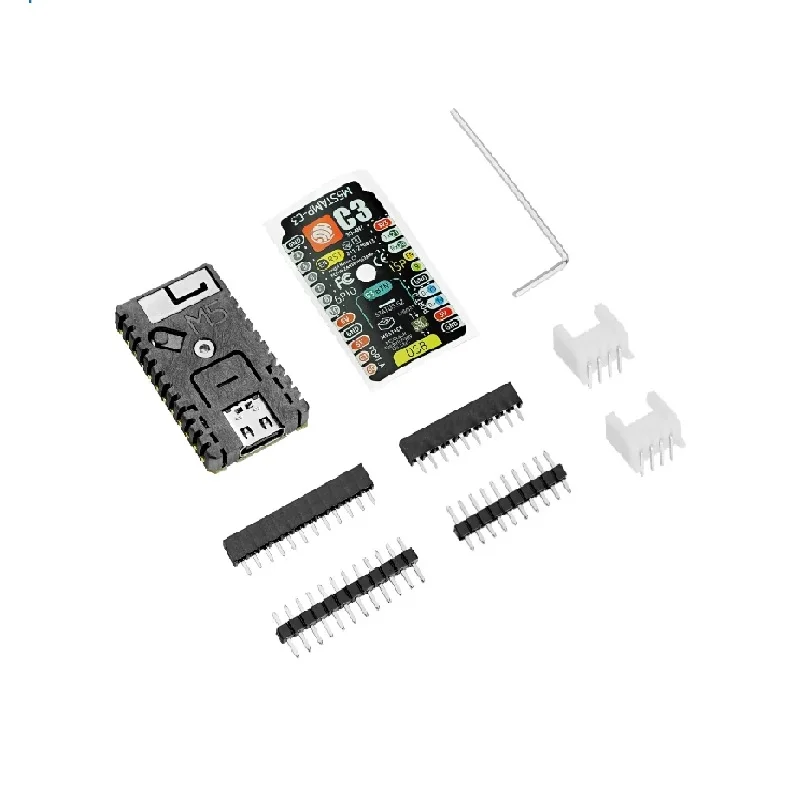

- Pre-soldered 2.54mm pin headers provide immediate access to 13 GPIOs, UART, I2C, SPI, ADC, and PWM interfaces.
- Onboard 5V to 3.3V DC/DC converter, programmable RGB LED (SK6812), and reset button simplify prototyping.
- Fully compatible with Arduino IDE, ESP-IDF, and other mainstream IoT development frameworks for rapid deployment.
Out of stock
The M5Stack C3 Mate Stamp Module integrates Espressif’s ESP32-C3, a 32-bit RISC-V single-core processor, into a compact, industrial-grade form factor. It operates at 160 MHz with 400KB of SRAM and 4MB of flash memory, providing ample resources for connected edge device firmware. The module features a built-in 2.4 GHz Wi-Fi radio compliant with IEEE 802.11 b/g/n standards, supporting data rates up to 150 Mbps and enhanced by an onboard 3D antenna for reliable RF performance.

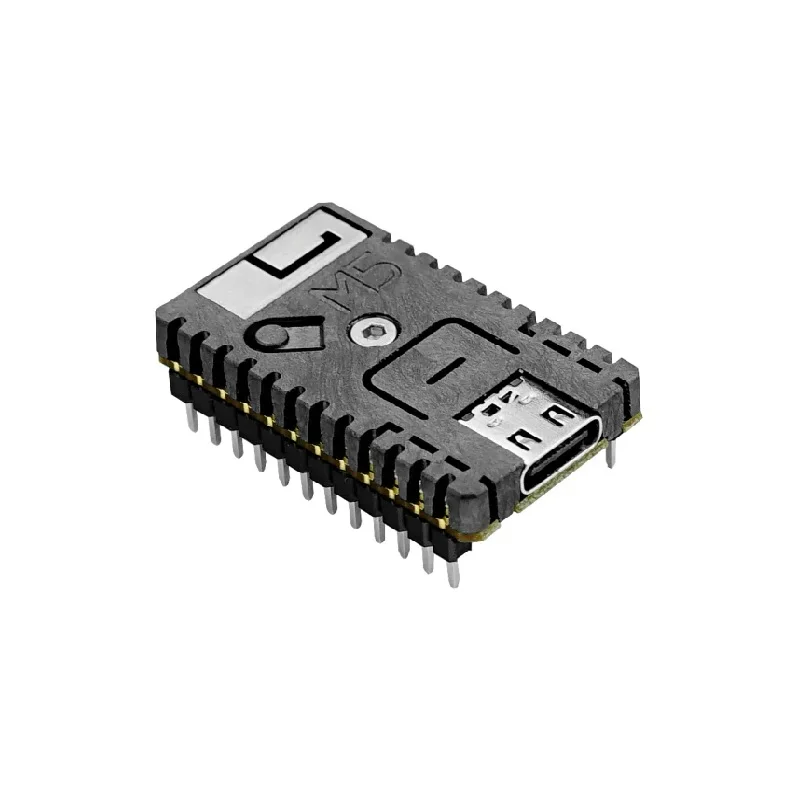

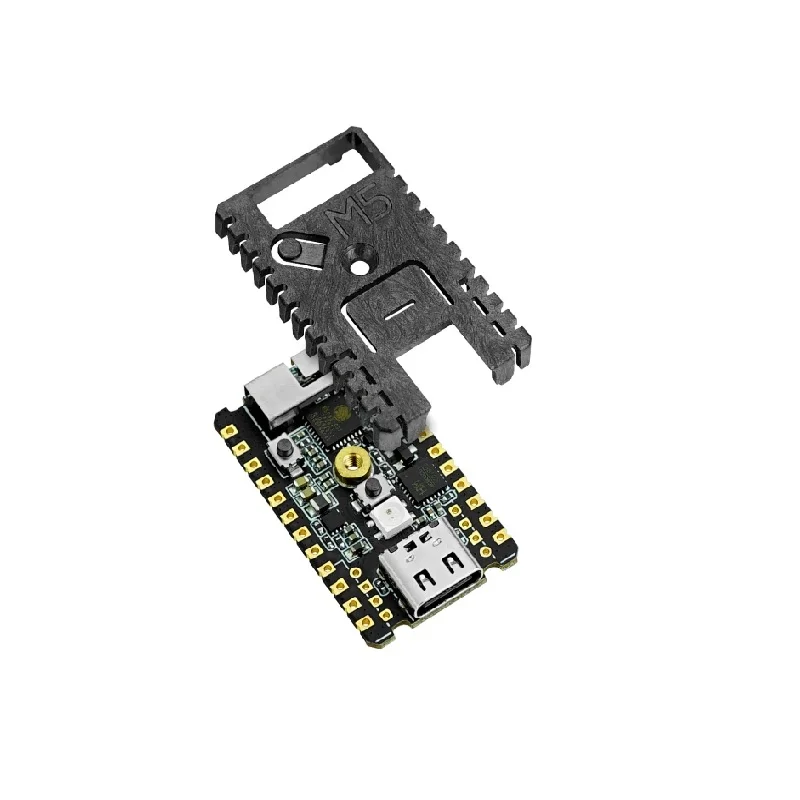

Power management is handled by an efficient 5V to 3.3V DC/DC converter, with a typical operating current of 500mA. The module’s 13 exposed GPIO pins (spaced at 2.54mm) offer full peripheral support including ADC, SPI, I2C, UART, I2S, PWM, and RMT, enabling direct sensor integration and actuator control. Its high-temperature resistant plastic enclosure ensures durability in demanding environments such as industrial automation and smart home appliances.
Additional Information
| Weight | 0.0038 kg |
|---|---|
| Dimensions | 2 × 3.4 × 0.46 cm |
