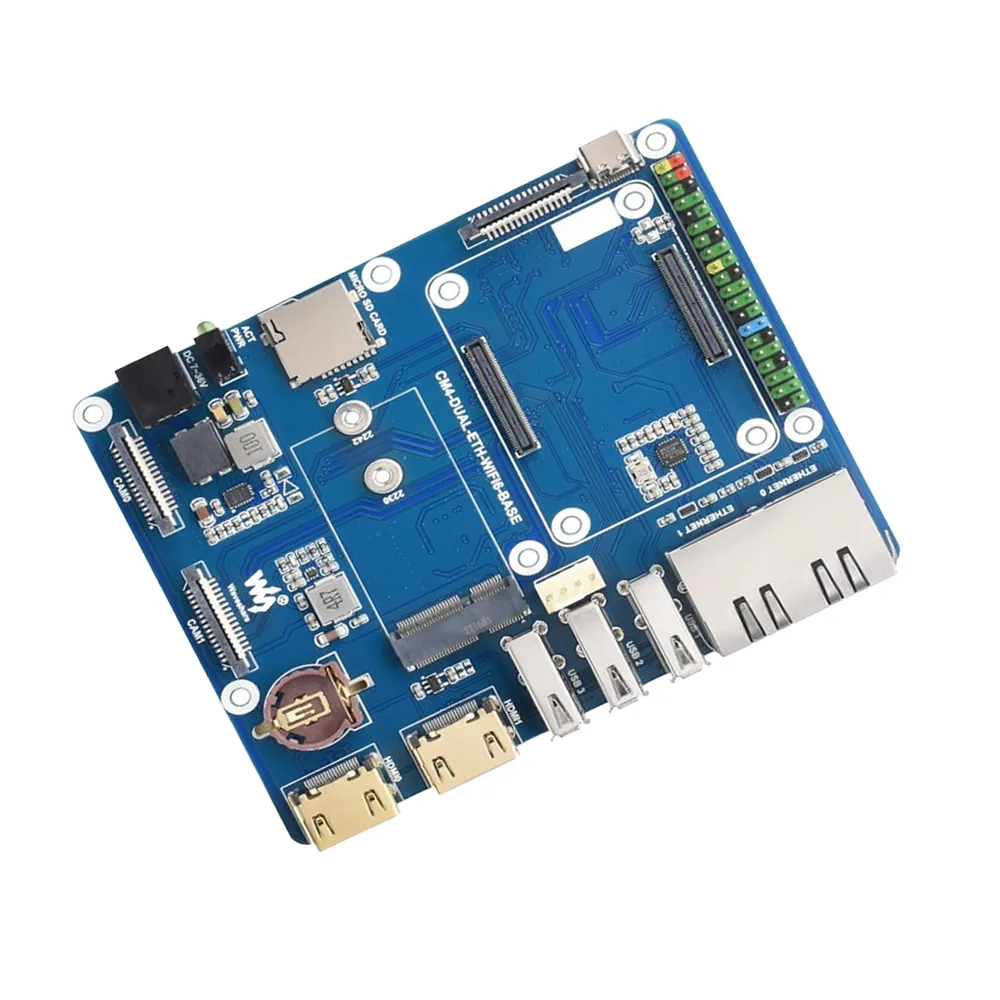

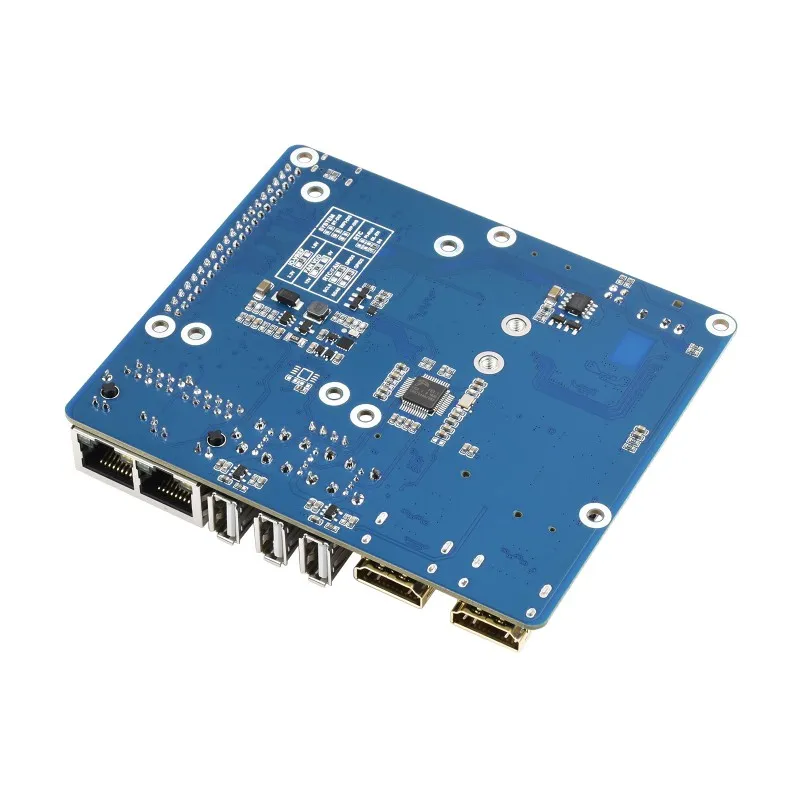

Waveshare WIFI6 Dual ETH Base Board for CM4
The Waveshare WIFI6 Dual ETH Base Board is a versatile carrier board for the Raspberry Pi Compute Module 4, offering robust networking with dual Ethernet ports and WIFI6 support via M.2 A/E Key. It provides essential connectivity and I/O for applications like soft routing and compact mini-PCs.
Features
- Standard CM4 socket compatible with all Compute Module 4 variants (Lite/eMMC).
- Integrated M.2 A/E KEY interface for WIFI6 module support.
- Features dual Ethernet ports (1x Gigabit, 1x 100M) for network applications.
- Provides 3x USB 2.0 ports for peripheral connectivity.
- Supports a wide 7V-36V DC power input for flexible deployment.
Out of stock
The CM4-DUAL-ETH-WIFI6-BASE from Waveshare is a comprehensive I/O carrier board engineered for the Raspberry Pi Compute Module 4. Designed for versatility, it supports a wide 7V to 36V DC power supply, making it suitable for a broad range of embedded applications where robust power input is crucial.
This base board excels in networking capabilities, featuring both a Gigabit Ethernet RJ45 port and a 100M Ethernet RJ45 port, ideal for soft routing, network gateways, and other scenarios demanding multiple wired network interfaces. Furthermore, its M.2 A/E KEY interface allows for the integration of a WIFI6 module, enabling high-speed wireless connectivity. With three USB 2.0 ports and a standard Raspberry Pi 40PIN GPIO header, it provides ample expansion opportunities for peripherals and custom hardware.
Additional Information
| Weight | 0.116 kg |
|---|---|
| Dimensions | 15 × 11 × 3 cm |
