Waveshare Raspberry Pi Camera (F) w/ Night Vision & Adjustable-Focus
The Waveshare Raspberry Pi Camera (F) is a 5MP OV5647 sensor module designed for Raspberry Pi, featuring adjustable focus, a 50-degree field of view, and integrated support for infrared LED boards for night vision applications.
Features
- 5MP OV5647 sensor delivers sharp 1080p video and 2592×1944 stills for detailed computer vision.

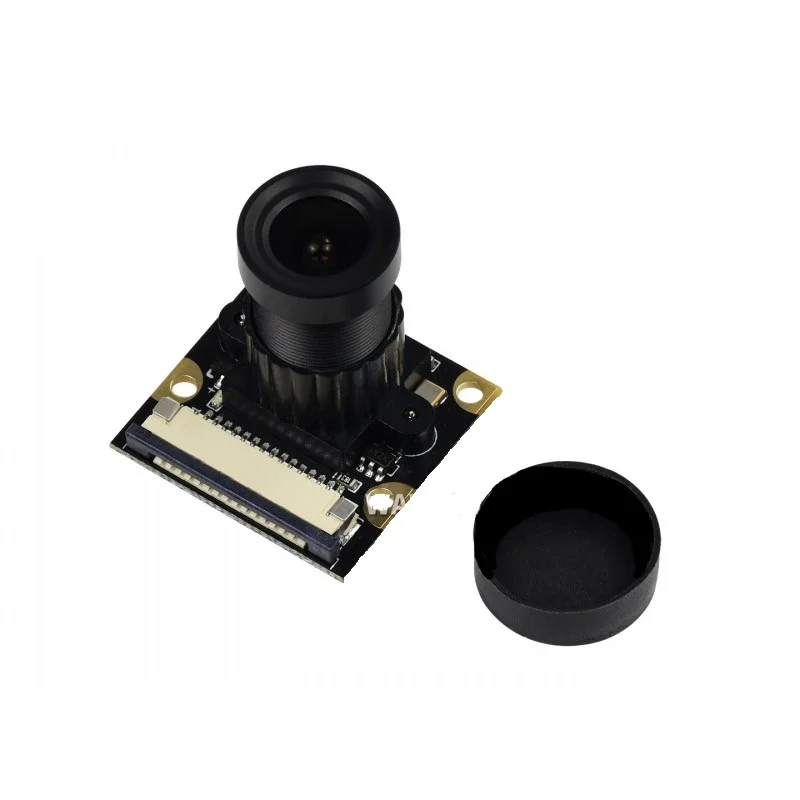

- Adjustable-focus lens (3.6mm, F2.0) allows fine-tuning for object distance, ideal for close-up monitoring.

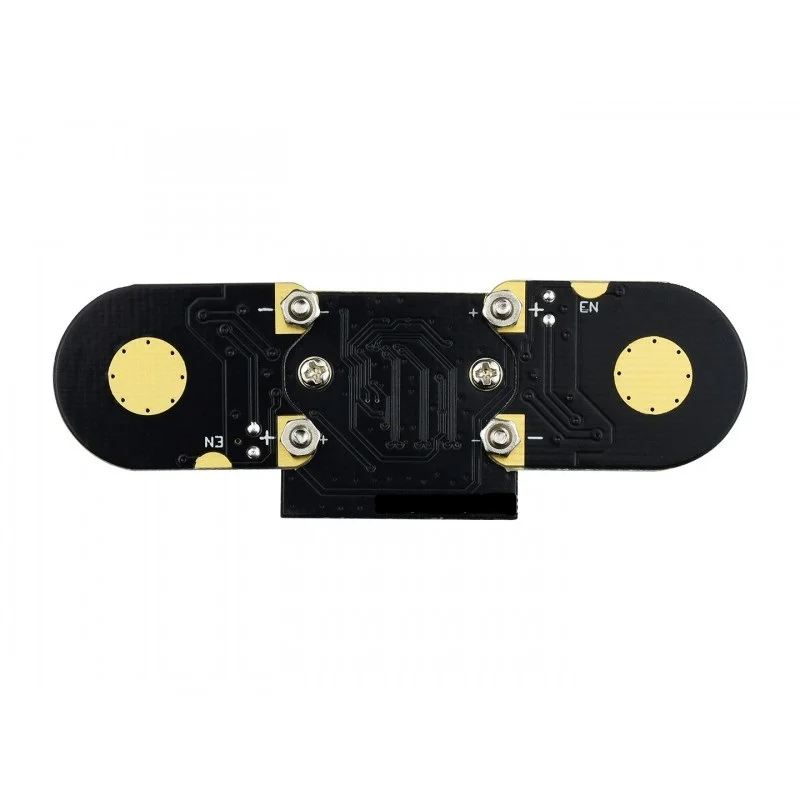

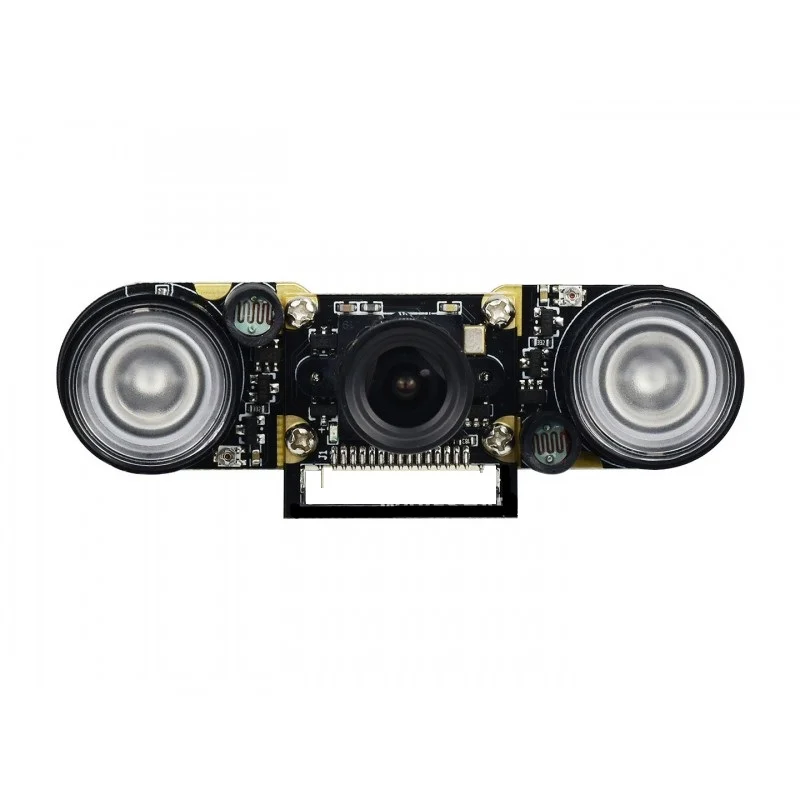

- Integrated night vision support via included infrared LED boards enables clear imaging in low-light or no-light conditions.

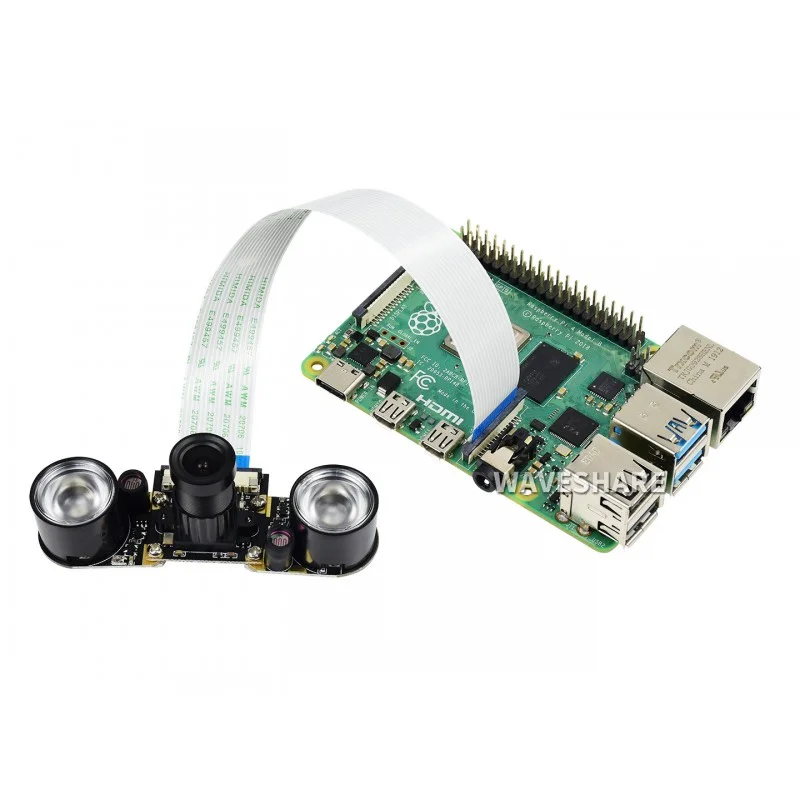

- Compatible with all Raspberry Pi revisions via 15-pin FFC ribbon cable, supporting both legacy raspicam and newer libcamera drivers.
- Compact 25x24mm board footprint and 3.3V operation make it suitable for embedded IoT projects, drones, and surveillance.
Out of stock

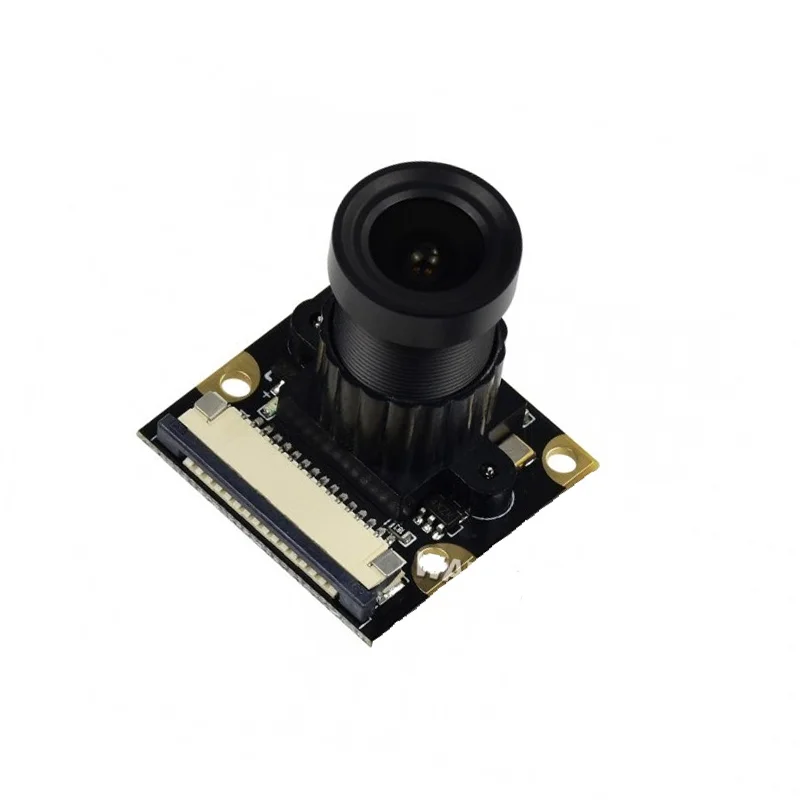

The Waveshare Raspberry Pi Camera (F) module integrates a 5-megapixel OV5647 CMOS sensor with a manually adjustable-focus lens, providing developers with a versatile imaging solution for Raspberry Pi-based projects. Its 1/4-inch sensor size and F2.0 aperture ensure good light capture, while the 50-degree diagonal field of view offers a balanced perspective for general monitoring and object detection tasks.
This camera is engineered for flexibility in software stacks, supporting both the legacy Raspicam drivers and the modern, open-source libcamera framework, although Python support for libcamera may require specific system configurations. The package includes auxiliary infrared LED boards, enabling the module to function as a night vision camera when ambient light is insufficient, expanding its use case to 24/7 security and automation systems.
Additional Information
| Weight | 0.021 kg |
|---|---|
| Dimensions | 2.5 × 2.4 cm |
