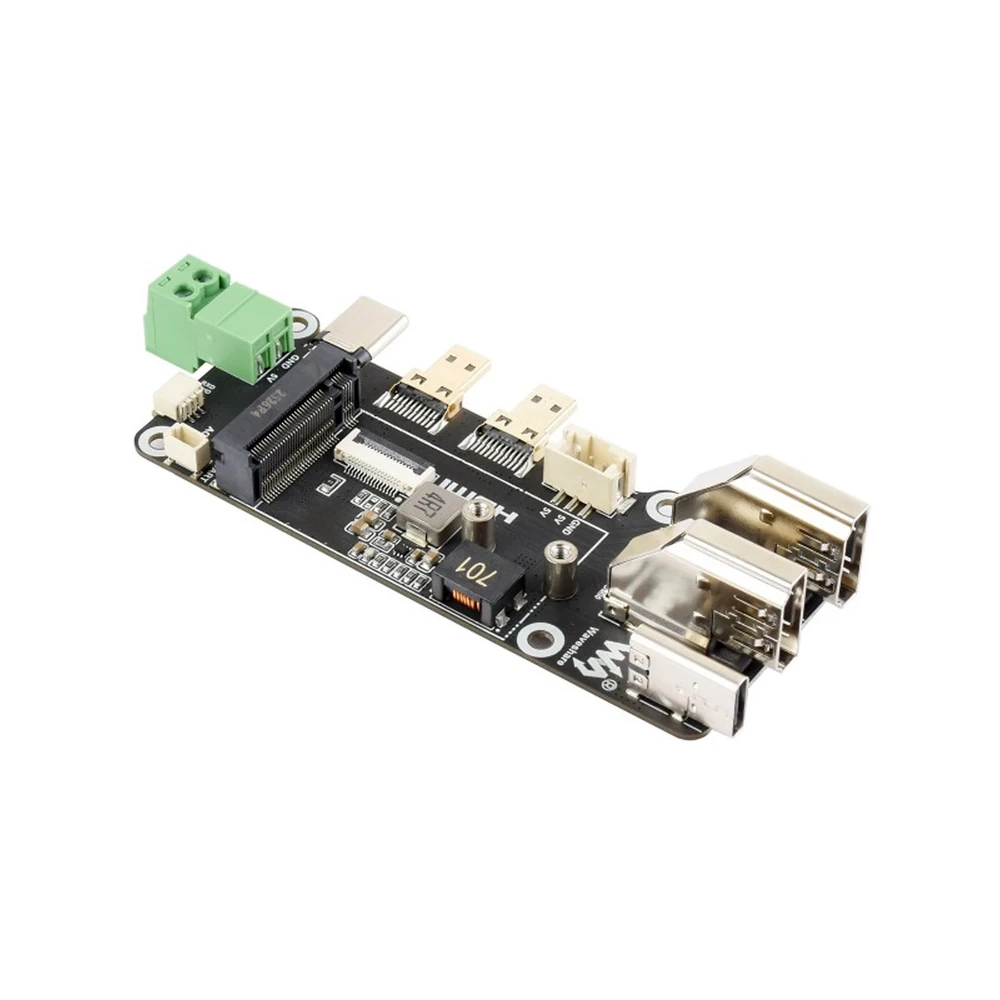

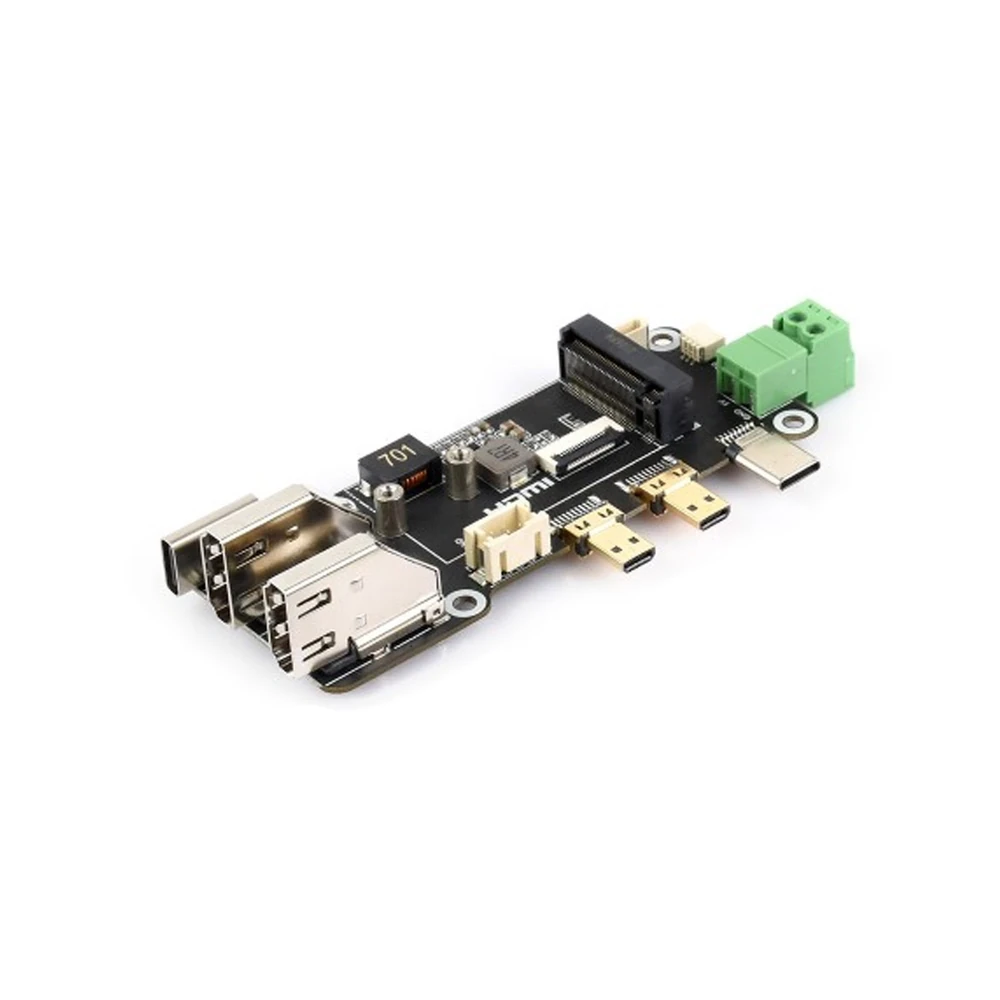

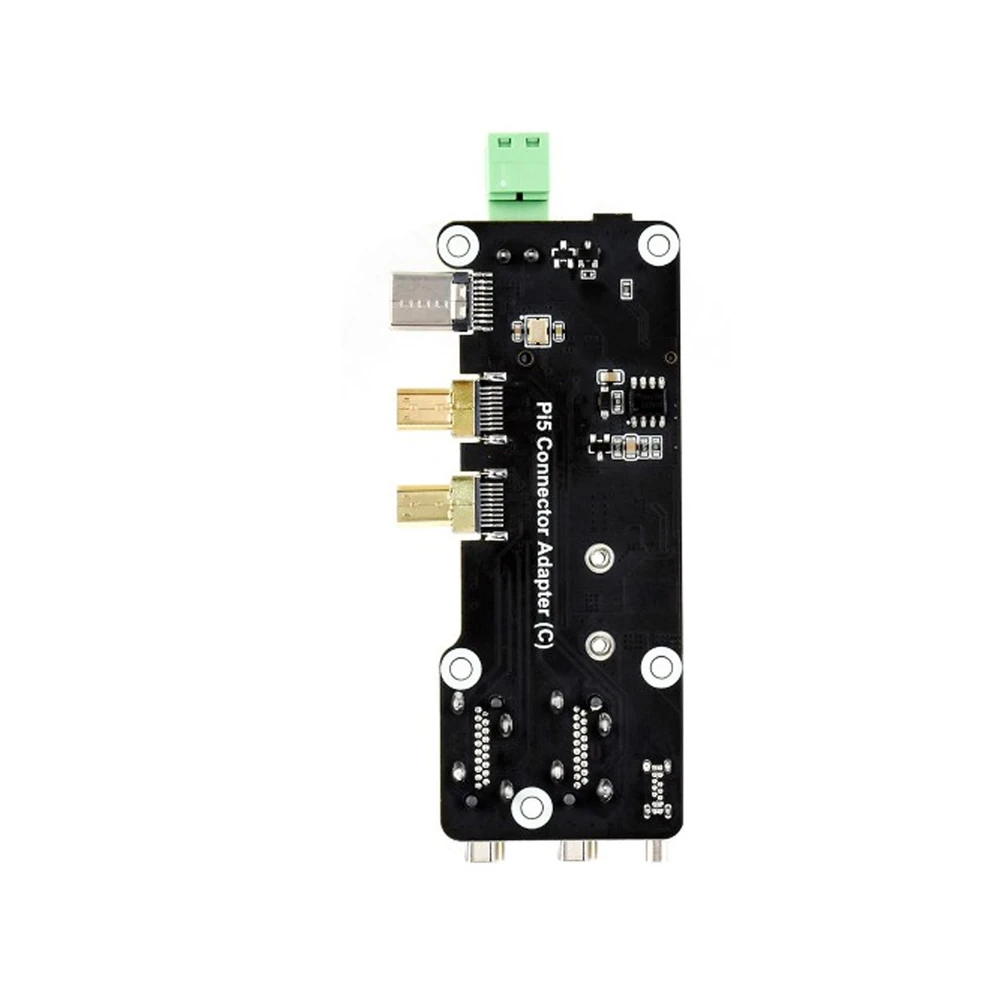

Waveshare Pi 5 PCIe to M.2 Adapter w/ Dual 4K HDMI
The Waveshare PCIe to M.2 Multifunctional Adapter enhances Raspberry Pi 5 by providing high-speed NVMe SSD expansion, support for 2230/2242 SSDs, and dual 4K display output via standard HDMI ports. It offers flexible power input and enables SSD booting for your Raspberry Pi 5.
Features
- PCIe Gen2/Gen3 NVMe SSD expansion specifically for Raspberry Pi 5.
- Supports M.2 NVMe SSDs in both 2230 and 2242 form factors for fast storage.
- Converts Micro HDMI ports to standard HDMI female, enabling dual 4K displays.
- Facilitates SSD booting for Raspberry Pi 5, improving system performance.
- Offers flexible power input options via USB Type-C or screw terminal.
Out of stock
The Waveshare PCIe to M.2 Multifunctional Adapter significantly expands the capabilities of the Raspberry Pi 5. It integrates high-speed NVMe SSD storage expansion, support for dual 4K displays, and versatile power input options onto a single, compact board. Designed to connect directly to the Raspberry Pi 5’s PCIe interface, this adapter supports 2230 and 2242 NVMe SSDs, enabling faster data access and substantial improvements in system performance for demanding applications.
Beyond storage, the adapter converts the Raspberry Pi 5’s native Micro HDMI ports into more convenient standard HDMI female connectors, simplifying display setups and supporting simultaneous dual 4K output. With integrated SSD booting capabilities and a choice between Type-C or screw terminal power supply methods, this board offers a robust and practical solution for developers, makers, and embedded system designers seeking to maximize their Raspberry Pi 5’s potential in storage-intensive, media-rich, or industrial computing environments.
Additional Information
| Weight | 0.029 kg |
|---|---|
| Dimensions | 8.5 × 3.35 × 1.2 cm |
