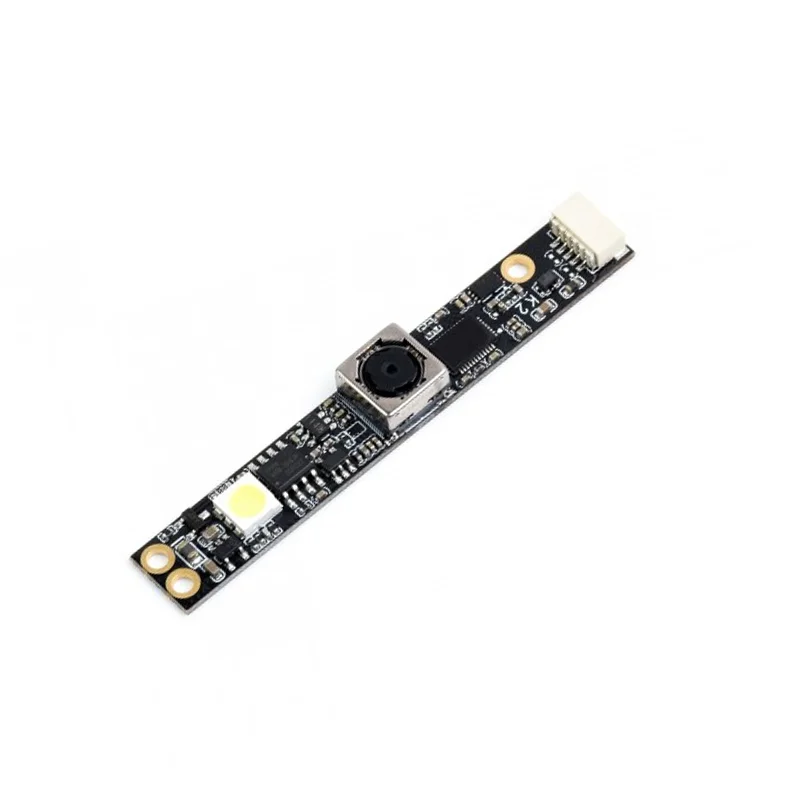

Waveshare OV5640 5MP USB Camera w/ Auto-Focus
The Waveshare OV5640 is a 5-megapixel USB 2.0 camera module with auto-focus, designed for embedded vision applications on platforms like Raspberry Pi, Jetson Nano, and other ARM-based development boards. It outputs JPEG and YUV422 formats for easy integration into computer vision projects.
Features
- 5MP OV5640 CMOS sensor delivers 2592×1944 resolution images and 1080p video.
- Integrated auto-focus (AF) lens with 68° FOV for clear, sharp imaging.
- USB 2.0 interface ensures plug-and-play compatibility with Raspberry Pi, Jetson Nano, and PCs.
- OmniBSIâ„¢ technology provides high sensitivity and low-light performance.
- Programmable via SCCB interface for full control over image quality and processing.
Out of stock

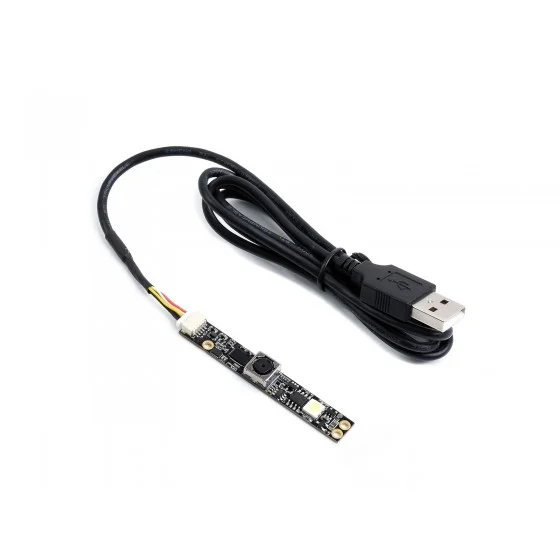

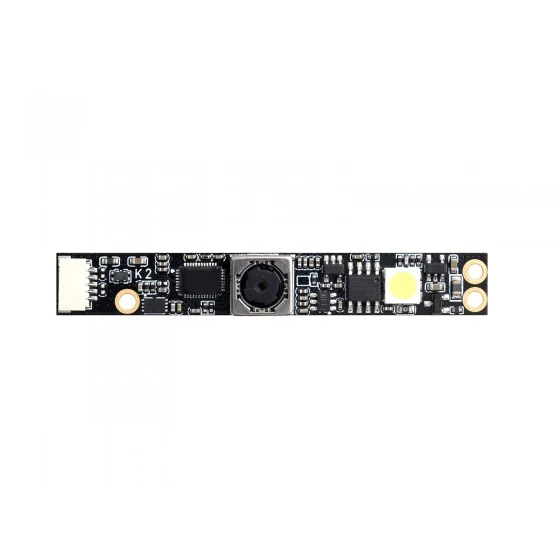

This camera module integrates the OmniVision OV5640, a high-performance 1/4-inch CMOS image sensor, into a compact USB 2.0 form factor. The sensor utilizes OmniBSI™ backside illumination technology for enhanced light sensitivity and image quality, capable of operating at up to 15 fps at full 5MP resolution. All image processing functions—including exposure, white balance, and noise reduction—are programmable through the Serial Camera Control Bus (SCCB) interface.
The module features a fixed-focus lens with a 68-degree field of view, an F2.8 aperture, and minimal distortion. Its native USB video class (UVC) compliance allows for immediate recognition and streaming on Windows, Linux, and Mac OS systems without custom drivers, making it an ideal off-the-shelf vision sensor for prototyping and deployment in IoT and edge AI applications.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 7 × 10 × 3 cm |
