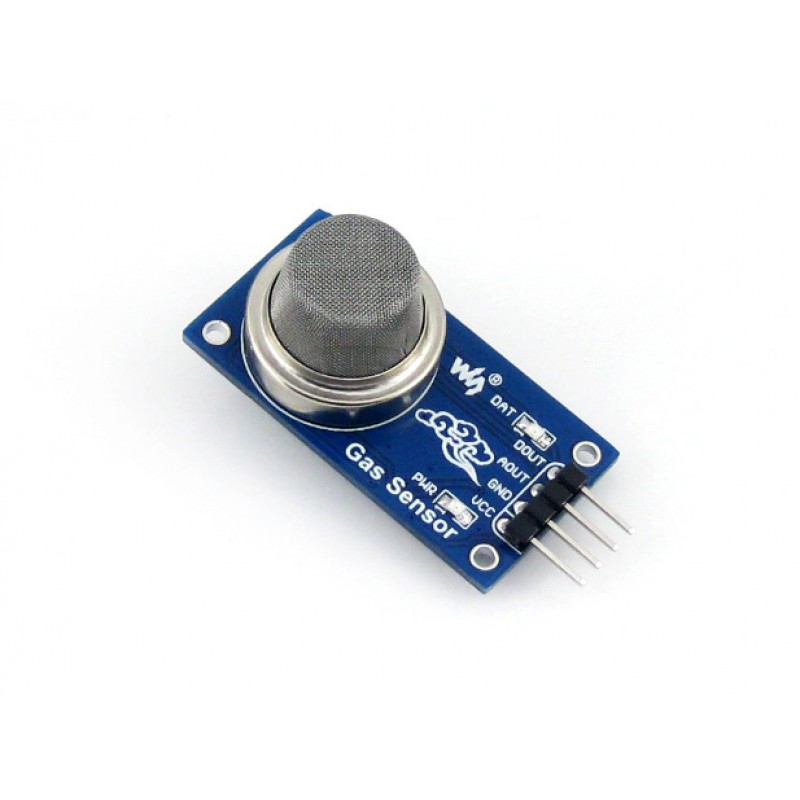

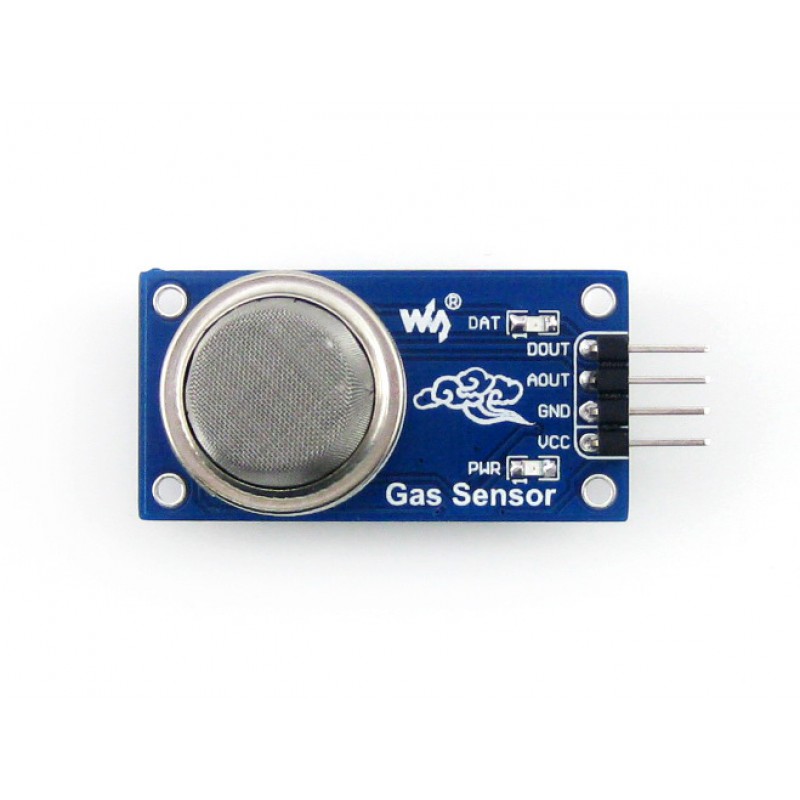

Waveshare MQ-2 Combustible Gas Sensor Module - Analog & Digital Output
The Waveshare MQ-2 is a semiconductor gas sensor module designed for detecting combustible gases like LPG, propane, and hydrogen. It provides both analog and digital outputs for easy interfacing with microcontrollers such as Arduino and Raspberry Pi, operating from a 2.5V to 5.0V DC supply.
Features
- Semiconductor sensor sensitive to LPG, propane, and hydrogen
- Dual analog and TTL-level digital output signals
- Wide operating voltage range from 2.5V to 5.0V DC
- Compact PCB design with 2.54mm pitch goldpin connectors
- Includes onboard sensitivity adjustment potentiometer and signal indicator LED
Out of stock

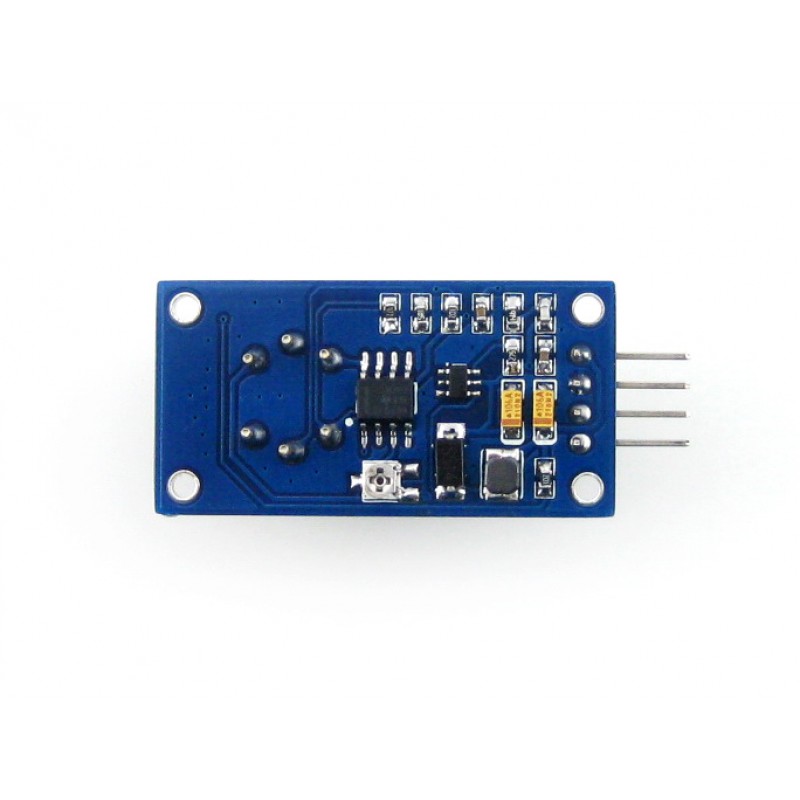

The MQ-2 sensor utilizes a tin dioxide (SnOâ‚‚) sensing element, whose conductivity increases in the presence of combustible gases. This change in conductivity is converted into a corresponding output voltage on the analog pin, while a comparator circuit provides a clean digital trigger signal. The module includes a heater circuit to maintain the sensor at optimal operating temperature.

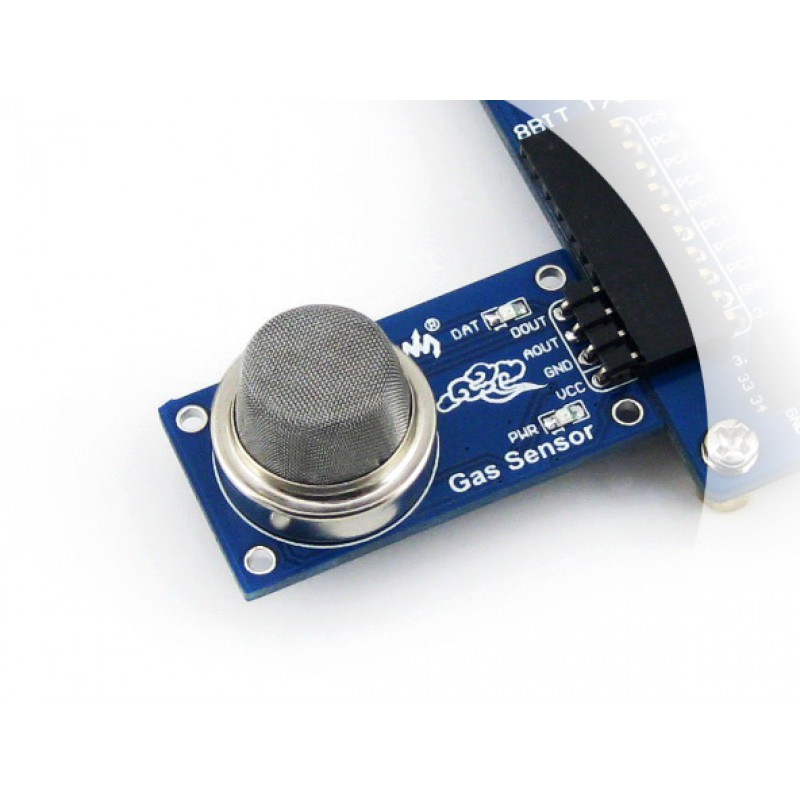

Designed for prototyping and integration, the module features a standard 2.54mm pin header interface, making it compatible with breadboards and common development boards. Its compact form factor and mounting holes allow for secure installation in various gas detection and safety monitoring applications.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 6 × 4 × 1 cm |
