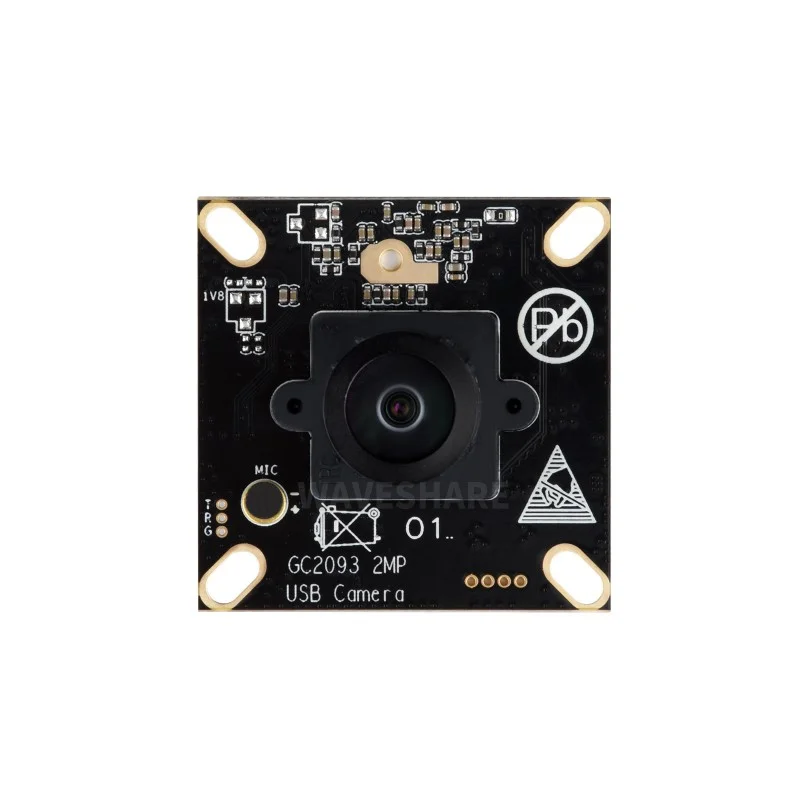

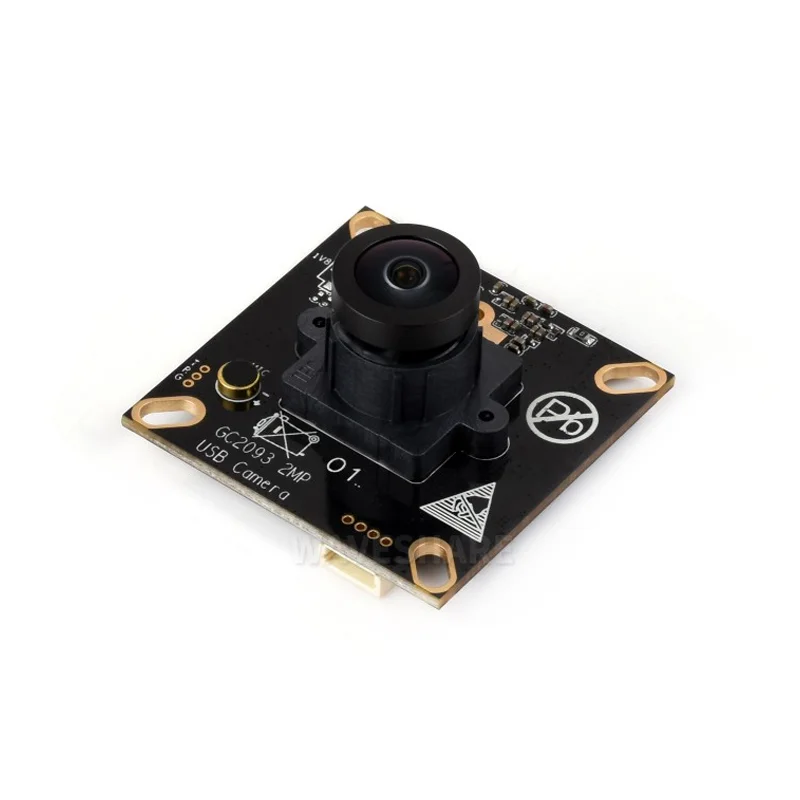

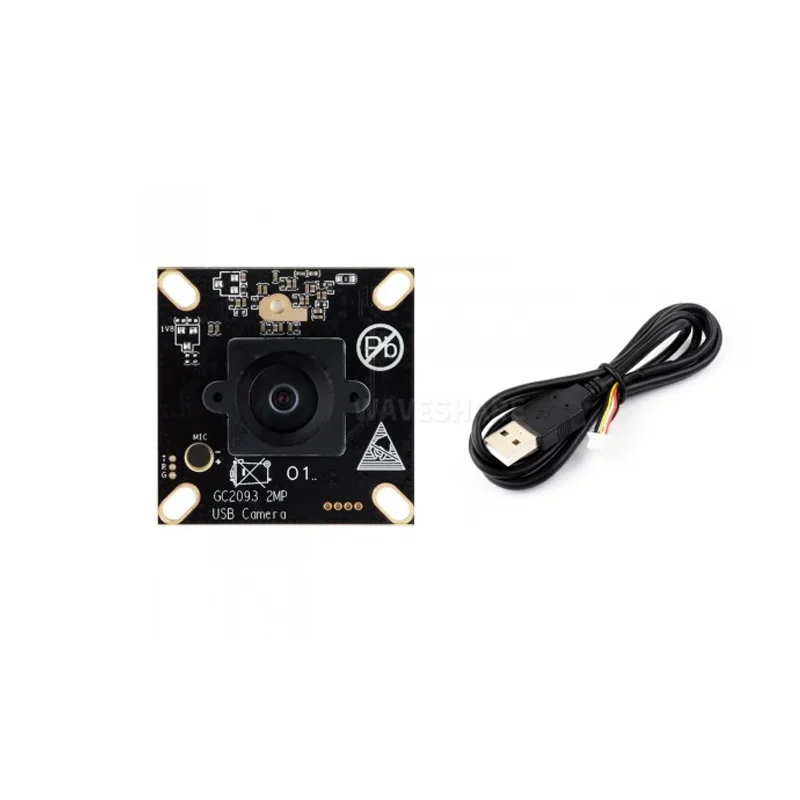

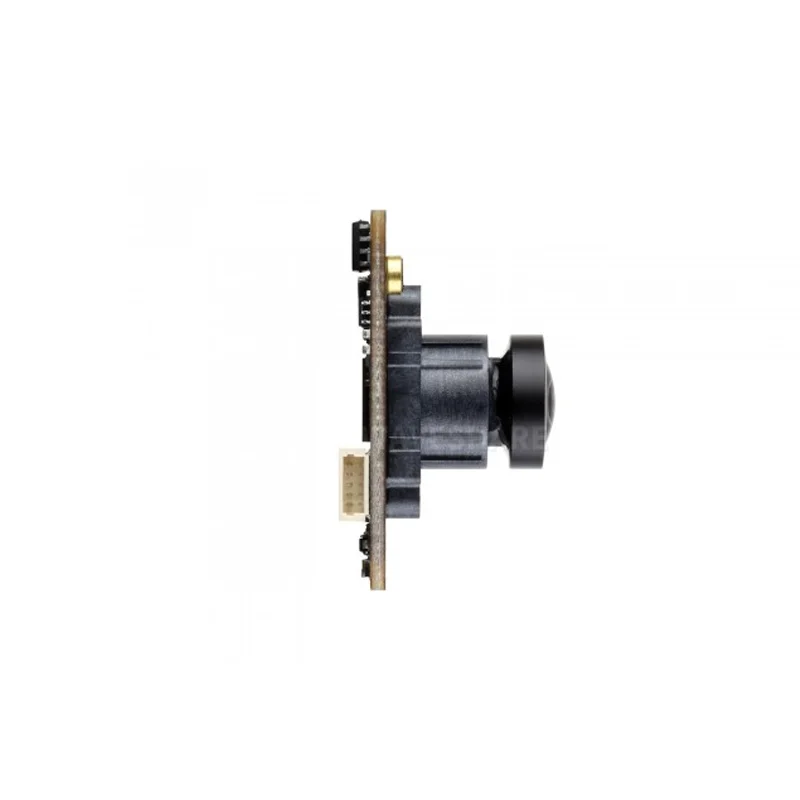

Waveshare GC2093 2MP USB Camera Module w/ 105dB WDR & Microphone
The Waveshare GC2093 2MP USB Camera Module is a plug-and-play vision sensor with a wide dynamic range (WDR) of up to 105dB, delivering balanced imaging in high-contrast and backlit scenes via a standard USB 2.0 interface.
Features
- GC2093 2MP sensor provides sharp, clear imaging for embedded vision and monitoring applications.
- Up to 105dB Wide Dynamic Range (WDR) preserves detail in both bright highlights and dark shadows for challenging backlit scenes.
- Driver-free USB 2.0 interface enables simple plug-and-play connectivity with PCs, Raspberry Pi, and other smart devices.
- Standard M12 lens mount allows for flexible lens swapping and easy integration into custom enclosures.
- Onboard microphone adds audio capture capability, making it suitable for video conferencing and surveillance systems.
Out of stock
The Waveshare GC2093 USB Camera Module integrates a high-performance 2-megapixel GC2093 CMOS sensor, engineered for reliable imaging under variable lighting. Its standout feature is a wide dynamic range (WDR) capability reaching up to 105dB in HDR mode, which actively balances exposure to reveal critical details in both overexposed and underexposed areas of a scene. This makes it exceptionally effective for indoor/outdoor transitions, security monitoring with strong backlighting, and industrial inspection tasks.
Designed for effortless integration, the module operates via a USB 2.0 interface that requires no additional drivers, ensuring immediate compatibility with common development platforms and desktop systems. The compact, 38mm square form factor houses a fixed-focus lens with a wide 170.2-degree diagonal field of view and includes an integrated microphone for synchronized audio-video capture. Its standard M12 lens mount offers flexibility for users to adapt different focal lengths based on specific application requirements.
Additional Information
| Weight | 0.038 kg |
|---|---|
| Dimensions | 3.8 × 3.8 cm |
