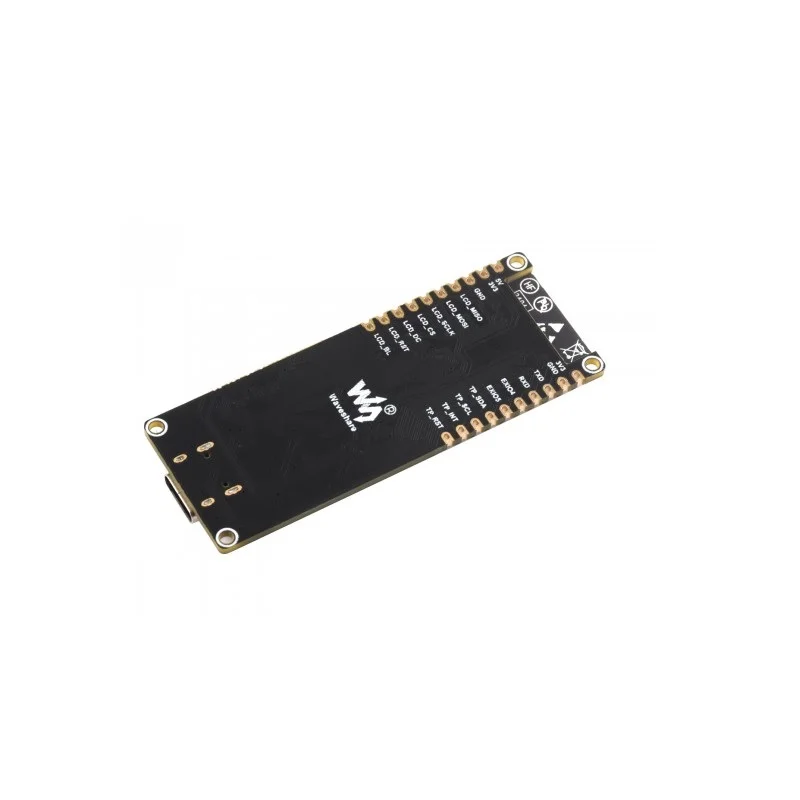

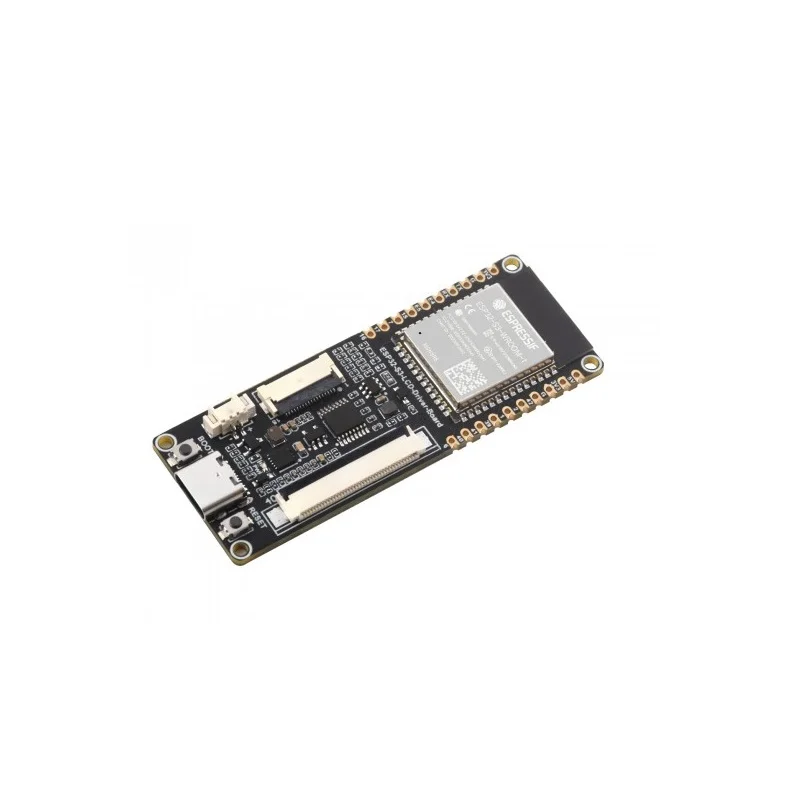

Waveshare ESP32-S3 RGB LCD Driver Board w/ ESP32-S3-WROOM-1-N8R8
The Waveshare ESP32-S3 LCD Driver Board is a compact development platform centered on the ESP32-S3-WROOM-1-N8R8 module, featuring a 240MHz dual-core LX7 processor, 8MB PSRAM, and integrated Wi-Fi & BLE. It provides dedicated 40-pin RGB and 18-pin SPI LCD connectors for driving displays and is programmable via Arduino IDE or ESP-IDF.
Features
- Powered by the ESP32-S3-WROOM-1-N8R8 module with a 240MHz Xtensa LX7 dual-core processor for responsive embedded GUI applications.
- Integrates 8MB PSRAM and 8MB Flash, providing ample memory for graphics buffers and complex firmware.
- Features dedicated 40-pin (3SPI+RGB565) and 18-pin SPI LCD connectors for direct interfacing with a wide range of RGB and SPI displays.
- Includes an onboard ETA6096 lithium battery management IC and MX1.25 connector for portable, battery-powered projects.
- Supports 2.4GHz Wi-Fi and Bluetooth LE 5.0 for wireless connectivity in IoT dashboards and smart device interfaces.
Out of stock
Designed for AIoT and human-machine interface projects, this driver board leverages the Espressif ESP32-S3’s capabilities to handle graphics-intensive tasks. The castellated module design allows for direct soldering onto custom carrier boards, facilitating compact end-product integration. Its processor architecture balances high performance with the ESP32-S3’s proven low-power modes, enabling efficient operation in portable, display-centric devices.
The board simplifies connectivity with a USB Type-C port for programming and power, and a pre-populated 20-pin GPIO header compatible with common 18-pin SPI screens. This design eliminates the need for complex wiring, allowing developers to focus on application logic and GUI development within familiar environments like the Arduino IDE or ESP-IDF.
Additional Information
| Weight | 0.012 kg |
|---|---|
| Dimensions | 7 × 11 × 0.1 cm |
