Description

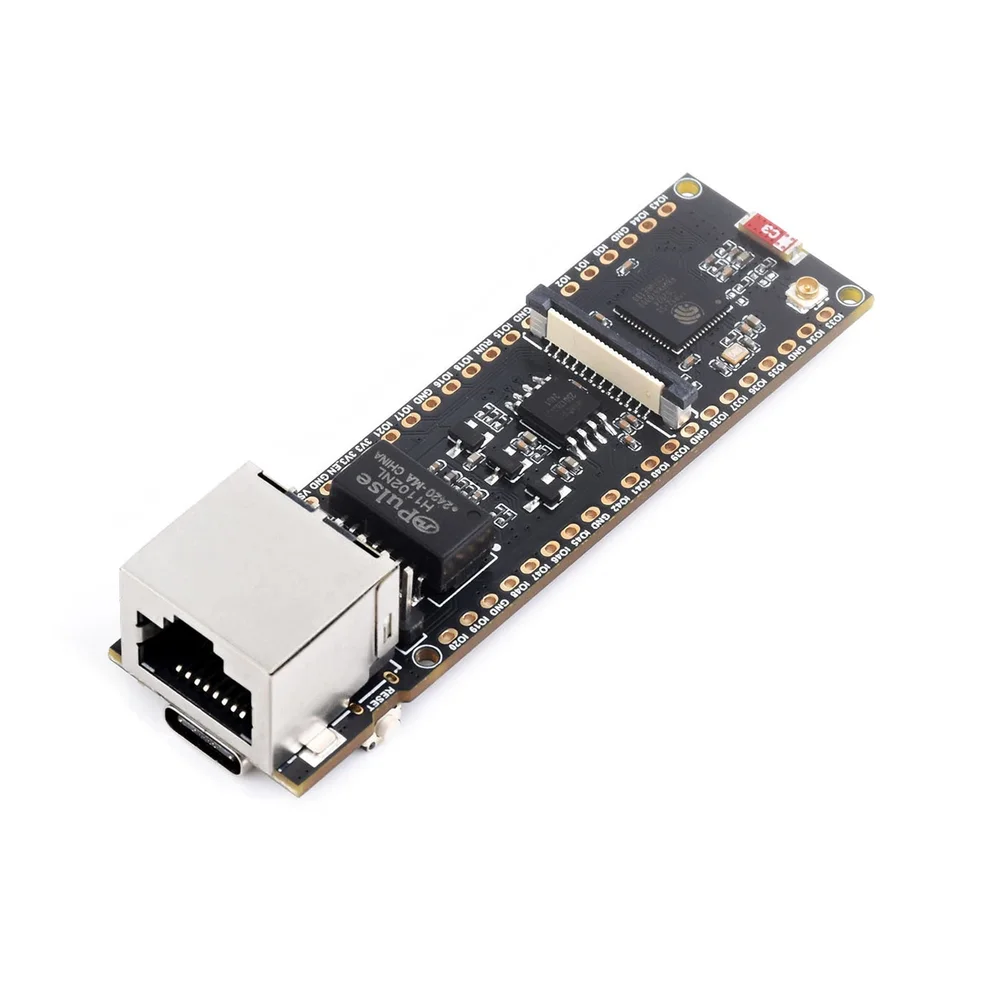

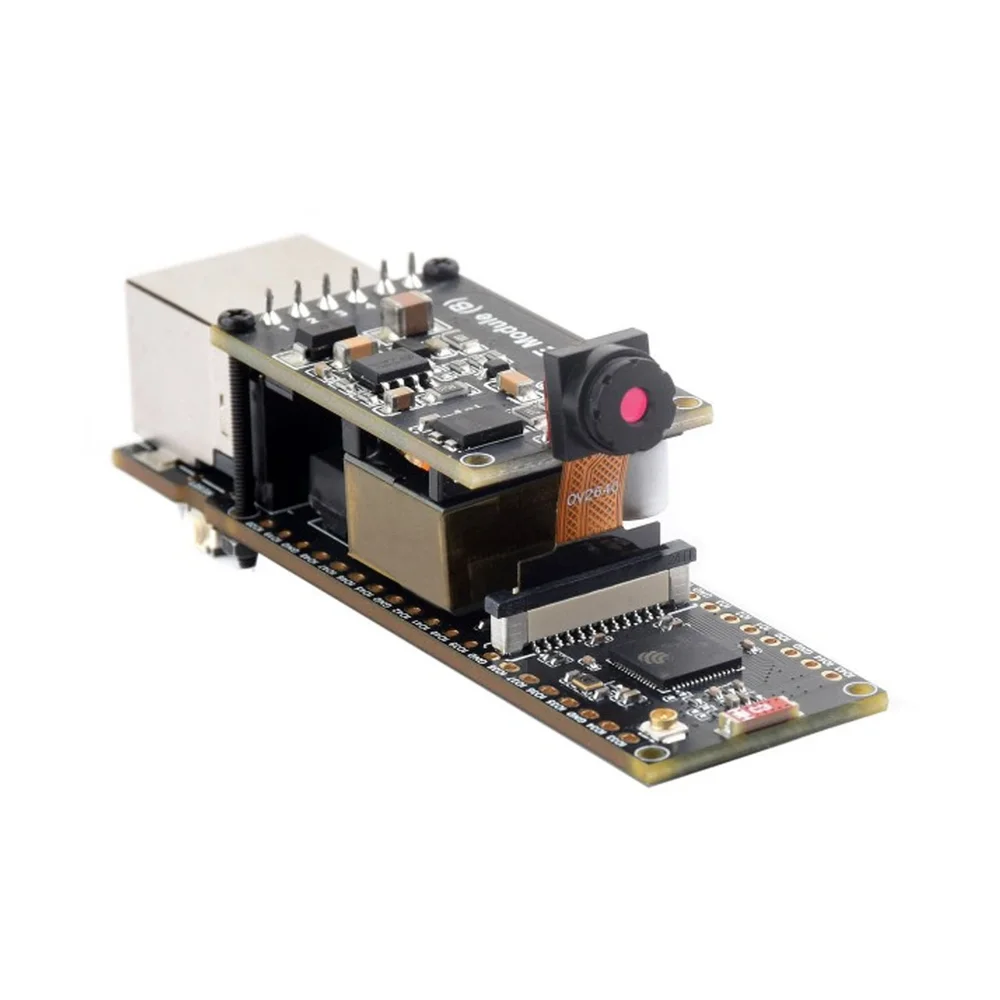

The Waveshare ESP32-S3-POE-ETH-CAM-KIT is a feature-rich Ethernet development board engineered for IoT and embedded computer vision applications. Its core is the ESP32-S3R8, a dual-core Xtensa LX7 processor capable of 240MHz operation, paired with substantial memory resources including 8MB of PSRAM for handling high-resolution image buffers and 16MB of Flash for firmware storage.

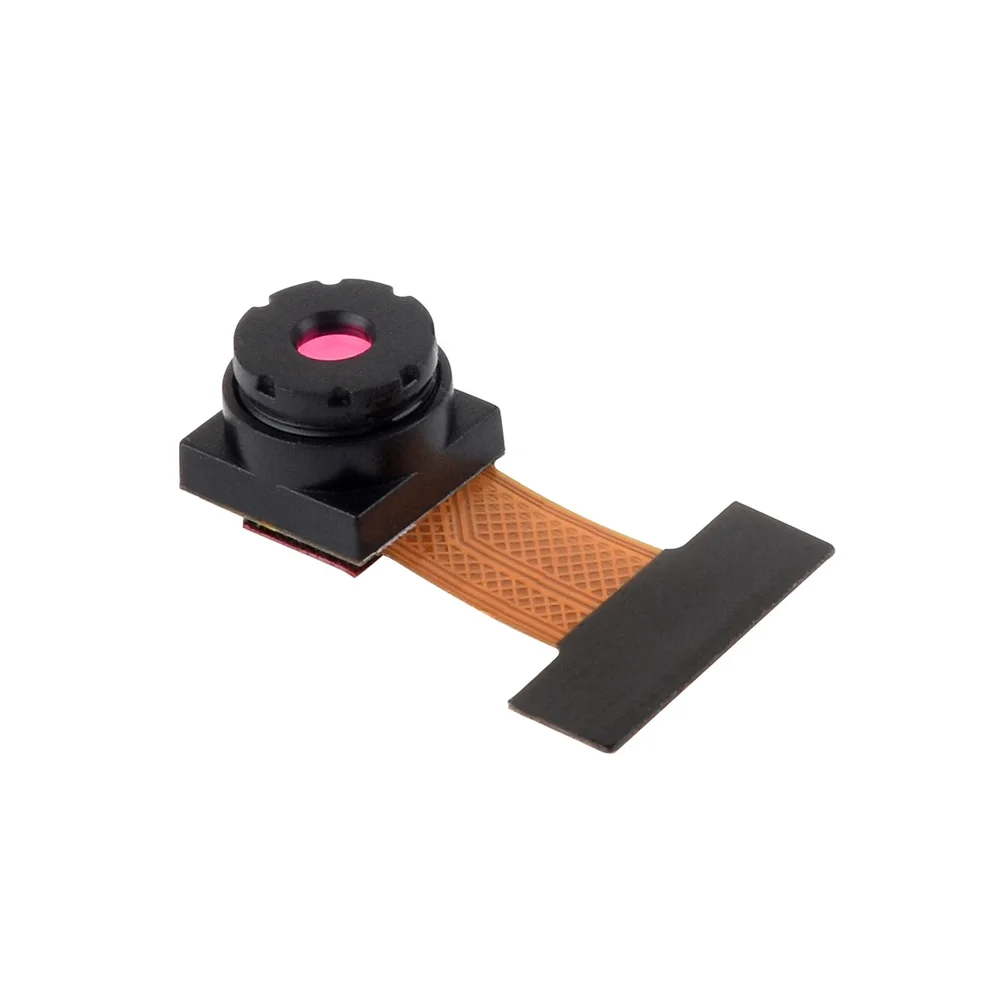

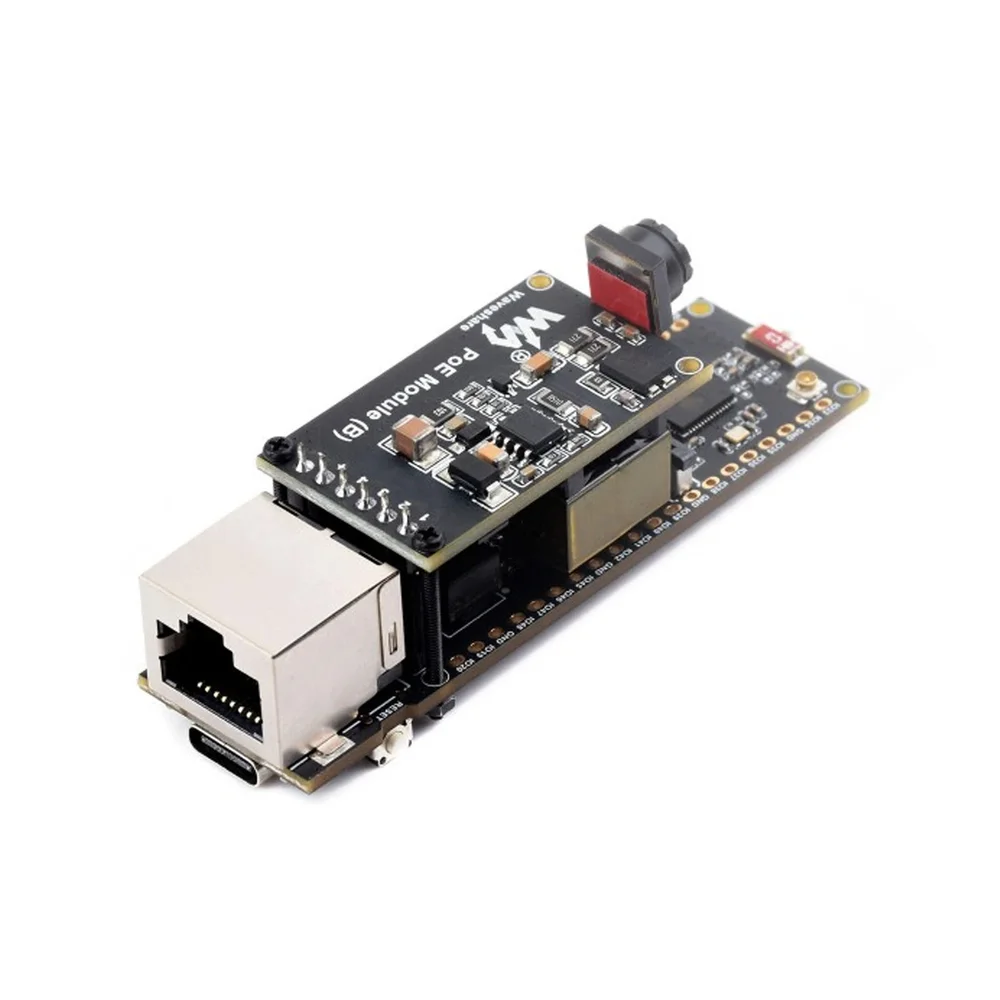

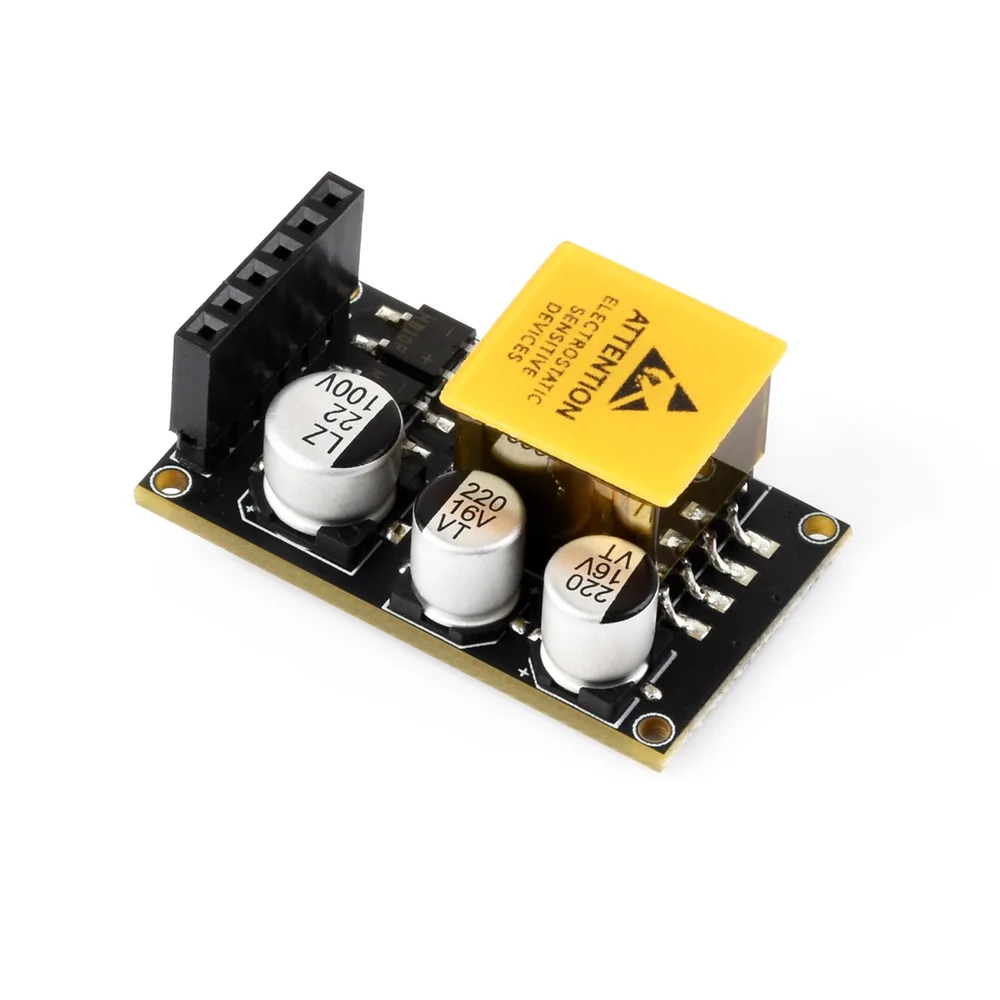

Network connectivity is delivered through a triple-stack approach: stable wired 10/100Mbps Ethernet via the SPI-interfaced W5500 chip, optional IEEE 802.3af Power-over-Ethernet for streamlined deployment, plus integrated 2.4GHz Wi-Fi and Bluetooth 5 for wireless links. The dedicated camera interface supports the OV5640 sensor, enabling 5MP still capture and video streaming for surveillance, smart home monitoring, or machine vision prototypes. The board’s compact form factor includes a USB Type-C port for seamless integration into development workflows using ESP-IDF, Arduino, or MicroPython.
