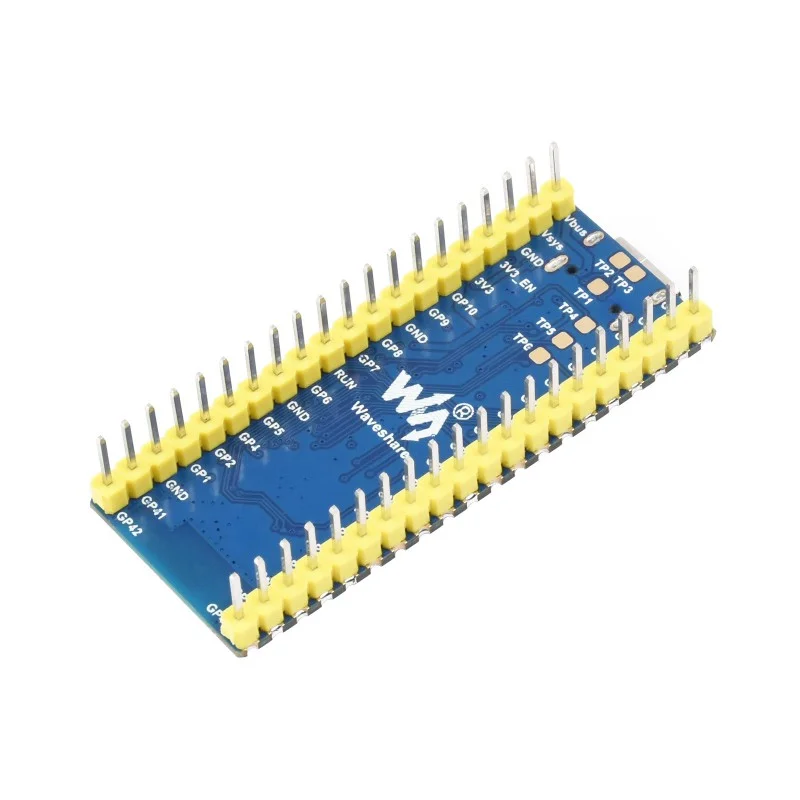

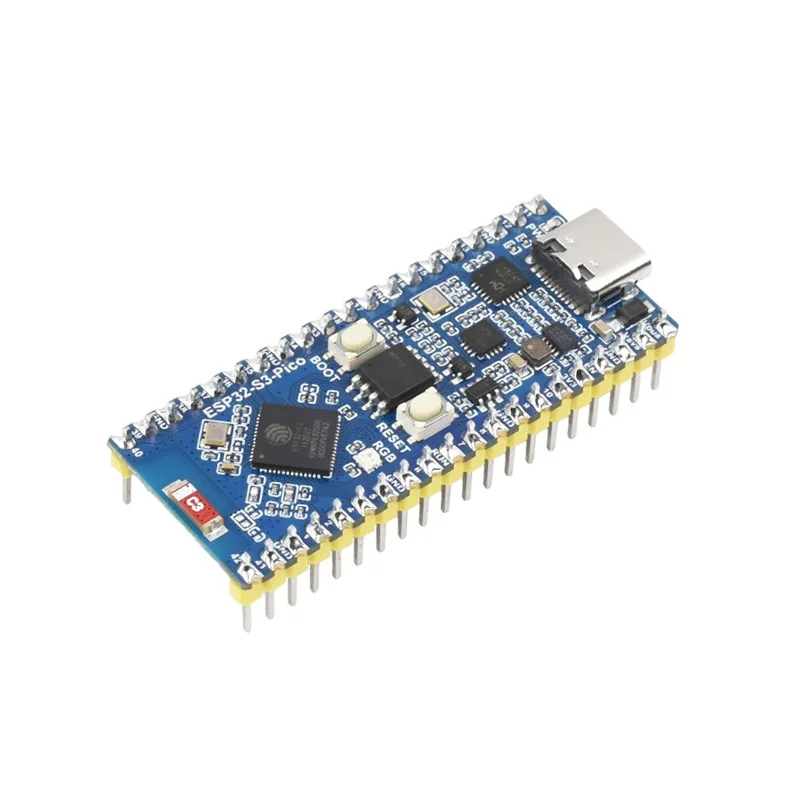

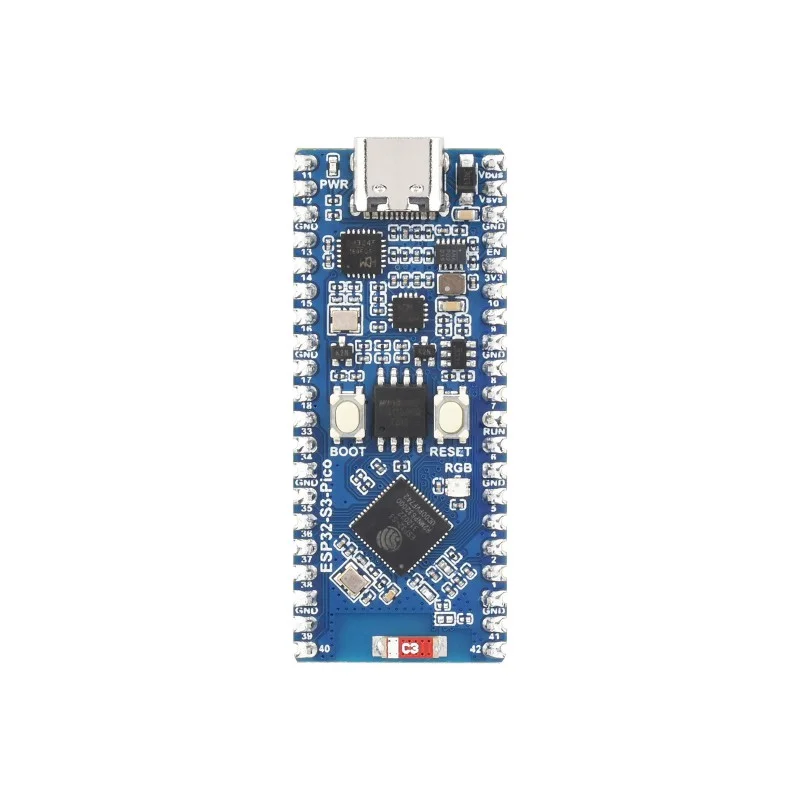

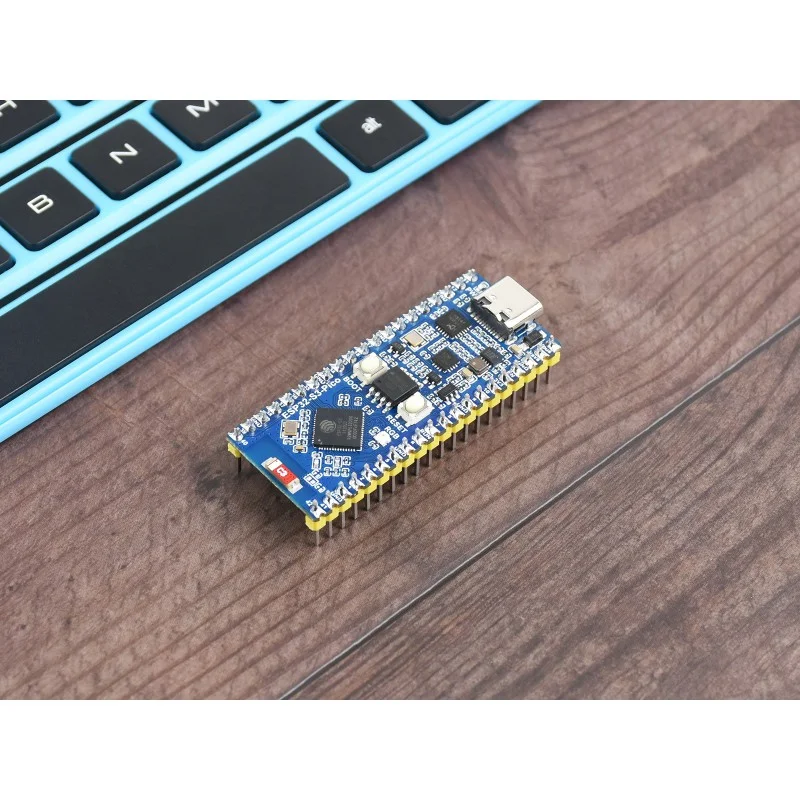

Waveshare ESP32-S3 Development Board w/ Pin Headers

You can program it using the Arduino IDE, ESP-IDF, or MicroPython. First, install the ESP32 board package in Arduino or set up the ESP-IDF toolchain. Connect the board via the USB-C port; the onboard CH343 chip provides the USB-to-serial interface, so no external programmer is needed. Select the correct COM port and the 'ESP32S3 Dev Module' as the board target before uploading your sketch or firmware.

The MP28164 is a high-efficiency buck-boost DC-DC converter. It regulates the 5V input from the USB-C port to the stable voltages required by the ESP32-S3 and other components. Its key benefit is maintaining stable power even when input voltage fluctuates, supporting load currents up to 2A. This ensures reliable operation for peripherals like displays or cameras that may draw significant current.

Yes, the board supports camera interfaces via its Digital Video Port (DVP). You can connect compatible 8-bit or 16-bit camera modules (like OV2640) to the designated GPIO pins. In ESP-IDF, use the standard camera driver examples. Ensure your power supply can handle the extra current draw, and configure the correct pin definitions in your code to initialize the camera sensor and capture images.

This specific Waveshare model features an integrated PCB trace antenna for Wi-Fi and Bluetooth, providing standard range for most indoor applications. The board does not have an external antenna connector like an IPEX or SMA. For projects requiring extended range or directional focus, you would need to select a different ESP32-S3 module variant that includes an RF connector or design a custom carrier board.
