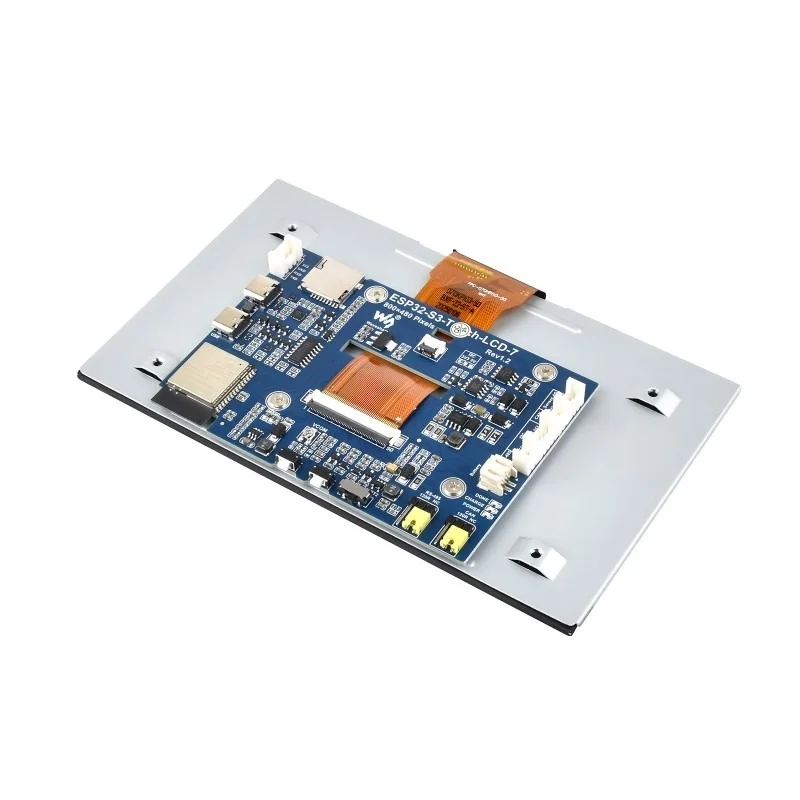

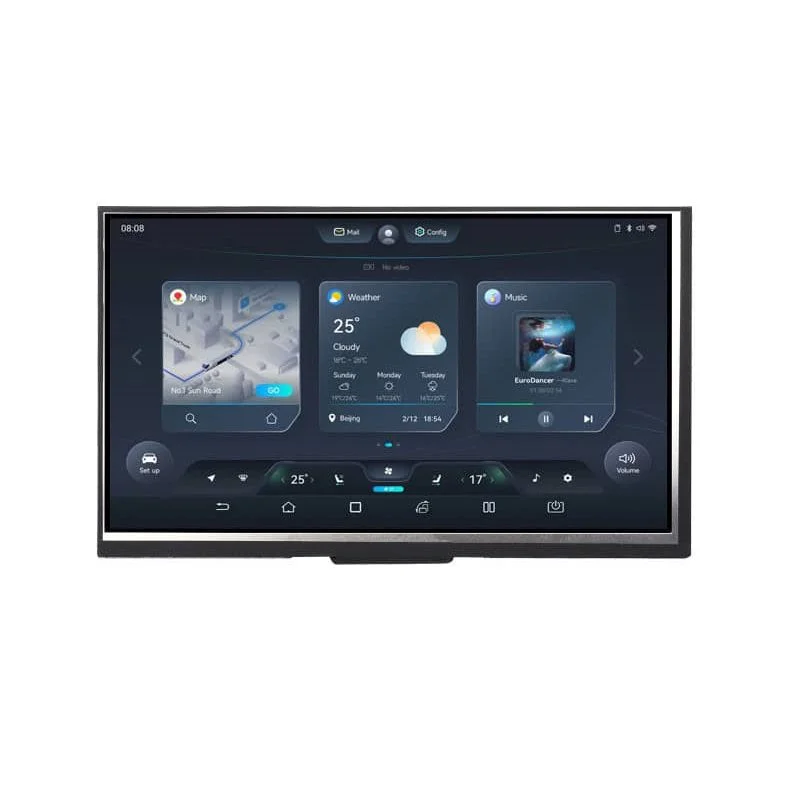

Waveshare ESP32-S3 7inch Display Development Board w/ 800×480 LCD

You can develop for this board using Espressif's official ESP-IDF framework for full control over peripherals and low-level features. It is also widely compatible with the Arduino Core for ESP32 via the Arduino IDE or PlatformIO, which simplifies library usage. For rapid GUI development, you can leverage libraries like LVGL (Light and Versatile Graphics Library) which runs efficiently on the ESP32-S3 and its PSRAM. MicroPython is another option for scripting-based projects, though it may have limitations with the full display driver.

The board is powered via the onboard USB Type-C port, requiring a standard 5V supply. Current consumption varies significantly based on usage: with the display and Wi-Fi active, it can draw several hundred milliamps. For low-power applications, you can utilize the ESP32-S3's deep sleep modes and independently power down the display backlight via software control. The board's design allows separate power domains, enabling you to minimize idle current to microamps in deep sleep, making solar or battery-powered field deployments feasible with proper firmware design.

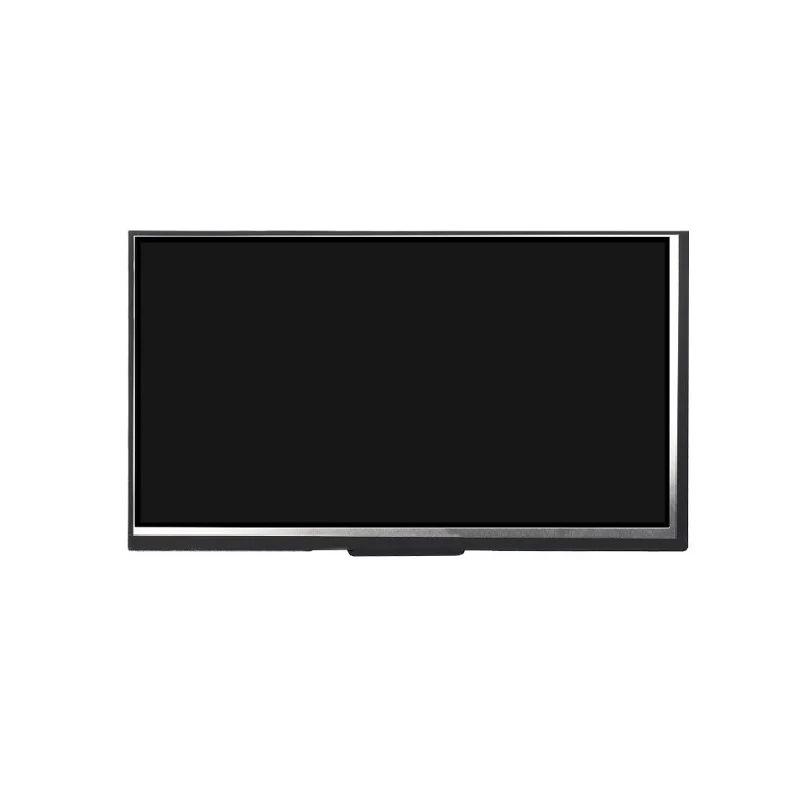

The specific model described here is noted as 'Without Touch Function.' Waveshare typically offers variants with and without 5-point capacitive touch. This version uses a standard 7-inch IPS LCD without an integrated touch controller. If you require touch input, you would need to source the touch-enabled version or add an external touch panel via the available I2C interface, which has dedicated pins and interrupt support for connecting compatible touch controllers.

The integrated CAN (Controller Area Network) and RS485 interfaces are industrial communication standards. CAN is prevalent in automotive and industrial automation for robust, multi-node networks. RS485 is used for long-distance, noise-resistant serial communication in building automation, HVAC systems, and industrial sensor networks. These interfaces allow this display board to act as a master controller or monitoring station in such environments, reading data from sensors/drives and displaying status or sending commands, bridging local GUI with industrial fieldbus networks.
