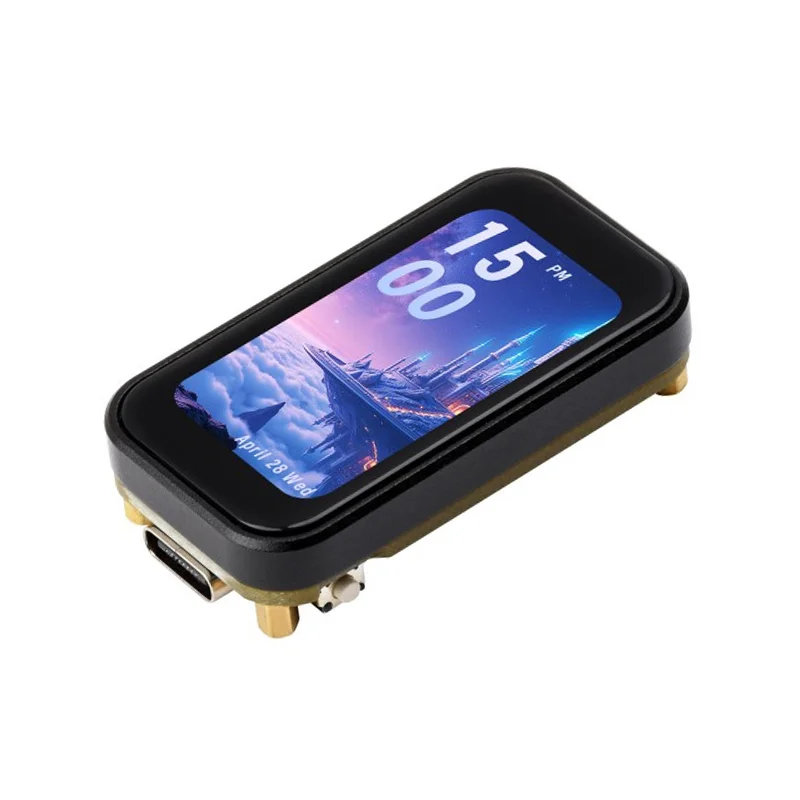

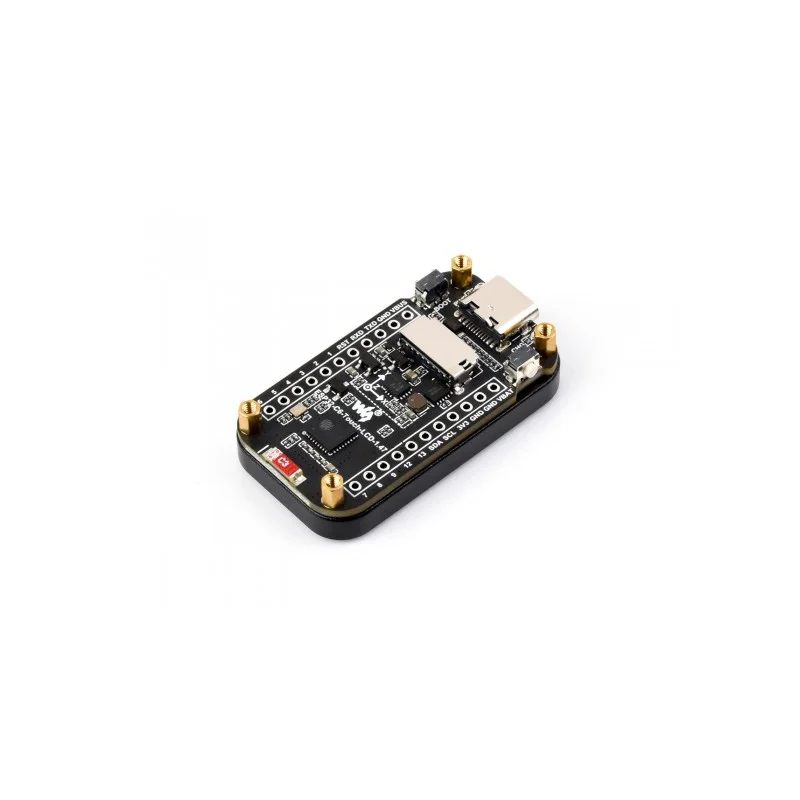

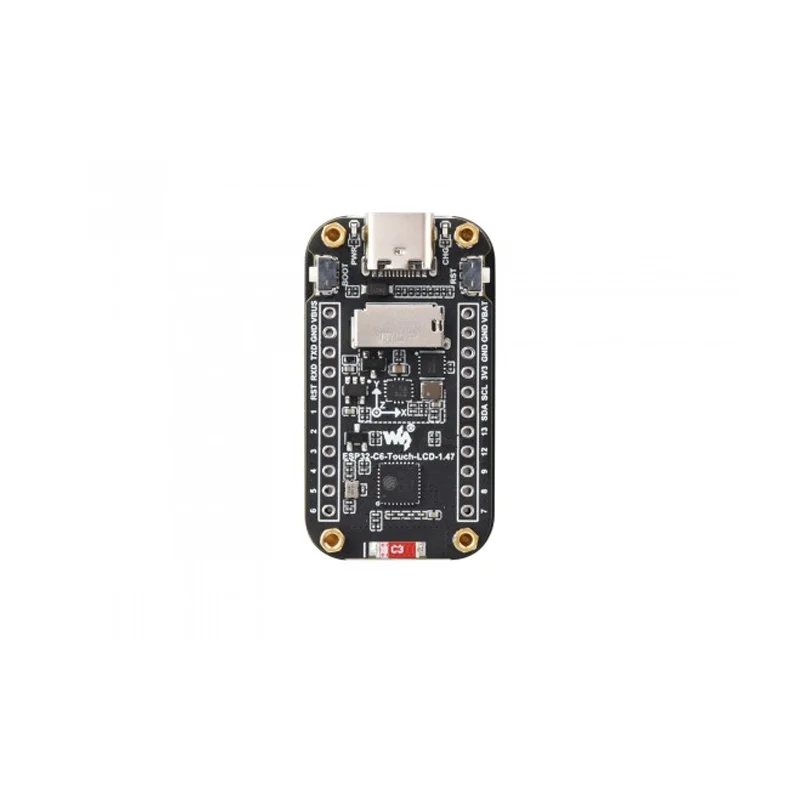

Waveshare ESP32-C6 1.47-Inch Touch Display Development Board
The Waveshare ESP32-C6 Touch Display Development Board integrates a 1.47-inch capacitive touchscreen (172×320) with a 160MHz RISC-V processor, Wi-Fi 6, and BLE 5.0. It’s designed for rapid prototyping of GUI and AIoT applications using frameworks like LVGL, powered via USB-C.
Features
- 1.47-Inch Capacitive Touchscreen: High-resolution 172×320 IPS display with 262K colors for smooth GUI development with LVGL.
- ESP32-C6FH8 Wi-Fi 6 & BLE 5.0: Combines a 160MHz RISC-V core with modern wireless protocols for low-latency, energy-efficient IoT connectivity.
- Onboard 6-Axis IMU & 8MB Flash: Includes motion sensing for interactive controls and ample storage for complex applications and assets.
- USB-C & Expandable I/O: Features USB-C for power and communication, plus GPIO and a microSD (TF) slot for sensor and storage expansion.
Out of stock
The Waveshare ESP32-C6 Touch Display Development Board is a compact, all-in-one platform for building interactive IoT devices and human-machine interfaces (HMI). It centers on the Espressif ESP32-C6FH8 chip, featuring a high-performance 160MHz RISC-V processor alongside a low-power co-processor, enabling efficient operation in both active and sleep modes. The board’s integrated 1.47-inch capacitive touchscreen provides a vibrant, responsive interface for GUI frameworks like LVGL.
Wireless connectivity is delivered via integrated Wi-Fi 6 (802.11ax) and Bluetooth Low Energy 5.0, supporting stable, low-power communication for smart home, wearable, and industrial monitoring applications. The onboard 6-axis IMU (accelerometer + gyroscope) enables motion-based control, while the microSD slot allows for external asset storage. With its USB-C interface, 3.3-5V power input, and extensive GPIO breakout, it serves as a versatile foundation for rapid prototyping and deployment in AIoT ecosystems.
Additional Information
| Weight | 0.012 kg |
|---|---|
| Dimensions | 5 × 2.5 cm |
