Waveshare Env Sensor HAT Raspberry Pi I2C Module with OLED Display

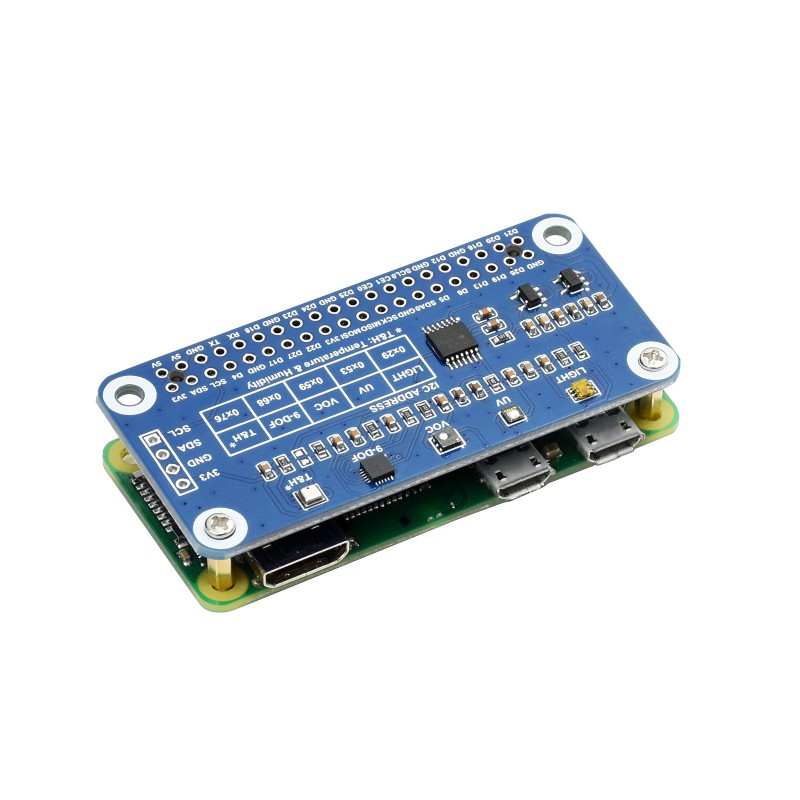

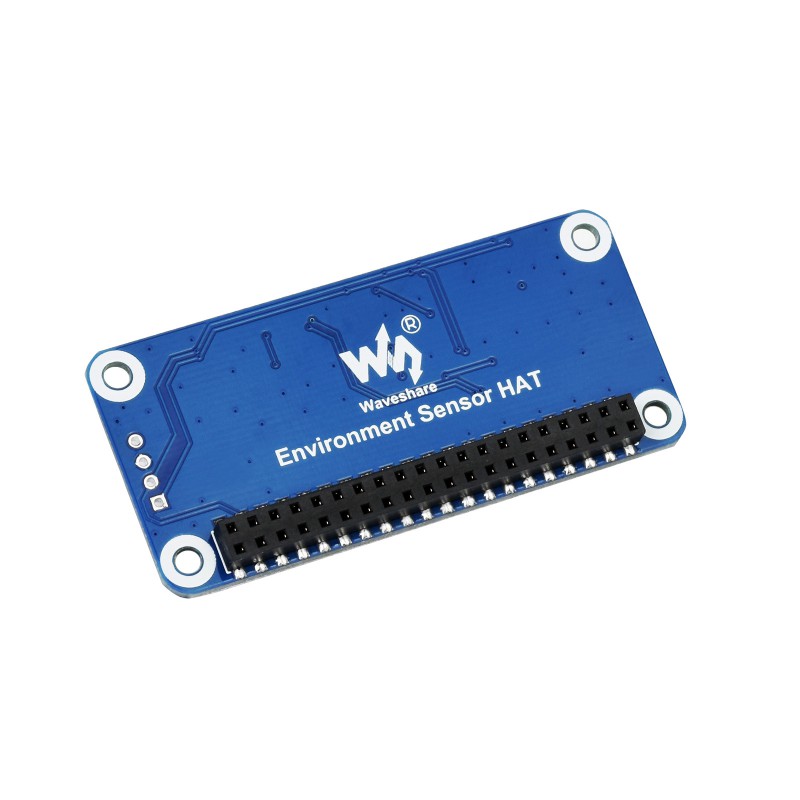

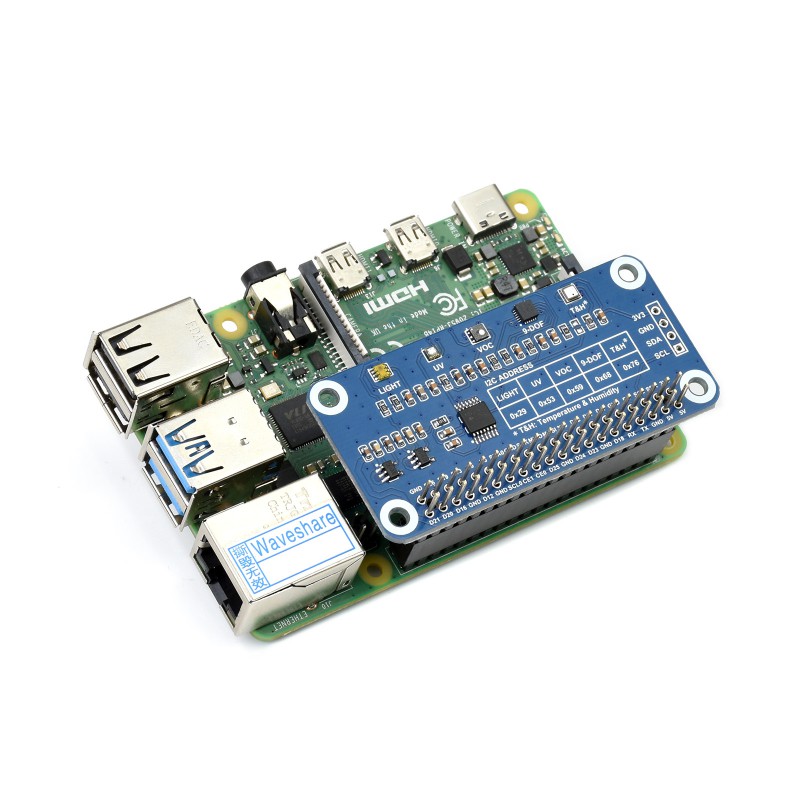

Yes, the Waveshare Env Sensor HAT is fully compatible with all Raspberry Pi models featuring the 40-pin GPIO header, including the Raspberry Pi Zero and Zero W. You simply align the provided 2x20-pin female header with the Pi's GPIO pins. The board draws power (5V) and communicates via I2C directly from the GPIO, requiring no external power supply.

All integrated sensors communicate via the I2C bus, using only the SDA and SCL lines on the Raspberry Pi's GPIO. Waveshare provides comprehensive Python libraries and example code for each sensor (BME280, ICM20948, TSL2591, etc.), allowing you to easily read temperature, humidity, pressure, light, UV, VOC, and IMU data with simple function calls. The I2C address for each sensor is documented in the provided resources.

The 1.3-inch OLED display requires software configuration to function. Waveshare's provided Python examples include code to initialize the display and show sensor readings. You will need to install the necessary Python libraries (like `Pillow` for image handling and `smbus` for I2C) as outlined in the user manual. The display connects via I2C, sharing the bus with the sensors.

The onboard voltage level translators convert the 5V supply from the Raspberry Pi GPIO to the required 3.3V and 1.8V logic levels needed by the various sensor ICs (e.g., ICM20948 operates at 1.8V). This ensures safe and reliable I2C communication between the Raspberry Pi's 3.3V GPIO and the sensors, preventing damage and ensuring signal integrity without requiring external logic level shifters.

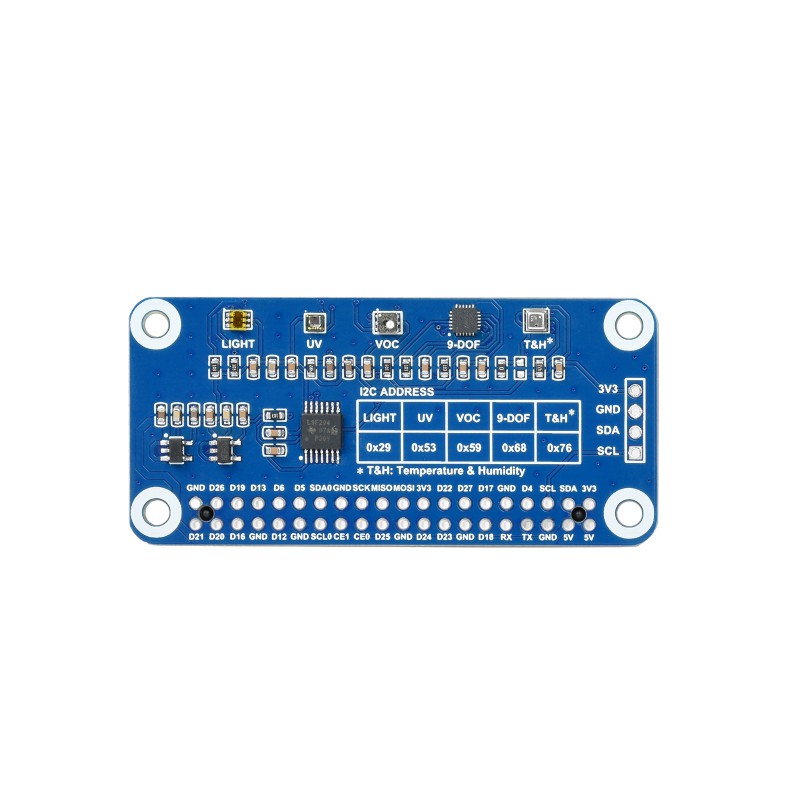

Yes, each sensor is an independent IC with its own I2C address. You can use Waveshare's modular Python libraries to initialize and read data from only the sensors you need for your project. The ICM20948 (IMU), BME280, TSL2591 (light), LTR390 (UV), and SGP40 (VOC) can all be addressed and powered on/off programmatically via the I2C bus, allowing for flexible power management and application design.
