Waveshare CM5 Nano Base Board (A) for Raspberry Pi CM5
The Waveshare Nano Base Board (A) is a compact base board specifically designed for the Raspberry Pi Compute Module 5 (CM5), offering essential interfaces for evaluation and integration. It features a Raspberry Pi 40PIN GPIO, USB 3.2 Gen1, and dual MIPI 4-lane interfaces, supporting both CM5 Lite and eMMC variants.
Features
- Compatible with all Raspberry Pi Compute Module 5 (CM5) variants, including Lite and eMMC.
- Features a standard Raspberry Pi 40PIN GPIO header for extensive peripheral compatibility.
- Integrates one USB 3.2 Gen1 Type-A port and two MIPI 4-lane interfaces for versatile connectivity.
- Compact design with the same footprint as the CM5, ideal for space-constrained embedded projects.
Out of stock
The Waveshare Nano Base Board (A) provides a robust and compact foundation for the Raspberry Pi Compute Module 5 (CM5). Engineered for seamless integration, its identical footprint to the CM5 makes it an optimal choice for space-constrained applications, from industrial automation to custom embedded systems. This base board streamlines development by offering core connectivity in a minimal form factor. It supports all CM5 variants, including both Lite and eMMC models.

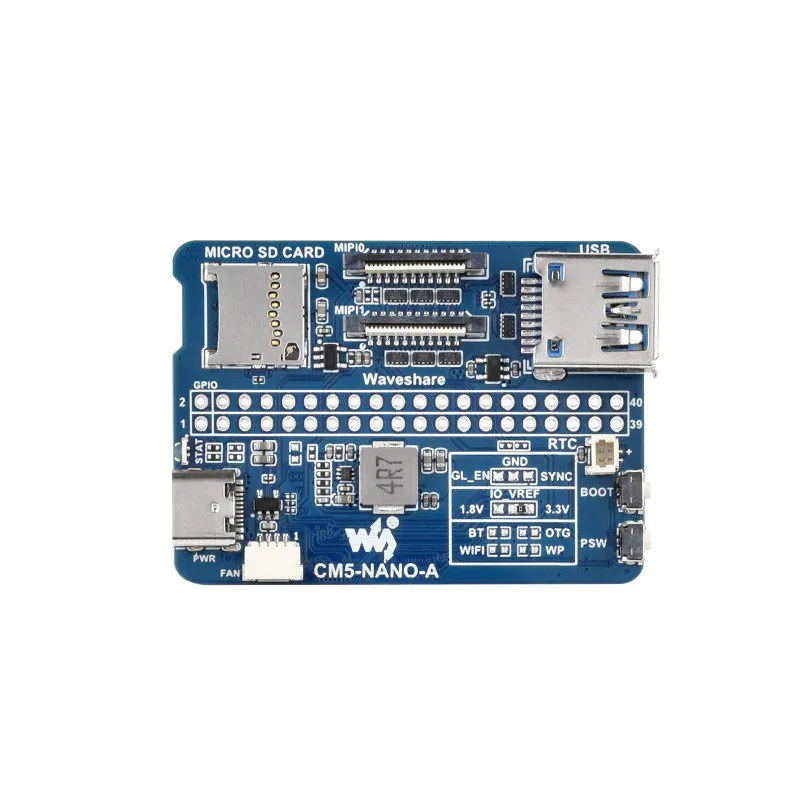

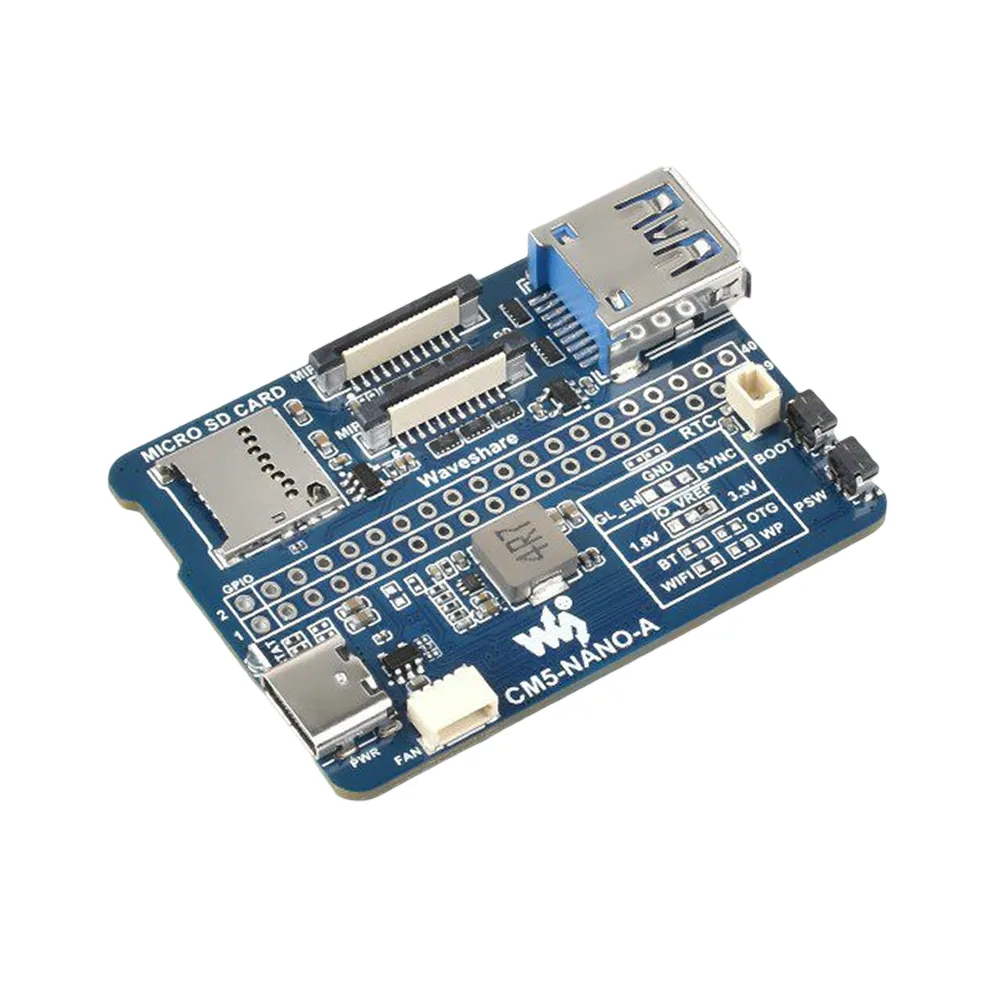

This base board significantly simplifies the deployment of CM5-based solutions by providing essential I/O. Users can leverage the onboard Raspberry Pi 40PIN GPIO for various sensor and peripheral integrations, alongside a high-speed USB 3.2 Gen1 Type-A port for robust data transfer. Dual MIPI 4-lane interfaces are available for camera or display connectivity, further enhancing its versatility for multimedia and vision-based projects. A TF card socket is included for CM5 Lite models, ensuring flexible storage options.
Additional Information
| Weight | 0.024 kg |
|---|---|
| Dimensions | 5.5 × 4 cm |
