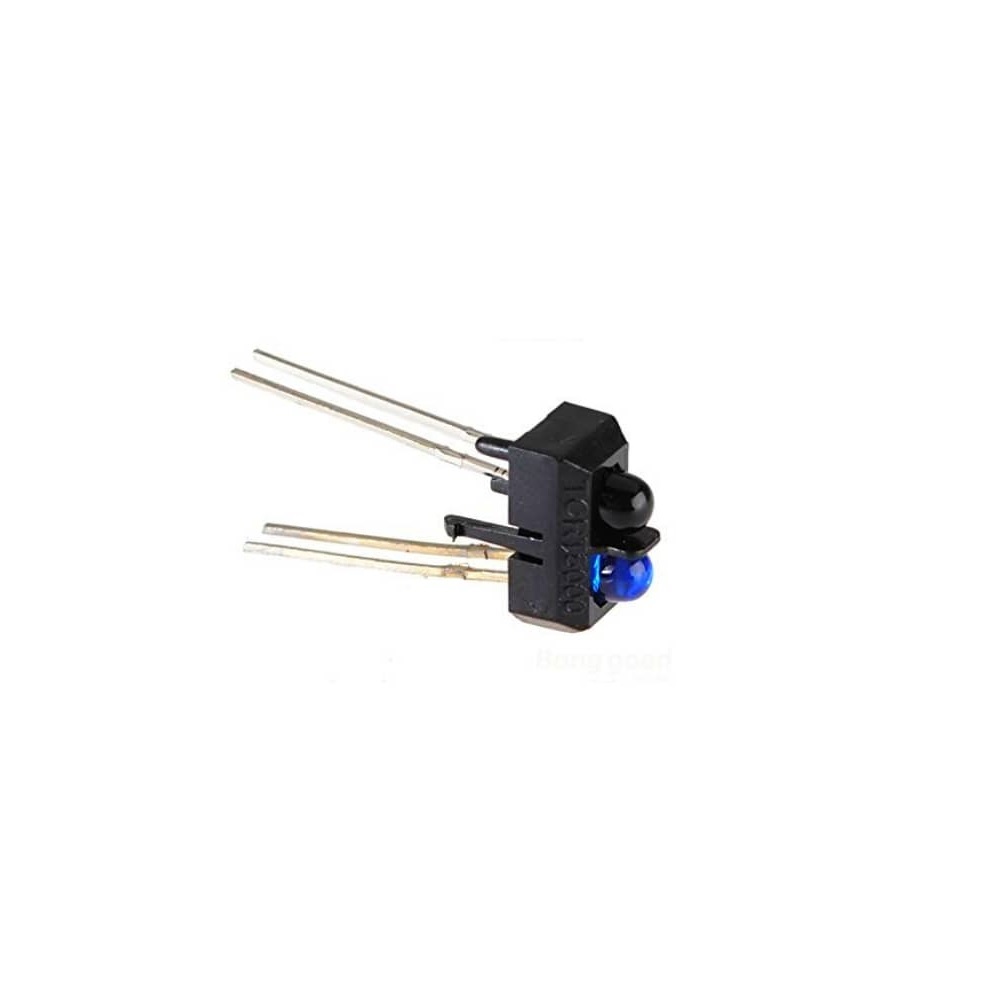

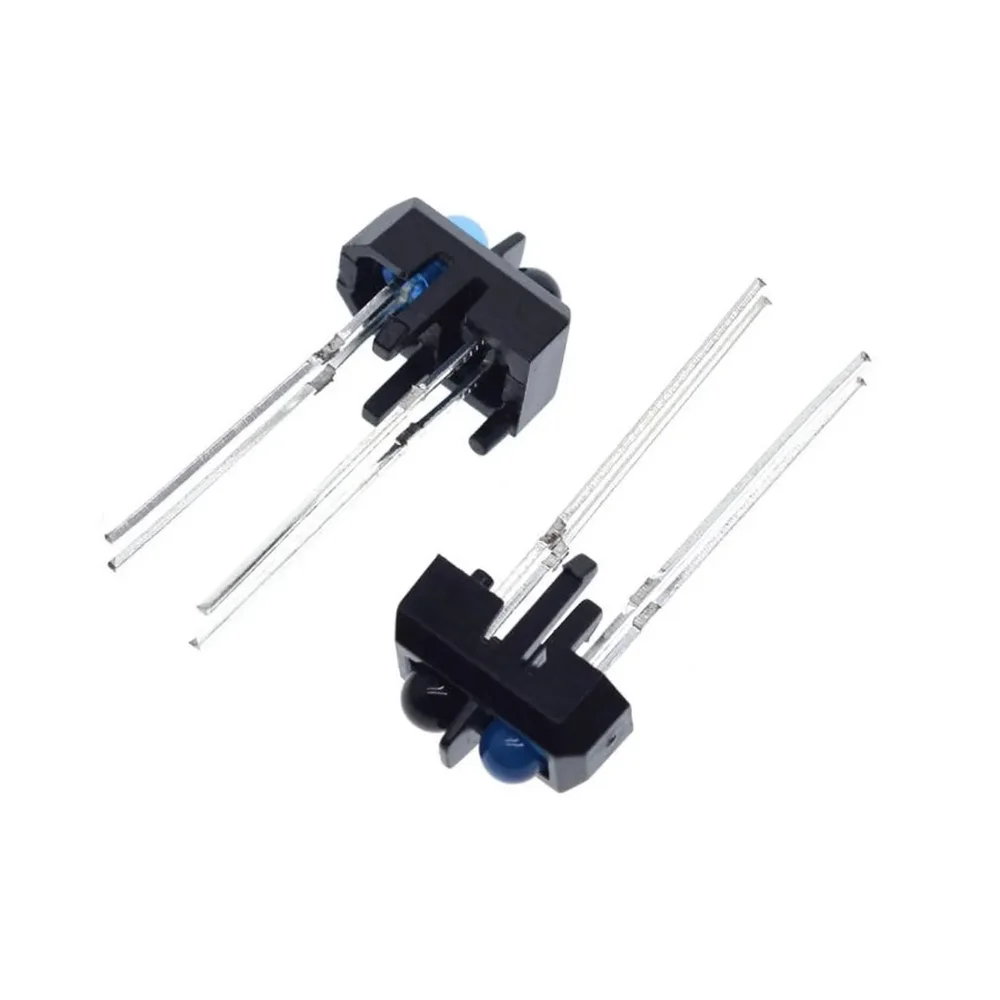

Vishay TCRT5000L Reflective Photo Interrupter, Phototransistor, Through Hole, 15 mm, 60 mA, 5 Vr, 1.25 Vf
The Vishay TCRT5000L is a reflective optical sensor integrating an infrared emitter and phototransistor in a compact DIP-2 package, designed for proximity and object detection applications. It features a daylight-blocking filter for reliable operation and is compatible with standard 5V logic systems, making it suitable for integration with microcontrollers like Arduino and industrial sensing circuits.
Features
- Integrated infrared emitter (950nm) and phototransistor detector in a single leaded package.
- Peak operating distance of 2.5mm for precise reflective sensing.
- Features a daylight-blocking filter for immunity to ambient light interference.
- Compact through-hole DIP-2 package with a 15mm sensing aperture.
- Rated for operation from -25°C to 85°C for robust industrial and instrumentation use.
Out of stock
The TCRT5000L operates on the principle of reflective optical sensing. The internal infrared LED emits light at 950nm, which is reflected by a target object and detected by the adjacent phototransistor. The output current of the phototransistor varies proportionally with the intensity of the reflected light, enabling reliable detection of object presence, proximity, or surface characteristics.
Its leaded package is designed to block visible light, enhancing signal integrity in variable lighting conditions. With a typical output current of 1mA under test conditions and a reverse voltage rating of 5V, this sensor provides a stable and straightforward interface for digital or analog input circuits in both prototyping and industrial environments.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 1.02 × 0.58 cm |
