Upside Down Labs BioAmp Alligator Cable - 100cm JST PH 2.0mm 3-Pin

₹319.00 (Inclusive of all taxes)
Out of Stock

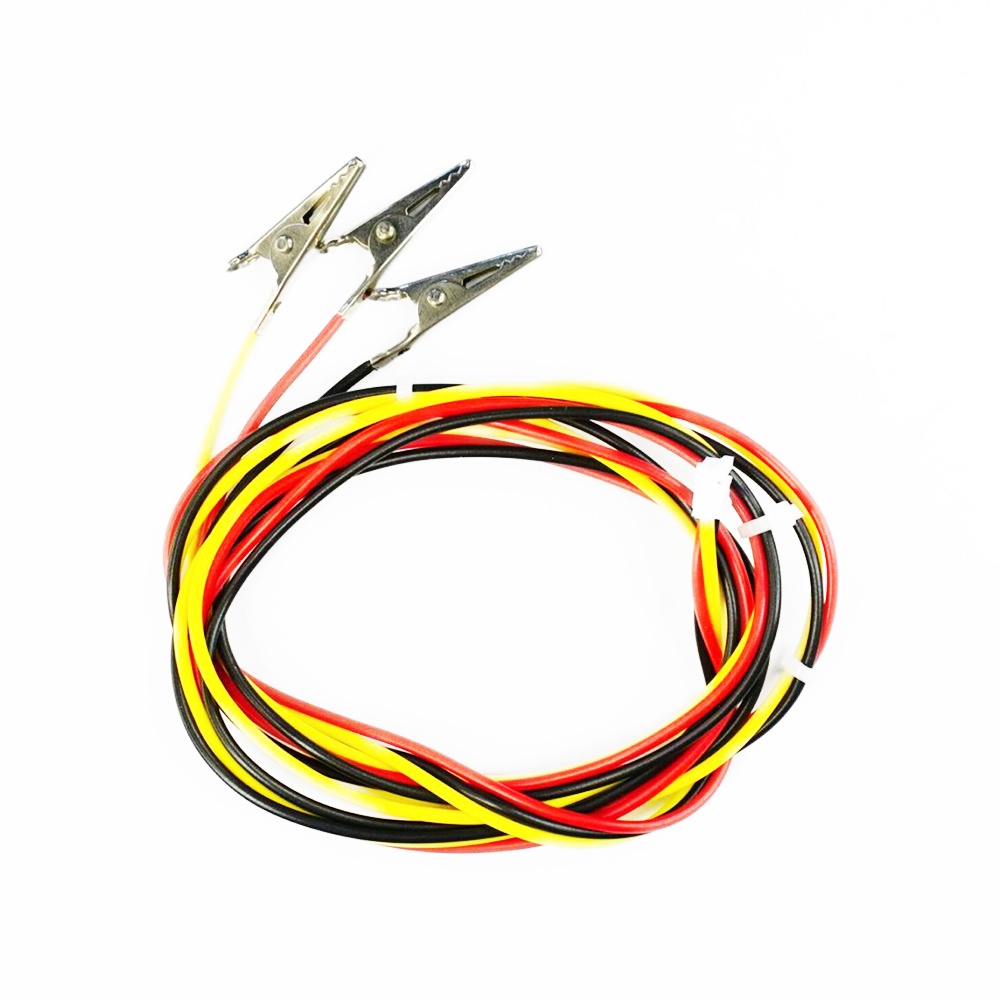

The BioAmp Alligator Cable is a 100cm, 3-pin electrode cable with a JST PH 2.0mm connector and alligator clips, designed for reliable connectivity between BioAmp EXG boards and standard gel electrodes for biopotential signal acquisition.

Features

  • 100cm length, 3-pin color-coded cable with JST PH 2.0mm connector for BioAmp boards.

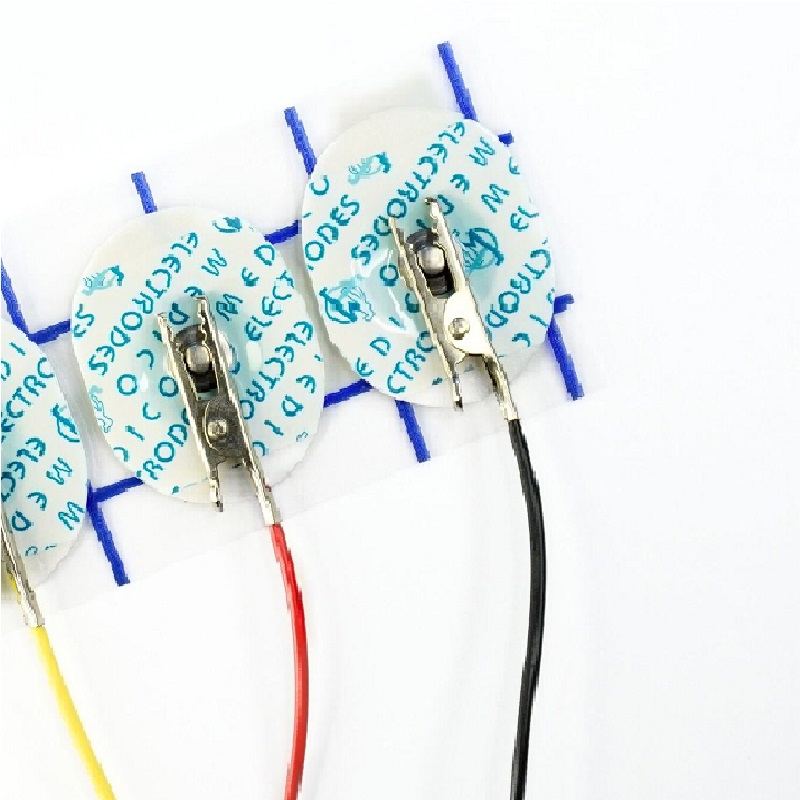

  • Alligator clip electrode interface for secure, solder-free connections to standard gel electrodes.
  • Compatible with BioAmp EXG Pill, BioAmp v1.5, Muscle BioAmp Shield, and Muscle BioAmp Candy.
  • Durable, flexible cable construction for reliable signal transmission in biopotential measurements.
  • Designed exclusively for use with conductive gel electrodes (not compatible with dry electrode BioAmp Bands).

Out of stock

Description

The BioAmp Alligator Cable serves as a dedicated interface cable for biopotential measurement systems, connecting BioAmp EXG (Electrocardiography/Electromyography) amplifier boards to disposable or reusable gel electrodes. Its 3-pin configuration carries the differential signal inputs and reference ground required for clean ECG, EMG, or EOG signal acquisition.

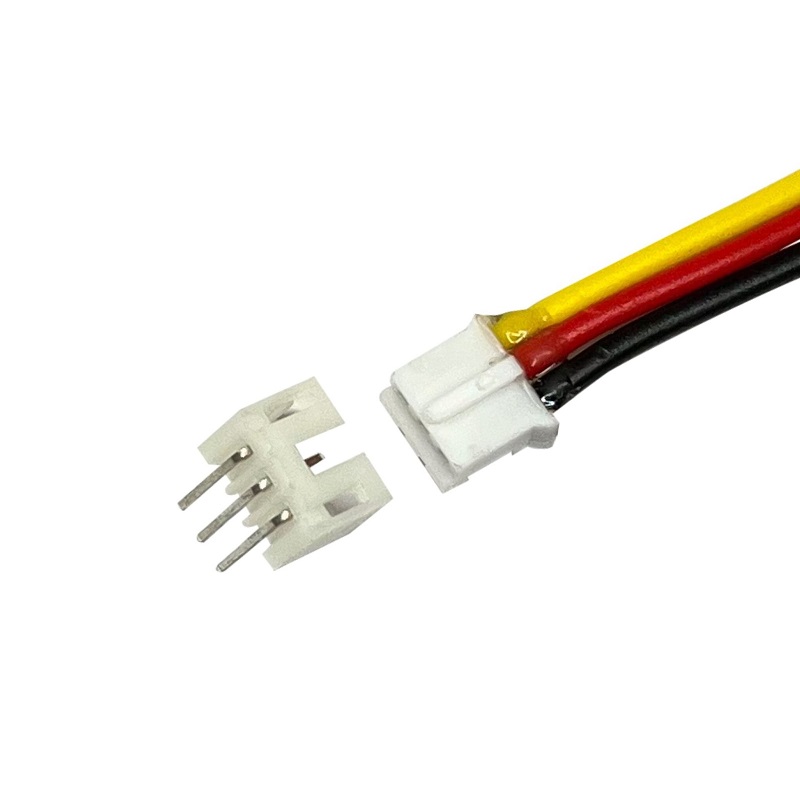

The cable terminates in a secure JST PH 2.0mm connector on one end, mating directly with BioAmp board headers, and features three color-coded alligator clips on the other for attaching to standard snap-connector gel electrodes. This design eliminates the need for soldering, providing a robust and repeatable connection for educational, prototyping, and research applications in biomedical sensing.

Key Features

  • 100cm flexible, shielded cable for flexible setup positioning and reduced movement artifact.
  • JST PH 2.0mm 3-pin connector ensures a secure, polarized connection to BioAmp amplifier boards.
  • Color-coded alligator clips (typically red, black, white) simplify correct lead placement (RA, LA, RL).
  • Robust alligator clips provide strong mechanical grip on electrode snap connectors.
  • Optimized for use with standard Ag/AgCl gel electrodes for high-quality skin contact.
  • Compatible with the full Upside Down Labs BioAmp ecosystem for EXG signal processing.

Applications

  • Educational setups for ECG/EMG signal acquisition with Arduino or Raspberry Pi BioAmp shields.
  • Prototyping and research for wearable biopotential monitoring using gel electrodes.
  • Muscle activity (EMG) measurement for rehabilitation, sports science, or human-computer interface projects.
  • Heart rate variability (HRV) and basic ECG waveform recording in maker and DIY biomedical contexts.

Technical Specifications

Cable Length100 cm
Connector TypeJST PH 2.0mm (3-pin)
Electrode InterfaceAlligator Clips (3x)
Pin Configuration3-pin (Differential+, Differential-, Reference)
Primary CompatibilityBioAmp EXG Pill, BioAmp v1.5, Muscle BioAmp Shield, Muscle BioAmp Candy
Electrode TypeGel Electrodes (with snap connector)
Shipping Weight0.020 kg
Shipping Dimensions10 × 6 × 2 cm

Frequently Asked Questions

What BioAmp boards is this alligator cable compatible with?

This cable is compatible with the Upside Down Labs BioAmp ecosystem, including the BioAmp EXG Pill, BioAmp v1.5, Muscle BioAmp Shield, and Muscle BioAmp Candy. It connects via the standard 3-pin JST PH 2.0mm header on these boards. It is not compatible with dry electrode systems like the BioAmp Band.

Can I use this cable with standard ECG/EMG gel electrodes?

Yes, the alligator clips are designed specifically to attach to the snap connectors found on standard disposable or reusable Ag/AgCl gel electrodes. This provides a reliable connection for acquiring biopotential signals like ECG or EMG without requiring any soldering.

What is the pinout of the 3-pin JST PH connector?

The 3-pin JST PH 2.0mm connector follows the standard BioAmp pinout: Pin 1 (typically red wire) is the positive differential input (IN+), Pin 2 (black wire) is the negative differential input (IN-), and Pin 3 (white wire) is the reference ground (REF). The matching alligator clips are correspondingly color-coded.

Package Includes

  • 1 x BioAmp Alligator Cable (100cm, JST PH 2.0mm to 3x Alligator Clips)

Additional Information

Weight 0.02 kg
Dimensions 10 × 6 × 2 cm
