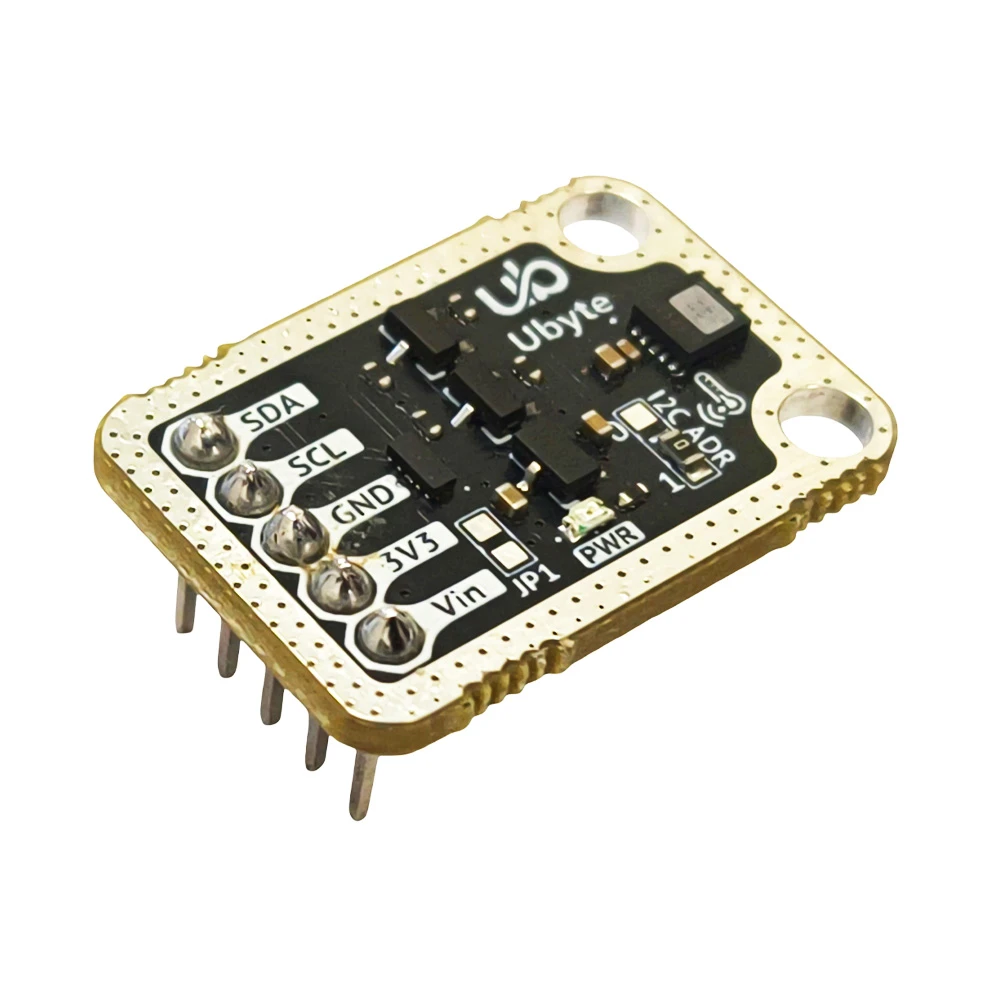

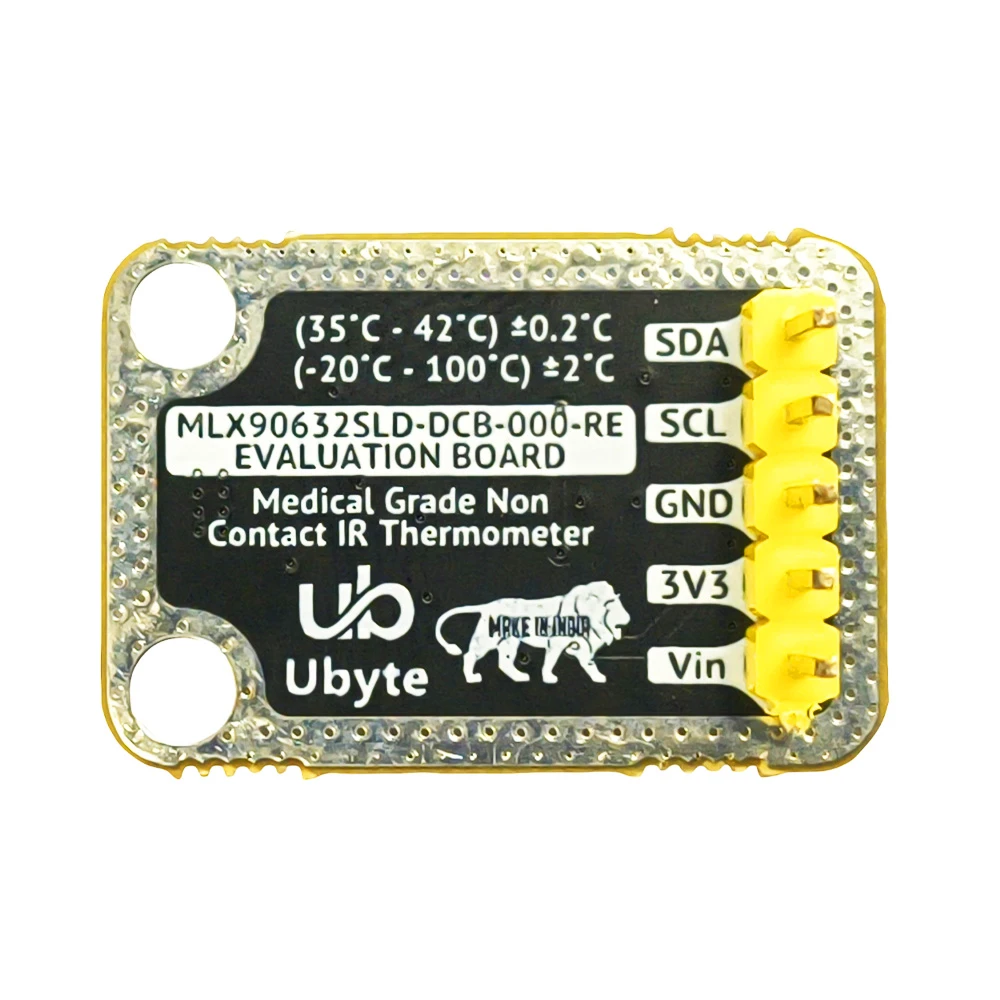

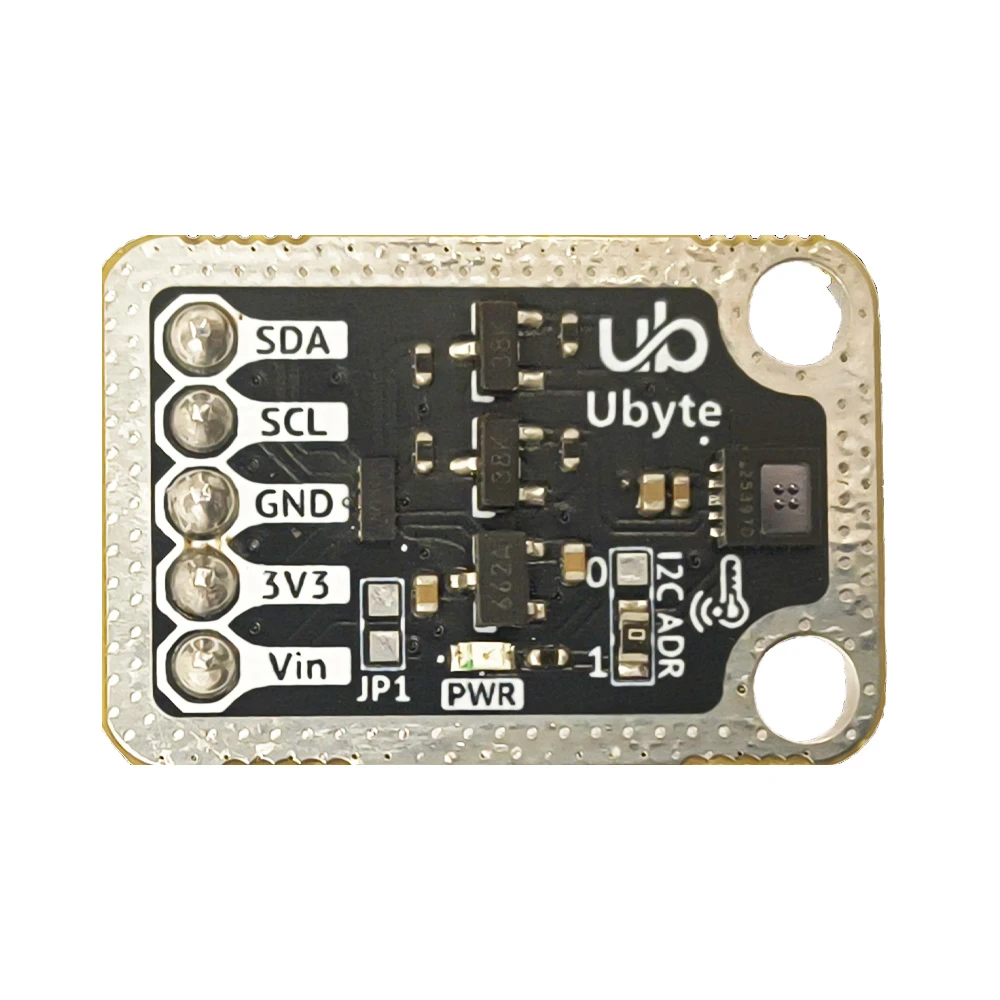

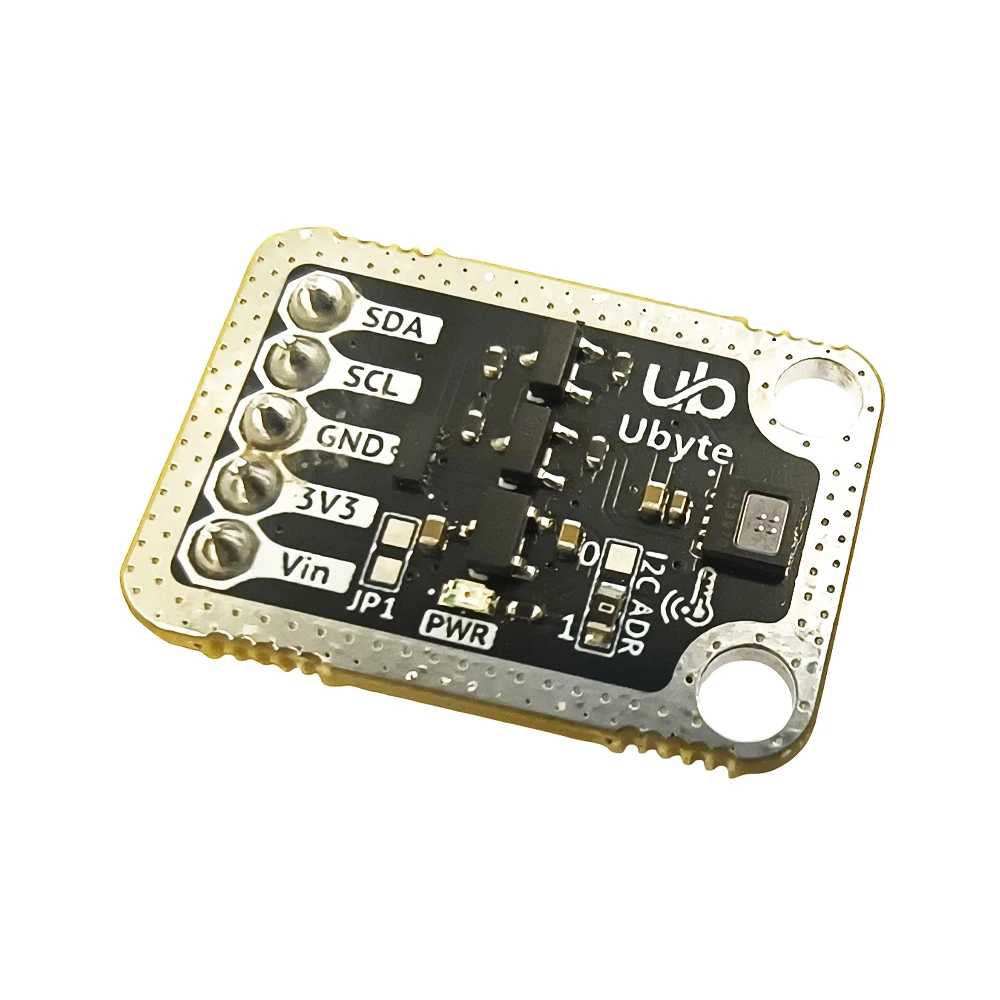

UByte MLX90632SLD-DCB-000-RE Medical Grade Non-Contact IR Thermometer Module
The UByte MLX90632SLD-DCB-000-RE is a medical-grade infrared thermometer module based on the Melexis MLX90632 sensor, offering high-precision non-contact temperature measurement. It features an I²C interface with onboard level shifting for seamless integration with 3.3V and 5V microcontroller platforms like Arduino, Raspberry Pi, ESP32, and STM32.
Features
- Medical-grade accuracy of ±0.2°C within the critical 35°C to 42°C range for body temperature applications.
- Wide object temperature measurement range from -20°C to 100°C with configurable refresh rates from 16 ms to 2 seconds.
- Integrated 3.3V LDO regulator, I²C level shifting, and ESD protection for robust system integration.
- Factory calibrated with calibration constants stored in on-chip EEPROM for plug-and-play operation.
- Compact 25mm x 17mm module with a 50° field of view and a solder-selectable I²C address (default 0x76).
Out of stock
The UByte MLX90632SLD module integrates the Melexis MLX90632SLD-DCB-000-RE sensor, a factory-calibrated infrared thermopile designed for medical and high-precision industrial applications. It operates on the principle of non-contact thermal radiation detection, converting infrared energy from objects within its 50° field of view into a precise digital temperature reading via a 16-bit ADC and integrated DSP.
The module includes essential signal conditioning and protection circuitry, such as a 3.3V low-dropout regulator and ESD protection diodes, ensuring stable operation in embedded environments. Its onboard I²C level shifter allows direct connection to both 3.3V and 5V logic microcontrollers without external components, simplifying integration into IoT devices, medical screening tools, and industrial monitoring systems.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 1.7 × 2.5 cm |
