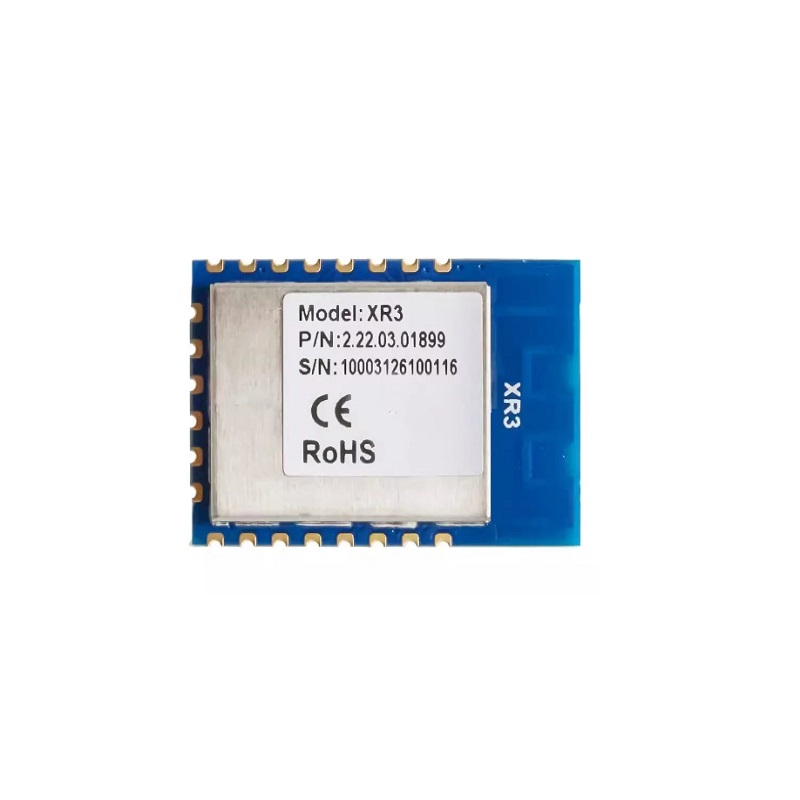

Tuya XR3(xp8t) SMD 16x24mm Sensor Module - ARM Cortex-M4F, Wi-Fi 802.11 b/g/n, 2.7-5.5V
The Tuya XR3(xp8t) is a compact SMD Wi-Fi sensor module featuring an ARM Cortex-M4F MCU, 2MB Flash, and 384KB SRAM. Operating from 2.7V to 5.5V, it provides robust 802.11 b/g/n connectivity for IoT applications, compatible with Arduino, ESP32, Raspberry Pi, and industrial PLCs via its GPIO, UART, and ADC interfaces.
Features
- ARM Cortex-M4F CPU with 2MB Flash ROM and 384KB SRAM for embedded processing.
- Wi-Fi 802.11 b/g/n with WPA/WPA2 security and STA/AP/STA+AP modes.
- Wide operating voltage range of 2.7V to 5.5V for flexible power supply integration.
- Compact 16mm x 24mm SMD footprint with onboard 1.5dBi PCB antenna.
- Supports Quick/Hotspot Connect for simplified Android/iOS device setup.
Out of stock
The Tuya XR3(xp8t) module integrates a high-performance ARM Cortex-M4F microcontroller with comprehensive wireless connectivity. Its 2MB Flash and 384KB SRAM support complex firmware for sensor data acquisition, processing, and transmission over a secure Wi-Fi link. The module’s wide 2.7V to 5.5V input range accommodates various power sources, from battery packs to regulated DC supplies.
Engineered for reliable operation in diverse environments, the module supports a temperature range from -20°C to 85°C and features an integrated PCB antenna. Its peripheral set includes multiple GPIOs, UARTs, and ADC channels, enabling direct interfacing with analog and digital sensors for seamless integration into smart systems and industrial control networks.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 2.4 × 1.6 cm |
