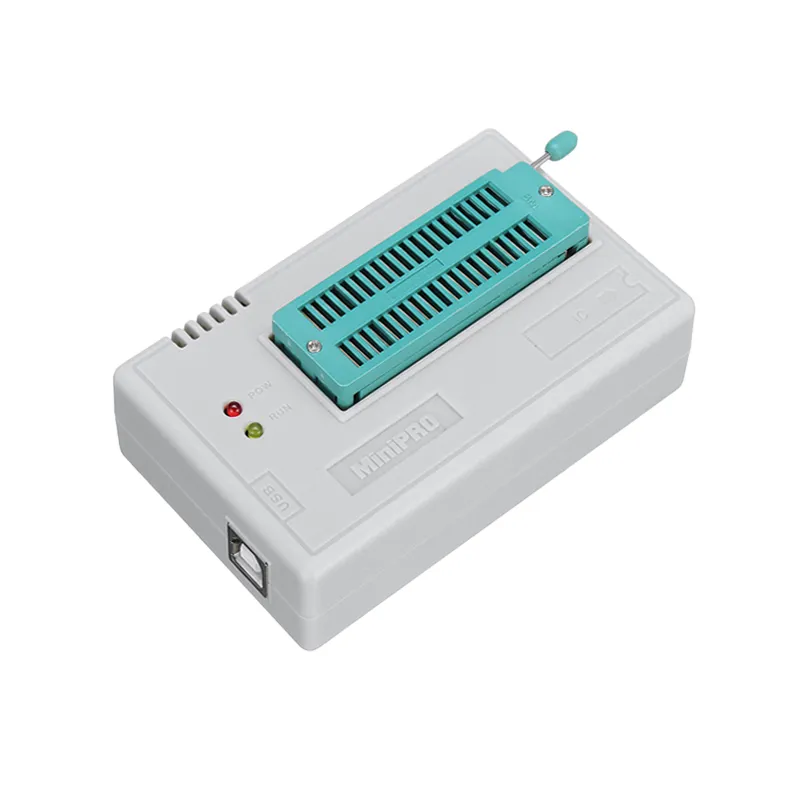

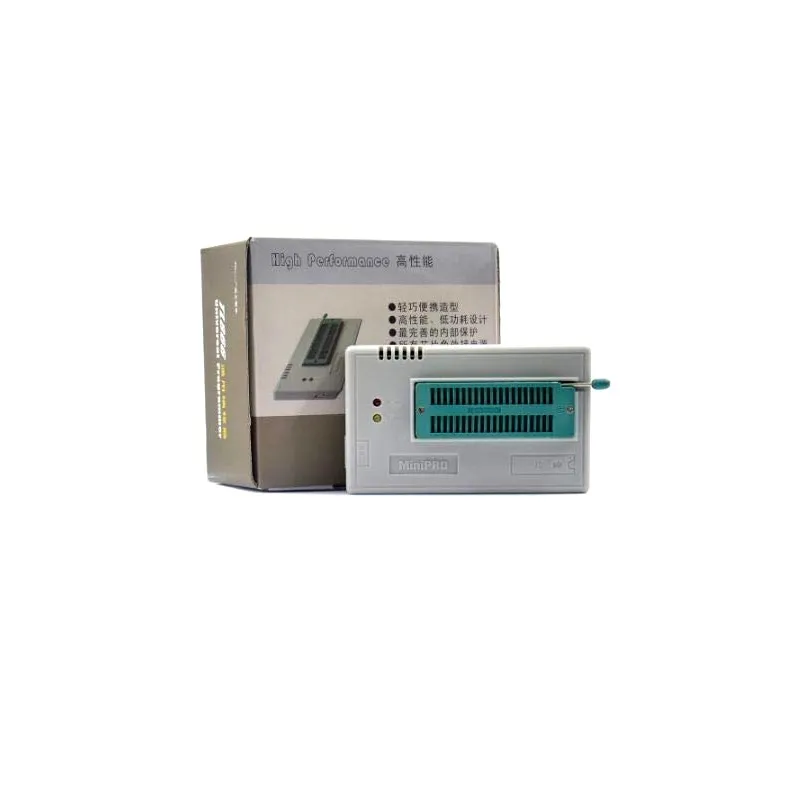

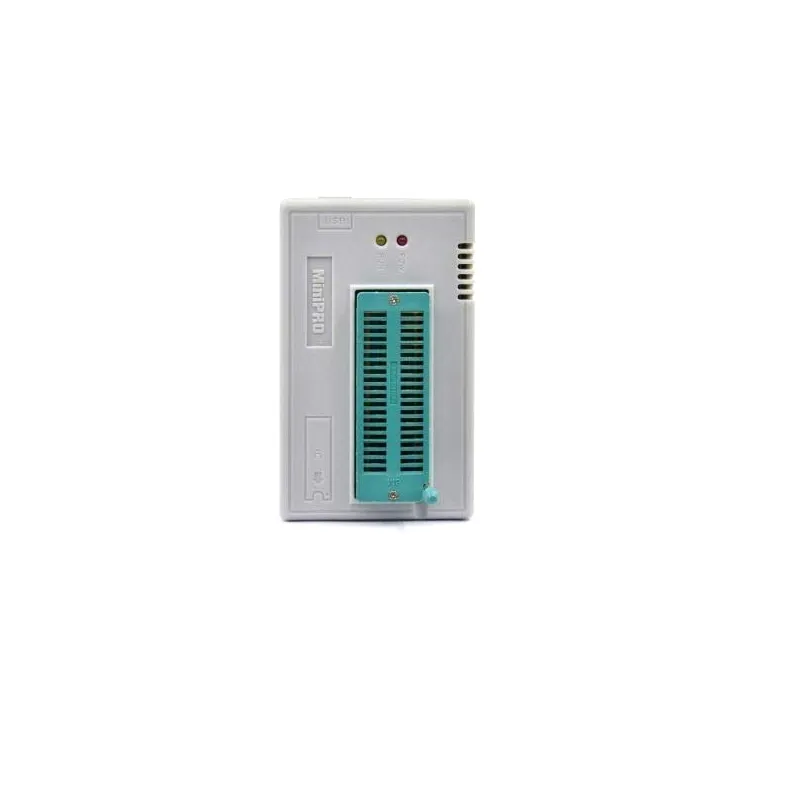

TL866II Plus Universal Programmer Kit w/ 6 Adapters
TL866II Plus Universal Programmer Kit w/ 6 Adapters - Image 2
TL866II Plus Universal Programmer Kit w/ 6 Adapters - Image 3
TL866II Plus Universal Programmer Kit w/ 6 Adapters - Image 4
TL866II Plus Universal Programmer Kit w/ 6 Adapters - Image 5
SKU: SBCD-0816
📋 GST Invoice Available

TL866II Plus Universal Programmer Kit w/ 6 Adapters

₹6,279.00 (Inclusive of all taxes)
Out of Stock

The TL866II Plus Universal Programmer Kit offers a high-speed, multi-functional solution for programming over 13,000 chips including MCUs, BIOS, EPROMs, and SPI Flash, featuring a 40-pin ZIF socket and ICSP interface for versatile in-circuit programming.

Features

  • Multi-functional ICSP (In-Circuit Serial Programming) interface.
  • Integrated 40-pin ZIF (Zero Insertion Force) socket with fast mode SPI support.
  • USB interface for both data transfer and power supply.
  • Built-in over-voltage and over-current protection.
  • Achieves 500-1000% faster programming speeds compared to other programmers.

Out of stock

Description

The TL866II Plus is a highly versatile universal programmer designed for engineers and hobbyists alike, offering robust support for over 13,000 different chips. This comprehensive kit includes the TL866II Plus programmer along with multiple IC adapters, making it suitable for a broad array of programming tasks involving MCUs, BIOS, EPROMs, and SPI Flash memory. It provides significantly faster programming speeds, often quoted at 500% to 1000% quicker than comparable programmers, enhancing workflow efficiency.

Featuring a 40-pin ZIF (Zero Insertion Force) socket and a multi-functional ICSP (In-Circuit Serial Programming) interface, the TL866II Plus facilitates both conventional and in-circuit programming. Its USB interface handles both data transfer and power supply, simplifying setup. The device incorporates essential protection mechanisms, including over-voltage and over-current safeguards, ensuring reliable and safe operation during chip programming.

The programmer also supports serial number development for chips and includes built-in automatic numbering functions, proving useful for batch programming scenarios. With its capacity to support up to 64MB serial and parallel chips (to 48 pins) and timely firmware updates, the TL866II Plus is a future-proof tool for diverse embedded system development and repair applications.

Key Features

  • Upgradeable hardware firmware for timely updates and expanded chip support.
  • Supports a vast library of over 13,000 ICs, including MCUs, BIOS, EPROMs, and SPI Flash.
  • High-speed programming capability, significantly reducing programming times for large flash chips.
  • Integrated 40-pin ZIF socket for effortless chip insertion and removal.
  • Multi-functional ICSP interface for flexible in-circuit programming of compatible devices.
  • USB-powered operation eliminates the need for an external power adapter.
  • Built-in over-voltage and over-current protection for enhanced safety during programming.
  • Supports serial number development and various automatic numbering functions.

Applications

  • Embedded system development and debugging.
  • Firmware flashing, updates, and recovery.
  • EEPROM and Flash memory programming.
  • Microcontroller programming (e.g., AVR, PIC).
  • BIOS chip repair and reprogramming for motherboards.
  • Batch programming and production line tasks.

Technical Specifications

Item TypeProgrammer
Based OnTL866 Series
USB InterfaceType A-B (for data & power)
Chip Support>13000 (MCUs, BIOS, EPROMs, SPI Flash, GALs)
Socket Type40-pin ZIF, ICSP
Programming Speed500-1000% faster (compared to typical programmers)
ProtectionOver-voltage, Over-current
FirmwareUpgradeable
Language SupportEnglish

Frequently Asked Questions

What types of chips does the TL866II Plus support?

It supports over 13,000 chips, including MCUs (AVR, PIC), EPROMs, EEPROMs, SPI Flash, BIOS chips, and GALs. Its wide compatibility makes it suitable for various embedded system development, repair, and firmware flashing applications, covering both serial and parallel devices up to 48 pins.

How does the TL866II Plus compare in programming speed?

The TL866II Plus is significantly faster, often achieving programming speeds 500% to 1000% greater than many older or generic programmers. This enhanced speed is crucial for larger capacity flash chips and batch programming tasks, drastically reducing development and production times for users.

What connectivity and protection features does this programmer offer?

It connects via a USB Type A-B interface, which also supplies power, simplifying setup. For protection, it includes built-in over-voltage and over-current safeguards to prevent damage to both the programmer and the chips being programmed, ensuring reliable and safe operation during use.

Can the TL866II Plus be updated, and what software tools are compatible?

Yes, the programmer features an upgradable hardware firmware program, allowing timely updates for expanded chip support and new functionalities. It typically works with its dedicated Minipro software, which supports an English language interface for ease of use across various operating systems.

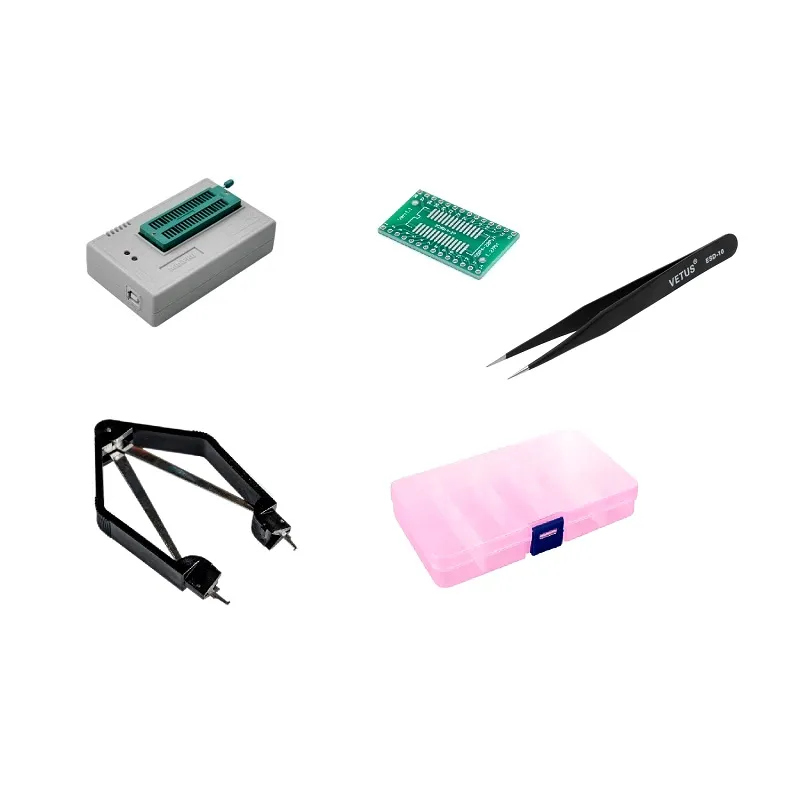

Package Includes

  • 1 x TL866II programmer
  • 1 x ICSP cable with 6 wires
  • 1 x USB cable type A-B
  • 5 x Different IC Socket Adapters (DIP40, DIP32, SOP8[200-209m], SOP8[150m], & SOIC8)
  • 2 x SOP4(1.27mm pitch) - SSOP4 (0.65mm pitch) 28 Pin Adapter Converter Board
  • 1 x TY-610 PLCC IC Chip Extractor / Puller
  • 1 x HRC-40 ESD-10 Tweezers
  • 1 x Plastic transparent IC storage Box (13cm x 6.5cm) with 10 adjustable Grids

Additional Information

Weight 0.45 kg
Dimensions 15 × 8 × 4 cm
