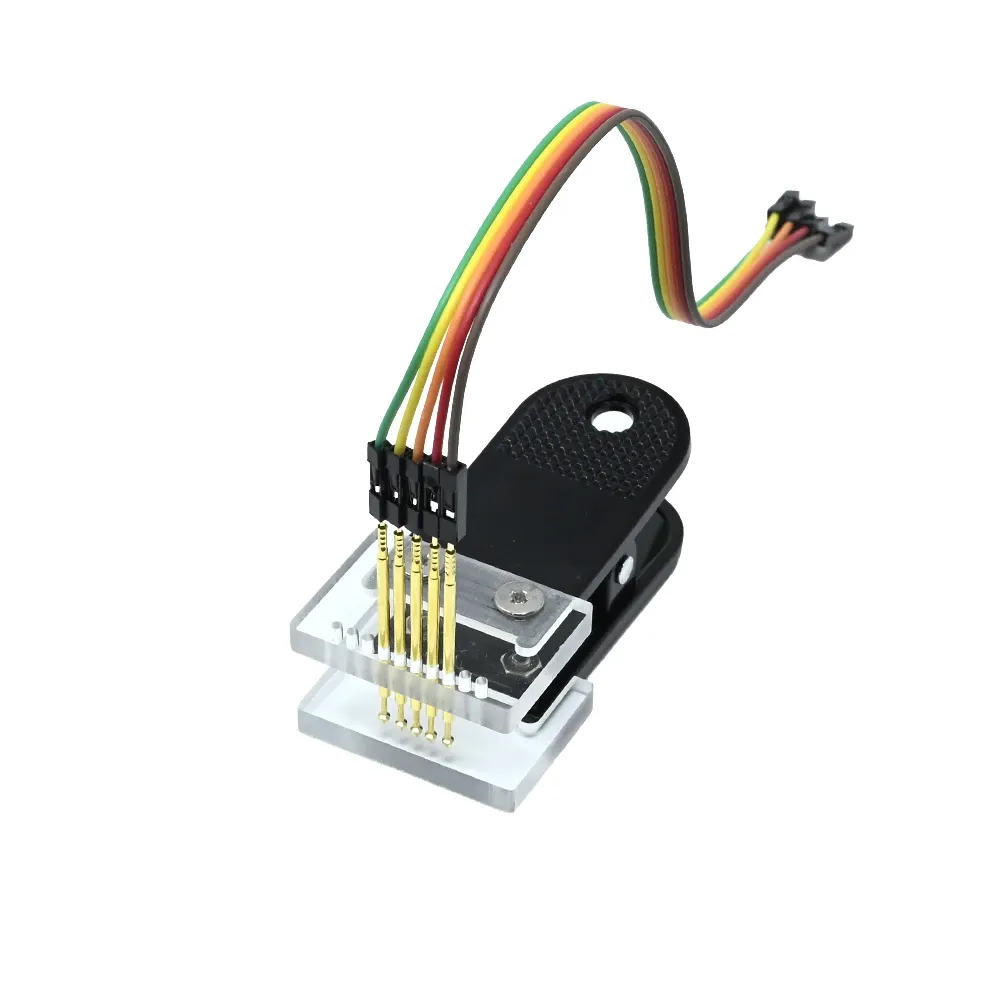

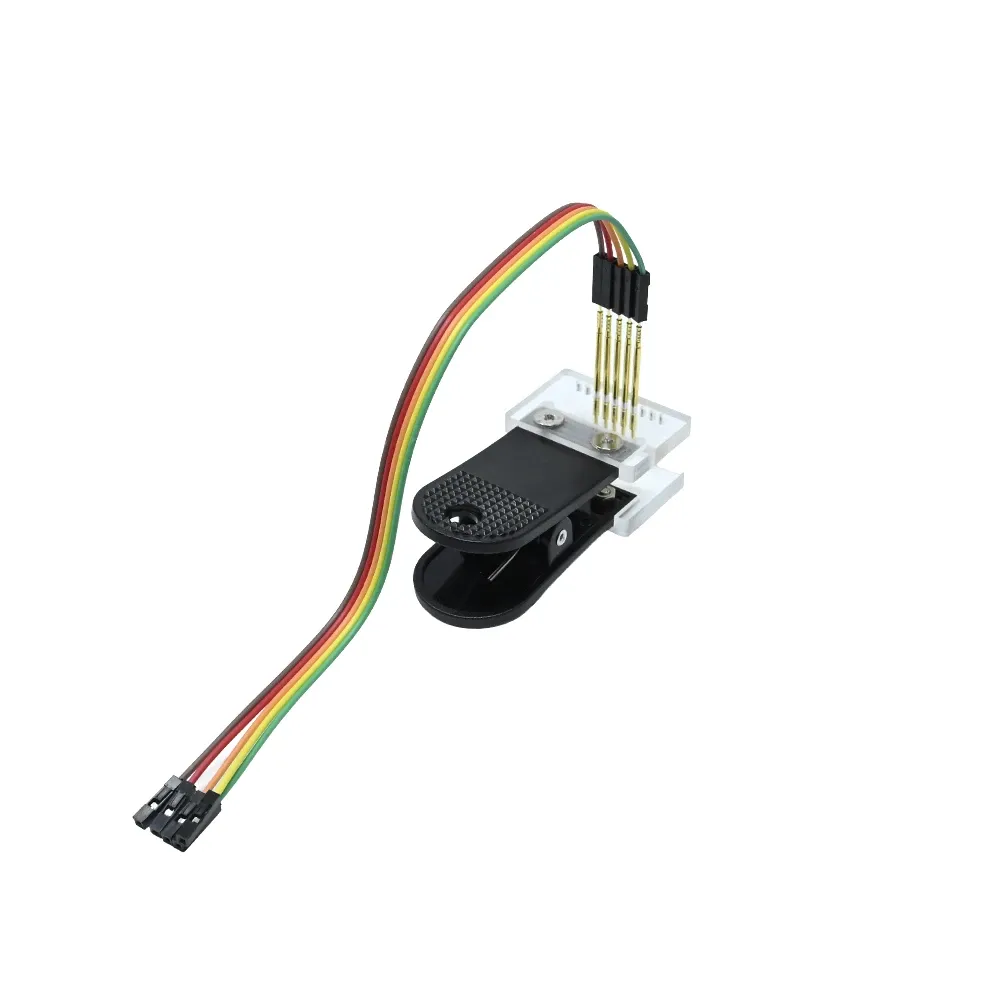

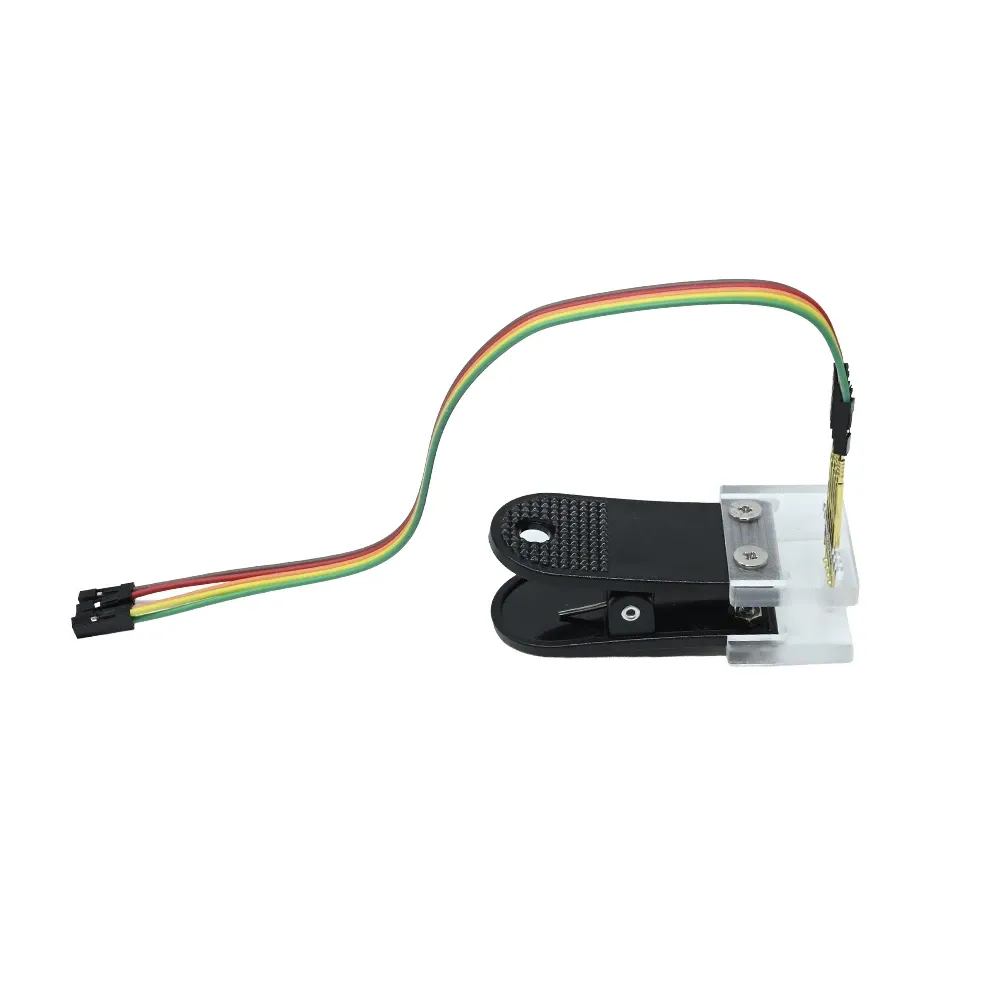

2.54mm Pin Pitch PCB Pogo Pin Clip Fixture 1x5P Gold-Plated
This 2.54mm pitch PCB Clip Clamp Fixture provides a rapid, solderless connection for programming, testing, and debugging PCBs. Featuring gold-plated, spring-loaded pogo pins in a 1x5P configuration, it ensures reliable contact for firmware flashing and development tasks.
Features
- Fast, solderless connection for PCB programming and testing.
- 2.54mm pin pitch compatibility for standard PCB layouts.
- Gold-plated, spring-loaded pogo pins ensure stable, low-resistance contact.
- Durable clip-clamp design for repeated use in development and production.
- Ideal for firmware flashing, debugging, and quality control on embedded boards.
Out of stock
The 2.54mm Pin Pitch PCB Clip Clamp Fixture is engineered for efficient and reliable electrical contact with Printed Circuit Boards. Designed to streamline development and production workflows, this tool eliminates the need for manual soldering by providing a secure, temporary connection for various operations. Its robust clip mechanism firmly grips the PCB, ensuring consistent alignment and contact throughout the testing or programming cycle.
Equipped with high-quality gold-plated pogo pins, the fixture delivers superior conductivity and corrosion resistance, critical for accurate signal transmission and repeatable results. The spring-loaded design of each pin compensates for minor variations in PCB pad height, maintaining optimal contact pressure. This makes it an indispensable tool for rapid prototyping, automated firmware flashing, and functional debugging of embedded systems, accommodating a range of pin configurations from 3P to 10P, with a dedicated 1x5P variant for common headers.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 9 × 7 × 2 cm |
