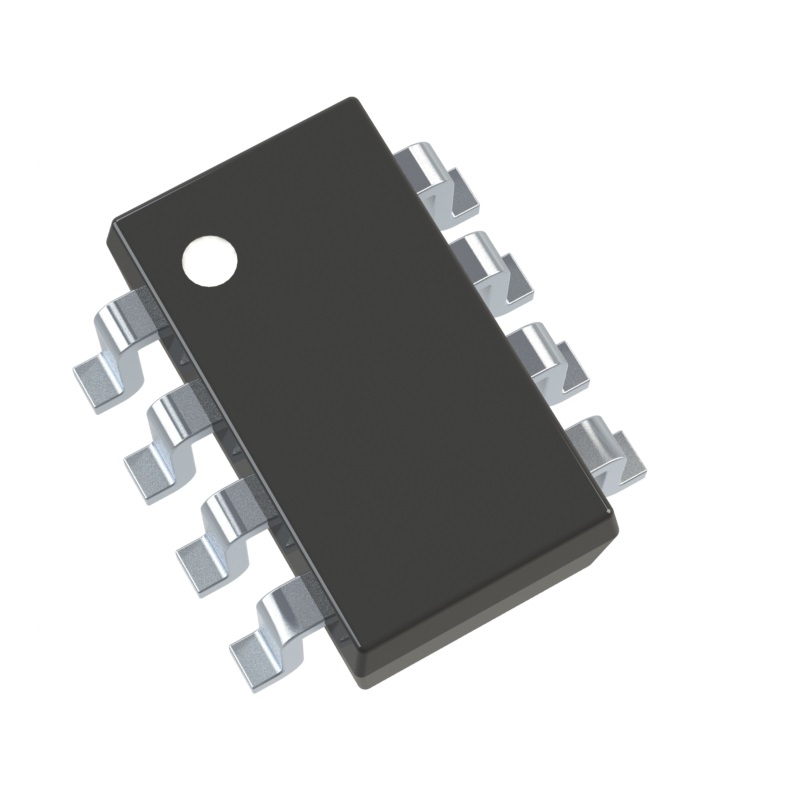

Texas Instruments TMP423BIDCNR SOT-23-8 Digital Temperature Sensor IC
Texas Instruments TMP423BIDCNR SOT-23-8 Digital Temperature Sensor IC - Image 2
SKU: SENS-3866
📋 GST Invoice Available

Texas Instruments TMP423BIDCNR SOT-23-8 Digital Temperature Sensor IC

₹77.00 (Inclusive of all taxes)
Out of Stock

The Texas Instruments TMP423BIDCNR is a high-accuracy, low-power digital temperature sensor IC in a compact SOT-23-8 package. It provides a 2-wire I2C/SMBus-compatible interface for easy integration with microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32, delivering precise ambient temperature monitoring for embedded systems.

Features

  • High-Accuracy Digital Temperature Sensor IC (±1°C typical)
  • Wide Supply Voltage Range: 2.7V to 5.5V
  • Low Power Consumption for Battery-Powered Applications
  • I2C/SMBus-Compatible 2-Wire Serial Interface
  • Compact SOT-23-8 Surface-Mount Package (SOT23-8)

Out of stock

Description

The TMP423BIDCNR from Texas Instruments is a precision digital temperature sensor that converts thermal measurements into a digital signal via an integrated analog-to-digital converter (ADC). Its core sensing element and signal conditioning circuitry are designed for stability and minimal drift over time and temperature variations.

Operating from a 2.7V to 5.5V supply, it is compatible with both 3.3V and 5V logic systems. The sensor communicates over a standard I2C bus, allowing for daisy-chaining and simple connection to most microcontrollers and single-board computers. Its small SOT-23-8 footprint makes it ideal for space-constrained PCB designs requiring reliable temperature monitoring.

Key Features

  • High Precision Measurement: Delivers typical accuracy of ±1°C for reliable thermal management.
  • Broad Operating Voltage: Supports 2.7V to 5.5V DC, ensuring compatibility with diverse system power rails.
  • Optimized Power Profile: Features low quiescent current, making it suitable for portable and power-sensitive devices.
  • Standard Digital Interface: Utilizes a 2-wire I2C/SMBus protocol for simplified system integration and multi-device networks.
  • Robust Miniature Package: Housed in an industry-standard SOT-23-8 (SOT23-8) surface-mount package for dense PCB layouts.
  • Extended Temperature Range: Engineered for stable operation across a wide ambient temperature range.

Applications

  • Thermal monitoring and protection in embedded computing systems (e.g., Raspberry Pi, Arduino shields).
  • Environmental sensing in portable consumer electronics and IoT devices.
  • Temperature compensation and logging in precision measurement equipment.
  • System health monitoring in telecom, networking, and industrial control hardware.
  • Battery temperature management in power tools and energy storage systems.

Technical Specifications

Manufacturer Part NumberTMP423BIDCNR
Manufacturer / BrandTexas Instruments
Supply Voltage2.7 VDC to 5.5 VDC
InterfaceI2C / SMBus (2-Wire)
Package / CaseSOT-23-8 (SOT23-8)
Accuracy (Typical)±1°C
Shipping Weight0.01 kg
Shipping Dimensions10 × 8 × 4 cm

Frequently Asked Questions

What is the operating voltage range for the TMP423BIDCNR sensor?

The TMP423BIDCNR operates from a supply voltage of 2.7V to 5.5V DC. This wide range makes it directly compatible with both 3.3V and 5V microcontroller systems without requiring a level shifter.

What communication protocol does this temperature sensor use?

This sensor uses a standard 2-wire I2C (also known as SMBus) serial interface. It requires connection to the SDA (data) and SCL (clock) lines of your host microcontroller, along with power and ground.

Can I use this IC for surface-mount PCB assembly?

Yes, the TMP423BIDCNR is supplied in an SOT-23-8 surface-mount package, designed for reflow soldering onto PCBs. Its compact footprint is ideal for space-constrained designs in consumer electronics and embedded modules.

What is the typical accuracy of the temperature readings?

The Texas Instruments TMP423BIDCNR offers a typical accuracy of ±1°C. For application-critical precision, always consult the official datasheet for specific accuracy curves across the full temperature and voltage operating range.

Package Includes

  • 1 x TMP423BIDCNR Temperature Sensor IC

Additional Information

Weight 0.01 kg
