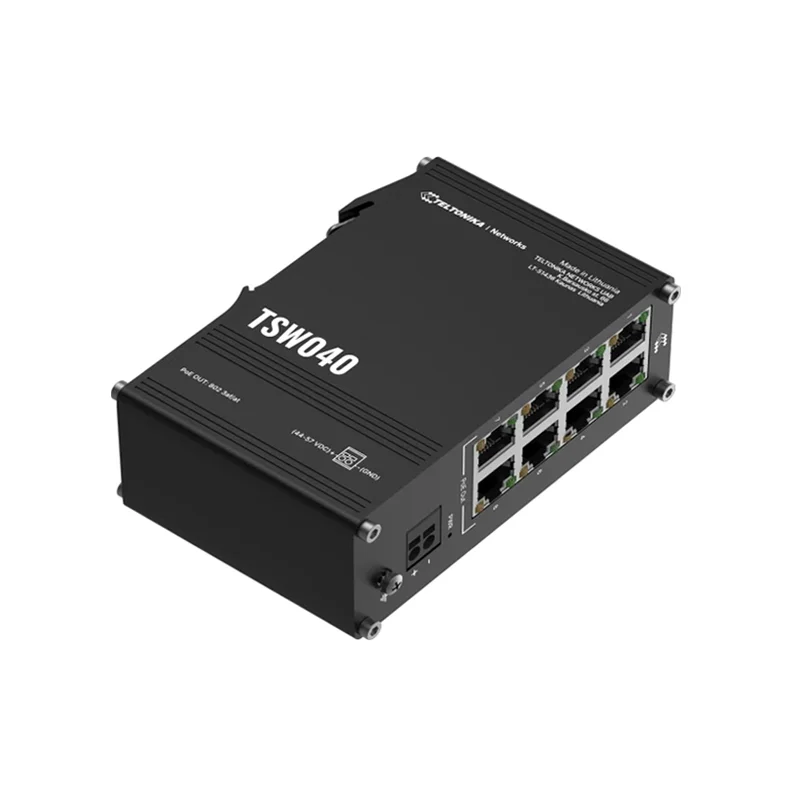

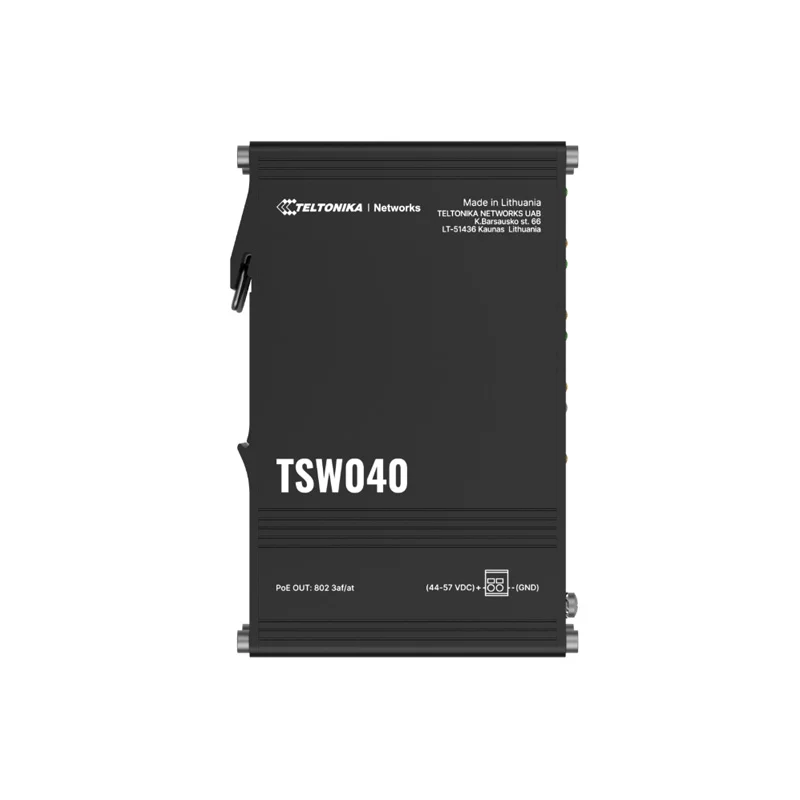

Teltonika TSW040 8-Port Industrial PoE+ Switch

The Teltonika TSW040 provides a total PoE power budget of 240 watts, distributed across its eight ports. Each port can deliver up to 30 watts, compliant with the IEEE 802.3at (PoE+) standard. This high budget allows the switch to simultaneously power multiple high-consumption devices like PTZ cameras, wireless access points, or industrial controllers without requiring an external power injector, simplifying deployment in power-constrained industrial settings.

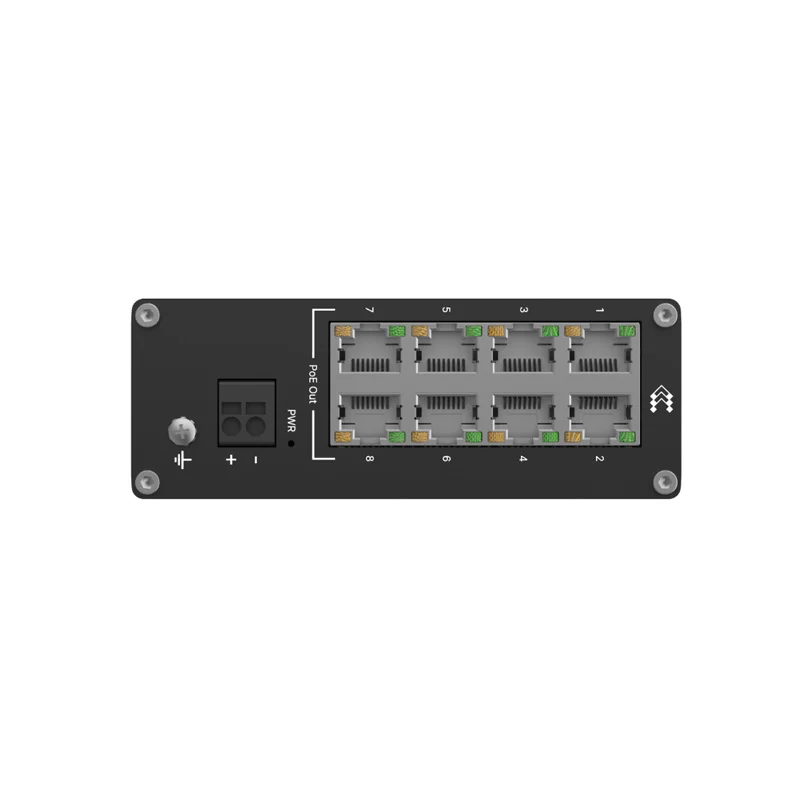

The TSW040 supports a wide DC input range from 7 to 57 volts via its 2-pin industrial socket. This flexibility allows it to be powered from standard 12V or 24V vehicle electrical systems, 48V telecom racks, or typical industrial power supplies. The wide range ensures compatibility in mobile, remote, or unstable power environments, making it suitable for transportation, renewable energy, and off-grid automation applications without needing a voltage regulator.

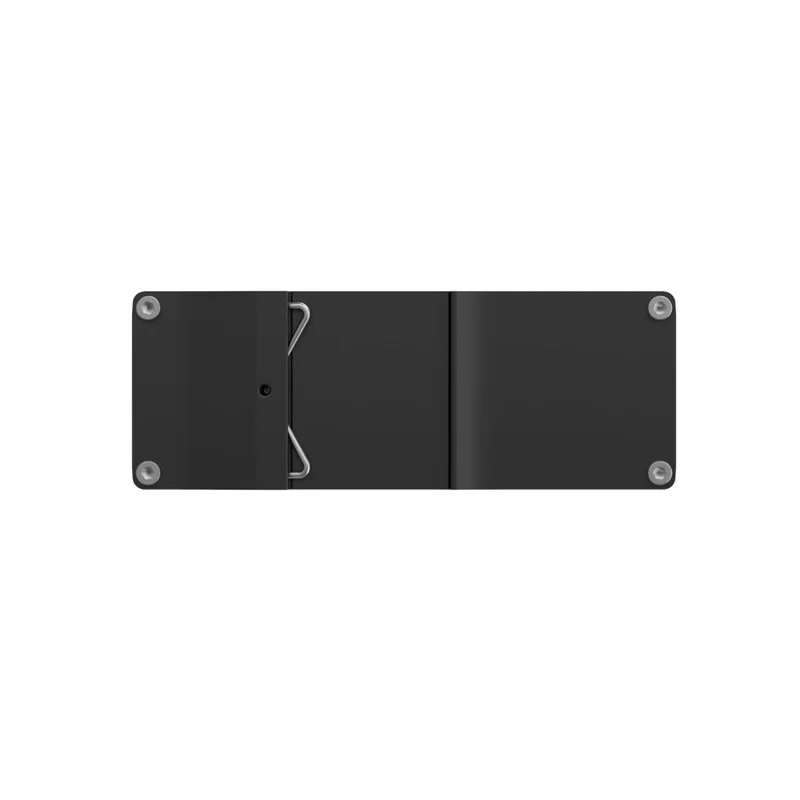

Install the TSW040 by attaching the included DIN rail clip to a standard 35mm DIN rail within a control panel. Alternatively, you can wall-mount it using the integrated slots or place it on a flat surface. As an unmanaged switch, it requires no software configuration—simply connect your Ethernet cables from the network uplink to the switch and from the switch ports to your PoE devices. Ensure the DC power input is within the 7–57V range and properly polarized before applying power.

The TSW040 is built for harsh industrial environments with an operating temperature range of -40°C to +75°C and an IP30 ingress protection rating. The rugged anodized aluminum housing provides resistance to vibration, dust, and electromagnetic interference. This makes it suitable for deployment in unheated outdoor enclosures, factory floors, vehicle cabins, or utility substations where temperature extremes and mechanical stress are common, ensuring reliable network connectivity.
