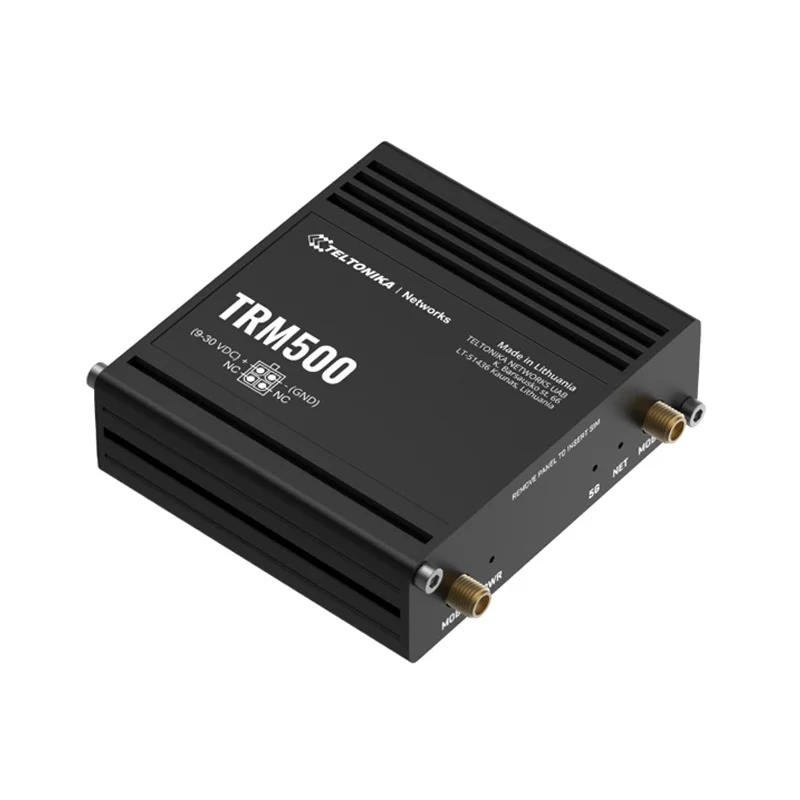

Teltonika TRM500 Industrial 5G USB Modem w/ 4 SMA Antennas

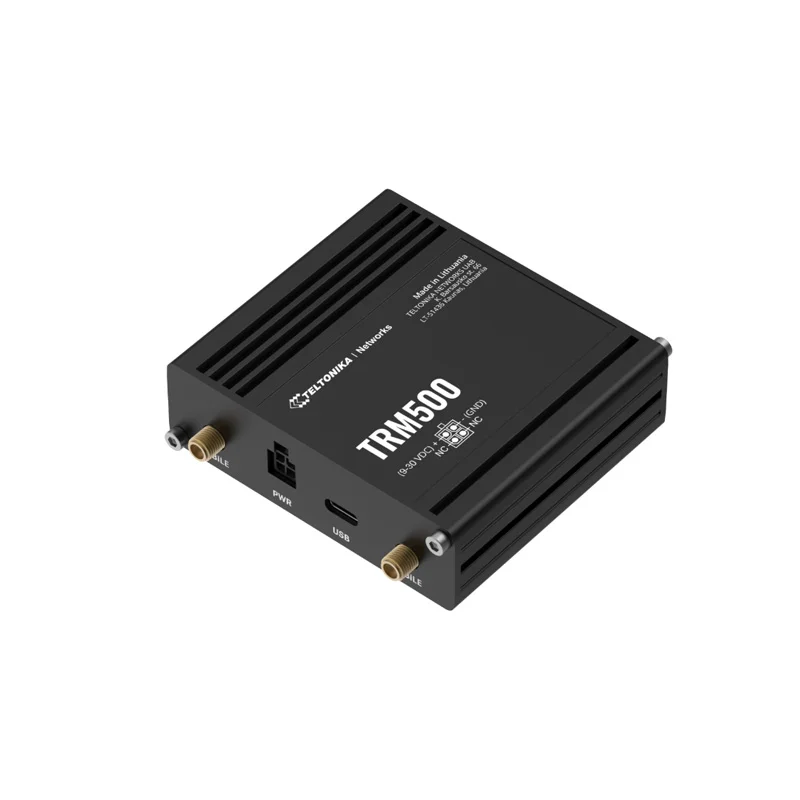

Teltonika TRM500 Industrial 5G USB Modem w/ 4 SMA Antennas - Image 2

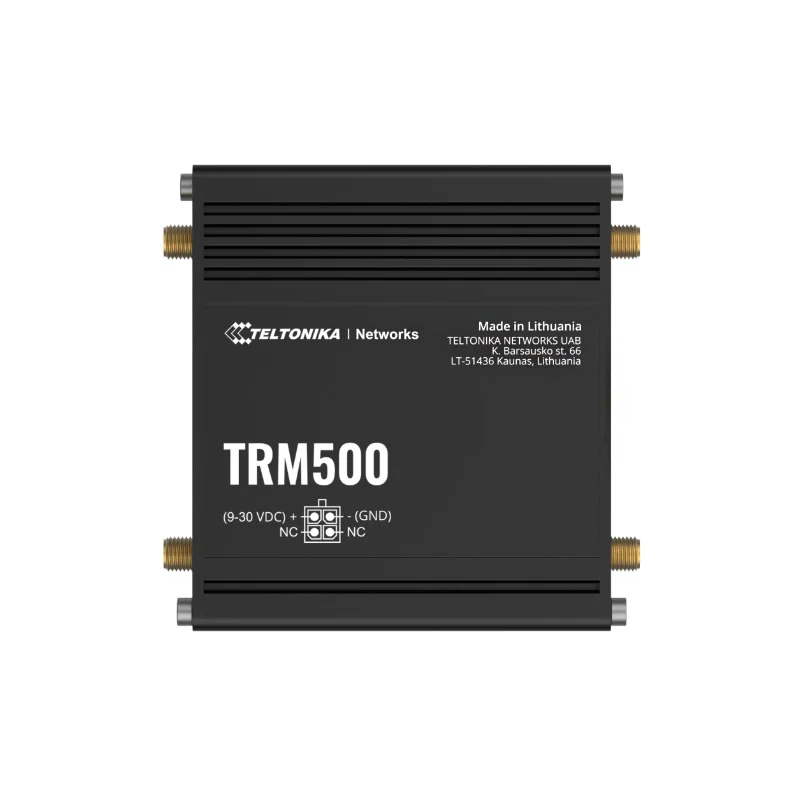

Teltonika TRM500 Industrial 5G USB Modem w/ 4 SMA Antennas - Image 3

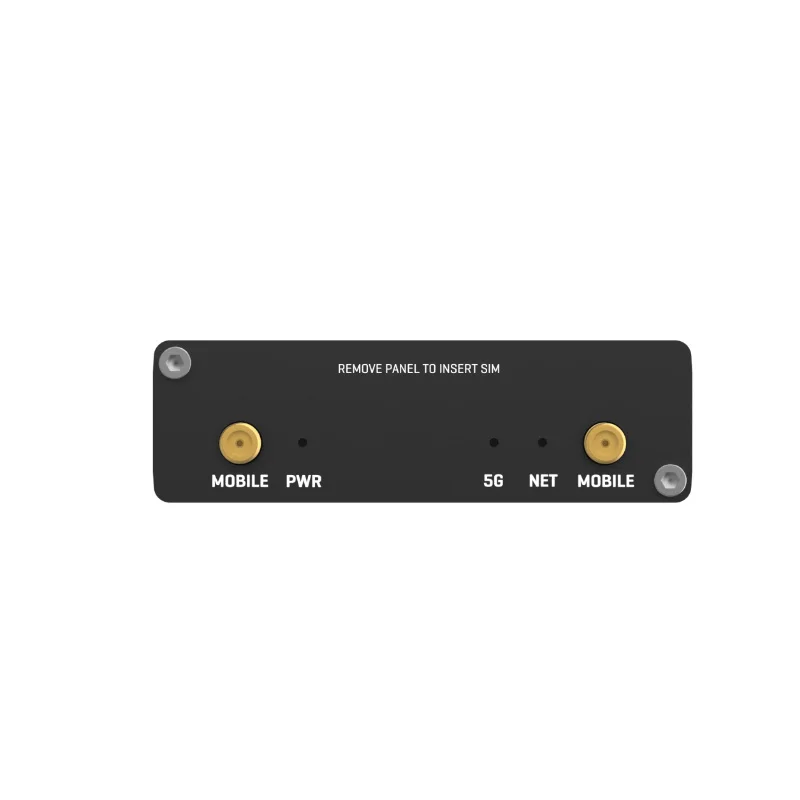

Teltonika TRM500 Industrial 5G USB Modem w/ 4 SMA Antennas - Image 4

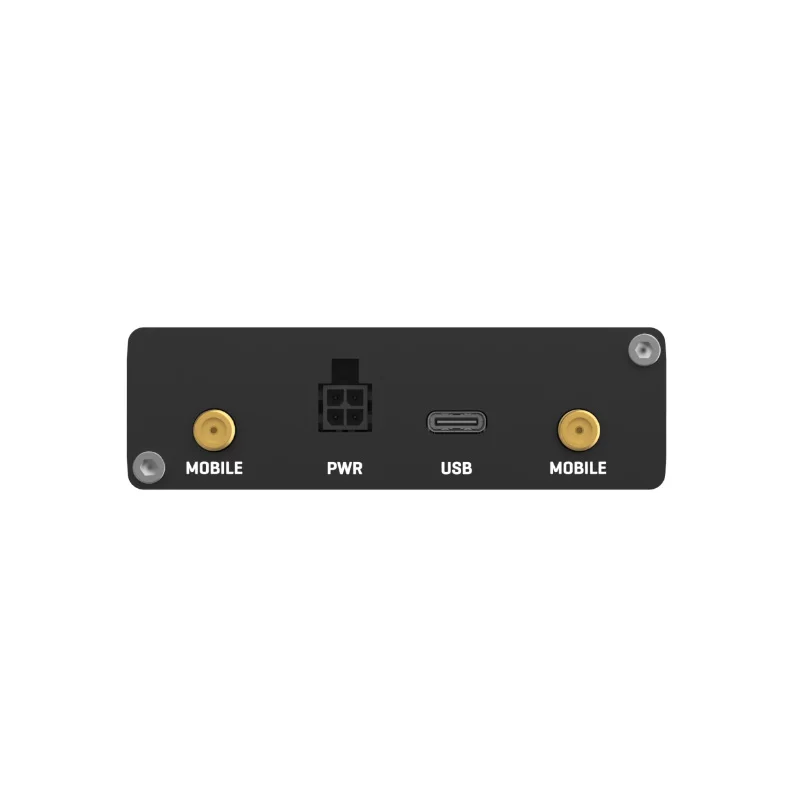

Teltonika TRM500 Industrial 5G USB Modem w/ 4 SMA Antennas - Image 5
SKU: IOWC-0843
📋 GST Invoice Available

Teltonika TRM500 Industrial 5G USB Modem w/ 4 SMA Antennas

₹45,829.00 (Inclusive of all taxes)
Out of Stock

The Teltonika TRM500 is an industrial-grade 5G USB modem delivering up to 3.4 Gbps download speeds for high-bandwidth, low-latency IoT applications. It features a rugged IP30 housing, DIN-rail mounting, and a USB-C interface for simultaneous power and data transfer, ideal for enterprise and mobile deployments.

Features

  • Ultra-fast 5G Sub-6GHz connectivity with speeds up to 3.4 Gbps download and 550 Mbps upload, ensuring future-proof, high-bandwidth data links.
  • Industrial-grade durability with an operating temperature range of -40°C to +75°C and IP30 protection for reliable performance in harsh environments.
  • Integrated USB Type-C port for simultaneous network data transfer and power delivery (5V/3A), simplifying system integration and cabling.
  • Equipped with four external SMA antenna connectors to maximize signal reception and coverage in challenging RF conditions.
  • Versatile mounting options including DIN-rail, wall, or flat-surface installation for flexible deployment in industrial control cabinets and mobile setups.

Out of stock

Description

The Teltonika TRM500 Industrial 5G USB Modem is engineered for mission-critical applications requiring ultra-reliable, high-speed cellular backhaul. Its compact, ruggedized enclosure houses advanced 5G NR (Sub-6GHz) and 4G LTE Cat 19 modems, providing seamless backward compatibility and multi-gigabit throughput for data-intensive IoT systems, video streaming, and industrial automation.

Power management is handled via a single USB-C connection, supporting 5V input with peak consumption under 12W, while the wide 9-30V DC input range offers flexibility for various industrial power supplies. The modem’s four SMA antenna ports allow for optimized MIMO configuration, significantly improving link reliability and data rates in areas with weak signal strength.

Key Features

  • Supports 5G NR (SA/NSA) and 4G LTE Cat 19 networks for maximum compatibility and future-proof connectivity.
  • Rugged IP30-rated metal housing designed to withstand vibrations, dust, and extreme temperature fluctuations.
  • DIN-rail and wall-mount form factor enables easy integration into industrial control panels, vehicles, and remote telemetry units.
  • Single USB-C interface consolidates power and high-speed data transfer, reducing cable clutter and simplifying setup.
  • Four external SMA antenna connectors support high-gain antennas for enhanced signal capture and network reliability.
  • Wide operating voltage range (9-30V DC) ensures compatibility with standard industrial and vehicular power systems.
  • Low power consumption design with a maximum draw of 12W, suitable for solar-powered or battery-backed deployments.

Applications

  • Industrial IoT (IIoT) and SCADA systems requiring high-speed, reliable remote data acquisition and control.
  • Mobile broadband and in-vehicle connectivity for public transport, emergency services, and fleet management.
  • Remote video surveillance and live streaming from unmanned sites, construction zones, or temporary installations.
  • Enterprise network failover and SD-WAN edge connectivity to ensure business continuity.
  • Smart city infrastructure supporting real-time data feeds from sensors, digital signage, and traffic management systems.

Technical Specifications

Cellular Technology5G NR (Sub-6GHz), 4G LTE Cat 19, 3G
Max Download Speed5G: 3.4 Gbps, 4G: 1.6 Gbps
Max Upload Speed5G: 550 Mbps, 4G: 200 Mbps
Power Input5V via USB-C, 9-30V DC (via 4-pin connector)
Max Power Consumption12 W
Operating Temperature-40°C to +75°C
Humidity Range10% to 90% (non-condensing)
Ingress ProtectionIP30
SIM Card Format1x Mini SIM (2FF)
Antenna Connectors4x SMA Female
Data InterfaceUSB Type-C 3.0
MountingDIN Rail, Wall, Flat Surface
Dimensions (LxWxH)85.4 mm x 83 mm x N/A
Weight94.5 g

Frequently Asked Questions

How do I power the TRM500 modem and connect it to my system?

The TRM500 can be powered via its USB-C port using the included 5V/3A PSU or any compliant USB-C power source. For data, connect the same USB-C cable to a host computer or gateway. For industrial 9-30V DC power, use the 4-pin connector. The modem will enumerate as a USB network adapter, typically requiring driver installation on the host system for full functionality.

What antennas are recommended, and how do I connect them?

Use four external 5G/LTE antennas with SMA male connectors. Screw them directly into the four SMA female ports on the modem's enclosure. For optimal MIMO performance and signal diversity, position the antennas spatially separated, preferably with different orientations. The included swivel antennas are suitable for initial testing and mobile applications, but high-gain directional antennas are recommended for fixed installations with weak signal.

What is the procedure for inserting the SIM card?

Power off the modem. Locate the SIM card slot, which requires a Mini-SIM (2FF) format. Use the provided hex key to loosen the screw on the SIM slot cover. Insert the SIM card with the chip facing downwards and the notched corner oriented correctly as shown in the guide. Secure the cover back with the screw. A SIM adapter kit is included if you need to use a smaller Nano or Micro SIM.

Can the TRM500 operate in extreme cold or hot environments?

Yes, the TRM500 is rated for continuous operation from -40°C to +75°C ambient temperature, making it suitable for unheated industrial enclosures, outdoor cabinets, and vehicular applications. Ensure the unit is mounted in a location with adequate airflow if operating at the upper temperature limit to prevent internal heat buildup. Condensation should be avoided within the specified 10-90% humidity range.

How do I mount the TRM500 on a DIN rail?

The modem includes integrated DIN rail clips. To mount, hook the top edge of the modem onto the DIN rail. Then, press the bottom of the unit until it clicks and locks securely into place. For wall or flat-surface mounting, you can use the mounting holes on the device's base. Ensure the mounting surface is stable and the antenna cables have sufficient strain relief to prevent connector damage.

Package Includes

  • 1 x Teltonika TRM500 Industrial 5G USB Modem
  • 1 x 9 W Power Supply Unit (PSU)
  • 4 x 5G Mobile Antennas (swivel, SMA male)
  • 1 x Hex Key
  • 1 x SIM Adapter Kit
  • 1 x Quick Start Guide (QSG)
  • 1 x USB Type-C Cable (0.8 m)
  • 1 x Packaging Box

Additional Information

Weight 0.0945 kg
Dimensions 8.54 × 8.3 cm

Related Products

Out of Stock

DFRobot DIN Rail Mount Bracket for Arduino Mega

909.00
Learn More
Out of Stock

Waveshare DIN Rail ABS Case for Raspberry Pi 5

369.00
Learn More
Out of Stock

KKSB Cases BeagleY-AI Aluminum Enclosure (Black)

3,509.00
Learn More
Out of Stock

KKSB Cases BeaglePlay Case - Aluminum Enclosure

2,289.00
Learn More
Out of Stock

Waveshare DIN Rail ABS Case for Raspberry Pi 4

379.00
Learn More
Out of Stock

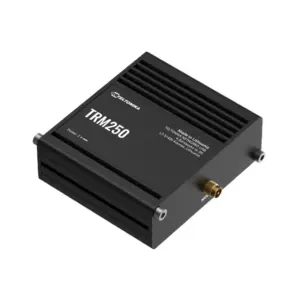

Teltonika TRM250 Industrial LTE Cat-M / NB-IoT Modem
