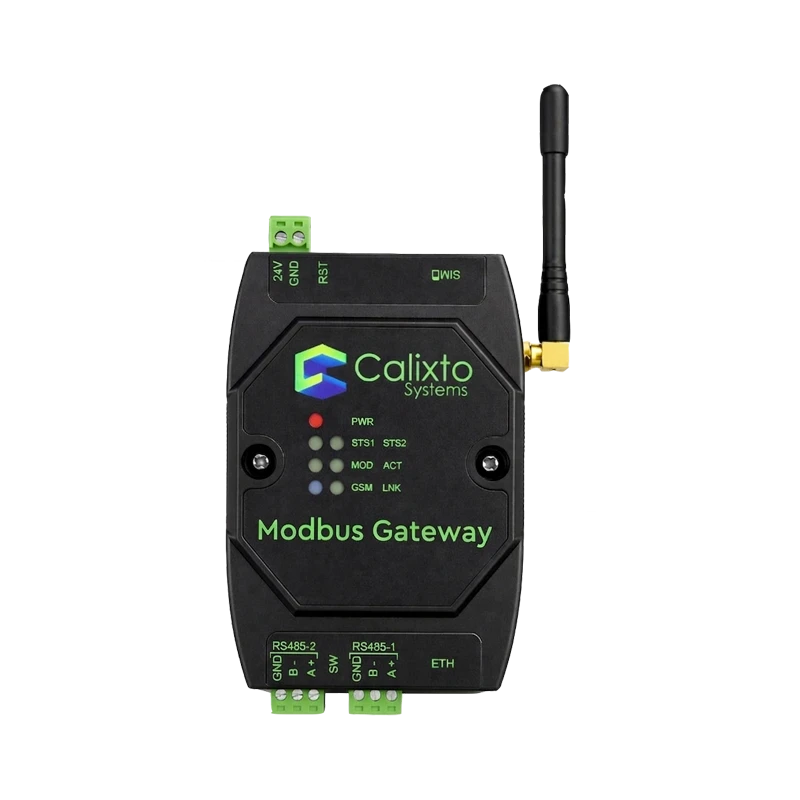

Calixto MBGWY00x Modbus to Cloud Gateway w/ RS485 & 4G

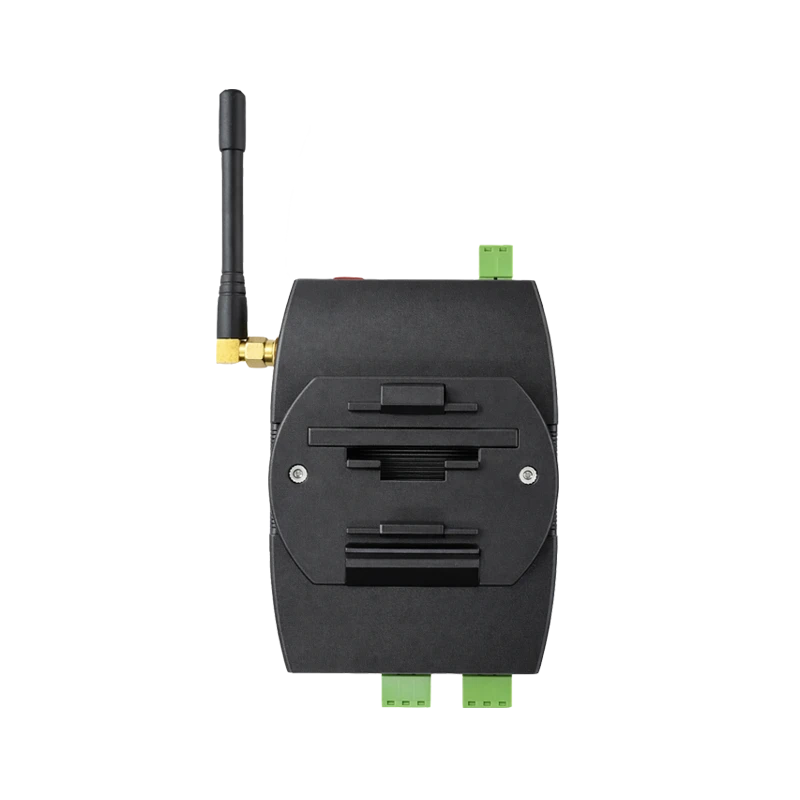

Calixto MBGWY00x Modbus to Cloud Gateway w/ RS485 & 4G - Image 2
SKU: IOWC-1454
📋 GST Invoice Available

Calixto MBGWY00x Modbus to Cloud Gateway w/ RS485 & 4G

₹7,000.00 (Inclusive of all taxes)
Out of Stock

The Calixto MBGWY00x is an industrial IoT gateway that bridges Modbus RTU/TCP serial devices to cloud platforms via Ethernet or 4G cellular. It supports secure protocols like MQTT(S) and HTTP(S) for reliable remote monitoring and asset management.

Features

  • Converts Modbus RTU/TCP data to cloud platforms via Ethernet or 4G cellular connectivity for flexible deployment.
  • Features dual isolated RS485 ports for robust communication with industrial sensors, PLCs, and meters.
  • Supports secure industrial IoT protocols including MQTT(S), HTTP(S), and TCP/IP for encrypted data transmission.
  • Designed for rugged environments with a wide operating temperature range (-10°C to 60°C) and DIN-rail mounting.
  • Low power consumption (~2W) with 12/24V DC input simplifies integration into existing industrial control panels.

Out of stock

Description

The Calixto MBGWY00x Modbus Gateway is a hardened industrial communication node engineered for Industry 4.0 and IIoT deployments. It functions as a protocol translator and secure bridge, aggregating data from Modbus RTU/TCP serial networks—such as PLCs, energy meters, and sensors—and transmitting it to cloud-based SCADA, MES, or analytics platforms. Its dual-path connectivity, via 10/100 Mbps Ethernet or embedded 4G cellular modem, ensures network redundancy and operational continuity in remote or challenging field locations.

Built with industrial-grade components, the gateway incorporates isolated RS485 interfaces to protect against ground loops and electrical noise, enhancing signal integrity in harsh EMI environments. On-board edge processing handles protocol conversion, data buffering, and secure tunneling using MQTT(S) or HTTP(S). With features like a built-in watchdog timer and a configurable web interface for quick setup, the MBGWY00x delivers reliable, real-time visibility and control for automation, energy management, and remote telemetry applications.

Key Features

  • Industrial Modbus RTU/TCP to Cloud Protocol Gateway with secure data bridging.
  • Dual-network redundancy via 10/100 Mbps Ethernet and integrated 4G cellular modem.
  • Two optically isolated RS485 serial ports for noise-immune communication with field devices.
  • Supports industrial IoT protocols: MQTT(S), HTTP(S), TCP/IP, DHCP, and Modbus.
  • Configurable via intuitive web-based interface for rapid deployment and management.
  • Built-in watchdog and robust power design (12/24V DC) for 24/7 system reliability.
  • Rugged DIN-rail mountable enclosure rated for wide temperature and humidity ranges.
  • Enables real-time remote monitoring, predictive maintenance, and centralized asset management.

Applications

  • Industrial Automation & SCADA Systems: Bridging PLCs and HMIs to cloud-based monitoring dashboards.
  • Energy Management & Smart Metering: Aggregating data from Modbus RTU power meters for remote utility monitoring.
  • Remote Asset Telemetry & Predictive Maintenance: Connecting sensors in oil & gas, water treatment, and manufacturing.
  • Building Management Systems (BMS): Integrating HVAC, lighting, and environmental controls for centralized IoT management.
  • Agricultural IoT and Environmental Monitoring: Transmitting sensor data from remote fields via 4G cellular networks.

Technical Specifications

Product TypeModbus to Cloud Gateway
Model / BrandCalixto MBGWY00x
Communication ProtocolsModbus RTU, Modbus TCP, TCP/IP, HTTP(S), MQTT(S), DHCP
Network InterfaceEthernet 10/100 Mbps, 4G Cellular
Serial InterfaceDual RS485 (Isolated) Ports
Power Supply12/24 V DC Input
Power ConsumptionApprox. 2W
Mounting TypeIndustrial DIN Rail / Panel Mount
Operating Temperature-10°C to 60°C
Storage Temperature-20°C to 80°C
Humidity Range5% to 95% RH

Frequently Asked Questions

How do I configure the Calixto MBGWY00x gateway for my Modbus network?

Connect the gateway to power (12/24V DC) and your network via Ethernet or insert a 4G SIM card. Access its built-in web interface by entering its IP address in a browser. Navigate to the configuration pages to set the Modbus parameters (baud rate, parity, slave IDs) for each RS485 port, define your cloud server endpoints (MQTT broker URL, HTTP API), and map Modbus registers to data points. The intuitive UI allows for quick testing and saving of settings without complex coding.

What is the advantage of the isolated RS485 ports on this gateway?

The optically isolated RS485 ports provide electrical separation between the gateway's internal circuitry and the external serial bus. This isolation protects the gateway from damaging ground loops, voltage surges, and electromagnetic interference (EMI) common in industrial environments like factories or substations. It ensures reliable, error-free Modbus communication with PLCs, meters, and sensors over long cable runs, significantly improving system uptime and data integrity in harsh electrical conditions.

Can the gateway operate on both Ethernet and 4G simultaneously for redundancy?

Yes, the MBGWY00x supports dual-path network connectivity. You can configure it to use Ethernet as the primary connection and 4G cellular as a failover backup. If the Ethernet link fails, the gateway automatically switches to the 4G network to maintain cloud connectivity, ensuring uninterrupted data transmission. This redundancy is critical for mission-critical industrial applications where network downtime can disrupt monitoring, control, and data logging operations for remote assets.

What cloud platforms and protocols does this Modbus gateway support?

The gateway communicates with a wide range of cloud platforms and on-premise servers using standard industrial IoT protocols. It natively supports MQTT(S) for publishing data to brokers like AWS IoT Core, Azure IoT Hub, or Node-RED. It also supports HTTP(S) POST/GET for RESTful API integration with custom applications. Additionally, it handles Modbus TCP for local network communication and includes DHCP for easy IP assignment. Security is maintained through TLS/SSL encryption for MQTT and HTTPS connections.

Package Includes

  • 1 x Calixto MBGWY00x Modbus to Cloud Gateway

Additional Information

Weight 0.143 kg
Dimensions 13 × 10 × 5 cm
