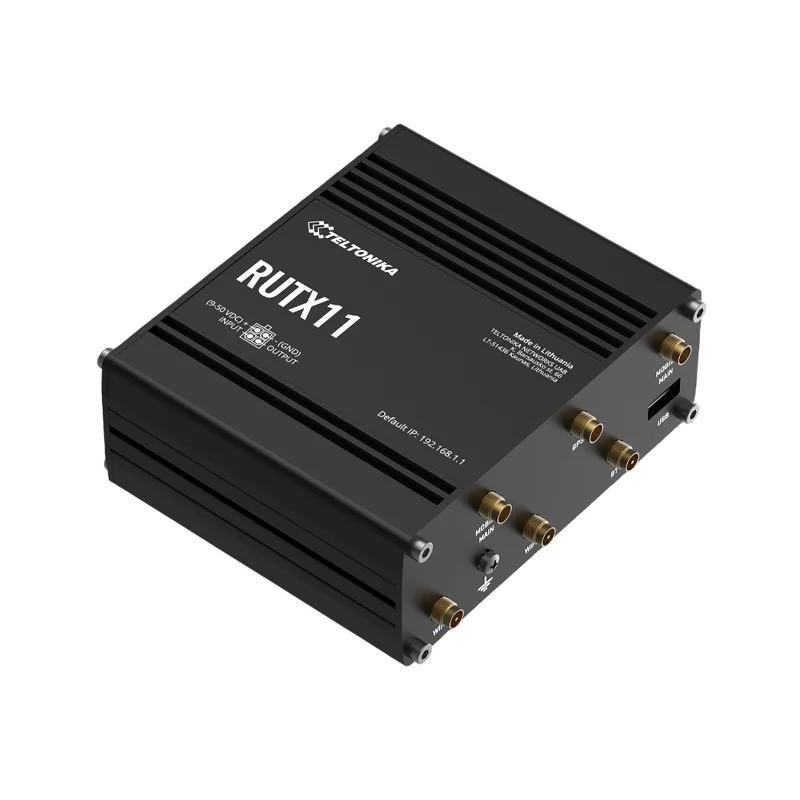

Teltonika RUTX11 Industrial Cellular Router LTE Cat 6 Dual-Band Wi-Fi

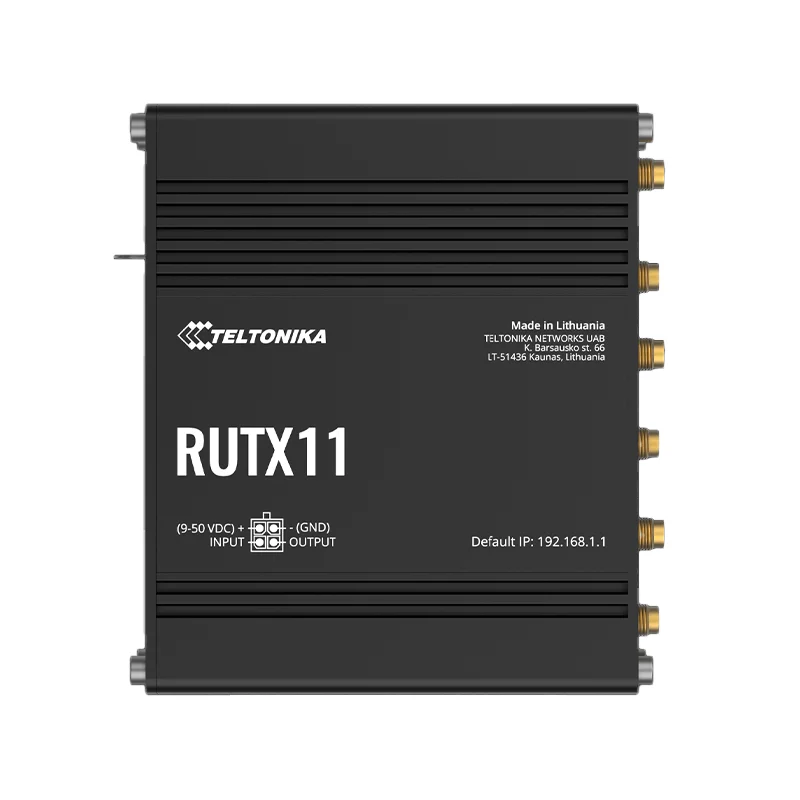

Teltonika RUTX11 Industrial Cellular Router LTE Cat 6 Dual-Band Wi-Fi - Image 2

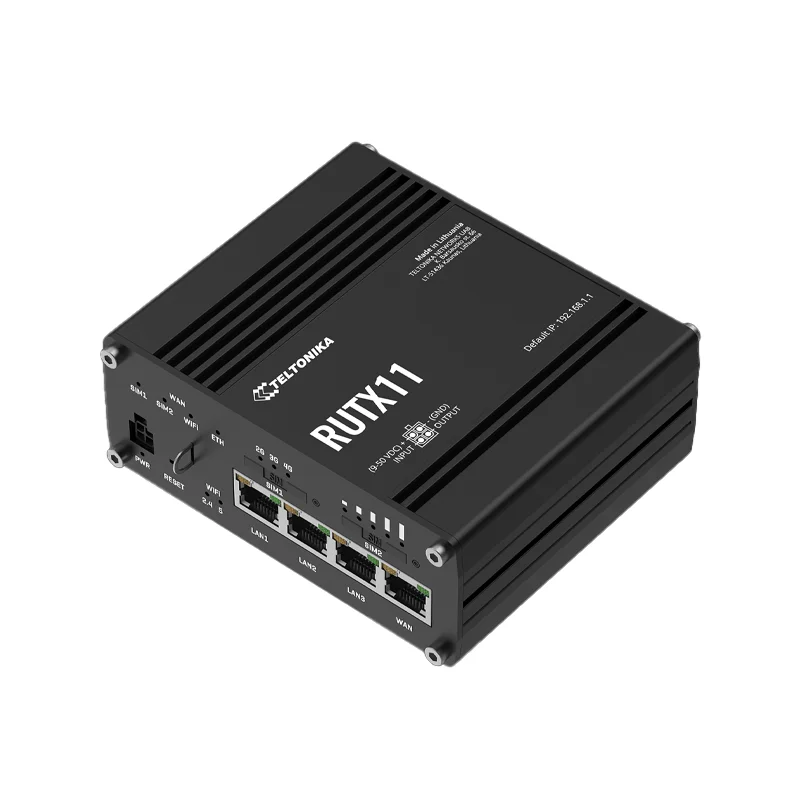

Teltonika RUTX11 Industrial Cellular Router LTE Cat 6 Dual-Band Wi-Fi - Image 3
SKU: IOWC-1927
📋 GST Invoice Available

Teltonika RUTX11 Industrial Cellular Router LTE Cat 6 Dual-Band Wi-Fi

₹38,189.00 (Inclusive of all taxes)
Out of Stock

The Teltonika RUTX11 is an industrial-grade cellular router featuring LTE Cat 6 with carrier aggregation, dual-band 802.11ac Wi-Fi, and four Gigabit Ethernet ports, designed for high-availability networking in demanding environments like transportation and industrial IoT.

Features

  • LTE Cat 6 cellular connectivity with dual SIM support and automatic failover for mission-critical uptime.
  • Quad-core ARM Cortex-A7 processor (717 MHz) handles advanced routing, VPN, and security features.
  • Four Gigabit Ethernet ports with VLAN support for robust wired network segmentation.
  • Dual-band Wave-2 802.11ac Wi-Fi with MU-MIMO delivers up to 867 Mbps wireless throughput.
  • Rugged aluminum housing certified for railway use (EN 45545-2) and operates from -40°C to +75°C.

Out of stock

Description

The Teltonika RUTX11 is engineered as a professional-grade networking hub for industrial and transportation applications requiring resilient, high-speed connectivity. Its LTE Cat 6 modem supports carrier aggregation for download speeds up to 300 Mbps, while dual SIM slots with automatic failover ensure continuous data flow even during carrier outages. The integrated quad-core CPU provides the processing muscle for complex routing protocols, multiple concurrent VPN tunnels (IPsec, OpenVPN, WireGuard), and stateful firewall security.

Built to endure harsh operational environments, the router’s robust aluminum chassis and wide-temperature components guarantee reliable performance from -40°C to +75°C. Its comprehensive I/O suite includes four Gigabit Ethernet ports for wired backbone connections and dual-band 802.11ac Wi-Fi with external antennas for flexible wireless client coverage. Remote device management and firmware updates are streamlined via the Teltonika Remote Management System (RMS) and FOTA, making it a cornerstone for scalable, secure IoT and M2M deployments.

Key Features

  • High-performance LTE Cat 6 modem with 2x20 MHz carrier aggregation for speeds up to 300 Mbps.
  • Dual SIM slots with automatic switchover and backup WAN (Ethernet/Wi-Fi) for network redundancy.
  • Advanced networking with static/dynamic routing, VLAN, QoS, and comprehensive firewall (ACL, NAT, DMZ).
  • Secure VPN support including IPsec, OpenVPN, L2TP, PPTP, and GRE for encrypted data tunnels.
  • Industrial durability with EN 45545-2 certification for railway use and a wide 9–50 VDC power input range.
  • Centralized remote management via Teltonika RMS cloud platform with monitoring, configuration, and FOTA.
  • Integrated Bluetooth 4.0 Low Energy for local device provisioning and short-range communication.
  • External antenna connectors for LTE (2x SMA), Wi-Fi (2x RP-SMA), GNSS (SMA), and Bluetooth (RP-SMA).

Applications

  • Mission-critical industrial IoT (IIoT) and SCADA systems requiring cellular backup.
  • In-vehicle and rolling stock (train/bus) connectivity for passenger Wi-Fi and telematics.
  • Remote site networking for oil & gas, utilities, and mining operations.
  • Secure branch office connectivity with VPN tunneling over cellular or mixed WAN links.
  • Public safety and emergency response mobile command center communications.

Technical Specifications

Item TypeIndustrial Cellular Router
Cellular Technology4G LTE Cat 6 (300 Mbps DL)
ProcessorQuad-core ARM Cortex-A7 @ 717 MHz
Wi-Fi StandardDual-band 802.11ac Wave-2 (2.4 GHz & 5 GHz), MU-MIMO
Ethernet Ports4 x Gigabit Ethernet (10/100/1000 Mbps)
BluetoothBluetooth 4.0 Low Energy (BLE)
Supply Voltage9–50 V DC
Operating Temperature-40°C to +75°C
Housing MaterialAluminum Metal Alloy
CertificationsEN 45545-2 (Railway), CE, RED, EAC, RCM
Dimensions (LxWxH)115 mm x 96 mm x (Height N/A)
Weight456 g

Frequently Asked Questions

How do I configure the dual SIM failover on the RUTX11?

Access the router's web interface and navigate to the 'Mobile' section. Under 'SIM Settings', enable 'Dual SIM' mode and configure the primary and backup SIM slots. Set the failover trigger conditions, such as signal loss or data limit reached. The system will automatically switch to the backup SIM, ensuring continuous cellular connectivity without manual intervention.

What VPN protocols are supported, and how do I set up an IPsec tunnel?

The RUTX11 supports IPsec, OpenVPN, L2TP, PPTP, and GRE tunnels. To configure IPsec, go to 'Services' > 'VPN' > 'IPsec'. Create a new tunnel, define the local and remote subnets, set the pre-shared key or certificate, and select the encryption/authentication algorithms (e.g., AES-256, SHA256). Apply the settings, and the secure tunnel will establish between the router and your corporate network or cloud endpoint.

Can the RUTX11 be powered from a vehicle's 12V or 24V electrical system?

Yes, the router's wide 9–50 VDC input range is designed for direct connection to vehicle electrical systems. For a 12V or 24V setup, connect the positive wire to the VIN+ terminal and the negative to GND on the router's power connector. Ensure proper polarity and use an inline fuse for protection. The router will operate reliably despite voltage fluctuations common in automotive environments.

How do I remotely manage and update firmware on the RUTX11?

Register the router on the Teltonika Remote Management System (RMS) cloud platform. In the web UI, go to 'System' > 'Administration' > 'RMS' and enable the RMS client, entering your device group ID. Once connected, you can monitor status, push configurations, and perform Firmware Over-The-Air (FOTA) updates directly from the RMS dashboard, managing a fleet of routers from a central location.

Package Includes

  • 1 x Teltonika RUTX11 Industrial Cellular Router
  • 1 x 18 W Power Supply Unit (PSU)
  • 2 x LTE Mobile Antennas (swivel, SMA male)
  • 2 x Wi-Fi Antennas (swivel, RP-SMA male)
  • 1 x GNSS Antenna (adhesive mount, SMA male, 3 m cable)
  • 1 x Bluetooth Antenna (magnetic mount, RP-SMA male, 1.5 m cable)
  • 1 x Ethernet Cable (1.5 m)
  • 1 x SIM Adapter Kit (Micro-SIM to 3FF/2FF)
  • 1 x Quick Start Guide (QSG)
  • 1 x Packaging Box

Additional Information

Weight 0.456 kg
Dimensions 9.6 × 11.5 cm
