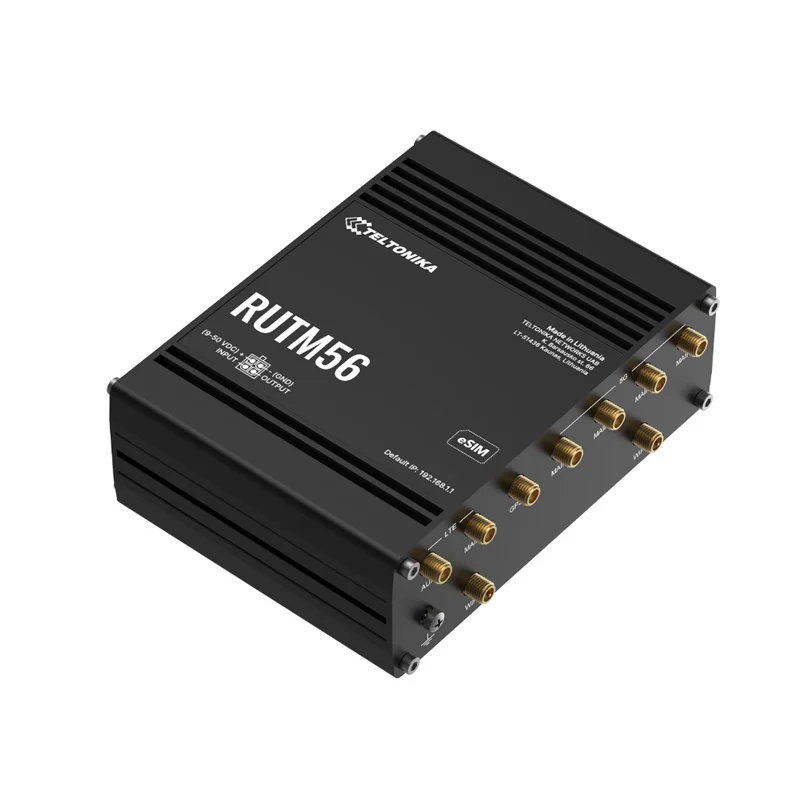

Teltonika RUTM56 Industrial 5G Router Dual Modem

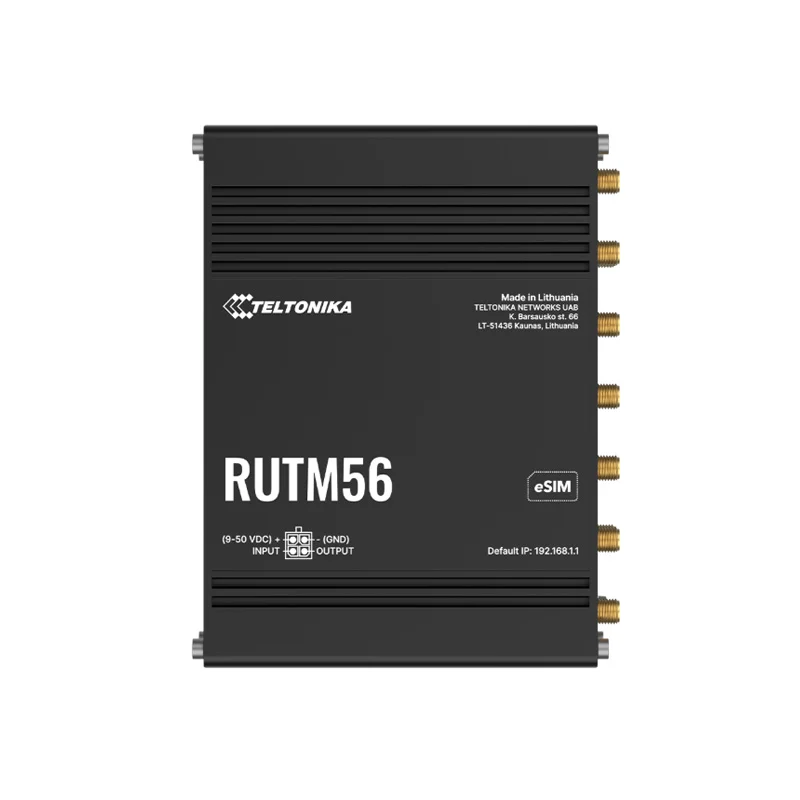

Teltonika RUTM56 Industrial 5G Router Dual Modem - Image 2

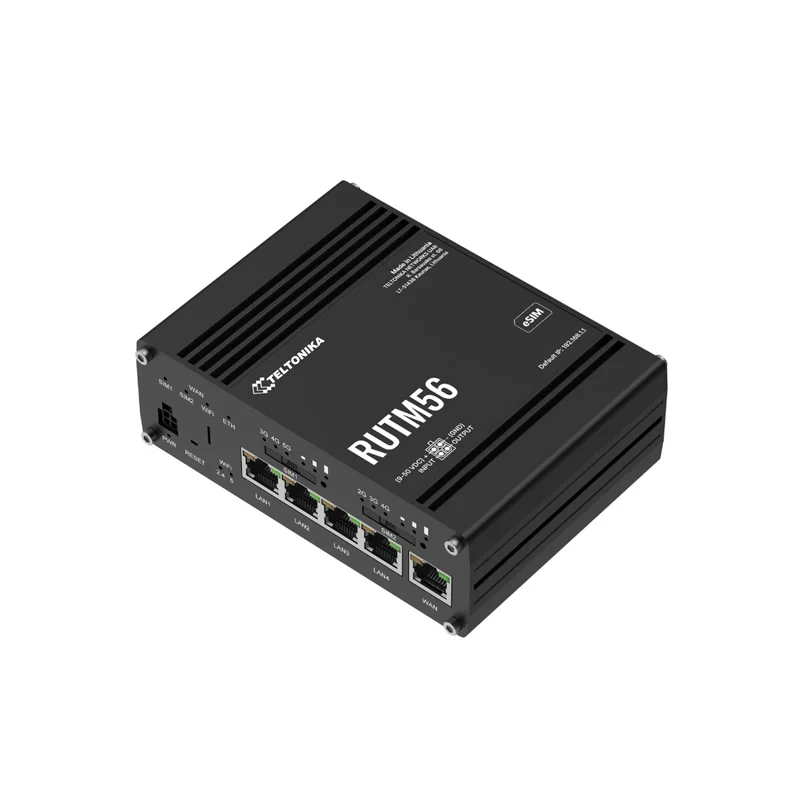

Teltonika RUTM56 Industrial 5G Router Dual Modem - Image 3
Teltonika RUTM56 Industrial 5G Router Dual Modem - Image 4
Teltonika RUTM56 Industrial 5G Router Dual Modem - Image 5
SKU: IOWC-1932
📋 GST Invoice Available

Teltonika RUTM56 Industrial 5G Router Dual Modem

₹84,019.00 (Inclusive of all taxes)
Out of Stock

The Teltonika RUTM56 is an industrial-grade 5G router featuring dual-modem architecture for primary and backup cellular connectivity, five Gigabit Ethernet ports, and Wi-Fi 5 access point functionality, powered by RutOS for advanced VPN and industrial protocol support.

Features

  • Dual-modem 5G/4G Cat 4 router with intelligent failover and dual SIM/eSIM support for maximum network uptime.
  • Five Gigabit Ethernet ports provide flexible LAN/WAN segmentation and high-speed industrial device connectivity.
  • Dual-band Wi-Fi 5 (802.11ac Wave 2) access point supports up to 150 concurrent client connections.
  • Rugged industrial design with wide -40°C to 75°C operating range and 9–50 VDC power input for harsh environments.
  • Integrated digital I/O (1x DI, 1x DO) and support for Modbus, MQTT, and OPC UA enable direct industrial telemetry and control.

Out of stock

Description

The Teltonika RUTM56 Industrial 5G Router is engineered for mission-critical connectivity in demanding environments. Its dual-modem architecture allows simultaneous operation on 5G and 4G LTE Cat 4 networks, with intelligent auto-switching and failover to ensure zero downtime. Powered by a MediaTek dual-core 880 MHz CPU and 256 MB of RAM, it runs the feature-rich RutOS (OpenWrt-based) firmware, enabling advanced VPN tunnels, robust firewall policies, and seamless integration with industrial SCADA and IIoT systems via Modbus TCP, MQTT, and OPC UA.

Housed in a rugged anodized aluminum enclosure, the RUTM56 is built to withstand extreme temperatures from -40°C to 75°C and accepts a wide 9–50 VDC input, making it ideal for deployment in transportation, utilities, and smart factories. The router provides extensive connectivity with five Gigabit Ethernet ports, a high-performance dual-band Wi-Fi 5 access point, and dedicated antenna ports for cellular, Wi-Fi, and GNSS, facilitating comprehensive network deployment right out of the box.

Key Features

  • Dual-modem design ensures continuous 5G/4G connectivity with automatic network failover and load balancing.
  • RutOS firmware provides enterprise-grade security features, including OpenVPN, WireGuard, firewall, and traffic shaping.
  • Five Gigabit Ethernet ports offer versatile routing, VLAN support, and WAN/LAN configuration flexibility.
  • Integrated digital input and open-collector output enable direct monitoring and control of industrial sensors and actuators.
  • Remote management and monitoring via Teltonika RMS cloud platform for centralized fleet oversight.
  • Dual-band Wi-Fi 5 with MU-MIMO supports high-density client environments with superior wireless performance.
  • Rugged industrial construction with DIN-rail, wall, and flat-surface mounting options for easy installation.
  • Backward compatible with 3G and 2G networks for legacy support in areas with limited 4G/5G coverage.

Applications

  • Industrial IoT (IIoT) and SCADA system backhaul for factory automation and machine monitoring.
  • Mission-critical connectivity for public transportation, traffic management, and railway systems.
  • Remote telemetry and control for utilities, including smart grid, water, and oil/gas infrastructure.
  • Primary or failover WAN solution for retail, banking, and healthcare branch networks.
  • Mobile command centers, emergency response vehicles, and temporary deployment sites.

Technical Specifications

Model / Part NumberRUTM56
Cellular ConnectivityDual Modem: 5G + 4G LTE Cat 4, backward compatible with 3G/2G
Wi-Fi ProtocolDual-band Wi-Fi 5 (802.11ac Wave 2, MU-MIMO)

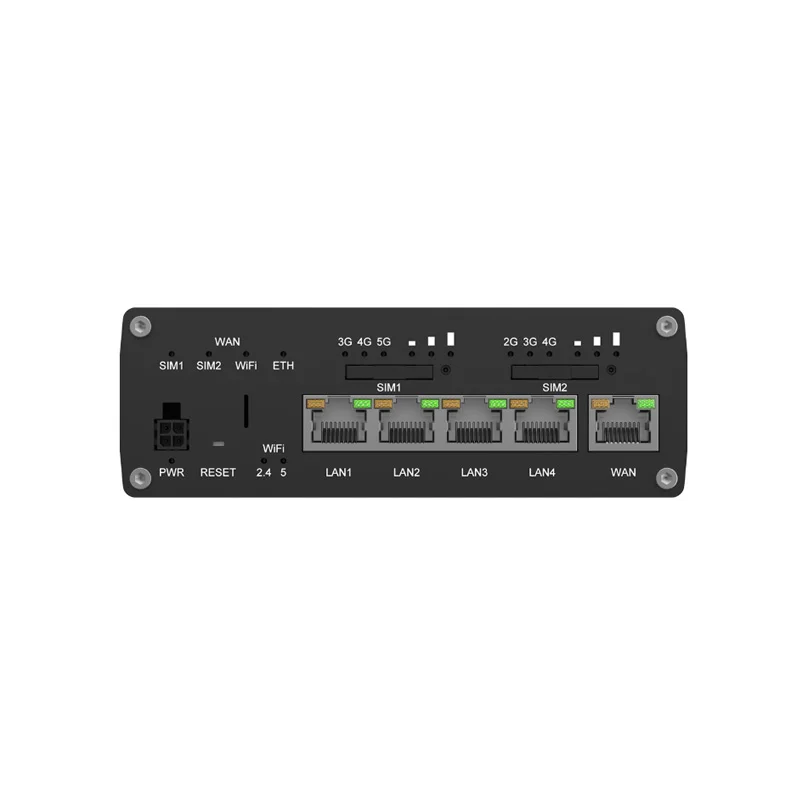

Ethernet Ports5× Gigabit RJ45
CPUMediaTek Dual-Core 880 MHz (MIPS1004Kc)
Memory256 MB DDR3 RAM, 256 MB Flash (16 MB NOR + 256 MB NAND)
Operating SystemRutOS (OpenWrt-based)
Supply Voltage9–50 VDC
Power ConsumptionIdle: < 4.5W, Maximum: < 12.5W
Digital I/O1× Digital Input (0-6V low, 8-50V high), 1× Digital Output (open collector, 50V/300mA max)

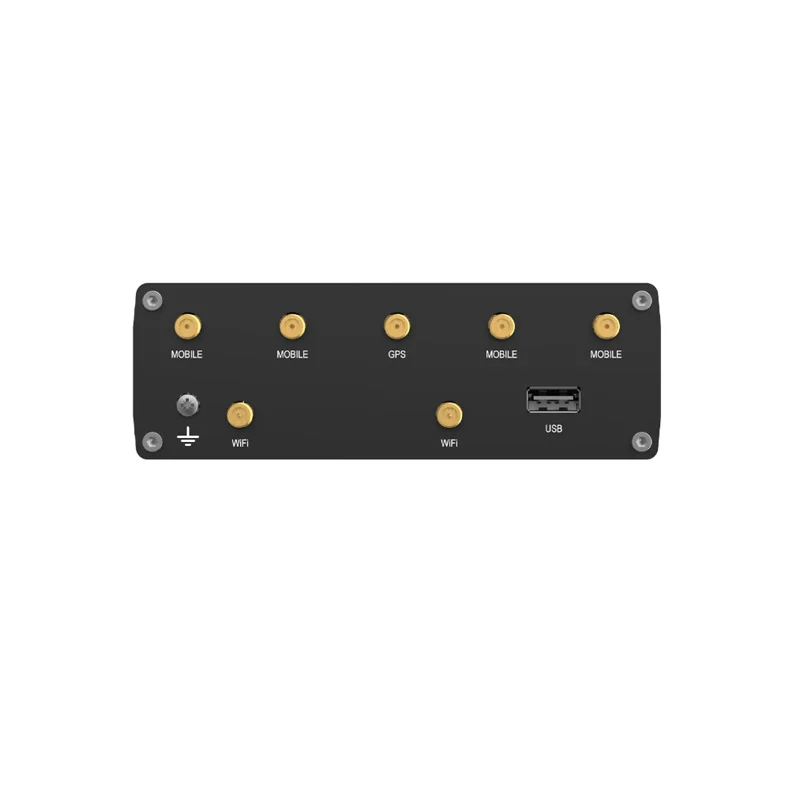

Antenna Connectors6× SMA (Cellular), 2× RP-SMA (Wi-Fi), 1× SMA (GNSS)
Operating Temperature-40°C to 75°C
Dimensions (L×W×H)132 mm × 44.2 mm × N/A mm
Weight515 g

Frequently Asked Questions

How do I configure the dual SIM and failover functionality on the RUTM56?

Configure dual SIM and failover via the RutOS web interface under Network > Mobile. Set primary and backup modems, define failover triggers (e.g., signal loss, ping failure), and enable auto-switching. The router supports eSIM and physical SIMs, with intelligent switching based on signal strength, data usage, or custom rules to maintain uninterrupted connectivity.

What industrial protocols are supported, and how do I integrate Modbus devices?

The RUTM56 natively supports Modbus TCP, MQTT, and OPC UA via its RutOS firmware. To integrate Modbus RTU devices, connect them to a serial server on the LAN. Use the router's built-in Modbus TCP gateway or MQTT client to poll data from field devices and publish it to your SCADA or cloud platform, enabling real-time industrial telemetry and remote control.

What is the procedure for mounting the router and connecting antennas?

Mount the RUTM56 using its integrated DIN-rail clip, wall-mount brackets, or by securing it flat. Connect the six magnetic 5G antennas to the SMA ports, two RP-SMA Wi-Fi antennas, and the adhesive GNSS antenna. Ensure all connections are hand-tightened. Position cellular antennas vertically and apart for optimal signal diversity, especially in vehicles or metal enclosures.

How do I access the remote management features via Teltonika RMS?

Enable RMS in the router's System > Administration settings to register the device with the Teltonika RMS cloud platform. This provides centralized monitoring, configuration backups, firmware updates, and real-time alerts for your entire fleet. Access is secured via TLS, and you can manage multiple routers from a single dashboard for efficient large-scale deployment oversight.

Package Includes

  • 1 x Teltonika RUTM56 Industrial 5G Router
  • 1 x 24 W Power Supply Unit (PSU)
  • 6 x 5G Mobile Antennas (SMA male, magnetic mount)
  • 2 x Wi-Fi Antennas (RP-SMA male, 1.5 m cable, magnetic mount)
  • 1 x GNSS Antenna (SMA male, 3 m cable, adhesive mount)
  • 1 x Ethernet Cable (1.5 m)
  • 1 x SIM Adapter Kit
  • 1 x Quick Start Guide (QSG)
  • 1 x Packaging Box

Additional Information

Weight 0.515 kg
Dimensions 13.2 × 4.42 cm
