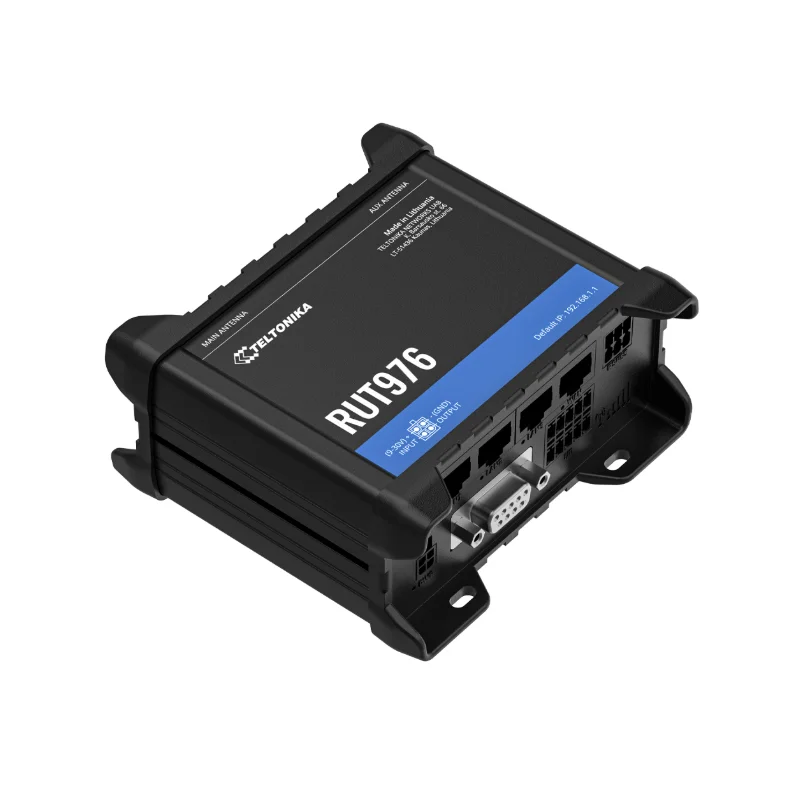

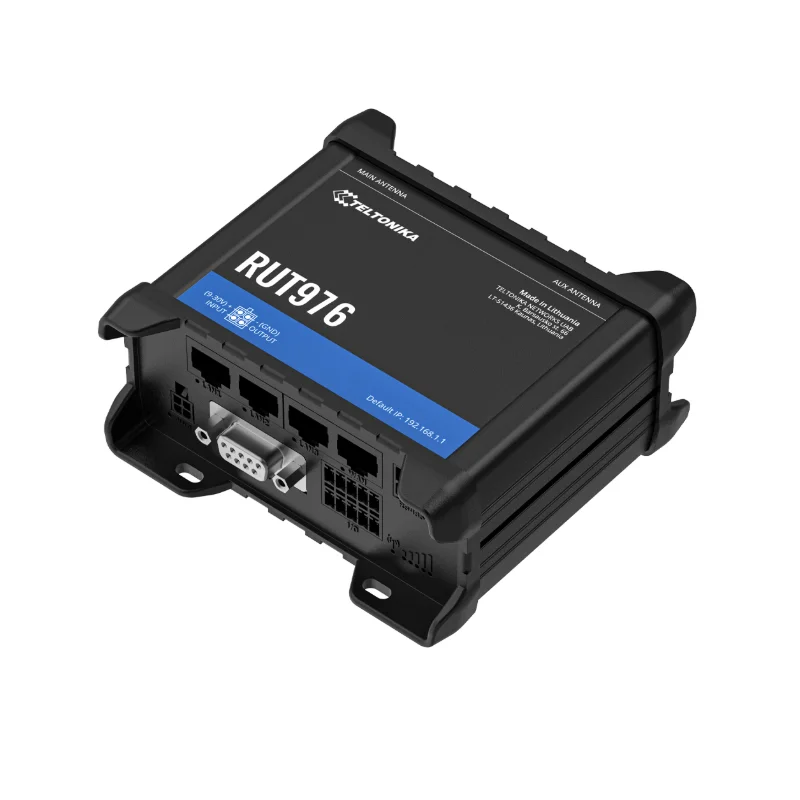

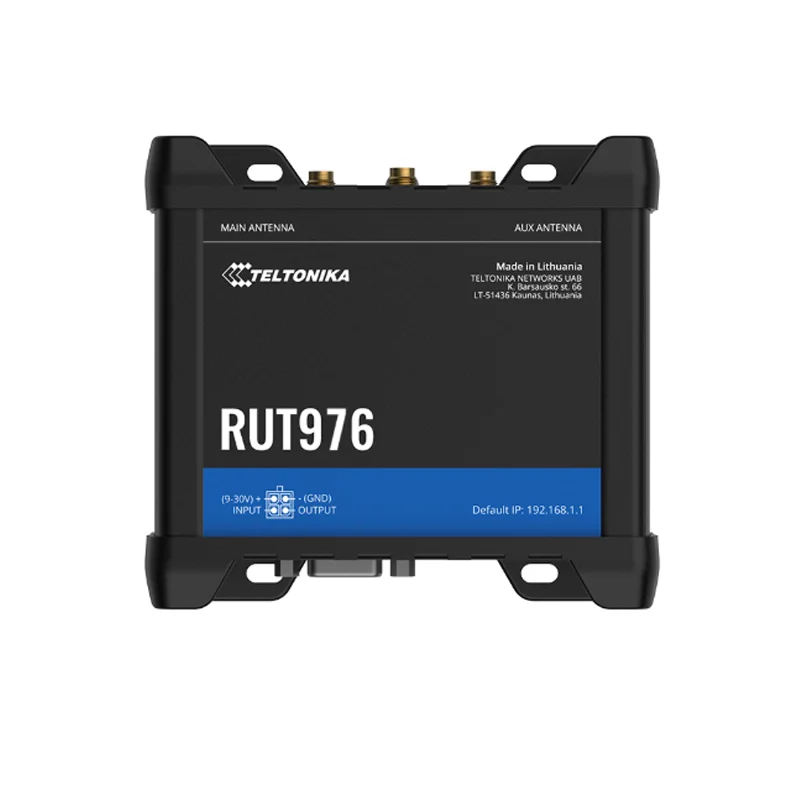

Teltonika RUT976 RedCap 5G Router w/ Dual SIM, eSIM, 4x ETH

₹48,889.00 (Inclusive of all taxes)
Out of Stock

The Teltonika RUT976 is an industrial RedCap 5G router designed for mission-critical IoT, featuring 5G SA connectivity, dual SIM/eSIM auto-failover, four Fast Ethernet ports, and robust industrial interfaces including RS232, RS485, and digital/analog I/O.

Features

  • RedCap 5G SA & 4G LTE Cat 4 Connectivity: Delivers optimized 5G performance with low latency for industrial automation and remote monitoring, ensuring reliable data transfer in harsh conditions.
  • Dual SIM + eSIM with Auto-Failover: Provides carrier redundancy and seamless network switching for maximum uptime in critical IoT deployments.
  • Industrial-Grade Interfaces: Includes RS232, RS485, digital inputs, and an analog input for direct integration with PLCs, sensors, and legacy industrial equipment.
  • Advanced VPN & Security Suite: Supports WireGuard, OpenVPN, IPsec, and ZeroTier for secure site-to-site and remote access tunnels, managed via the RutOS platform.
  • Rugged DIN/Wall Mount Design: Operates from -40°C to 75°C with passive PoE support, built for deployment in challenging environmental and industrial settings.

Out of stock

Description

The Teltonika RUT976 RedCap 5G Router bridges the gap between 4G LTE and full-scale 5G, utilizing 3GPP Release 17 RedCap technology to deliver cost-effective, low-latency 5G Standalone (SA) connectivity. It is engineered as a core networking node for industrial IoT, featuring a 580 MHz MIPS CPU, 128 MB RAM, and 32 MB flash memory to handle advanced routing, VPN tunneling, and data aggregation tasks.

Its architecture supports dual physical SIMs plus an integrated eSIM, enabling intelligent auto-switching and failover for uninterrupted cellular backhaul. The router provides four 10/100 Mbps Ethernet ports (configurable as WAN/LAN), passive PoE input, and a comprehensive set of industrial serial and I/O interfaces for direct machine connectivity. Managed via the OpenWrt-based RutOS with full API/SDK access, the RUT976 is designed for system integrators requiring a secure, programmable, and resilient gateway for smart infrastructure and remote telemetry applications.

Key Features

  • RedCap 5G SA & 4G LTE Cat 4 dual-mode cellular modem for future-proof, low-latency wide area networking.
  • Dual SIM slots with integrated eSIM support and intelligent auto-failover for maximum network reliability and redundancy.
  • Comprehensive industrial I/O including RS232, RS485, digital dry contact inputs, and a 0-24V analog input for sensor and control system integration.
  • Advanced VPN suite with WireGuard, OpenVPN, IPsec, and ZeroTier support for secure remote access and site-to-site tunneling.
  • RutOS firmware based on OpenWrt, offering full configurability, a rich API, SDK for custom app development, and support for RMS cloud management.
  • Ruggedized design with DIN rail and wall-mount options, operating across an extended temperature range of -40°C to 75°C.
  • Integrated passive PoE support (9-30V DC input) and four Fast Ethernet ports for flexible network deployment and power delivery.
  • Dedicated antenna connectors for dual LTE, dual Wi-Fi, and GNSS, supporting high-gain external antennas for optimal signal strength.

Applications

  • Industrial Automation & IIoT: Provides reliable 5G backhaul for PLCs, HMIs, and SCADA systems in manufacturing and process control.
  • Smart City & Critical Infrastructure: Connects traffic systems, public safety networks, and utility monitoring points with secure, low-latency communication.
  • Remote Monitoring & Telemetry: Aggregates data from sensors in oil & gas, renewable energy, and environmental monitoring sites.
  • Transportation & Fleet Management: Serves as an in-vehicle router for asset tracking, telematics, and mobile CCTV systems.
  • Mission-Critical IoT Deployments: Ensures network redundancy and high availability for security, banking, and emergency service applications.

Technical Specifications

Model / Part NumberRUT976
Cellular ConnectivityRedCap 5G SA, 4G LTE Cat 4
SIM SupportDual SIM + eSIM
CPUMediatek, 580 MHz, MIPS 24KEc
RAM128 MB DDR2
Flash Storage32 MB NOR Flash
Ethernet Ports4 x 10/100 Mbps (1 WAN, 3 LAN configurable)
Power over EthernetPassive PoE (Input)
Power Input9–30 V DC

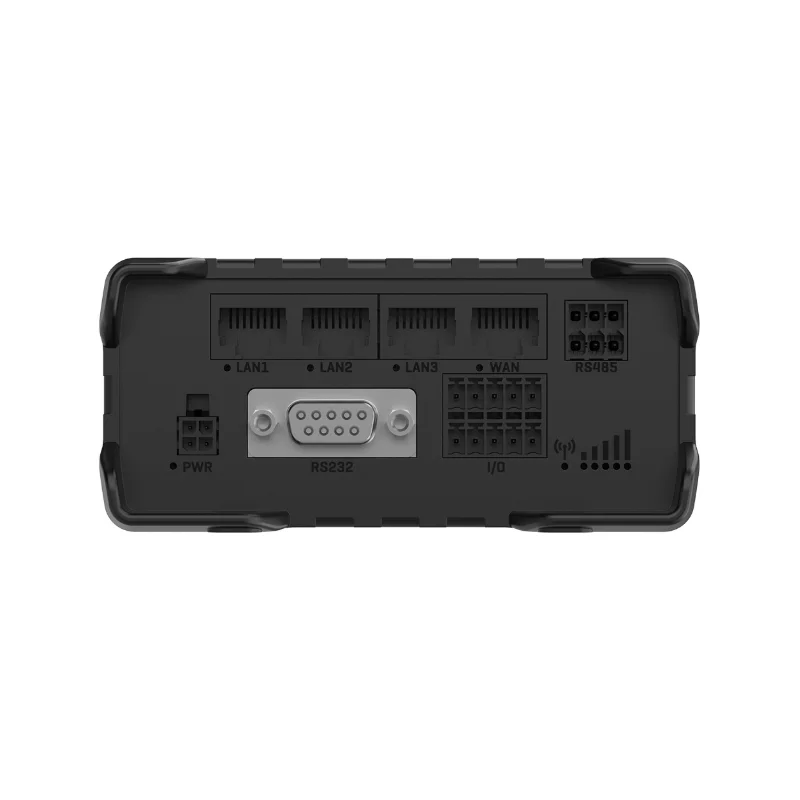

Industrial InterfacesRS232, RS485, 2x Digital Input, 1x Analog Input (0-24V)

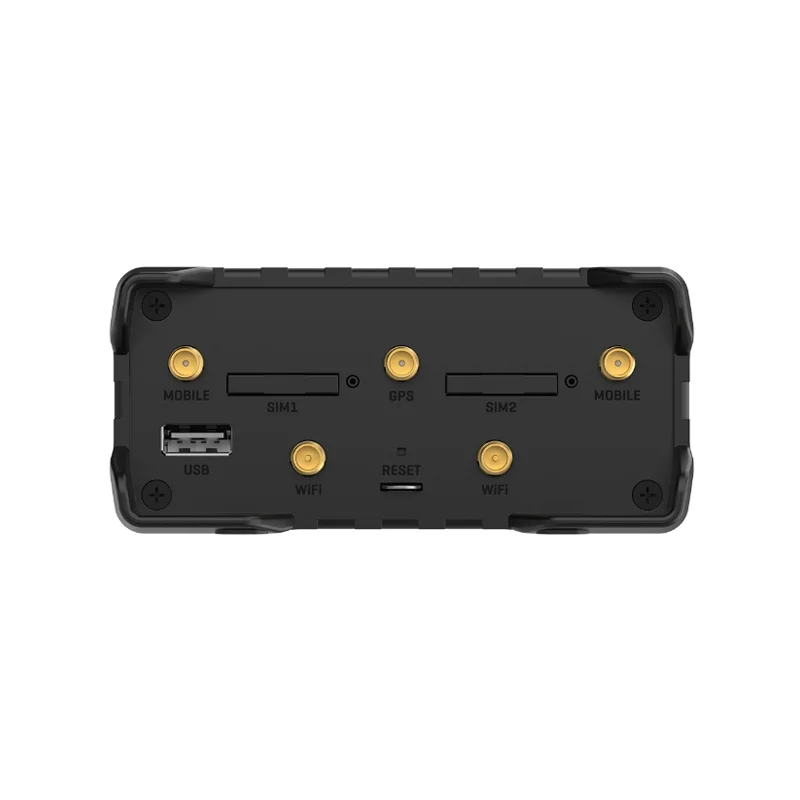

Antenna Connectors2x SMA (LTE), 2x RP-SMA (Wi-Fi), 1x SMA (GNSS)
Operating Temperature-40°C to 75°C
MountingDIN Rail, Wall Mount
Dimensions (L x W)110 mm x 100 mm
Weight295 g

Frequently Asked Questions

How do I configure the dual SIM failover on the RUT976?

Configure dual SIM failover via the RutOS web interface under the 'Mobile' settings. Set the primary and backup SIM profiles, then enable the 'Auto-Switch' feature. The router monitors signal strength and network availability, automatically switching to the secondary SIM if the primary connection fails, ensuring continuous uptime for your IoT application. You can also set specific conditions like data usage limits to trigger the switch.

What is the procedure for flashing custom firmware or apps onto the RUT976?

The RUT976 runs RutOS, based on OpenWrt. Use the web interface's 'System > Backup / Flash Firmware' section to upload a custom firmware image. For developing and installing custom applications, utilize the provided SDK to compile packages. Deploy apps via SSH or the LuCI package manager. Always backup your configuration before flashing. Official documentation and community forums provide detailed guides for advanced customization and integration.

Can I power the RUT976 using Passive PoE, and what are the wiring requirements?

Yes, the RUT976 supports passive PoE input within its 9-30V DC range. Connect the positive voltage to pins 4 & 5 and the negative to pins 7 & 8 of the Ethernet port designated for PoE input. Ensure your injector or switch provides DC voltage within the specified range and matches the polarity. The router also accepts power via the dedicated DC jack. Always verify your power source compatibility to avoid damaging the device.

Package Includes

  • 1 x Teltonika RUT976 RedCap 5G Router
  • 1 x 9 W Power Supply Unit (PSU)
  • 2 x LTE Antennas (Swivel, SMA Male)
  • 2 x Wi-Fi Antennas (Magnetic Mount, RP-SMA Male, 1.5 m Cable)
  • 1 x GNSS Antenna (Adhesive Mount, SMA Male, 3 m Cable)
  • 1 x RS485 Connector Block
  • 1 x I/O Connector Block
  • 1 x Ethernet Cable (1.5 m)
  • 1 x SIM Adapter Kit
  • 1 x Quick Start Guide / User Manual

Additional Information

Weight 0.295 kg
Dimensions 11 × 10 cm
