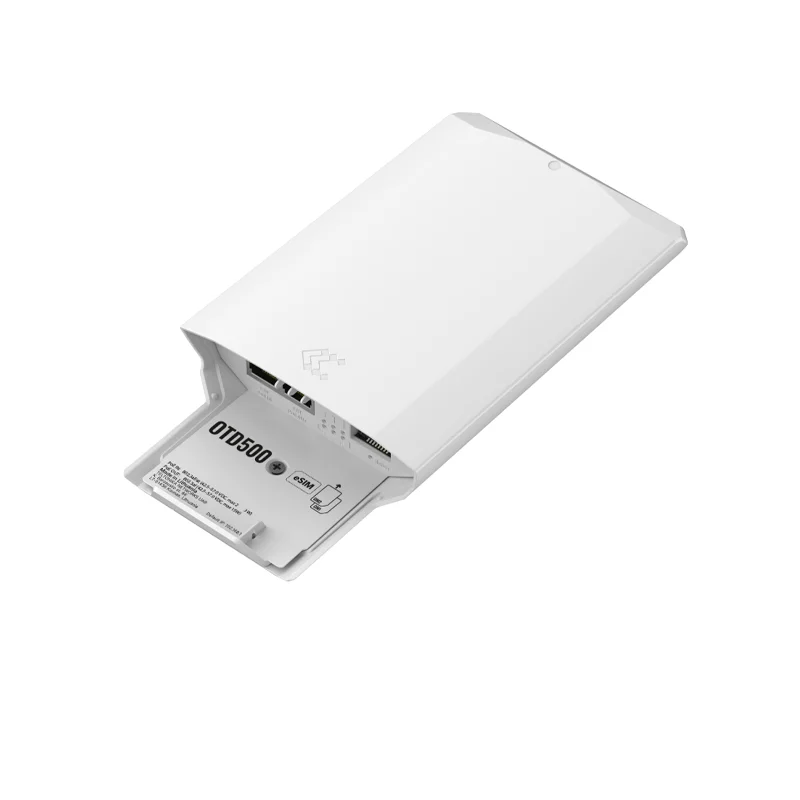

Teltonika OTD500 Outdoor 5G Router w/ Dual SIM & PoE

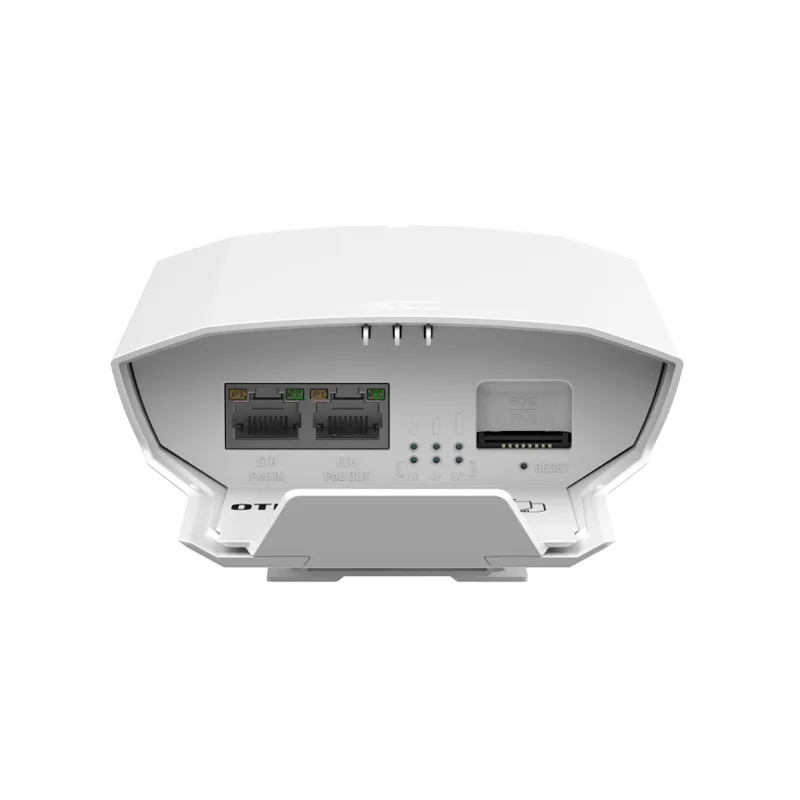

Teltonika OTD500 Outdoor 5G Router w/ Dual SIM & PoE - Image 2

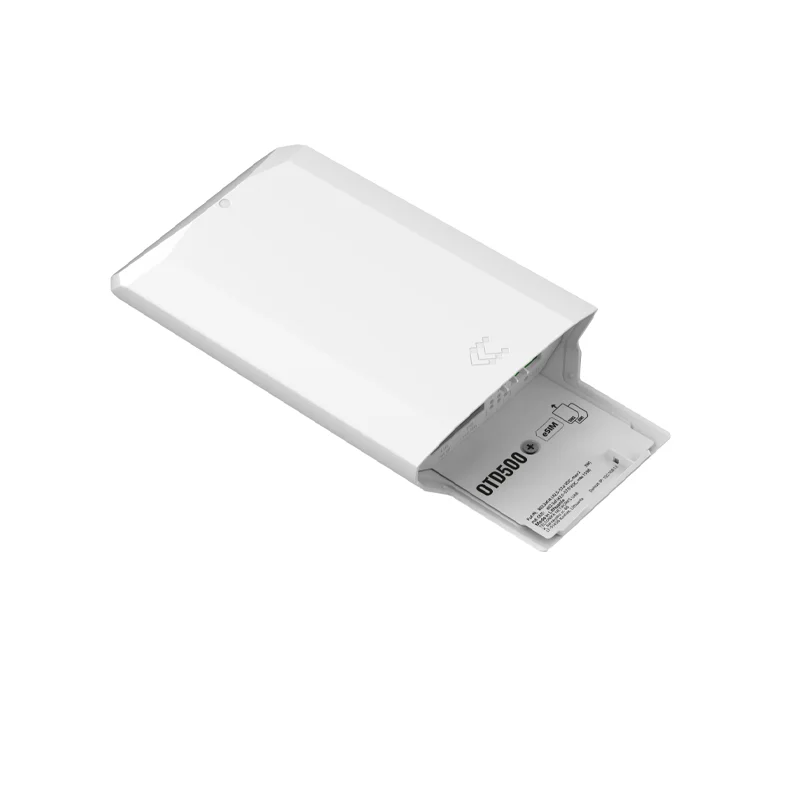

Teltonika OTD500 Outdoor 5G Router w/ Dual SIM & PoE - Image 3
SKU: IOWC-1957
📋 GST Invoice Available

Teltonika OTD500 Outdoor 5G Router w/ Dual SIM & PoE

₹65,689.00 (Inclusive of all taxes)
Out of Stock

The Teltonika OTD500 is an industrial-grade outdoor 5G router featuring an IP55-rated rugged enclosure for harsh environments. It provides high-speed 5G Sub-6GHz SA/NSA connectivity with dual SIM/eSIM failover, PoE-in/PoE-out support, and is fully manageable via Teltonika RMS for secure, remote industrial and smart city deployments.

Features

  • Outdoor 5G Router with IP55-rated rugged enclosure for industrial and smart city deployments.
  • Supports 5G Sub-6GHz SA/NSA with download speeds up to 3.4 Gbps and 4G LTE Cat 19 fallback.
  • Dual SIM slots plus eSIM provide automatic network failover for mission-critical connectivity.
  • Simplified installation with PoE-in (IEEE 802.3af/at) and PoE-out (IEEE 802.3af) capabilities.
  • Advanced security suite includes integrated firewall, VPN support, and remote management via Teltonika RMS.

Out of stock

Description

The Teltonika OTD500 Outdoor 5G Router is engineered for reliable, high-speed wireless connectivity in demanding outdoor and industrial environments. Its rugged IP55-rated enclosure protects against dust, water ingress, and extreme temperatures from -40°C to +75°C, ensuring continuous operation for smart city infrastructure, remote telemetry, and industrial IoT networks.

Powered by advanced 5G Sub-6GHz technology supporting both Standalone (SA) and Non-Standalone (NSA) architectures, the router delivers ultra-low latency and multi-gigabit throughput. Dual SIM slots and integrated eSIM enable automatic network failover, providing essential redundancy for critical applications. The inclusion of both Power-over-Ethernet input and output simplifies deployment by eliminating the need for separate power wiring at remote poles or enclosures.

Key Features

  • Industrial outdoor 5G router with IP55 protection against dust and water jets.
  • High-speed 5G Sub-6GHz SA/NSA connectivity with 4G LTE and 3G fallback support.
  • Dual SIM (2FF) slots and eSIM for automatic network redundancy and failover.
  • Integrated Power-over-Ethernet (PoE) input (802.3af/at) and output (802.3af) for streamlined installation.
  • Advanced routing with firewall, multiple VPN protocols (IPsec, OpenVPN, WireGuard), and VLAN support.
  • Fully compatible with Teltonika Remote Management System (RMS) for centralized monitoring and configuration.
  • Internal high-gain omnidirectional antennas for robust wireless signal reception.
  • Wide operating temperature range (-40°C to +75°C) for extreme climate deployment.

Applications

  • Industrial IoT (IIoT) and remote site connectivity for SCADA and telemetry systems.
  • Smart city infrastructure including traffic management, public Wi-Fi, and surveillance camera backhaul.
  • Mission-critical communications for utilities, oil & gas, and transportation networks.
  • Temporary deployment for construction sites, events, and emergency response units.
  • Agricultural and environmental monitoring stations in remote locations.

Technical Specifications

ModelOTD500
Cellular Technology5G Sub-6GHz SA/NSA, 4G LTE Cat 19, 3G
Maximum Data SpeedDownload: Up to 3.4 Gbps, Upload: Up to 900 Mbps
SIM SupportDual Mini-SIM (2FF) + eSIM
Antenna Type4 x Internal Omnidirectional
Ethernet Ports2 x RJ45 (10/100 Mbps)
PoEInput: IEEE 802.3af/at, Output: IEEE 802.3af (Alternative B)
Input Voltage42.5–57 V DC
Power ConsumptionIdle: < 2.5 W, Max: < 9 W, PoE Max: < 24 W
Operating Temperature-40°C to +75°C
Protection RatingIP55
Dimensions (LxW)235 mm x 110 mm
Weight385 g

Frequently Asked Questions

How do I power and install the Teltonika OTD500 router in an outdoor location?

The OTD500 supports Power-over-Ethernet input (IEEE 802.3af/at), allowing you to run a single Ethernet cable for both data and power (42.5-57V DC). For pole or wall mounting, use the integrated bracket and included holder. Ensure the RJ45 ports are facing downwards to maintain the IP55 water ingress protection. You can also use its PoE-out capability to power a secondary device like a camera.

How does the dual SIM and eSIM failover functionality work?

The router is configured via its web interface or Teltonika RMS to prioritize a primary SIM card from one cellular carrier. If the primary connection is lost, it automatically switches to the secondary SIM or the embedded eSIM profile. This failover process happens within seconds, ensuring continuous connectivity for critical IoT applications without manual intervention, providing essential network redundancy.

What VPN protocols and security features are supported for remote access?

The OTD500 includes an advanced firewall and supports multiple VPN protocols for secure tunnels, including IPsec, OpenVPN, and WireGuard. You can configure site-to-site VPNs to connect remote networks or client-to-site VPNs for secure administrative access. All configurations are managed through the intuitive web interface or centrally via the Teltonika Remote Management System (RMS) for scalable deployment.

Can I manage multiple OTD500 routers deployed across different sites?

Yes, by registering each router to the Teltonika Remote Management System (RMS) cloud platform. RMS provides a centralized dashboard for monitoring device status, data usage, network performance, and GPS location (if a module is added). It allows for bulk configuration updates, firmware upgrades, and alert setting, making large-scale deployments of outdoor industrial routers efficient and secure.

Package Includes

  • 1 x Teltonika OTD500 Outdoor 5G Router
  • 1 x Router Holder
  • 1 x Quick Start Guide

Additional Information

Weight 0.385 kg
Dimensions 23.5 × 11 cm

Related Products

Out of Stock

Waveshare CM4 to Pi 4B Adapter Board for CM4 Lite/eMMC

2,139.00
Learn More
Out of Stock

EDATEC CM4 IO Computer w/ 4GB RAM, 8GB eMMC & Case

15,749.00
Learn More
Out of Stock

Seeed Studio Studio ODYSSEY - STM32MP135D Cortex-A7 SBC 4Gb DRAM

5,009.00
Learn More
Out of Stock

ODYSSEY-STM32MP135D SBC w/ 4GB eMMC & 4Gb DRAM

5,289.00
Learn More
Out of Stock

EDATEC ED-HMI3020-070C-04001-P 7.0-inch Industrial HMI for Raspberry Pi 5 (4GB RAM, 128GB SSD, PoE)

35,299.00
Learn More
Out of Stock

BliKVM v4 KVM-over-IP w/ Allwinner H616, PoE, HDMI Loop

21,779.00
Learn More
Out of Stock

EDATEC ED-IPC2010-1208 Industrial PC w/ CM4102008, 2GB RAM, 8GB eMMC, WiFi

13,459.00
Learn More
Out of Stock

Luckfox Aura Linux Dev Board w/ 4GB RAM, 64GB eMMC, NPU

22,299.00
Learn More
Out of Stock

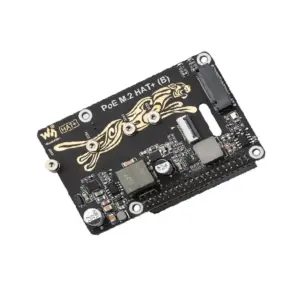

Waveshare PCIe To M.2 Adapter with PoE for Raspberry Pi 5
