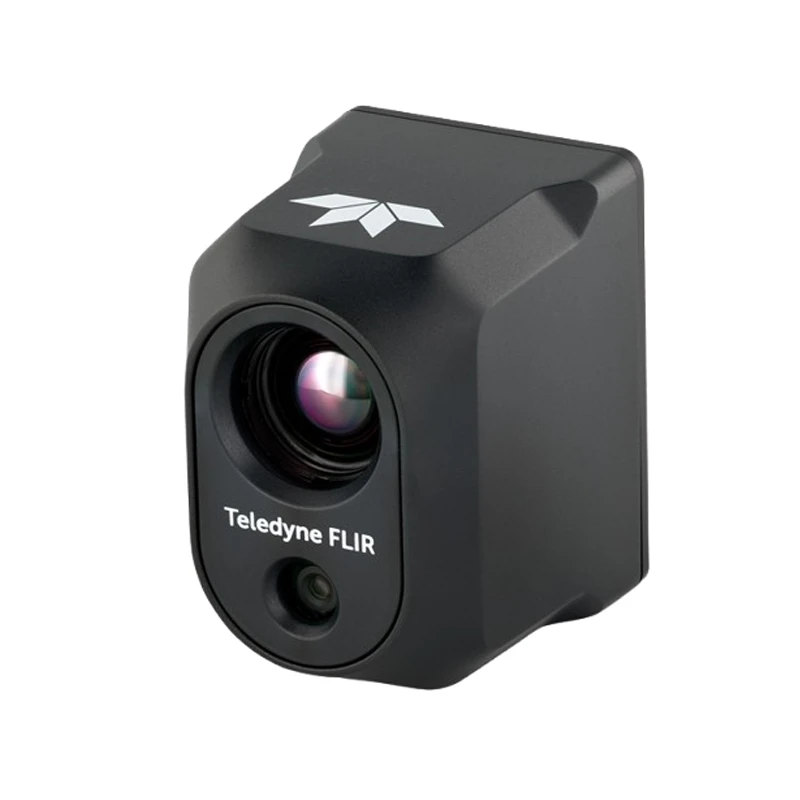

Teledyne Teledyne FLIR Hadron 640R+ Radiometric Thermal & Visible Camera Module

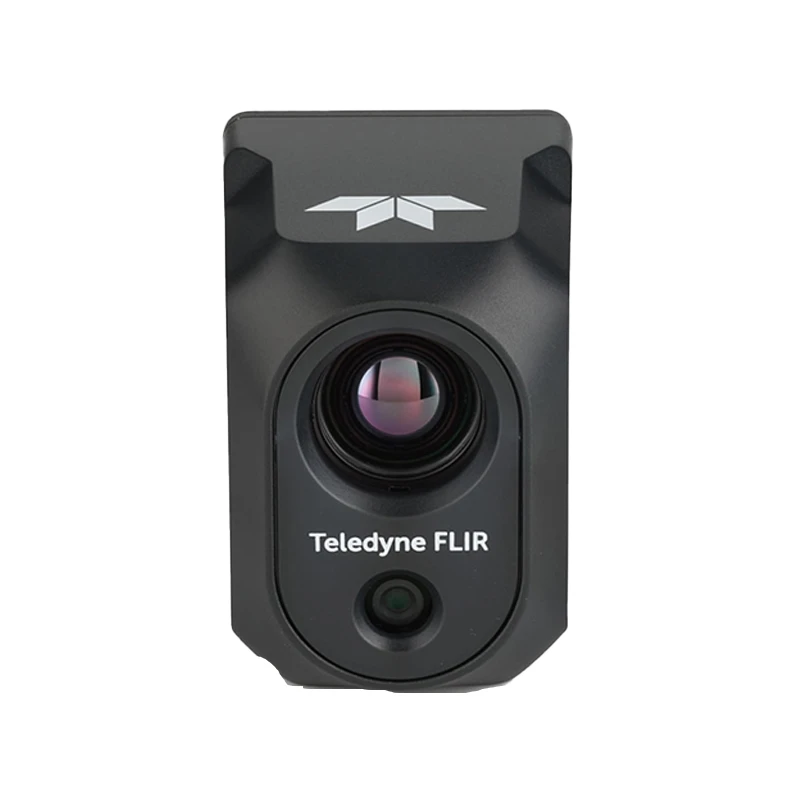

Teledyne Teledyne FLIR Hadron 640R+ Radiometric Thermal & Visible Camera Module - Image 2
SKU: IOWC-0623
📋 GST Invoice Available

Teledyne Teledyne FLIR Hadron 640R+ Radiometric Thermal & Visible Camera Module

₹788,149.00 (Inclusive of all taxes)
Out of Stock

The Teledyne Teledyne FLIR Hadron 640R+ is an OEM camera core integrating a 640×512 radiometric LWIR thermal sensor with a 64MP visible sensor, delivering high-fidelity dual-band imaging for AI vision, robotics, and automated inspection systems via USB 3.0 and MIPI interfaces.

Features

  • Dual-Sensor Imaging: Combines a 640×512 radiometric thermal camera (<40 mK sensitivity) with a high-resolution 64MP visible sensor for comprehensive scene analysis.
  • High-Performance Core: Operates at up to 60 Hz frame rate with integrated Bosch IMU (ICM20602) for precise motion data synchronization.
  • Radiometric Temperature Measurement: Provides accurate, pixel-level temperature data (±5°C accuracy) critical for industrial inspection and thermal analytics.
  • Developer-Friendly Interfaces: Features USB 3.0 and configurable 2-lane/4-lane MIPI CSI-2 outputs for seamless integration with embedded AI processors and single-board computers.
  • SWaP-Optimized Design: Compact 35x49x45 mm form factor, 56g weight, and <1.8W typical power consumption ideal for drones and mobile robotic platforms.

Out of stock

Description

The Hadron 640R+ camera module is a professional-grade, dual-spectrum imaging solution engineered for advanced machine vision applications. It pairs a high-sensitivity Boson 640 long-wave infrared (LWIR) microbolometer with a 64-megapixel visible light CMOS sensor, enabling simultaneous thermal radiometry and ultra-high-definition visual capture within a single, synchronized data stream. This integration is critical for AI-driven perception systems requiring both structural and thermal context.

Designed for low-SWaP (Size, Weight, and Power) integration, the module consumes under 1.8 watts while delivering full 60 Hz performance. Its robust mechanical design meets IP54 sealing standards for operation in demanding environments from -20°C to +60°C. The inclusion of a selectable I2C/SPI inertial measurement unit (IMU) allows for sensor fusion, aligning visual and thermal data with platform kinematics for stabilized imaging in dynamic applications like drone-based surveying or autonomous vehicle navigation.

Key Features

  • Dual-spectrum radiometric core for precise temperature measurement and high-resolution visual context.
  • High frame rate (60 Hz) thermal and visible imaging suitable for real-time analytics and tracking.
  • Low power consumption and compact form factor optimized for mobile and airborne platforms.
  • Multiple high-speed data interfaces (USB 3.0, MIPI CSI-2) for flexible system integration.
  • Onboard 6-axis IMU (ICM20602) with selectable I2C/SPI interface for sensor fusion applications.
  • Ruggedized IP54-rated housing for reliable operation in industrial and outdoor environments.
  • Compatible with leading AI inference processors and SDKs for rapid application development.

Applications

  • Autonomous Drone & UAV Systems for infrastructure inspection, search & rescue, and agricultural monitoring.
  • Industrial Automation & Robotics for predictive maintenance, process monitoring, and quality control.
  • Advanced Driver-Assistance Systems (ADAS) and Autonomous Vehicle perception stacks.
  • Security & Surveillance systems requiring 24/7 all-weather and low-light capability.
  • Scientific Research & Environmental Monitoring for thermal mapping and data collection.

Technical Specifications

Thermal SensorBoson 640 Radiometric Detector, 640×512, 12 µm pitch
Visible Sensor64.2 MP CMOS, 0.7 µm pixel pitch
Thermal Lens13.6 mm EFL, 32° HFOV
Visible Lens4.8 mm EFL, 67° HFOV
Thermal Sensitivity (NEdT)< 40 mK
Frame RateUp to 60 Hz
Temperature Accuracy±5°C (0°C to 100°C range)
Data InterfacesUSB 3.0, MIPI CSI-2 (2-lane & 4-lane)
IMUBosch ICM20602 (I2C/SPI selectable)
Power ConsumptionTypical < 1.8 W
Operating Temperature-20°C to +60°C
Ingress ProtectionIP54
Dimensions (L×W×H)35 × 49 × 45 mm
Weight56 g

Frequently Asked Questions

What development platforms or SDKs are compatible with the Hadron 640R+ module?

The module is supported by Teledyne Teledyne FLIR's official software development kits (SDKs), including the Teledyne FLIR Spinnaker SDK for machine vision and the Teledyne FLIR Thermal SDK for radiometric data processing. It is compatible with common embedded AI platforms like NVIDIA Jetson, Intel Movidius, and Raspberry Pi Compute Module via its USB 3.0 or MIPI interfaces. Developers can access synchronized thermal and visible streams, IMU data, and temperature measurement APIs for integration into Python, C++, or ROS-based applications.

How do I configure the MIPI interface and what cable/connector is required?

The Hadron 640R+ offers a flexible MIPI CSI-2 interface configurable for either 2-lane or 4-lane operation via hardware settings or software commands. You will need a compatible MIPI flex cable (typically a 0.5mm pitch FPC connector) matching your host processor's interface. The specific pinout and configuration details are provided in the module's hardware integration guide. Ensure your host platform's MIPI receiver supports the required data rate for the selected resolution and 60 Hz frame rate.

What is the procedure for performing a radiometric calibration or temperature accuracy check?

Radiometric calibration is factory-set and maintained internally by the module. For verifying temperature accuracy, point the camera at a known temperature blackbody source within the 0°C to 100°C range. Use the Teledyne FLIR Thermal SDK or provided software tools to read the average temperature of a region of interest on the blackbody. The measured value should be within the specified ±5°C of the known source temperature. Environmental factors like ambient temperature and humidity can influence readings and should be accounted for.

Can the thermal and visible image streams be synchronized with the onboard IMU data?

Yes, the module provides hardware-level synchronization. The thermal and visible sensors are driven by a common clock, and each captured frame can be timestamped. The onboard Bosch ICM20602 IMU data is accessible via the selectable I2C or SPI interface. By reading the IMU registers concurrently or using an interrupt-based method, you can align inertial data with specific video frames, enabling sensor fusion for motion correction, stabilization, or spatial orientation tracking in dynamic applications.

Package Includes

  • 1 x Teledyne Teledyne FLIR Hadron 640R+ Radiometric Thermal & Visible Camera Module (70640AS32-6PARXP)

Additional Information

Weight 0.056 kg
Dimensions 3.5 × 4.9 × 4.5 cm

Related Products

Out of Stock

Stereolabs ZED 2i Stereo Camera w/ Polarizer & 2.1mm Lens

103,549.00
Learn More
Out of Stock

Official Raspberry Pi USB 3.0 Hub

1,289.00
Learn More
Out of Stock

Arducam EK030 108MP Camera Evaluation Kit w/ Motorized Focus

36,399.00
Learn More
Out of Stock

Raspberry Pi 5 Camera FPC Cable - 200mm

128.00
Learn More
Out of Stock

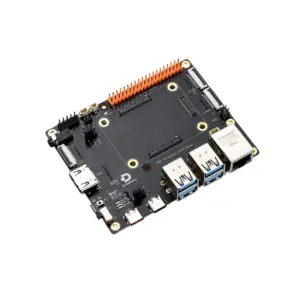

D-Robotics RDK X5 MD Carrier Board
