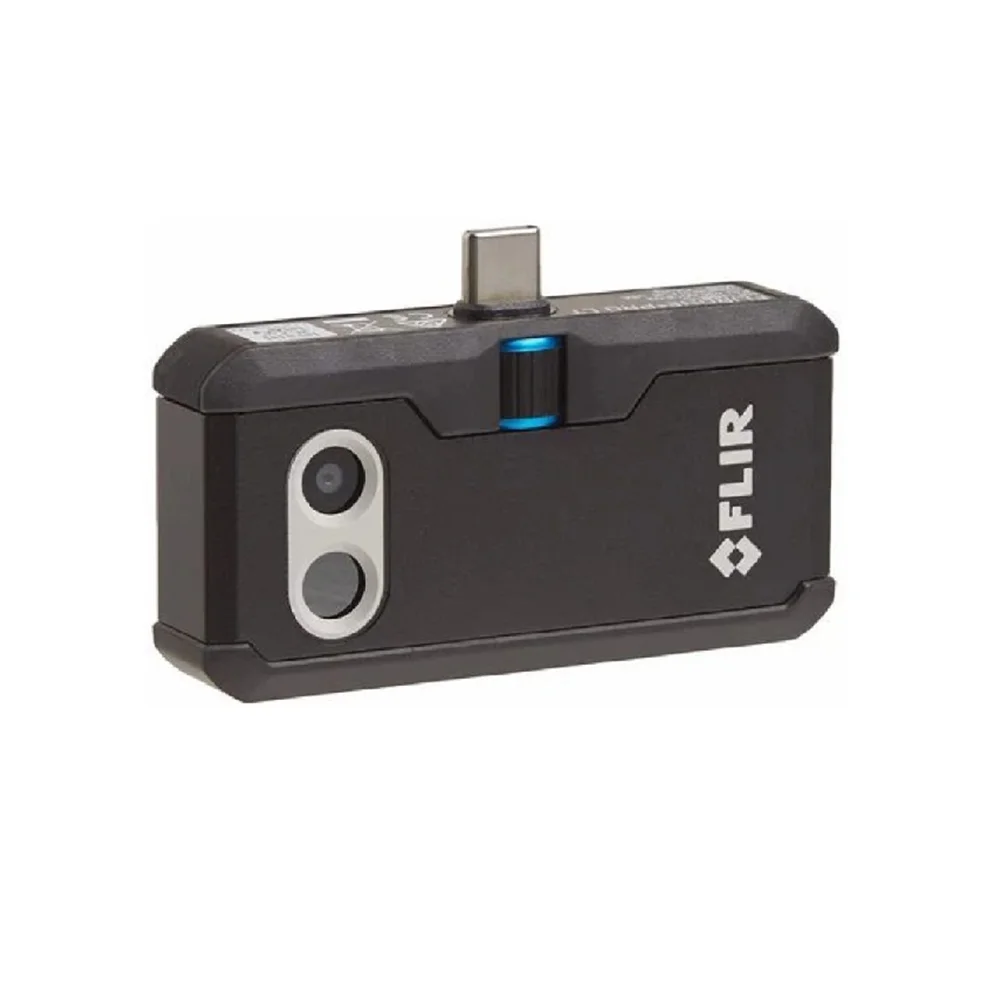

Teledyne FLIR ONE Pro Thermal Imaging Camera for Android USB-C
The Teledyne FLIR ONE Pro is a professional-grade thermal imaging camera accessory for Android devices via USB-C, featuring a 160×120 thermal sensor with Teledyne FLIR VividIRâ„¢ processing for sharp, detailed thermal inspections and accurate temperature measurements up to 400°C.
Features
- High-Resolution Thermal Imaging: 160 x 120 pixel thermal sensor with Teledyne FLIR VividIRâ„¢ processing delivers 4x the native resolution of the Pro LT model for superior image clarity.
- Extended Temperature Range: Accurately measure temperatures from -20°C to 400°C (-4°F to 752°F), with a thermal sensitivity of 70 mK for detecting subtle differences.

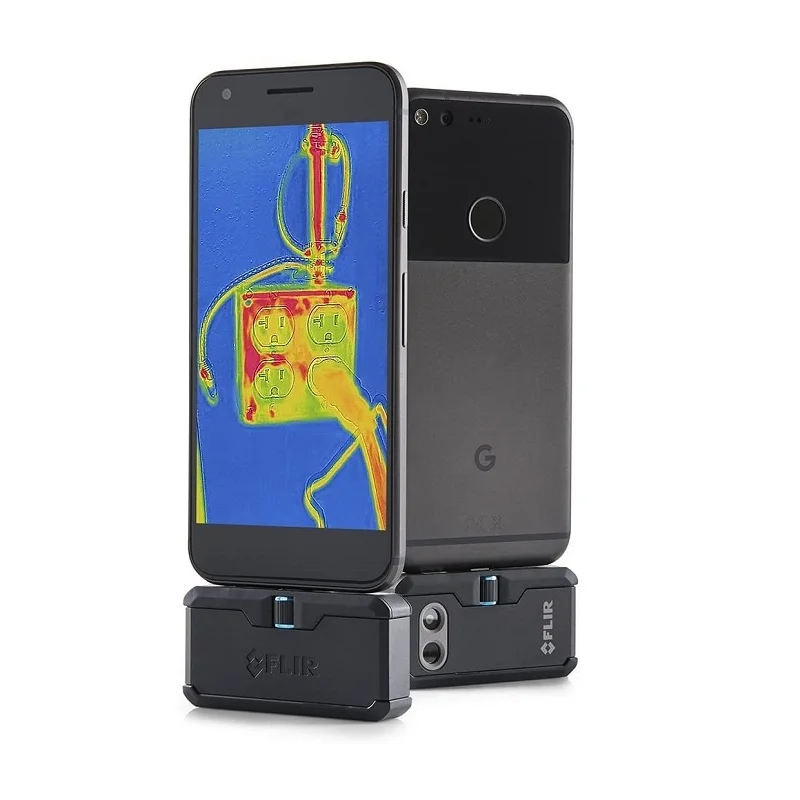

- Integrated Visual Camera: Combines thermal data with a 1440 x 1080 visual camera for Teledyne FLIR MSX® (Multi-Spectral Dynamic Imaging) to overlay visual details onto thermal images.

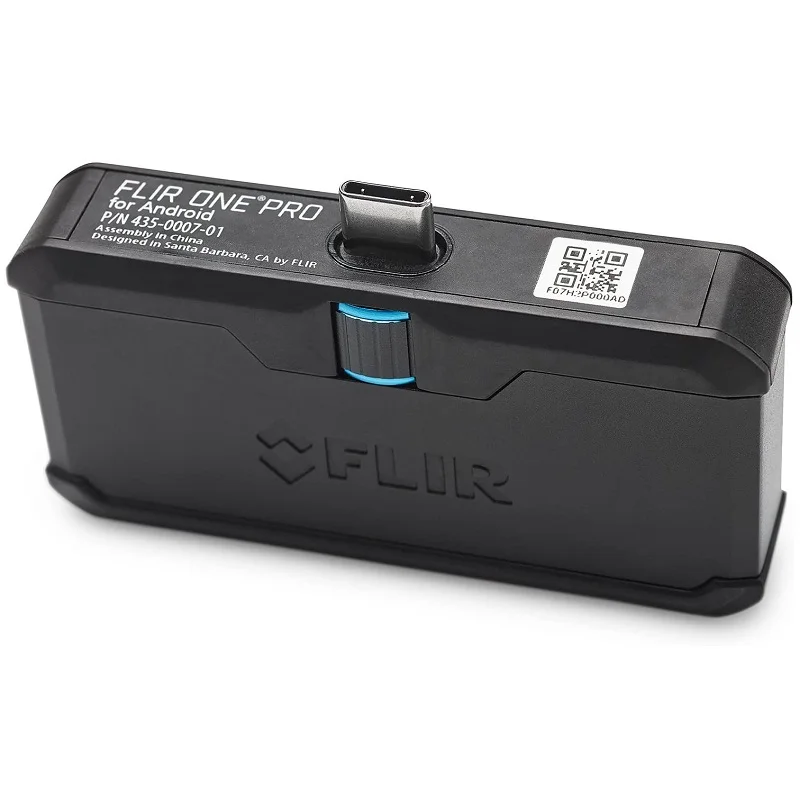

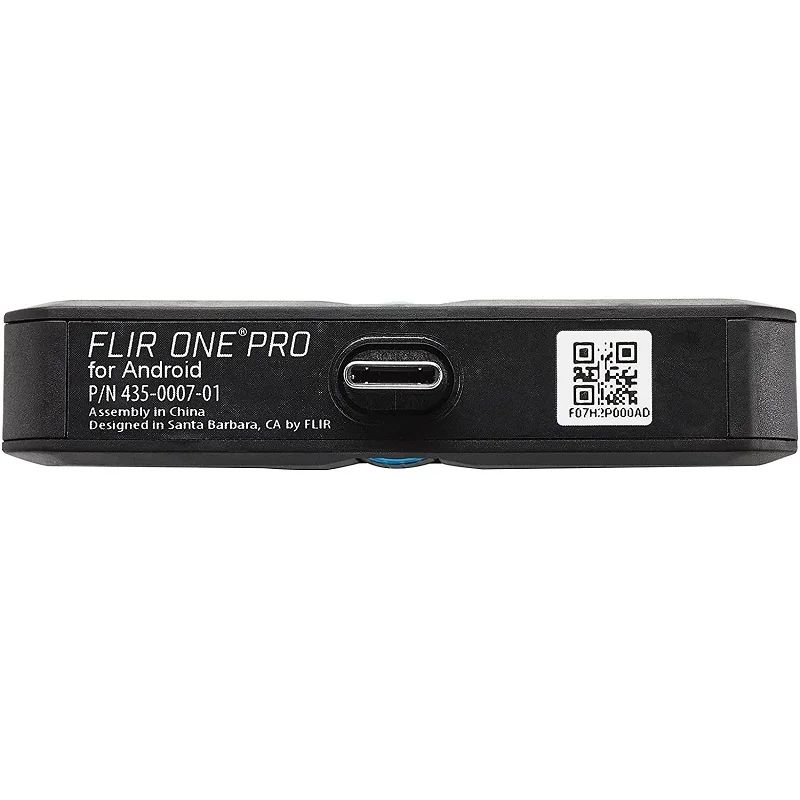

- Android USB-C Connectivity: Features an adjustable OneFit connector for a secure fit on modern Android smartphones and tablets, powered via USB-C.
- Professional Mobile App: Includes the free Teledyne FLIR ONE app with multiple spot meters, automated reporting, time-lapse capture, and real-time guidance for field diagnostics.
Out of stock
The Teledyne FLIR ONE Pro Thermal Imaging Camera transforms your Android smartphone into a powerful diagnostic tool for professional inspections. Its core is a 12µm pixel thermal sensor operating in the 8-14µm spectral range, paired with advanced Teledyne FLIR VividIR™ image processing to enhance clarity and detail beyond standard thermal cameras. The device captures both thermal and visual streams simultaneously, enabling the proprietary MSX® technology to blend edges and textures from the visual camera onto the thermal image for improved interpretation.
Engineered for field use, the camera offers a fixed focus from 15 cm to infinity and an adjustable MSX alignment distance from 0.3 meters. It supports radiometric JPEG still images and MPEG-4 video recording at 8.7 Hz, allowing for thorough documentation of thermal anomalies. The compact, lightweight design houses a rechargeable battery providing approximately one hour of continuous operation, with a full recharge via USB-C in about 40 minutes, making it a portable solution for electrical, mechanical, HVAC, and building diagnostics.
Additional Information
| Weight | 0.0365 kg |
|---|---|
| Dimensions | 6.8 × 3.4 cm |
