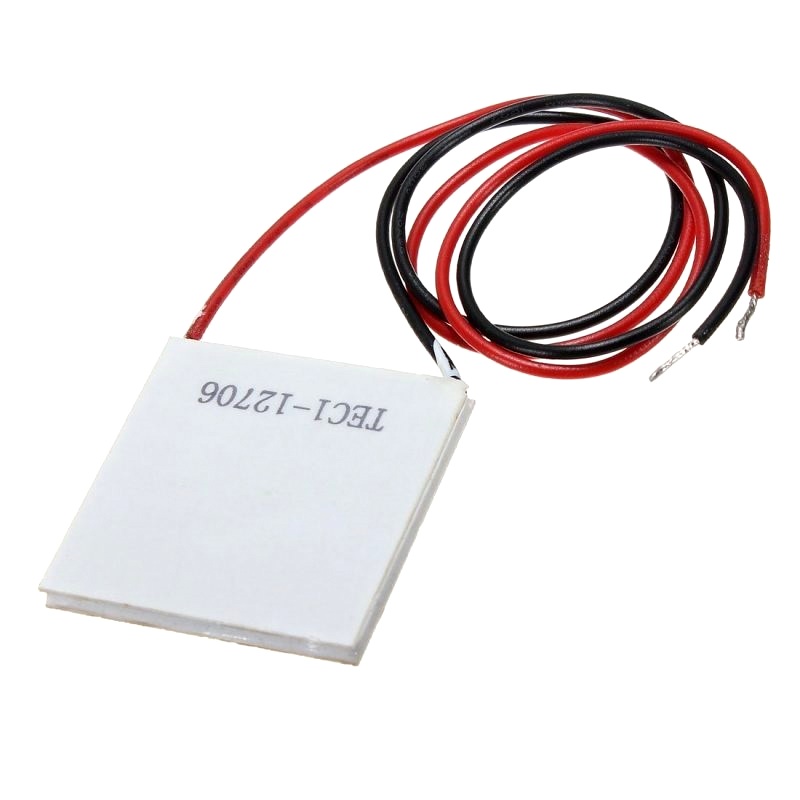

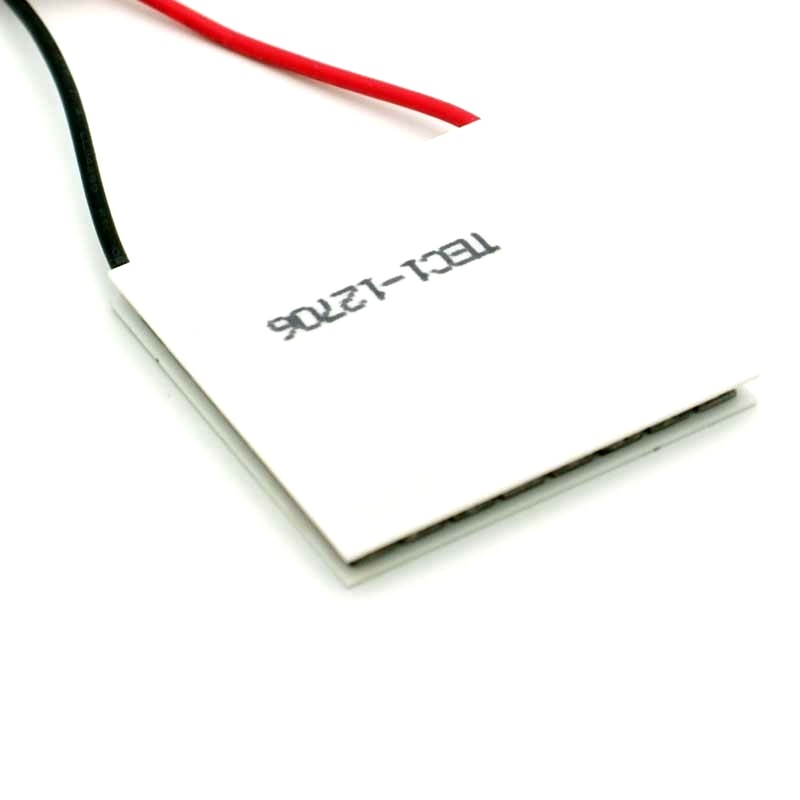

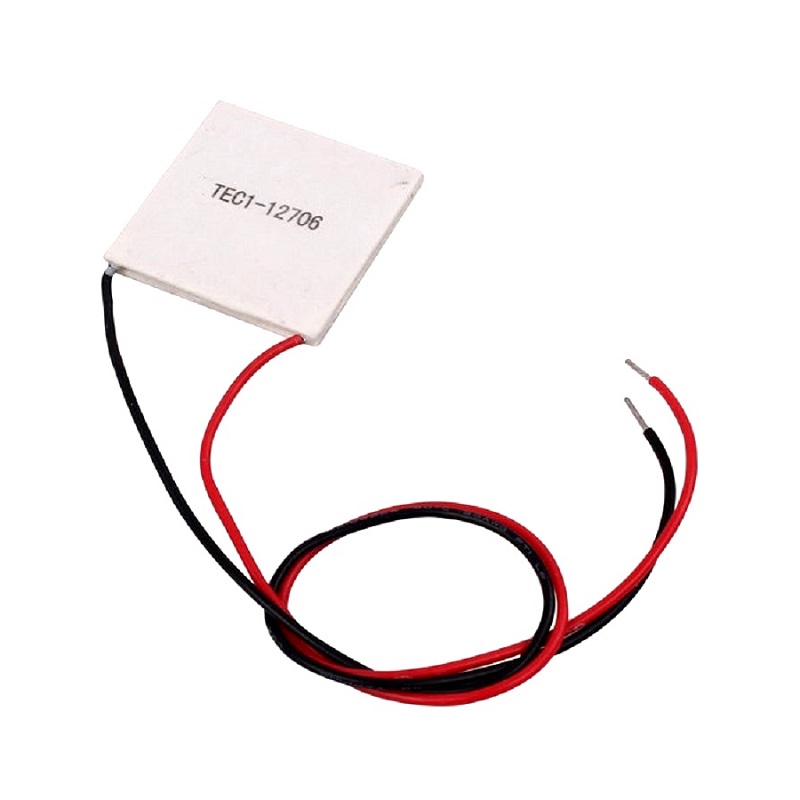

TEC1 12706 30×30mm Thermoelectric Cooler 6A Peltier Module
The TEC1 12706 is a 30×30mm solid-state thermoelectric cooler (Peltier) module designed for heat pumping applications requiring up to 63W of heat transfer. Operating at a nominal 12V/6A, it is compatible with standard DC power supplies and is ideal for integration into thermal management systems for electronics cooling, portable refrigeration, or temperature-controlled enclosures.
Features
- 30×30mm form factor solid-state heat pump module
- Nominal 12V DC, 6A operation with a maximum heat pumping capacity (Qmax) of 63W
- Creates a maximum temperature differential (ΔT) of up to 68°C
- Reversible operation for heating or cooling by swapping polarity
- Vibration-free and noise-free operation for sensitive applications
Out of stock
The TEC1 12706 thermoelectric cooler operates on the Peltier effect, where applied DC current pumps heat from one ceramic face to the other, creating distinct hot and cold sides. This solid-state module provides precise, electrically controlled temperature management without moving parts, making it suitable for applications where reliability and quiet operation are critical.
For optimal performance and to prevent damage, the module must be used with an appropriate heatsink on the hot side to dissipate the transferred and internally generated heat. The maximum operating temperature of the ceramic substrate is 138°C, and the module’s performance is highly dependent on maintaining a proper thermal interface and heat sink capacity.
Additional Information
| Weight | 0.011 kg |
|---|---|
| Dimensions | 3 × 3 cm |
