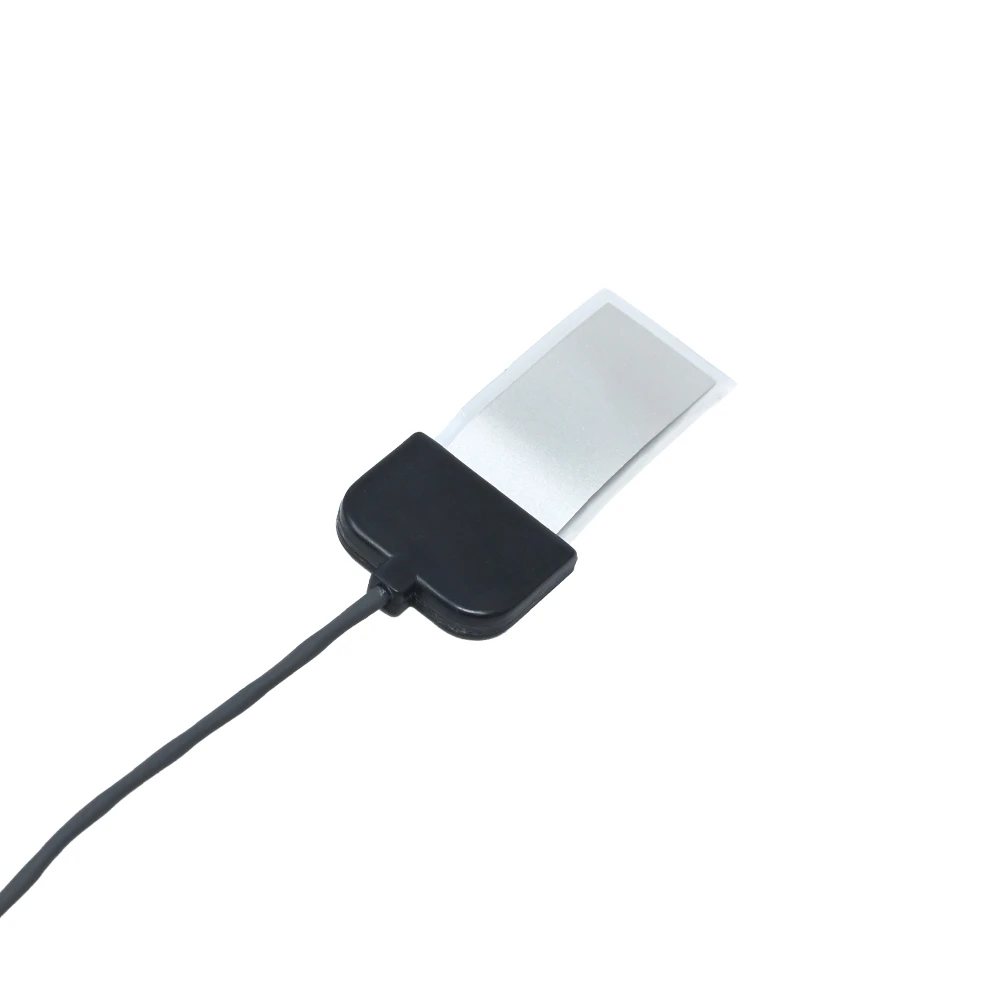

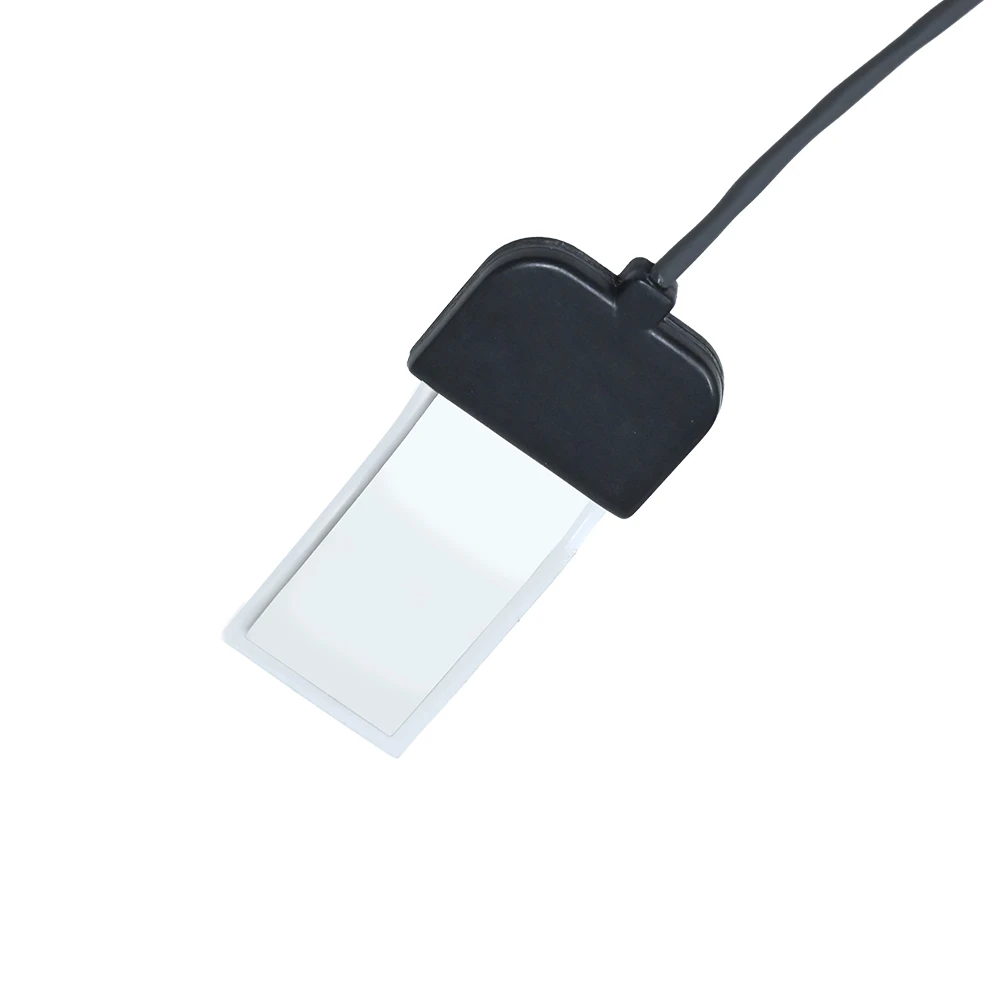

TE Connectivity SDT1-028K Shielded Piezo Film Sensor, 15-20 mV/µ Strain, 1-10 MΩ, Vibration & Strain Detection
The TE Connectivity SDT1-028K is a shielded piezoelectric polymer film sensor designed for high-sensitivity dynamic measurement of vibration, impact, and strain. It provides a high output voltage (15-20 mV/µ strain) with a wide frequency response and is directly compatible with oscilloscopes and data acquisition systems for condition monitoring and structural testing.
Features
- High sensitivity shielded piezo film sensor with 15-20 mV/µ strain output.
- Wide frequency response from low Hz to over 10 MHz for dynamic measurements.
- Ultra-thin, flexible, and lightweight design for non-intrusive surface mounting.

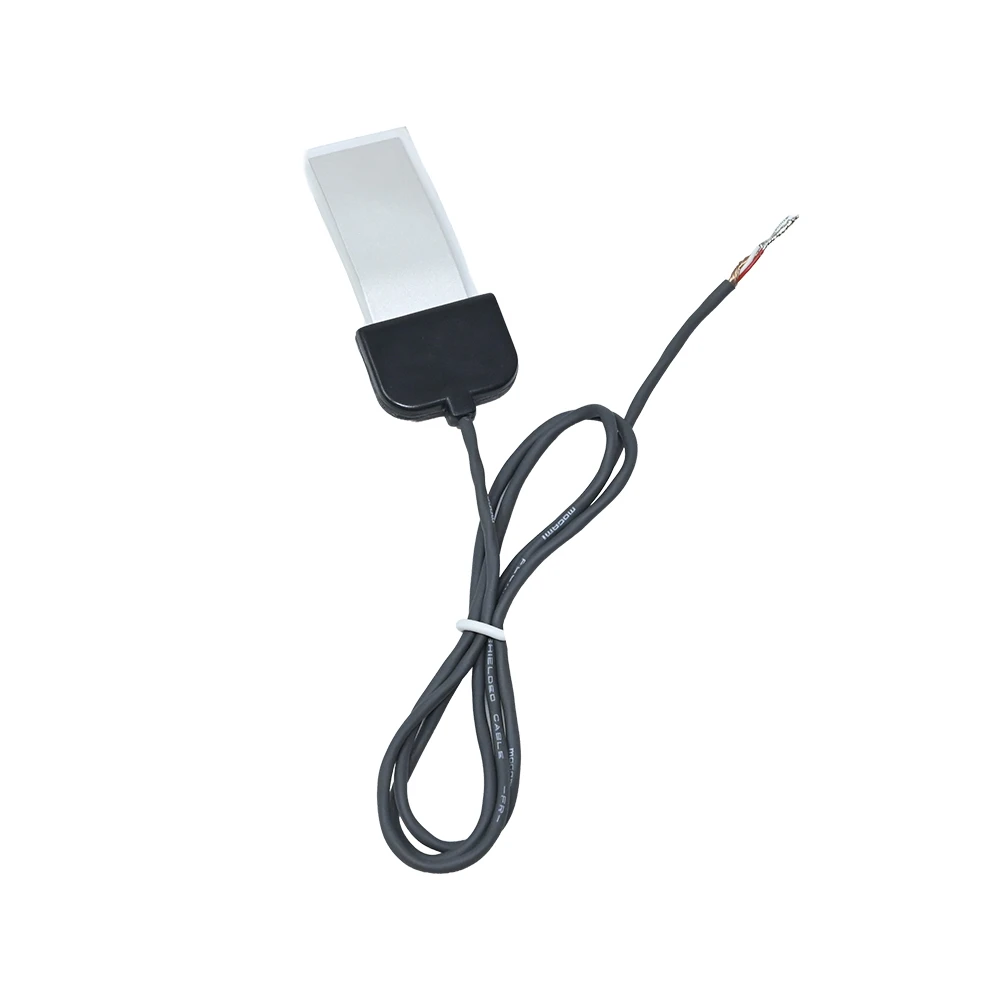

- Integrated 18-inch (457 mm) coaxial cable for direct signal connection.
- Self-shielded construction minimizes electromagnetic interference (EMI).
Out of stock
The SDT1-028K utilizes advanced piezoelectric polymer film technology to convert mechanical strain and vibration into a proportional high-voltage electrical signal. Its shielded design ensures stable operation in electrically noisy environments, making it suitable for precision dynamic sensing applications.
This sensor is engineered for direct surface mounting using adhesives, allowing for easy integration onto structures, machinery, or test specimens without adding significant mass. Its broad frequency response captures both low-frequency vibrations and high-frequency acoustic emissions, providing a versatile tool for condition monitoring, non-destructive testing, and impact detection.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 5 × 5 × 2 cm |
