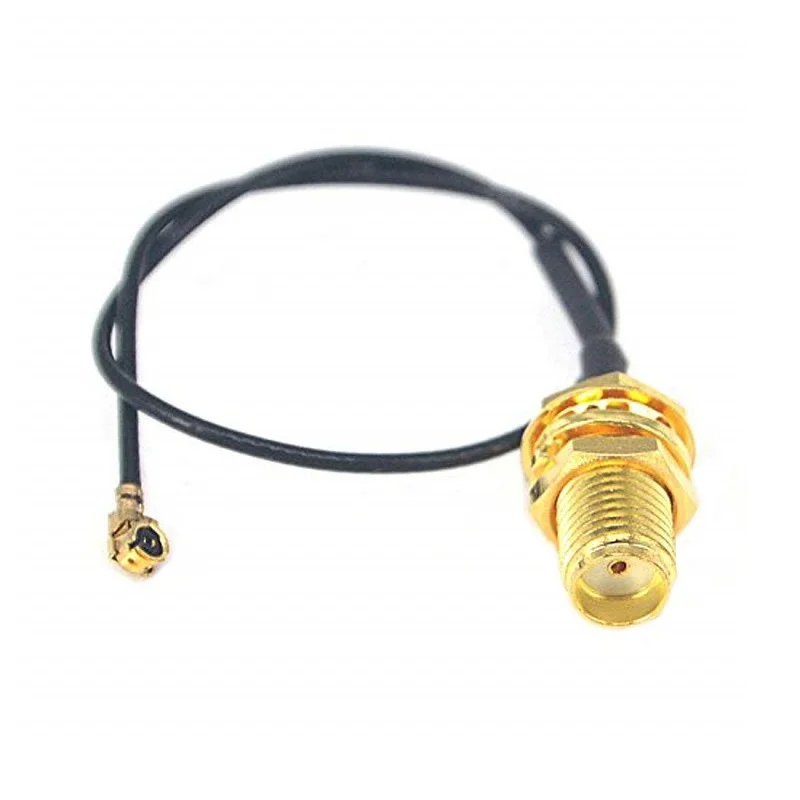

SMA Female to IPEX4 Connector Cable 50cm RG0.81
This 50cm SMA Female to IPEX4 RF cable (RG0.81) provides a high-frequency link between SMA antenna ports and IPEX4 connectors found on Wi-Fi, 4G/5G, LoRa, and GPS modules, ensuring minimal signal loss for embedded wireless designs.
Features
- Universal RF Interface: Features SMA Female (socket) on one end and IPEX4 (MHF4) plug on the other, bridging external antennas to compact module connectors.
- Low-Loss RG0.81 Coax: Utilizes miniature RG0.81 coaxial cable for flexible routing with good RF performance up to 6 GHz, suitable for 5G, Wi-Fi, and GNSS.
- Optimized Length: 50cm cable provides placement flexibility for optimal antenna positioning within enclosures or on device exteriors.
- Secure Mechanical Connection: IPEX4 connector features a 11mm housing for reliable mating and strain relief on common wireless SoCs and modules.
Out of stock
This SMA Female to IPEX4 connector cable is a critical RF accessory for connecting external high-gain antennas to the compact IPEX4 (MHF4) RF pads found on most modern wireless communication modules. The 50cm RG0.81 coaxial cable offers a balance between flexibility and signal integrity, with a characteristic impedance of 50 ohms to match standard RF systems.
Designed for integration into tight spaces, the cable enables developers to relocate antennas for better signal reception in IoT gateways, routers, trackers, and embedded systems using ESP32, nRF52, Quectel, or SIMCom modules. The SMA Female connector mates with standard SMA male antenna plugs, while the IPEX4 end provides a secure, click-lock connection to module footprints, ensuring a stable RF path for 2G/3G/4G/5G, Wi-Fi, Bluetooth, LoRa, and GPS/GNSS applications.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 8 × 10.5 × 0.5 cm |
