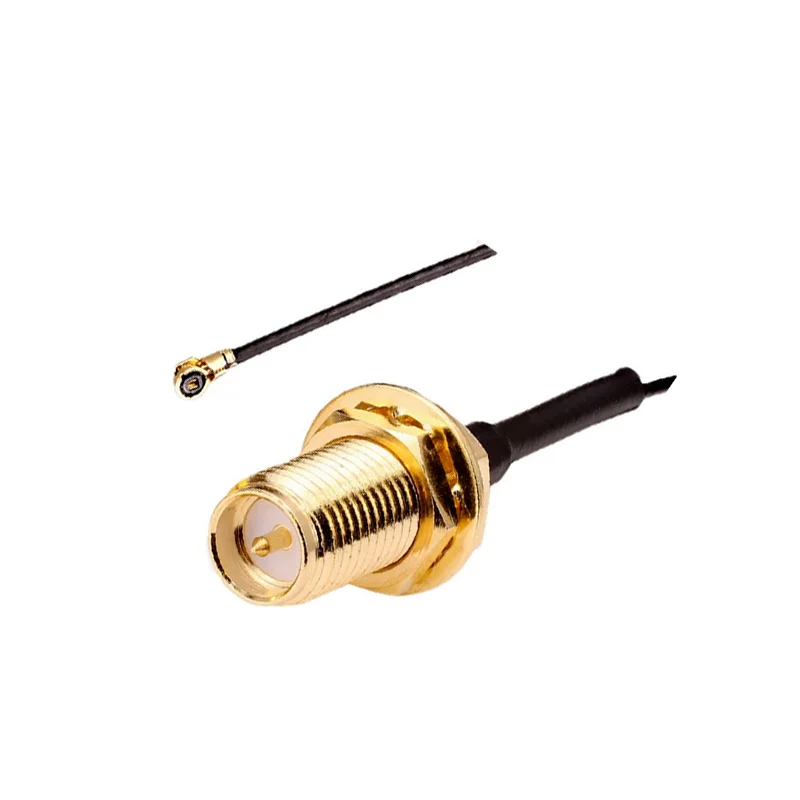

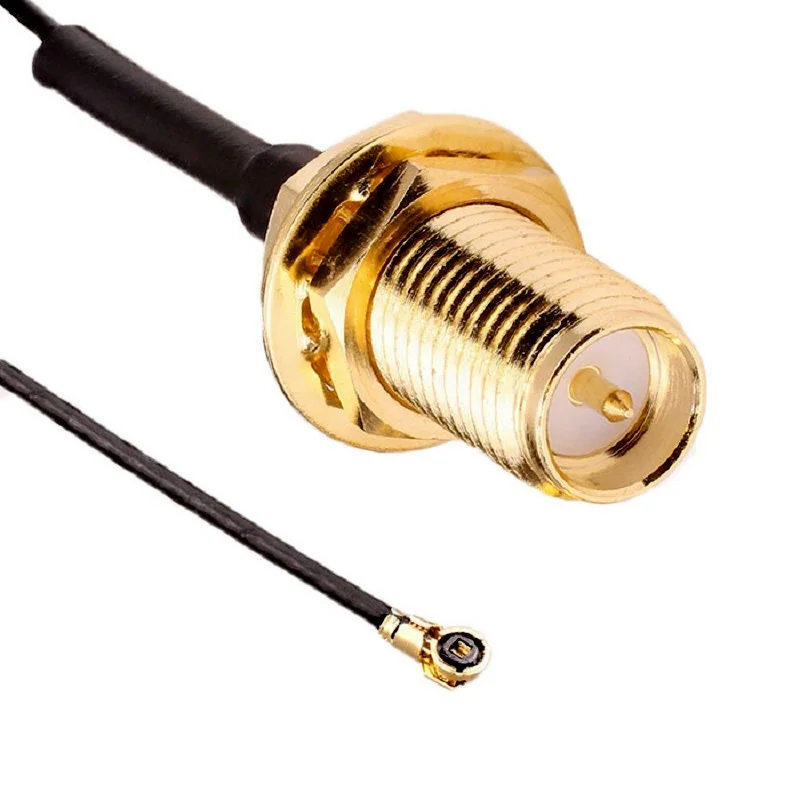

15cm RP-SMA Female to IPEX4 Cable RG0.81
This 15cm RG0.81 coaxial pigtail cable provides a reliable 50-ohm impedance link between an RP-SMA female port and an IPEX4 (U.FL) connector, essential for connecting compact wireless modules to external antennas with minimal signal loss.
Features
- RP-SMA Female to IPEX4 (U.FL) interface for connecting external antennas to compact module boards.
- 15cm RG0.81 coaxial cable with 50-ohm impedance ensures stable RF signal transmission.
- 11mm connector length provides a secure, low-profile connection for space-constrained designs.
- Compatible with 5G, 4G, Wi-Fi, Bluetooth, LoRa, and GNSS modules requiring an IPEX4 antenna port.
- Essential accessory for prototyping and final installations to improve wireless range and reliability.
Out of stock
This RP-SMA female to IPEX4 connector cable is a critical RF interconnect for IoT and wireless communication projects. The RG0.81 coaxial construction maintains a consistent 50-ohm impedance over its 15cm length, minimizing VSWR and signal reflection to preserve link budget and data integrity. The reverse-polarity SMA connector mates with standard RP-SMA male antenna interfaces, while the miniature IPEX4 (often branded as U.FL) plug connects directly to the ultra-compact antenna pads found on embedded Wi-Fi, Bluetooth, cellular, and LoRa modules.
Designed for low-loss performance across sub-GHz to 5GHz frequency bands, this pigtail enables developers to route antenna signals away from noisy PCB environments, directly improving reception sensitivity and transmit efficiency. Its flexible cable and precise 11mm connector length allow for clean integration into enclosures, drones, trackers, and gateway devices where reliable wireless connectivity is paramount.
Additional Information
| Weight | 0.006 kg |
|---|
