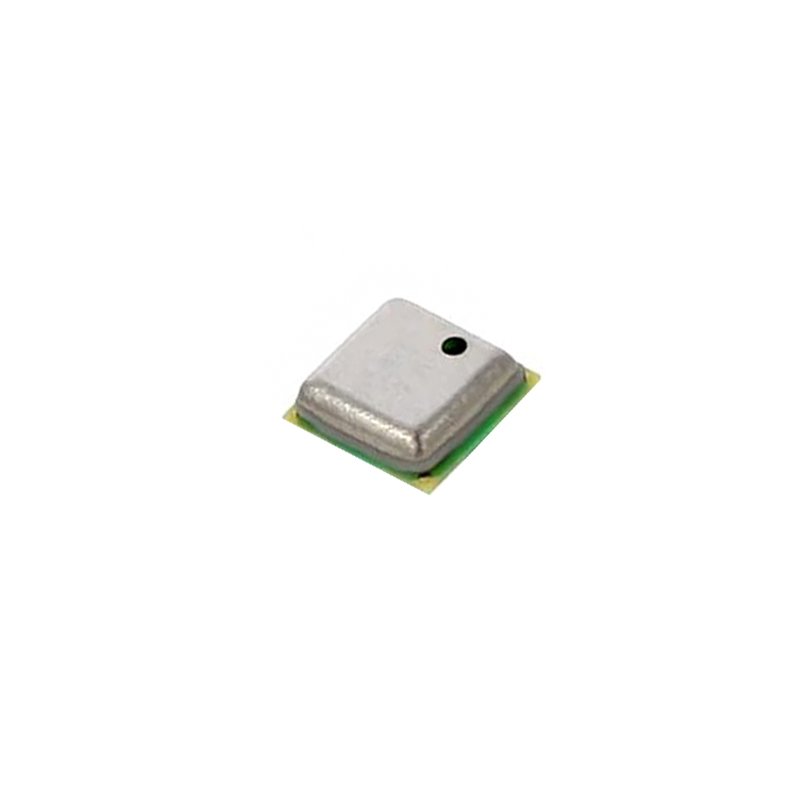

TE Connectivity MS563702BA03-50 Barometric Pressure Sensor - 300-1200 mbar, I2C/SPI, QFN
The TE Connectivity MS563702BA03-50 is a high-precision MEMS barometric pressure sensor featuring a 24-bit ΔΣ ADC and factory-calibrated coefficients for accurate pressure and temperature measurement. It supports both I2C and SPI digital interfaces, making it directly compatible with microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32 for altimetry and environmental monitoring applications.
Features
- High-resolution 24-bit digital pressure and temperature output.
- Wide absolute pressure range from 300 mbar to 1200 mbar.
- Dual digital interface support for I2C and SPI communication.
- Ultra-compact QFN package measuring 5.0 x 3.0 x 1.0 mm.
- Factory-calibrated for high accuracy (±1.5 mbar) and low power consumption.
Out of stock
The MS563702BA03-50 is a sophisticated MEMS-based barometric pressure sensor from TE Connectivity (formerly Measurement Specialties). It integrates a piezoresistive sensing element with a low-power 24-bit delta-sigma analog-to-digital converter (ADC) to deliver precise pressure and temperature data. The sensor’s factory-programmed calibration coefficients are stored in its internal PROM, enabling accurate readings without requiring complex user calibration routines.
Designed for stability and low hysteresis, this sensor is ideal for applications demanding precise altitude tracking or atmospheric pressure monitoring. Its command-based interface simplifies integration, eliminating the need for direct register programming. The compact QFN footprint and low voltage operation (1.8V to 3.6V) make it exceptionally suitable for space-constrained, battery-powered portable devices and embedded systems.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 0.5 × 0.3 × 0.1 cm |
