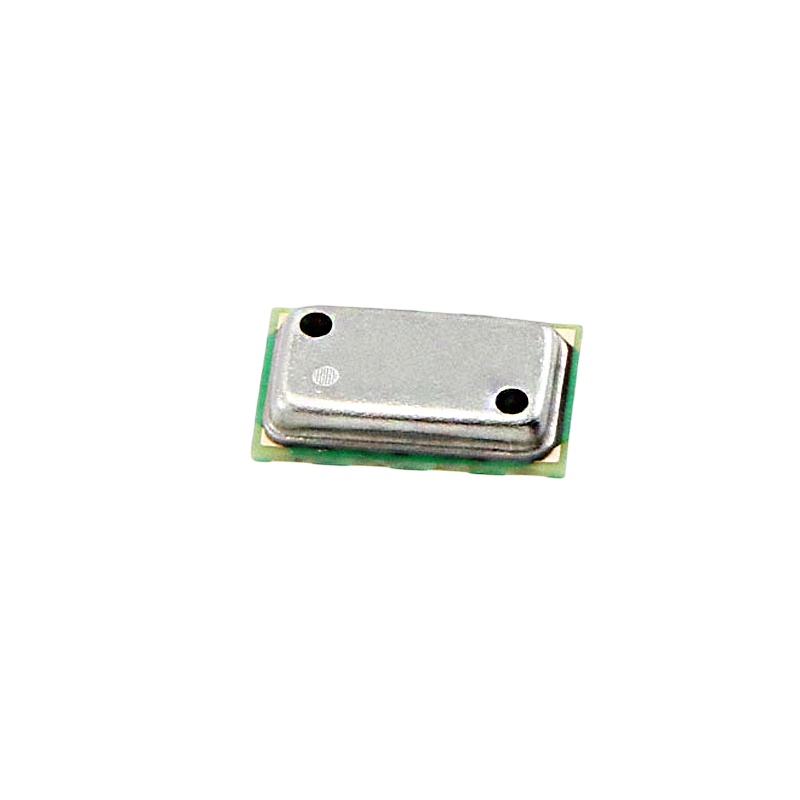

TE Connectivity MS560702BA03-50 Barometric Pressure Sensor - 10-2000 mbar, I2C/SPI, QFN
The TE Connectivity MS560702BA03-50 is a high-precision MEMS barometric pressure sensor with integrated 24-bit ADC, offering I2C and SPI digital interfaces for seamless integration with microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32. It delivers absolute pressure readings from 10 to 2000 mbar with an accuracy of ±1.5 mbar, ideal for altimetry and environmental monitoring.
Features
- High-resolution 24-bit digital output with factory calibration for pressure and temperature.
- Ultra-low power operation: 1 µA active current and <0.15 µA standby.
- Fast 1 ms conversion time for real-time altitude and pressure tracking.
- Dual I2C and SPI digital interfaces support communication up to 20 MHz.
- Compact 5.0 x 3.0 x 1.0 mm QFN package for space-constrained designs.
Out of stock
The MS560702BA03-50 is a sophisticated MEMS-based digital barometric pressure sensor engineered by MEAS Switzerland (a TE Connectivity brand). It combines a highly linear piezoresistive sensing element with a low-noise 24-bit delta-sigma ADC, providing calibrated digital outputs for both pressure and temperature. This integration eliminates the need for external signal conditioning, simplifying system design.
Designed for precision and efficiency, the sensor features multiple programmable operating modes that allow developers to optimize the trade-off between conversion speed and power consumption. Its excellent long-term stability and low hysteresis make it suitable for demanding applications requiring consistent measurement accuracy over time and across environmental conditions.
The sensor communicates via straightforward I2C or SPI protocols, requiring no internal register programming, which facilitates rapid prototyping and integration into a wide range of electronic systems, from portable consumer devices to industrial monitoring stations.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 0.5 × 0.3 × 0.1 cm |
