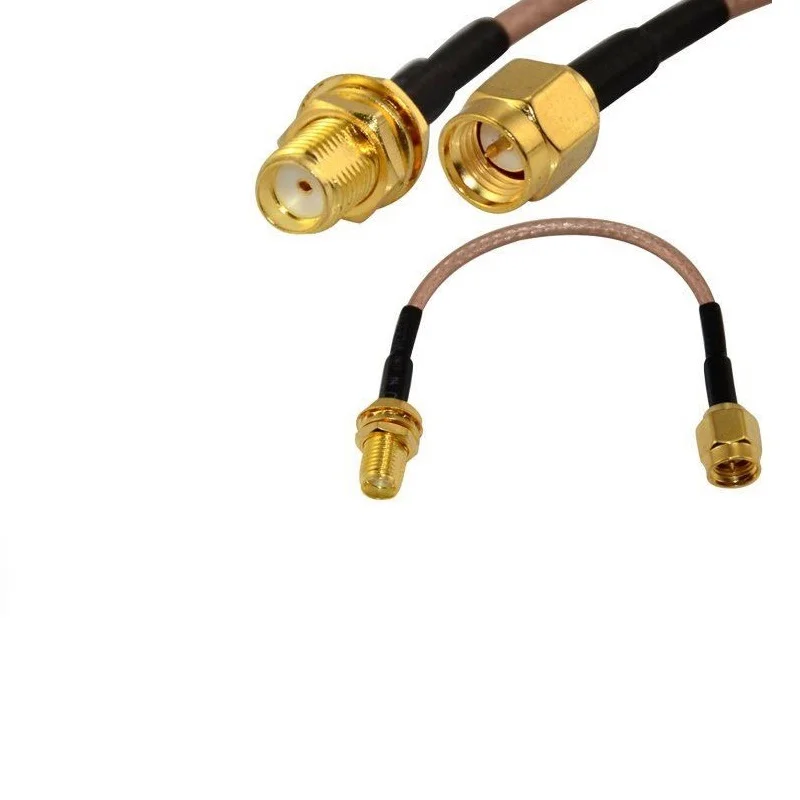

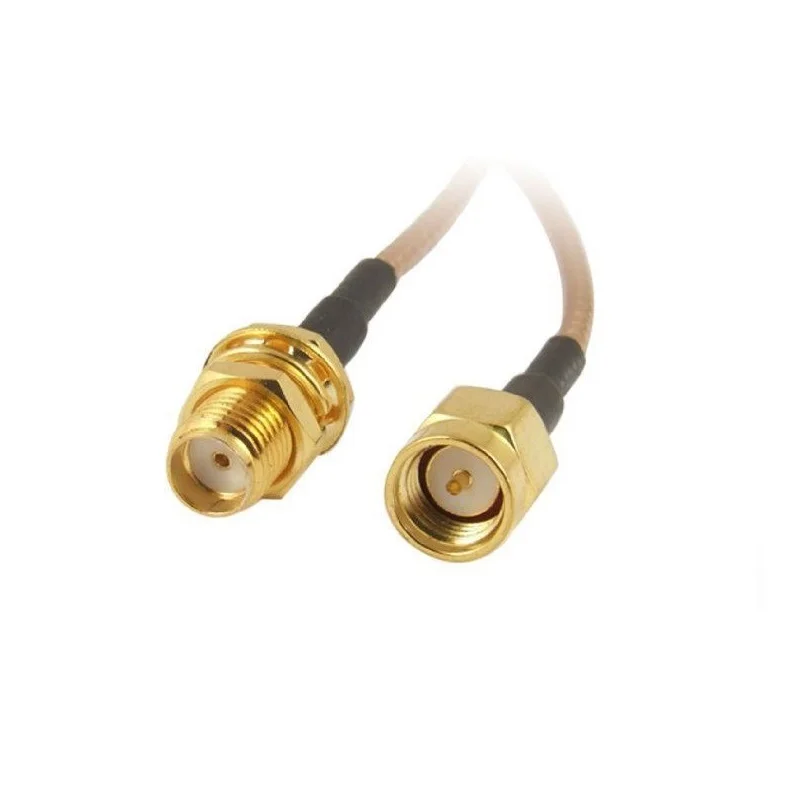

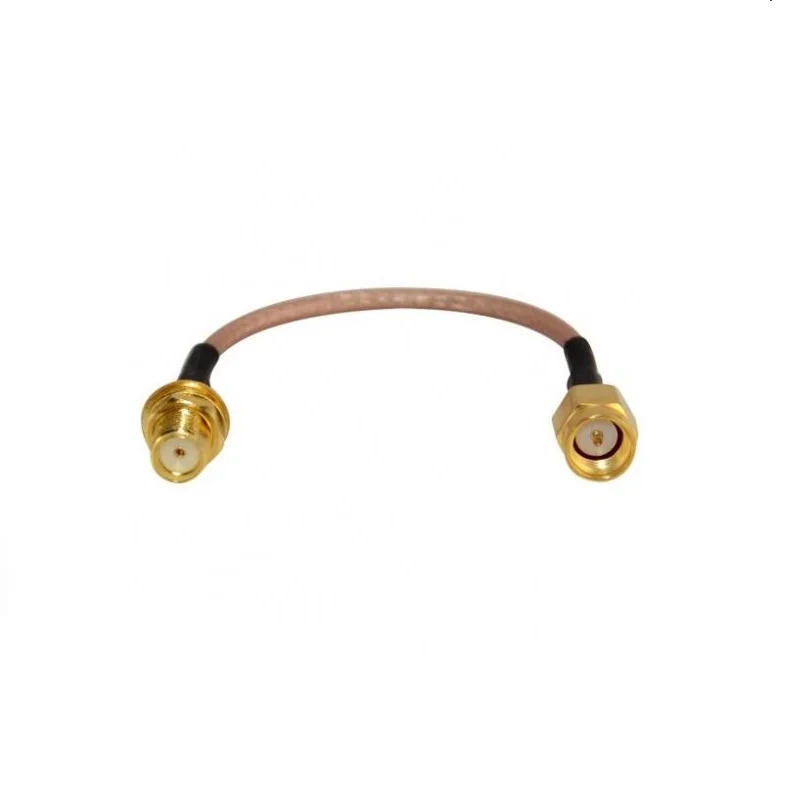

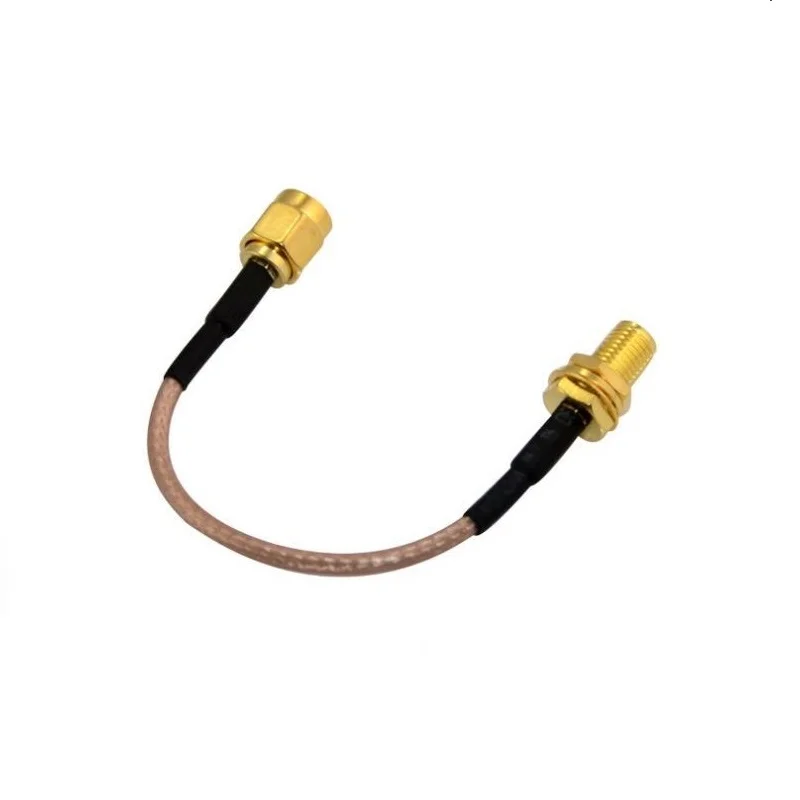

RG316 Coaxial Cable SMA Male to Female Pigtail RF Antenna - 10cm
This 10cm RG316 coaxial pigtail cable provides a high-frequency, low-loss RF connection between SMA male and female ports, ideal for extending or adapting Wi-Fi, cellular, and GPS antennas on routers, boosters, and IoT devices.
Features
- RG316 military-grade coaxial cable with low insertion loss (1.8dB) for minimal signal degradation.
- SMA male to female connectors enable flexible antenna routing and port adaptation.
- Broad frequency range (DC-6GHz) supports Wi-Fi, 4G/5G, GPS, and LoRa applications.
- 50-ohm impedance ensures proper RF matching for standard wireless equipment.
- Rugged Teflon construction withstands high temperatures and corrosive environments.
Out of stock
This RG316 coaxial pigtail cable serves as a critical RF interconnect for wireless systems, providing a reliable, low-loss transmission line between SMA-equipped devices and antennas. Its construction uses a silver-plated, Teflon-insulated RG316 core, a military-grade specification known for stable performance across a wide temperature range and resistance to environmental stress.
The cable’s 50-ohm impedance is standard for most wireless communication protocols, ensuring minimal signal reflection and maximum power transfer. With a VSWR of ≤1.5 and a power handling capability of 2W, it is suitable for both low-power IoT sensor nodes and higher-power access points, making it a versatile component for system integrators and network installers.
Additional Information
| Weight | 0.04 kg |
|---|---|
| Dimensions | 4 × 5 × 1 cm |
