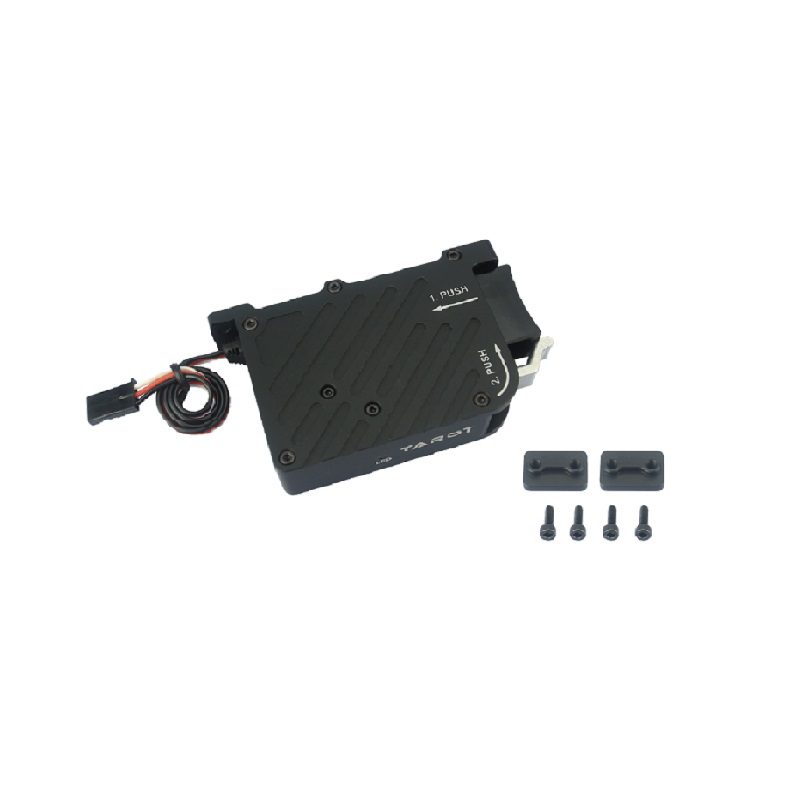

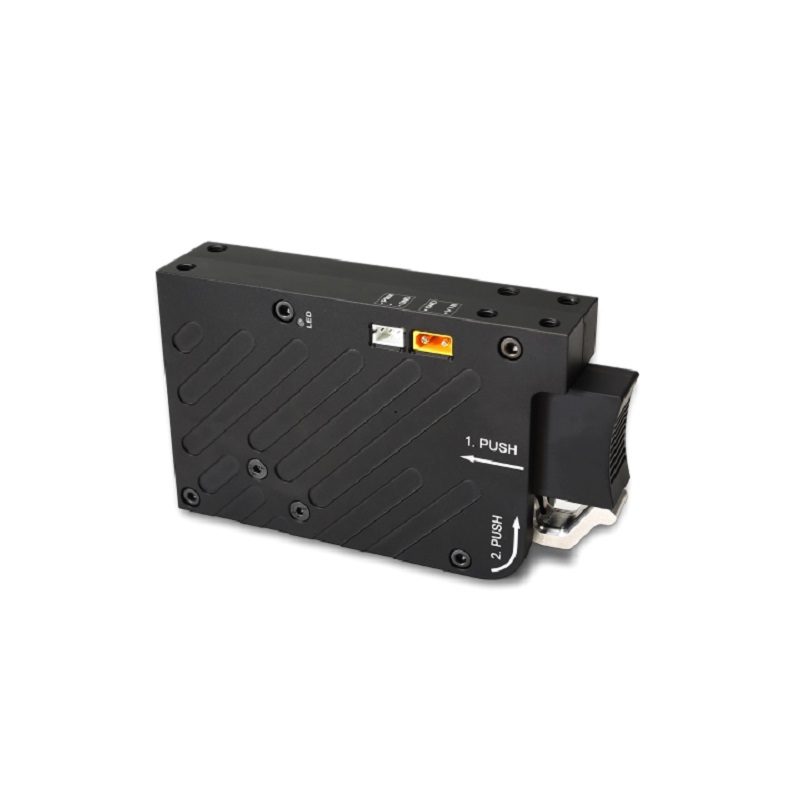

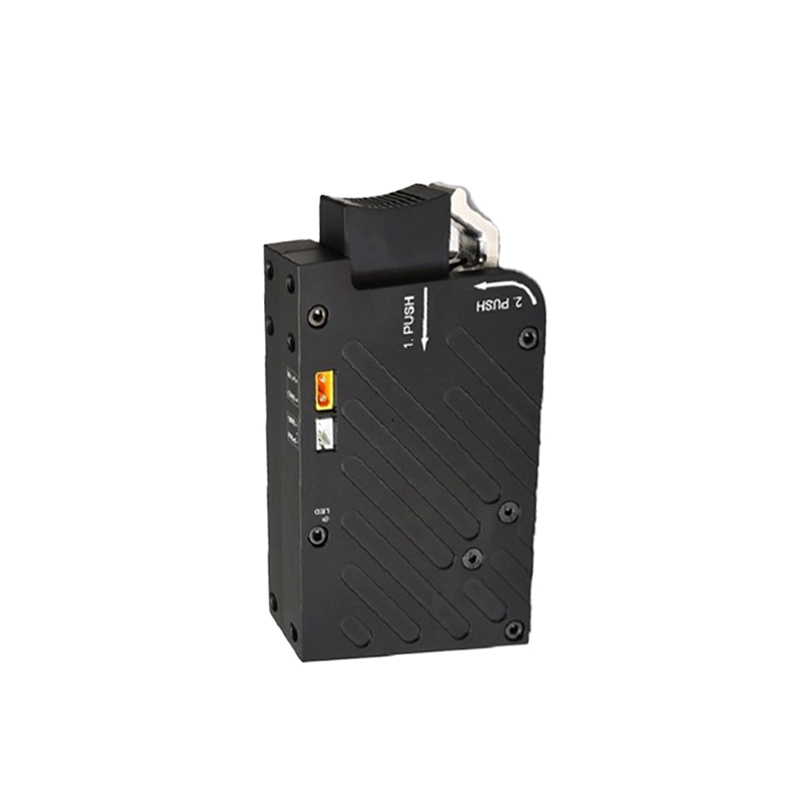

Tarot TL2964 Electronic Thrower / Quick Press - Large Load 120KG

The Tarot TL2964 Electronic Thrower operates on a wide 12-60V DC input range. This makes it directly compatible with common drone power systems from 3S (approx. 12.6V) up to 12S (approx. 50.4V) LiPo batteries without requiring a separate voltage regulator, simplifying integration into both medium and high-voltage UAV platforms.

The thrower is controlled via an independent electronic signal, typically a PWM or S.Bus channel from your flight controller. You would connect its control wires to a spare output on your FC, then assign an auxiliary switch in your ground control software (e.g., Betaflight, ArduPilot) to trigger the release sequence. Its modular design allows multiple units to be installed and controlled separately on a single aircraft.

The 120KG (264 lbs) load capacity is designed for heavy-duty industrial and commercial applications. Suitable payloads include emergency supply kits, large sensor arrays, agricultural containers, communication relays, or specialized cinematography equipment. It is critical to ensure your drone's thrust-to-weight ratio and frame strength are rated to carry the combined weight of the thrower and its maximum payload.

The TL2964 is built for longevity and strength using 6063 aircraft-grade aluminum for the main structural body and 304 stainless steel for critical load-bearing and moving parts. This combination provides a high strength-to-weight ratio, excellent corrosion resistance, and reliable performance in demanding environmental conditions, from maritime to agricultural operations.
