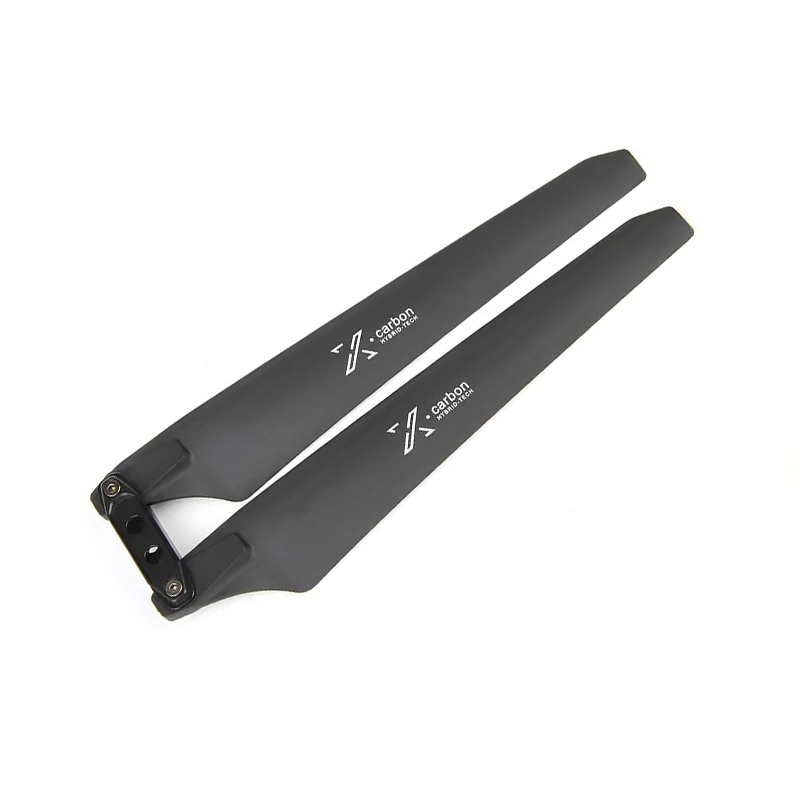

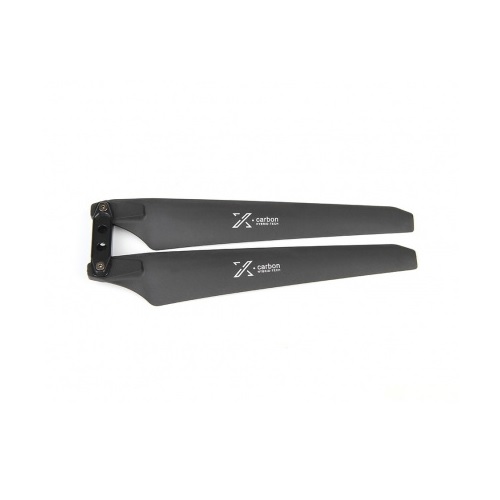

T-Motor MF1806 Polymer Folding Propeller Pair (1CW+1CCW)
The T-Motor MF1806 is a high-performance 18.4-inch polymer folding propeller pair designed for long-endurance, heavy-lift UAVs and mapping drones. Featuring a 6.6-inch pitch and a patented winglet design, it provides improved aerodynamic efficiency and lift-drag ratio for extended flight times.
Features
- 18.4-inch diameter with a 6.6-inch pitch for high thrust and efficiency.
- Patented winglet design weakens vortex and reduces radial centrifugal tension.
- Polymer composite construction with carbon fiber reinforcement for rigidity and low weight.
- Heat-insulating UV coating protects against sun exposure and high-temperature operation.
- Includes limit rubber ring for shock absorption and abrasion protection on the hub.
Out of stock
The T-Motor MF1806 folding propeller utilizes advanced aerodynamic engineering to maximize flight efficiency for large multirotor platforms. Its patented winglet design directly addresses tip vortex losses, reducing energy waste and improving the overall lift-to-drag ratio. The precise molding achieves an ultra-thin 0.25mm trailing edge, minimizing airflow interference.
Constructed from a specialized polymer composite reinforced with carbon fiber, the propeller balances exceptional durability with minimal weight. A dedicated heat-insulating coating is applied to the surface to shield the material from ultraviolet degradation and sustain performance during prolonged, high-temperature operations. The integrated limit rubber ring on the folding mechanism provides critical shock absorption, protecting the propeller root from stress and wear.
Additional Information
| Weight | 0.152 kg |
|---|---|
| Dimensions | 8.5 × 23 × 3.8 cm |
