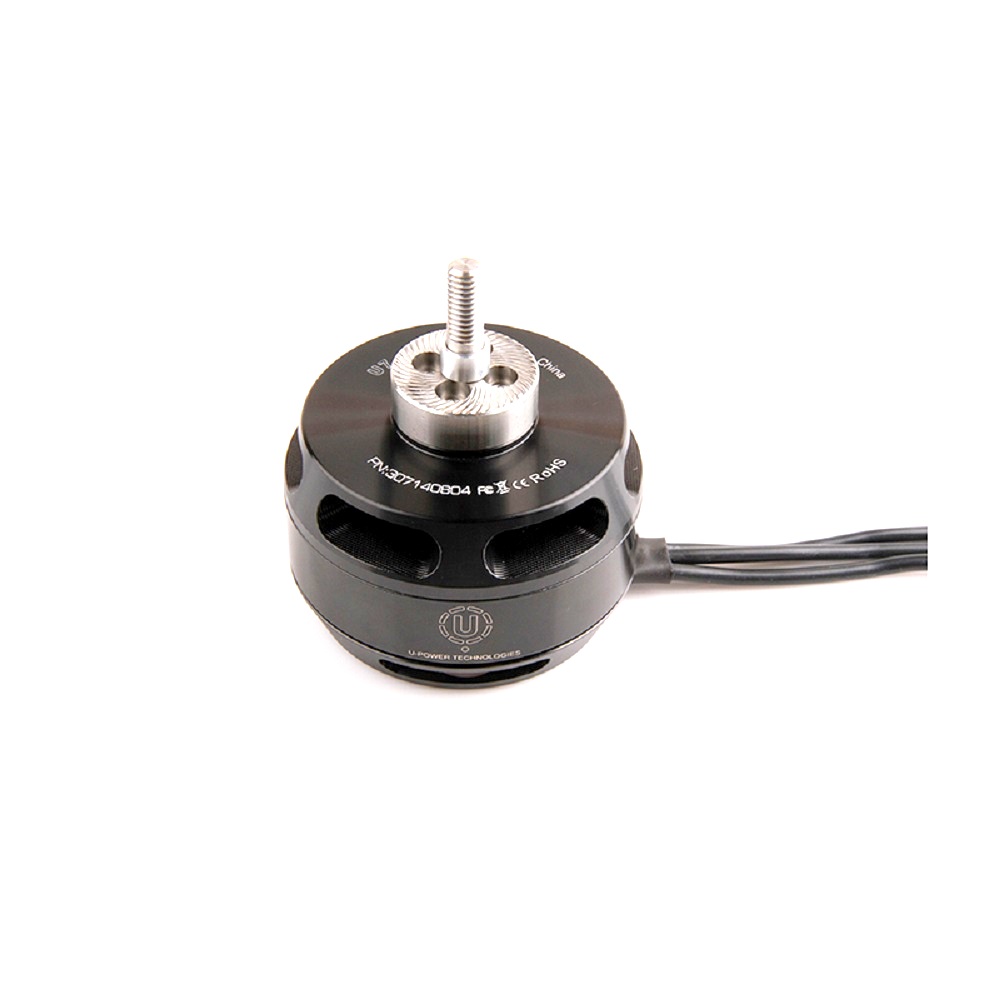

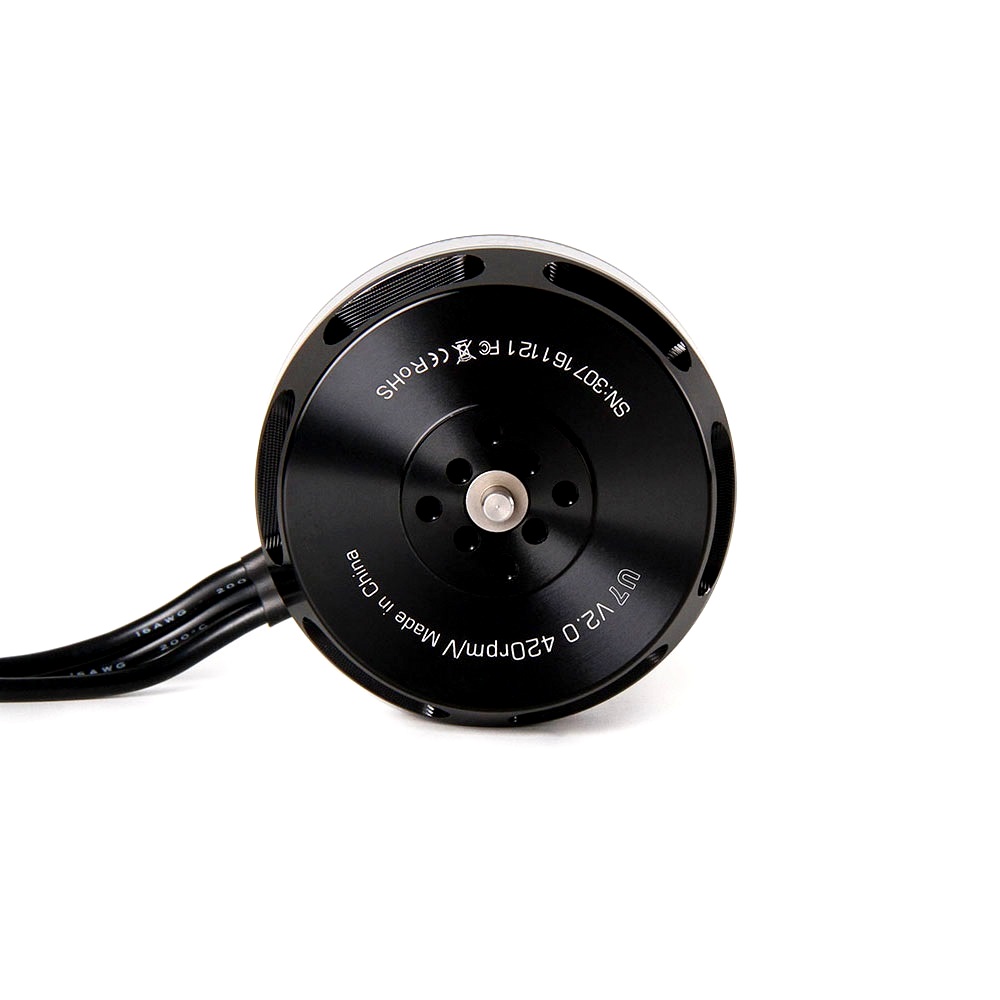

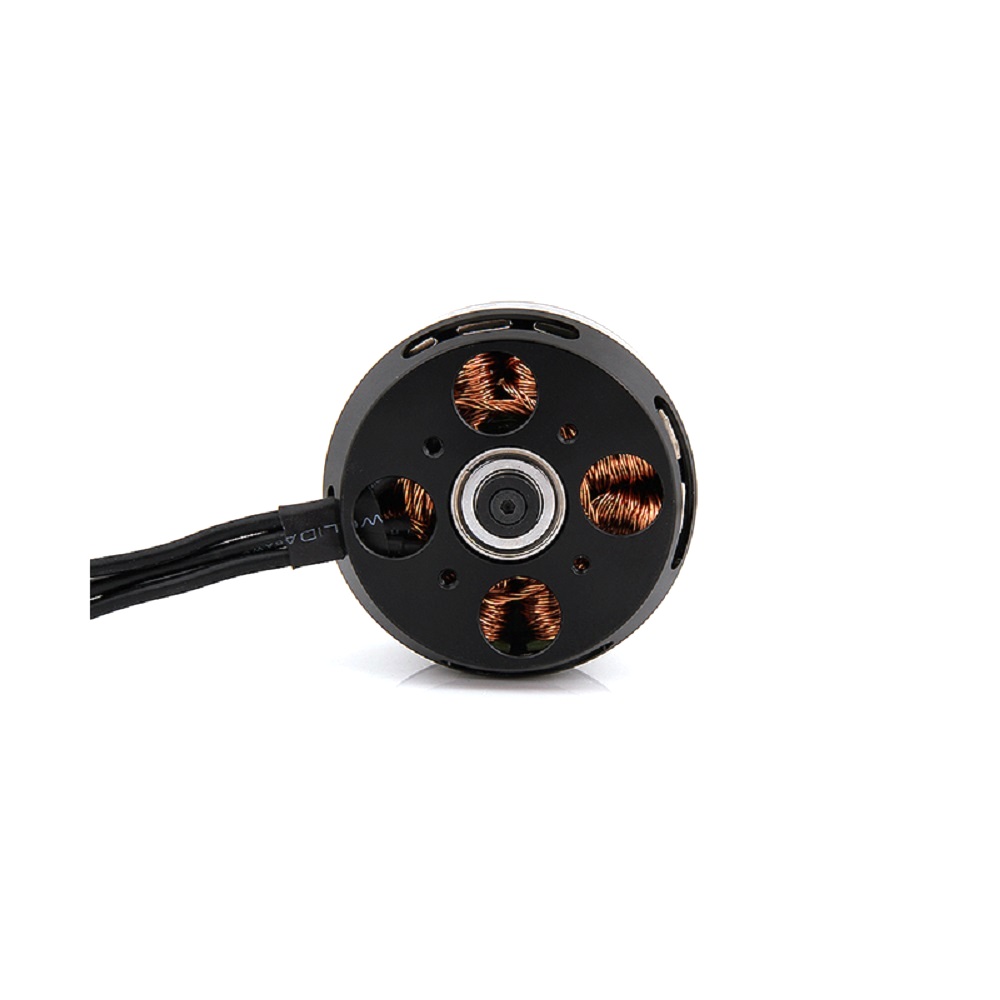

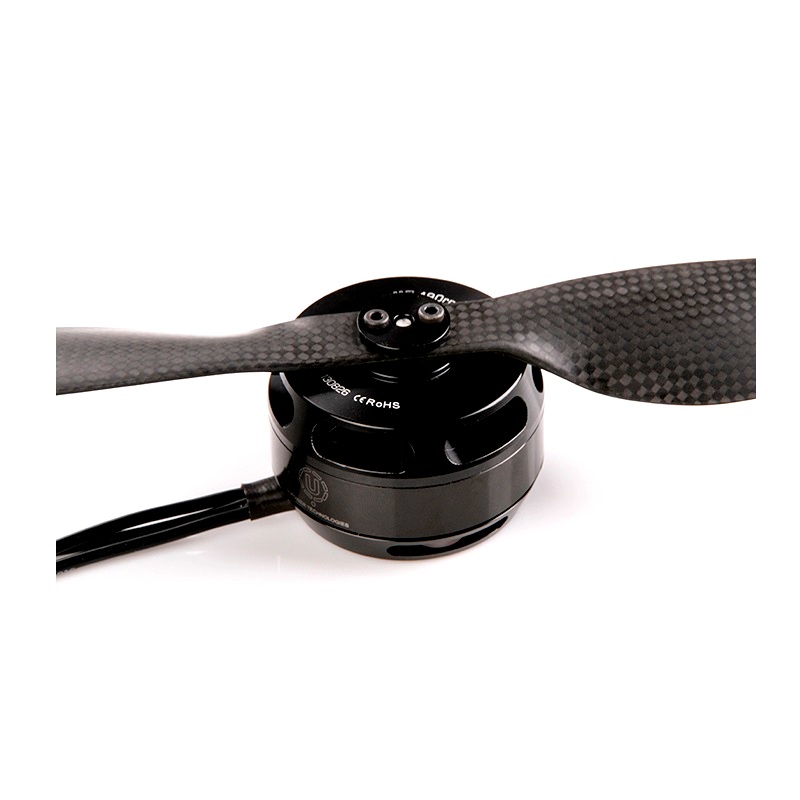

T-Motor U7-V2.0 490KV Drone Motor
The T-Motor U7-V2.0 490KV is a high-power, industrial-grade brushless motor engineered for heavy-lift multirotor UAVs with an all-up weight (AUW) of 10 to 24 kg, supporting a wide 3S to 8S LiPo voltage range for demanding aerial photography and enterprise applications.
Features
- High-torque 490KV motor optimized for 10-24 kg AUW heavy-lift drones.
- Wide 3S to 8S LiPo battery compatibility for flexible power system design.
- Rated for 44A continuous current (80S) with a peak power output of 1300W.
- Features a 4mm hardened steel shaft and a 12N14P magnetic configuration.
- IP-rated waterproof and dustproof construction with advanced thermal management.
Out of stock

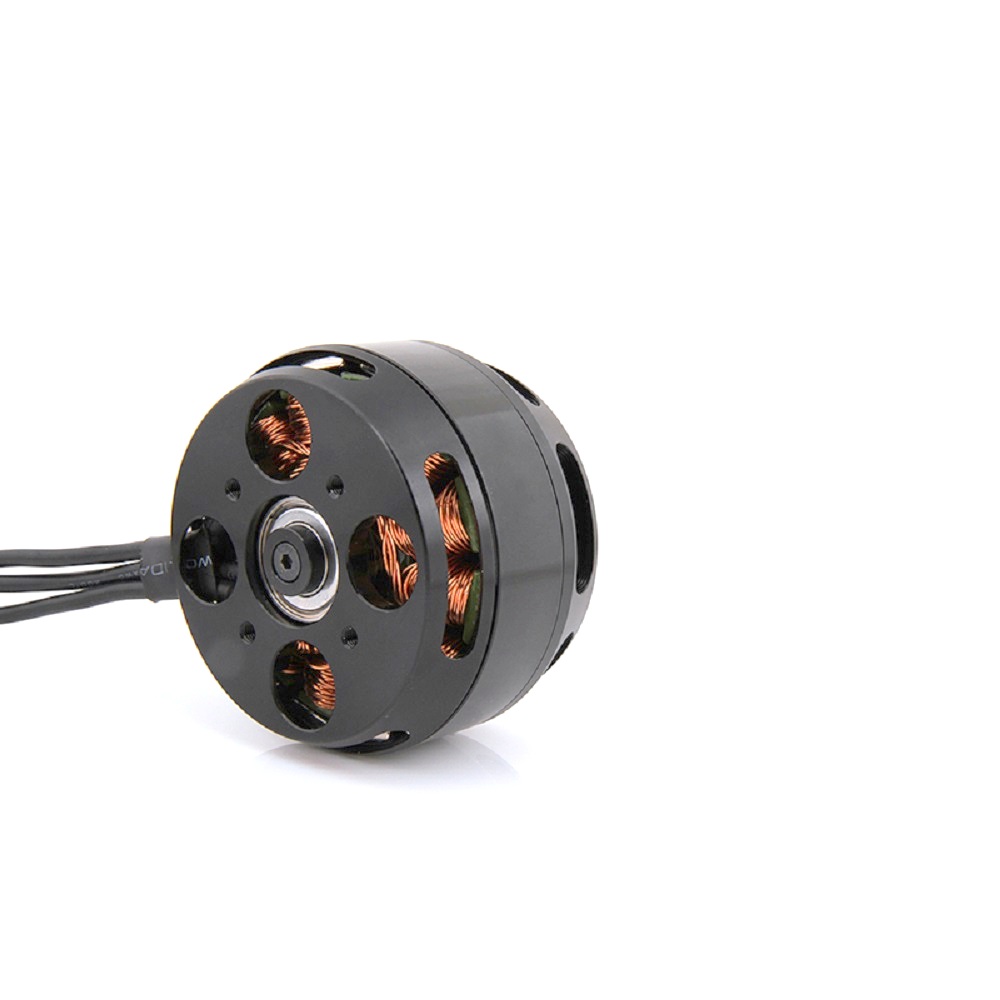

The T-Motor U7-V2.0 is engineered for professional UAV platforms requiring exceptional torque and efficiency. Its 12N14P stator configuration and oxygen-free copper windings are optimized for smooth, high-torque operation across a broad 3S to 8S voltage range, delivering up to 1300W of peak power. The motor is built to handle continuous currents of 44A, making it suitable for prolonged flight operations with heavy payloads.

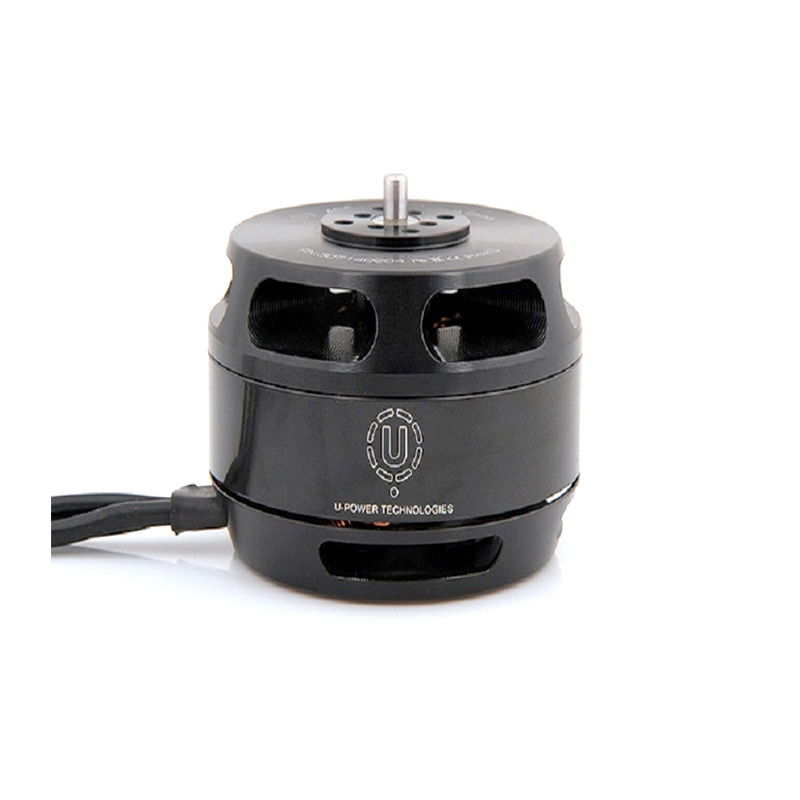

Durability is a core focus, with imported German bearings providing a service life exceeding 1600 hours. The motor housing incorporates a unique side-hole design that accelerates airflow, resulting in a cooling efficiency claimed to be 2.5 times greater than conventional designs. This, combined with precision-wound 0.2mm silicon steel laminations, minimizes eddy current losses and operational heat, ensuring reliable performance in demanding environmental conditions.
Additional Information
| Weight | 0.513 kg |
|---|---|
| Dimensions | 16 × 12 × 7 cm |
