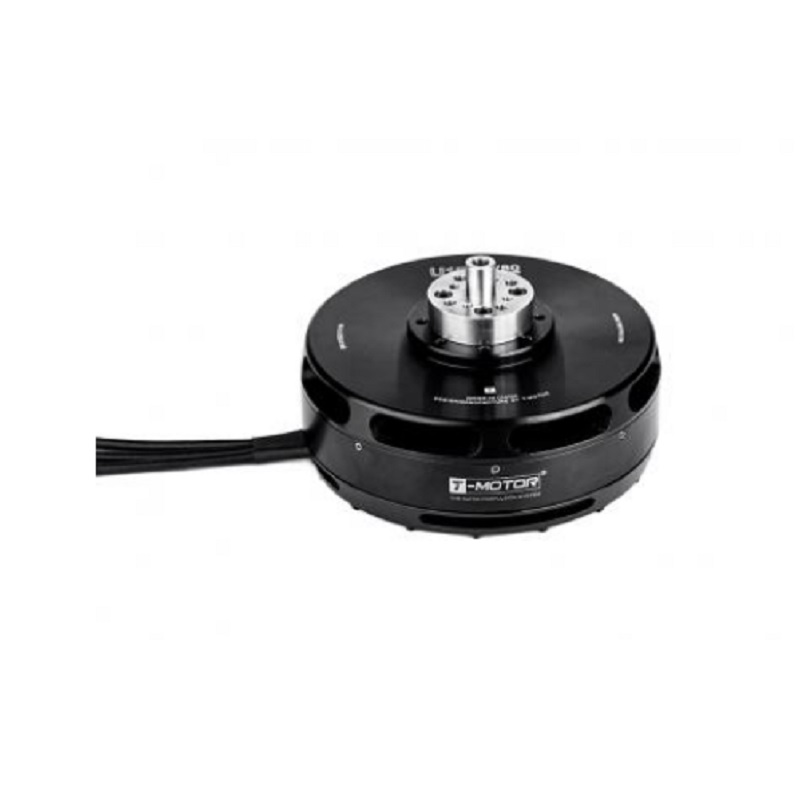

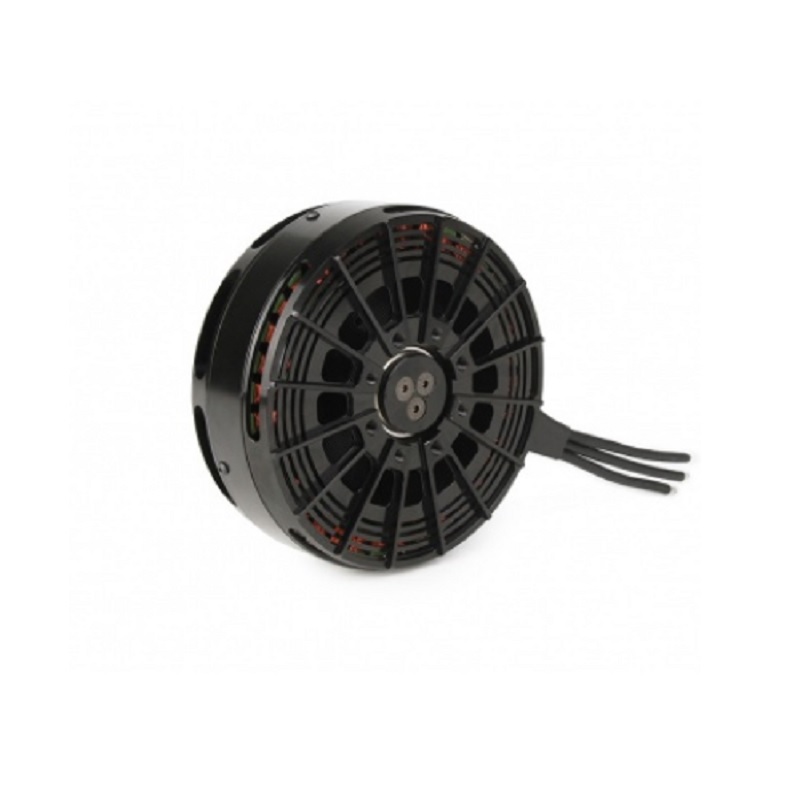

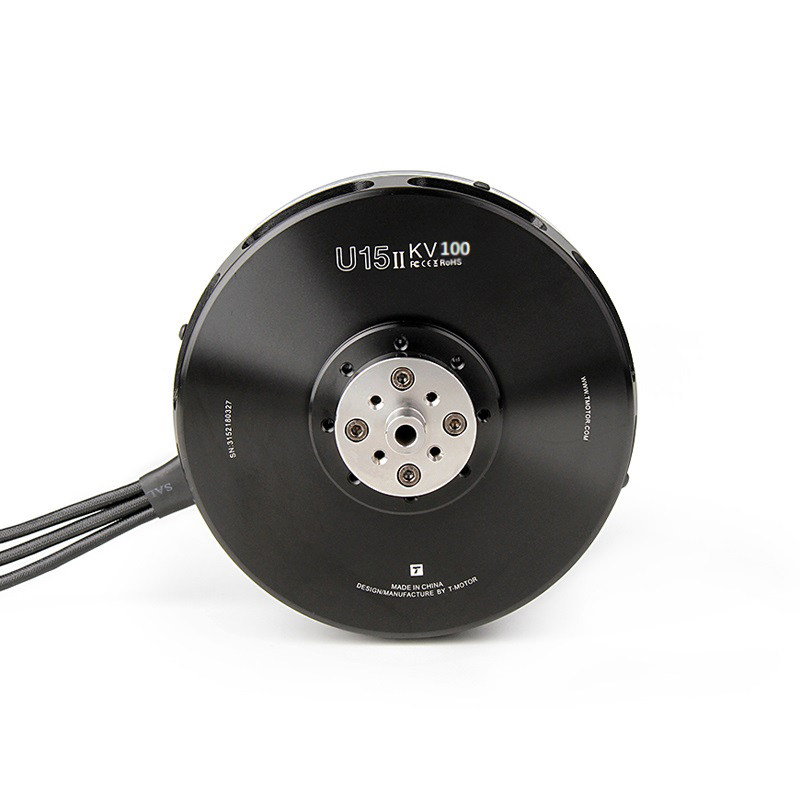

T-Motor U15II KV100 BLDC Drone Motor
The T-Motor U15II KV100 is a high-power, low-KV brushless motor engineered for heavy-lift and industrial UAV applications, compatible with 12S to 24S LiPo battery systems for demanding freight transport and aerial work platforms.
Features
- Low KV100 rating optimized for high-torque, low-RPM operation on large propellers.
- Supports extreme 12S to 24S LiPo voltage range for maximum power scalability.
- Military-grade, high-temperature resistant (Class C) enameled wire windings.
- Redesigned custom bearing system rated for 1000 hours of trouble-free operation.
- Robust 147.5mm diameter stator with 12mm hardened steel output shaft.
Out of stock
The T-Motor U15II represents a pinnacle of industrial drone motor design, built for mission-critical applications such as freight transport and manned UAV programs. Its engineering prioritizes stable power output and constant efficiency even in harsh environmental conditions, achieved through high-efficiency magnets and a 36N24P electromagnetic configuration.
Structural integrity is validated via simulated stress analyses under operational axial and radial loads. The motor’s construction, featuring a low 12mΩ internal resistance, ensures efficient power conversion and thermal management, supporting a maximum continuous current of 143A for sustained heavy-lift performance.
Additional Information
| Weight | 2.559 kg |
|---|---|
| Dimensions | 29 × 18 × 11 cm |
