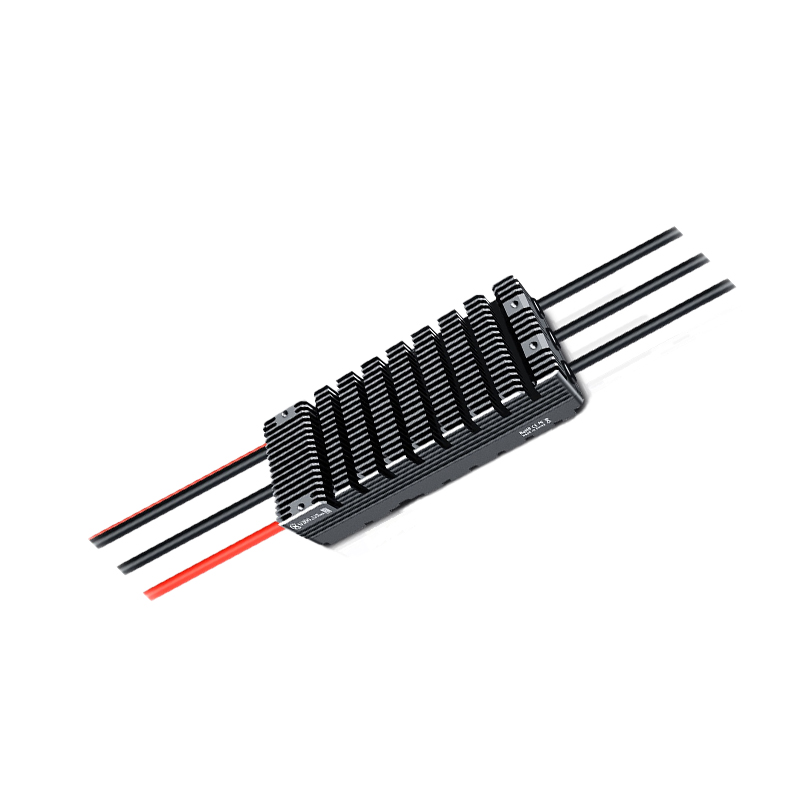

XC ESC ESC 300A 5-14S High-Voltage Brushless DC Motor Controller
The XC ESC ESC 300A controller is engineered for demanding applications like powered paragliders, delivering robust 300A continuous current and peak 320A with 5-14S LiPo compatibility. It features comprehensive protection systems and an IPX4-rated design for reliable performance in challenging environments.
Features
- Delivers 300A continuous, 320A peak current for high-power demanding applications.
- Supports a wide 5-14S LiPo battery input for versatile power system integration.
- Features comprehensive protection systems including short circuit, voltage, and temperature.
- Equipped with an RS-485 communication interface for seamless integration with flight controllers.
- IPX4 rated for resistance against water and dust, ensuring reliability in diverse environments.
Out of stock
The XC ESC ESC U300 V2 is a high-power Brushless DC Motor Automatic Electric Speed Controller specifically engineered for rigorous applications, prominently including powered paragliders and industrial UAVs requiring substantial thrust. This robust ESC is designed to manage a continuous current of 300A, with momentary peaks reaching 320A, ensuring stable and efficient power delivery even under extreme loads. Its architecture is optimized for thermal dissipation, crucial for maintaining performance across extended flight durations and high current demands.
Compatibility extends across a broad 5-14S LiPo battery range, offering significant flexibility for various power system configurations. The controller accurately interprets a throttle pulse width range from 1050us to 1940us, supporting both 3.3V and 5V PWM input signals for wide compatibility with diverse flight control systems. Additionally, integrated short circuit, over-voltage, and over-temperature protections safeguard both the ESC and connected components, enhancing overall system reliability and longevity. An IPX4 rating provides resistance to water and dust ingress, making it suitable for outdoor and challenging operational environments.
Featuring an RS-485 communication interface, the XC ESC ESC U300 V2 facilitates reliable and high-speed data exchange with advanced flight controllers. This enables comprehensive telemetry feedback and precise motor control, essential for sophisticated aerial platforms. Its substantial power handling capabilities, coupled with industrial-grade protections and communication options, position this ESC as a critical component for large-scale drone and electric propulsion projects demanding superior power management and durability.
Additional Information
| Dimensions | 17.6 × 7.3 × 4.22 cm |
|---|
