T-Motor Flame 100A 6S ESC

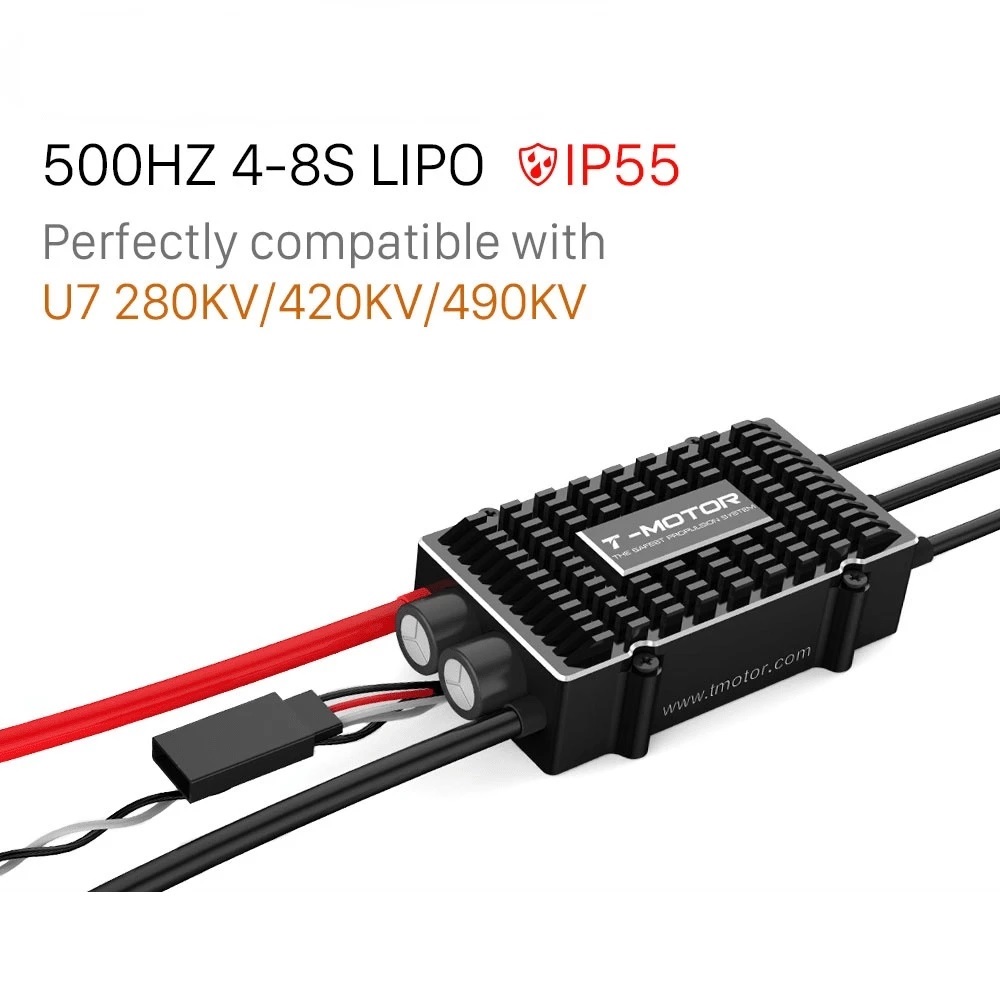

The Flame 100A ESC is designed to operate with a wide range of LiPo battery configurations, specifically supporting 4S to 8S LiPo input. This broad compatibility makes it suitable for various large multi-rotor platforms requiring significant power delivery and extended flight times for demanding industrial applications or heavy-lift operations.

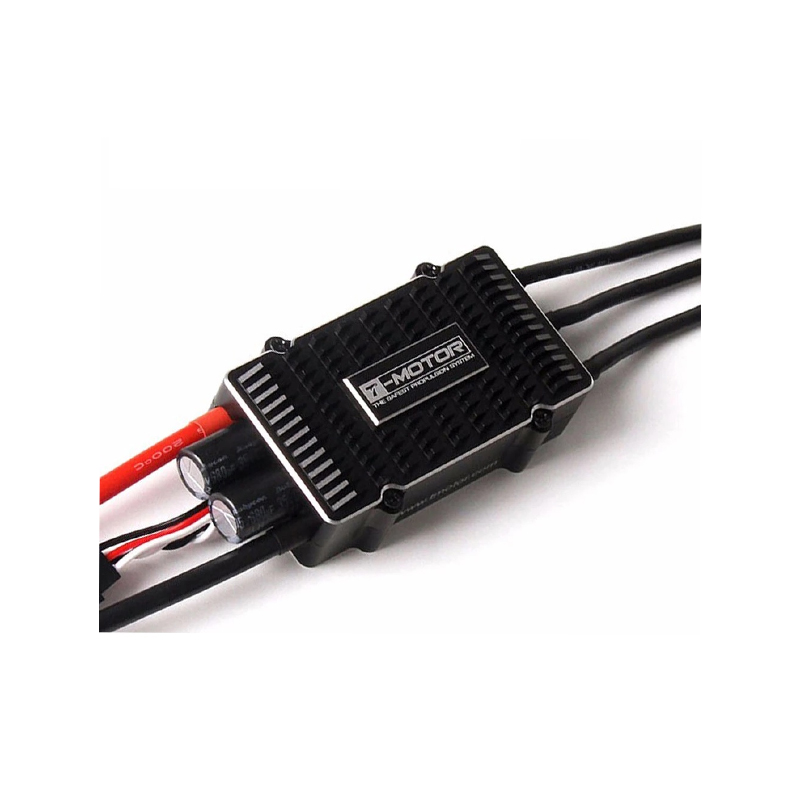

The CNC aluminum alloy enclosure serves a dual purpose: it provides superior mechanical protection against impacts and environmental factors, and more critically, it acts as a highly efficient heatsink. This design ensures optimal thermal dissipation, allowing the ESC to maintain stable performance and reliability even under continuous high current loads during intensive flight missions.

Yes, the T-Motor Flame 100A ESC is engineered with an IP55 industrial standard rating, incorporating a nanotechnology-coated PCB within its robust CNC enclosure. This combination provides excellent waterproofing and dustproofing capabilities, making the ESC highly resistant to environmental elements. It is thus ideal for outdoor operations in challenging weather, such as agricultural spraying or search and rescue missions.

Yes, the T-Motor Flame 100A ESC supports firmware updates, providing flexibility for future enhancements and bug fixes. Users can conveniently update the ESC's firmware using a USB adapter connected to a computer. Additionally, the ESC is compatible with various dedicated program cards, simplifying configuration and parameter adjustments both at home and in the field.
