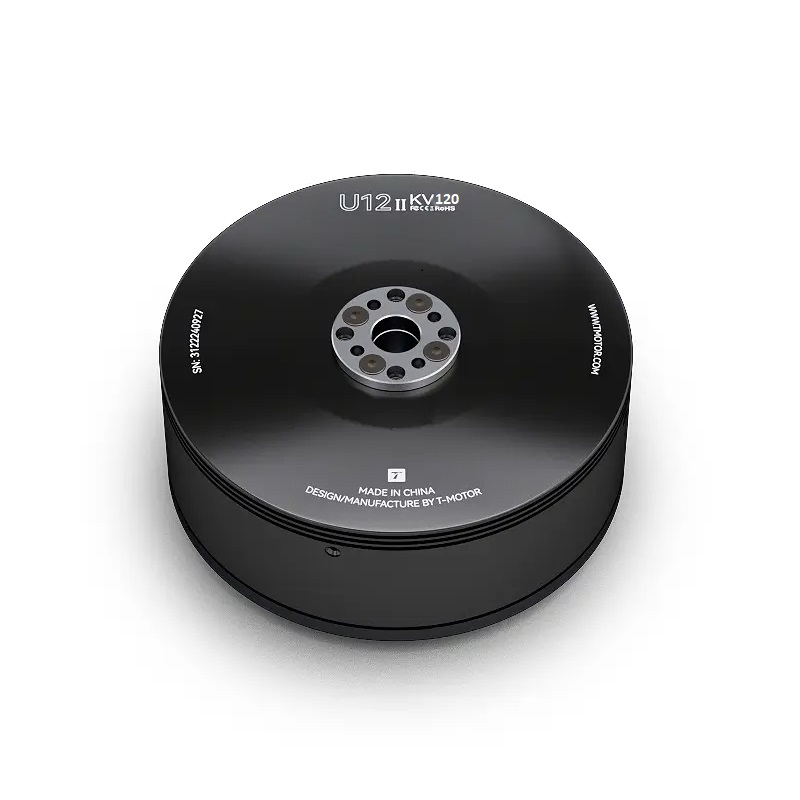

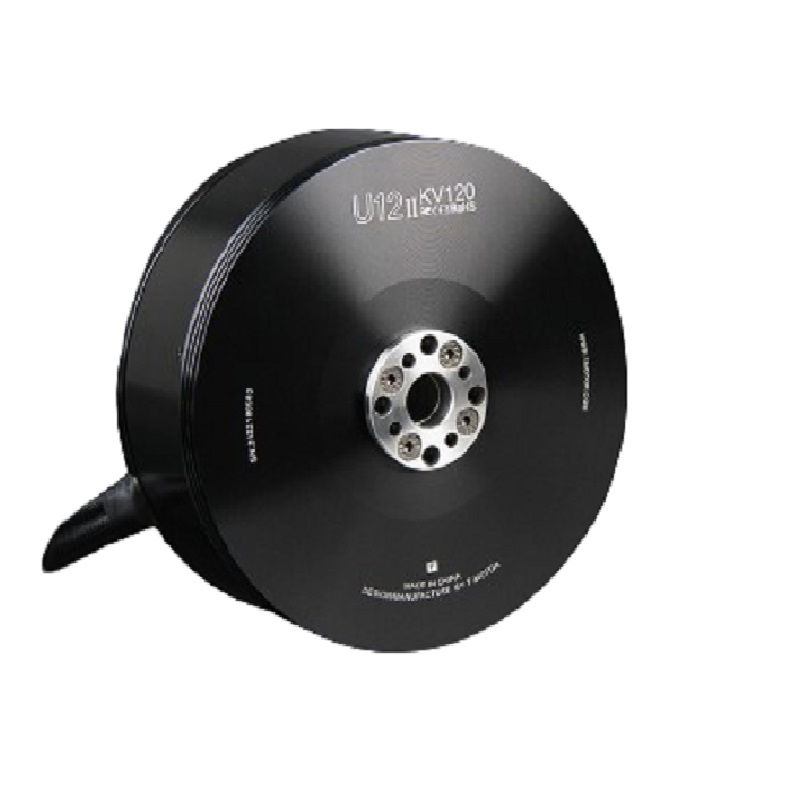

T-Motor U12 II KV120 Heavy-Lift Drone Motor
The T-Motor U12 II KV120 is a high-power, low-KV brushless motor engineered for heavy-lift and agricultural drone platforms, operating efficiently on 10S to 14S LiPo battery systems for demanding aerial payload applications.
Features
- Optimized 120KV rating for high-torque, low-RPM operation on 10S-14S LiPo systems.
- Delivers a maximum static thrust of 20.4 kg per motor with a peak power of 4560W.
- Features a new iron core stator design for enhanced thermal performance and durability.
- Robust construction with a 15mm shaft, 36N42P configuration, and integrated dust protection.
- Engineered for extended service life, rated for up to 1500 flight cycles (40 minutes each).
Out of stock
The T-Motor U12 II KV120 represents a significant advancement in heavy-lift propulsion technology. Its core design incorporates a new iron core stator that optimizes magnetic flux and heat dissipation, allowing the motor to operate reliably in high-temperature environments common in prolonged, high-load agricultural and industrial missions. This thermal resilience is critical for maintaining consistent performance and longevity.
Built around a 36N42P magnetic configuration, the motor provides exceptionally smooth and efficient torque conversion. The substantial 15mm shaft diameter and robust housing are engineered to withstand the mechanical stresses of heavy payloads and long-duration flights. With a rated voltage range of 10S to 14S (approximately 37V to 52V nominal), it offers pilots the flexibility to tailor power systems for maximum flight time or peak thrust, supporting a claimed 62% increase in payload capacity over previous generations.
Additional Information
| Weight | 1.11 kg |
|---|---|
| Dimensions | 15 × 18 × 9 cm |
