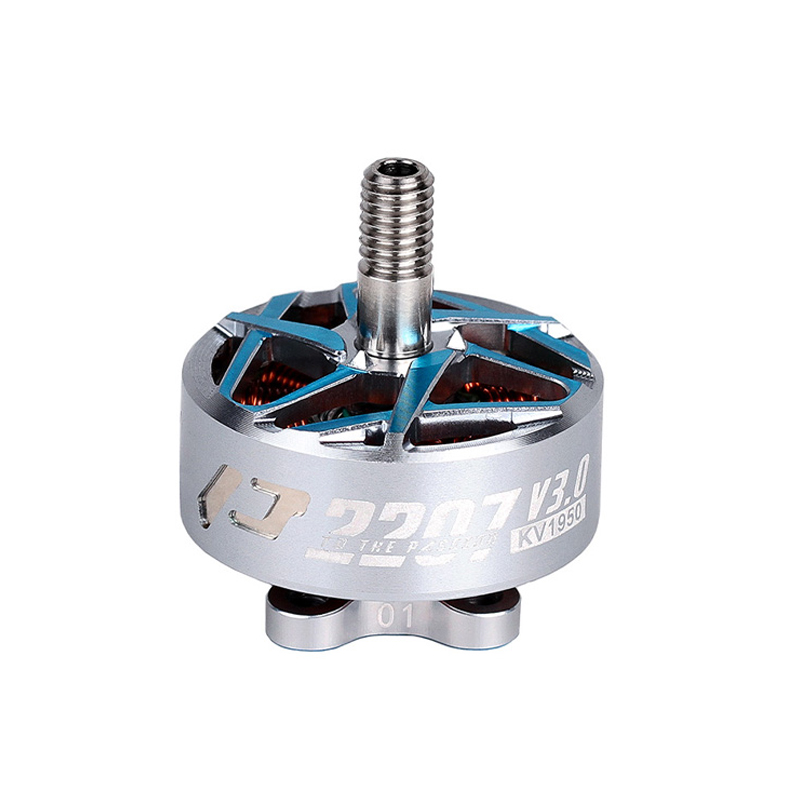

T-Motor P2207 V3.0 5" Freestyle FPV Drone Motor 4-6S 1950KV

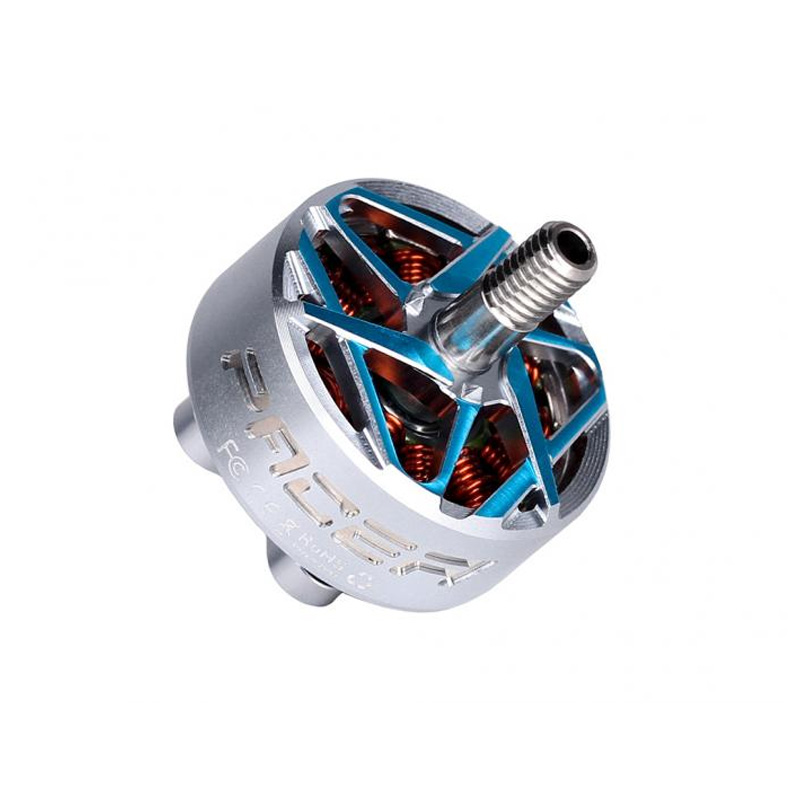

T-Motor P2207 V3.0 5" Freestyle FPV Drone Motor 4-6S 1950KV - Image 2
SKU: DRFC-2681
📋 GST Invoice Available

T-Motor P2207 V3.0 5" Freestyle FPV Drone Motor 4-6S 1950KV

₹2,639.00 (Inclusive of all taxes)
Out of Stock

The T-Motor P2207 V3.0 is a 1950KV brushless motor engineered for 5-inch FPV freestyle and racing drones, supporting 4-6S LiPo batteries for a balance of high torque and top-end speed.

Features

  • 1950KV rating optimized for 5-inch propellers on 4-6S LiPo power
  • P2207 stator size (22mm diameter, 7mm height) for a strong power-to-weight ratio
  • Curved N52SH neodymium magnet design for smooth operation and high magnetic flux
  • Robust construction with CNC-machined aluminum alloy housing and steel shaft
  • 30A max current handling for aggressive freestyle and racing maneuvers

Out of stock

Description

The T-Motor P2207 V3.0 represents a refined iteration in the popular P-Series, built specifically for the demands of modern 5-inch FPV platforms. Its 1950KV rating provides an optimal blend of torque for rapid acceleration and high rotational speed for maximum velocity, making it a versatile choice for both technical freestyle and competitive racing.

Engineered with durability in mind, the motor incorporates a curved magnet design within a precision-balanced bell to minimize cogging and improve efficiency. The use of high-grade bearings and a rigid stator structure ensures consistent performance and thermal management, even under the high loads of aggressive flying on 6S power.

Key Features

  • V3.0 Enhanced Stator: Updated winding pattern and lamination for reduced electrical losses and improved heat dissipation.
  • N52SH Neodymium Magnets: High-strength, high-temperature magnets secured with high-temp epoxy for reliable performance under load.
  • Precision Dynamic Balancing: Bell and rotor assembly are balanced to minimize vibration, leading to smoother video and longer component life.
  • Dual Ball Bearing Support: Features a large 5x13mm bottom bearing and a 4x9mm top bearing for shaft stability and longevity.
  • Lightweight CNC Aluminum Alloy: Machined housing provides structural integrity while keeping the total weight at 32 grams.
  • Wide Voltage Compatibility: Officially rated for 4S (14.8V) to 6S (22.2V) LiPo battery configurations.
  • Standard M5 Threaded Shaft: Compatible with a wide range of 5-inch propellers using standard M5 lock nuts.
  • Optimized for Betaflight: Smooth operation pairs well with modern flight controller firmware for precise throttle control.

Applications

  • 5-inch FPV Freestyle Drones: Ideal for builds requiring a balance of power and control for tricks, dives, and proximity flying.
  • 5-inch FPV Racing Drones: Provides the high top speed and responsive throttle needed for competitive multi-gate racing circuits.
  • Long-Range 5-inch Cruisers: Efficient enough for extended flight times on 4S or 5S configurations when paired with lower-pitch propellers.
  • Heavy-Lift 5-inch Cinewhoops: Suitable for carrying action cameras or lightweight digital HD FPV systems on durable frames.

Technical Specifications

Model NameT-Motor P2207 V3.0
Motor KV1950 KV (RPM/Volt)
Stator Size2207 (22mm x 7mm)
Voltage Range4-6S LiPo (14.8V - 22.2V)
Max Continuous Current30A
Shaft ThreadM5
Motor Weight32g
Connection3-pin Bullet Connector (typically 3.5mm)
Mounting Pattern16x19mm M3
Motor TypeOutrunner Brushless

Frequently Asked Questions

What size propellers are recommended for the T-Motor P2207 V3.0 1950KV motor?

This motor is optimized for 5-inch propellers. Common pairings include 5040, 5045, or 5140 tri-blade props on 4S, and 5040 or lower-pitch 5045 bi-blade props on 6S to manage amp draw and maximize performance. Always use an M5 lock nut for secure attachment.

Can I run this motor on a 6S LiPo battery?

Yes, the T-Motor P2207 V3.0 is officially rated for 4-6S LiPo batteries (14.8V to 22.2V). When using 6S, ensure your Electronic Speed Controllers (ESCs) are also rated for 6S and monitor motor temperatures, as the higher voltage will increase RPM and potential amp draw with aggressive propellers.

What is the mounting hole pattern for this motor?

The motor features a standard 16x19mm M3 mounting hole pattern. This is compatible with the vast majority of 5-inch FPV drone frames. Ensure you use the correct length M3 screws to avoid damaging the internal motor windings.

Does this motor come with bullet connectors installed?

Typically, T-Motor P-Series motors are supplied with 3.5mm bullet connectors pre-soldered. You will need to solder the corresponding female connectors to your ESCs. Always check your specific ESC's connector type and solder carefully to avoid cold joints.

Package Includes

  • 1 x T-Motor P2207 V3.0 1950KV Brushless Motor

Additional Information

Weight 0.05 kg
Dimensions 5 × 5 × 5 cm
